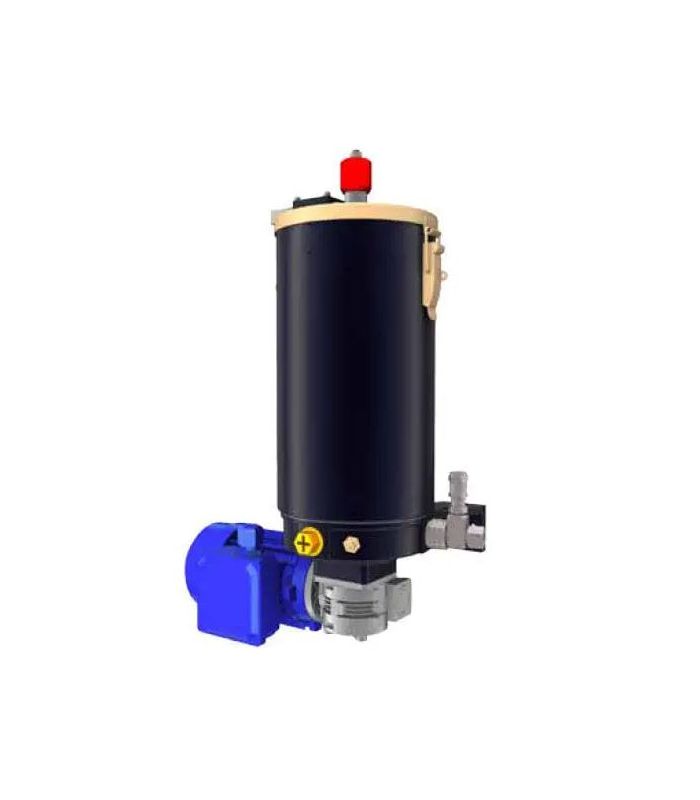

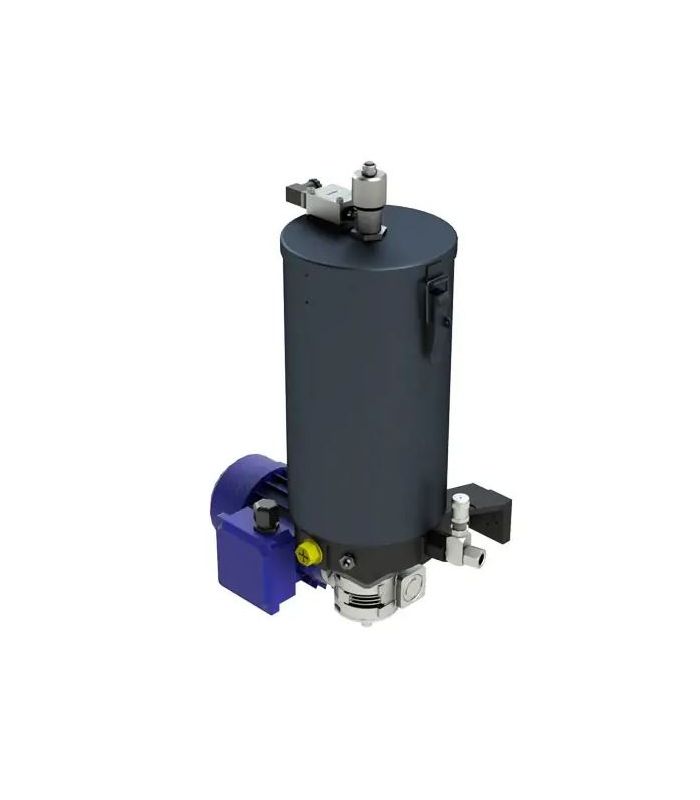

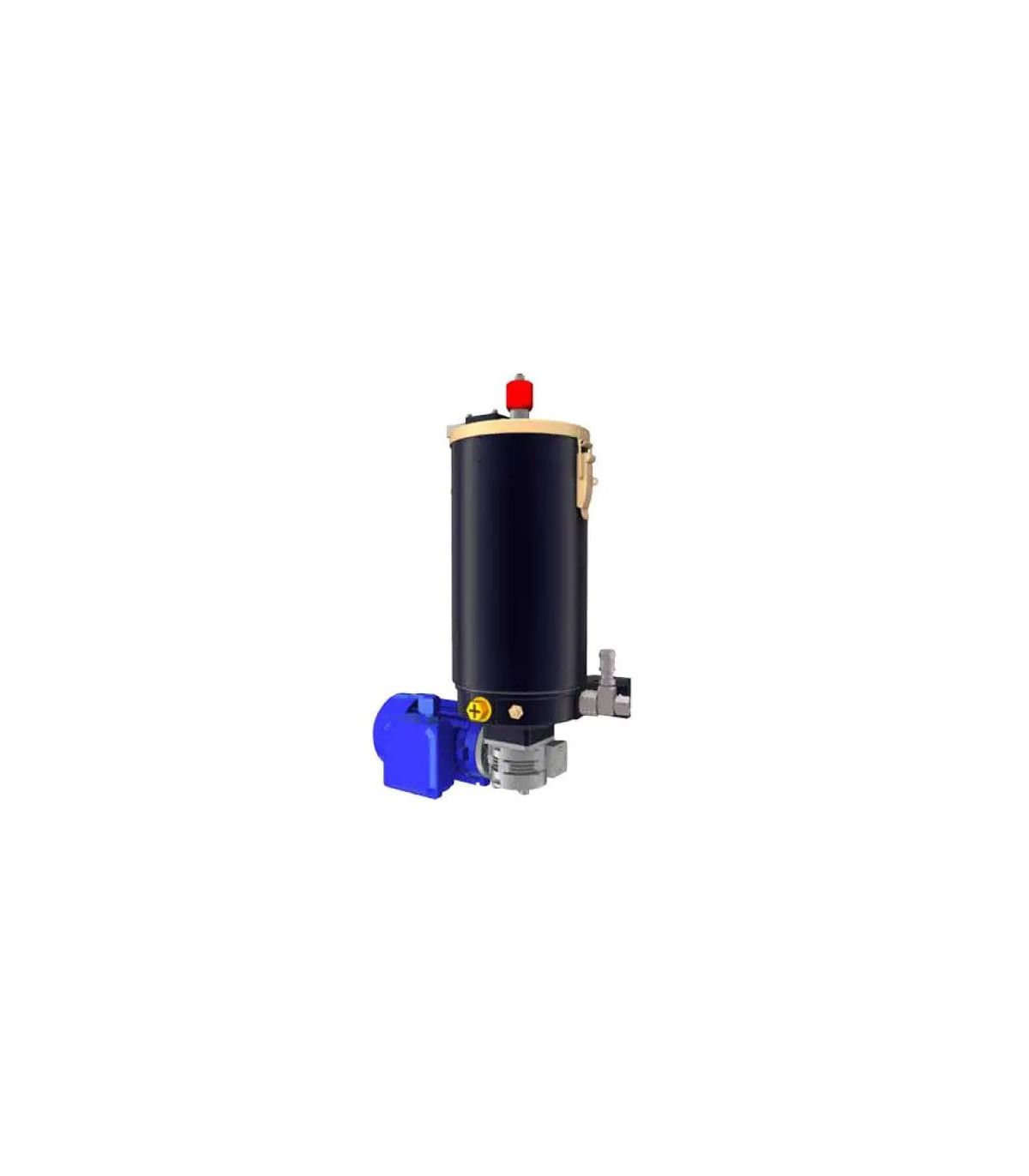

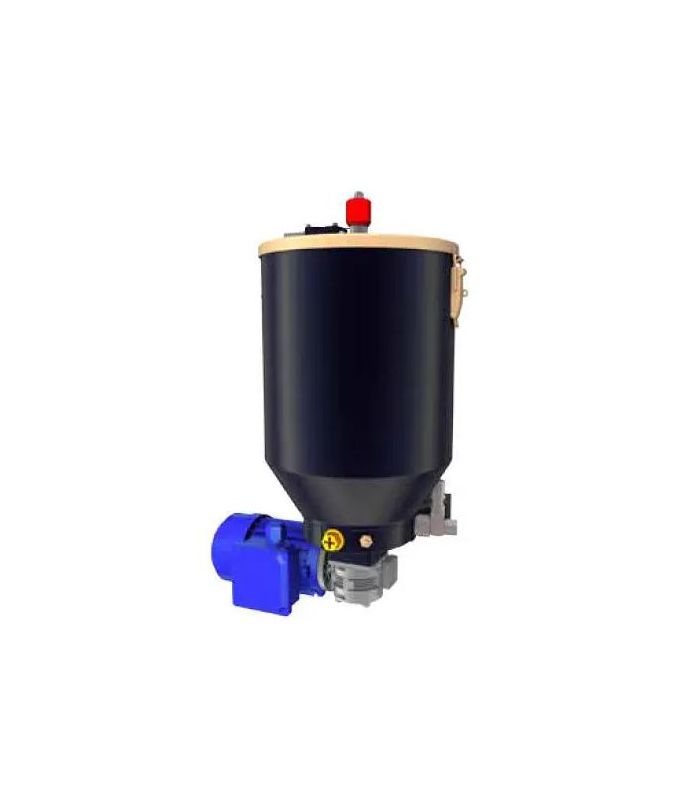

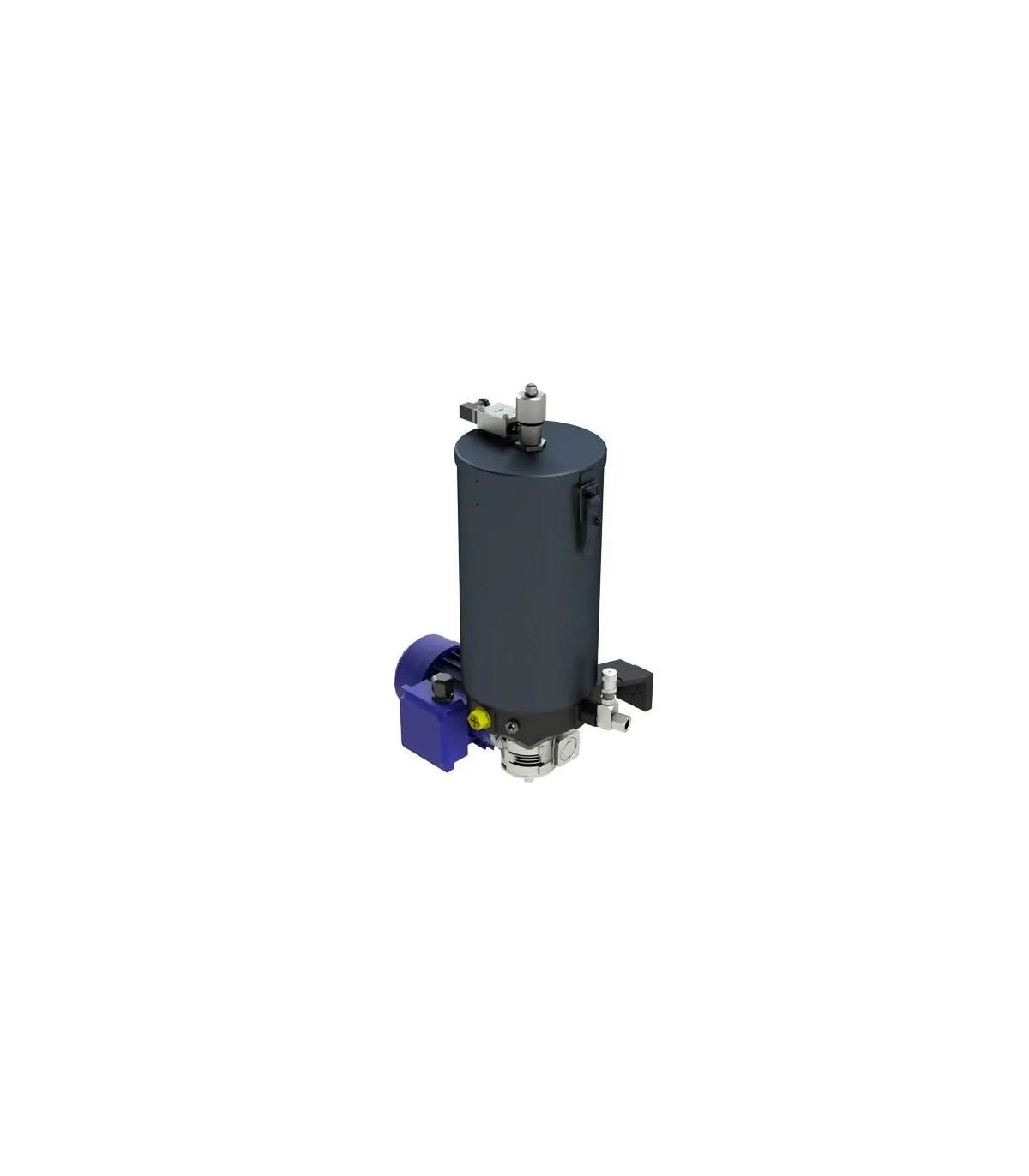

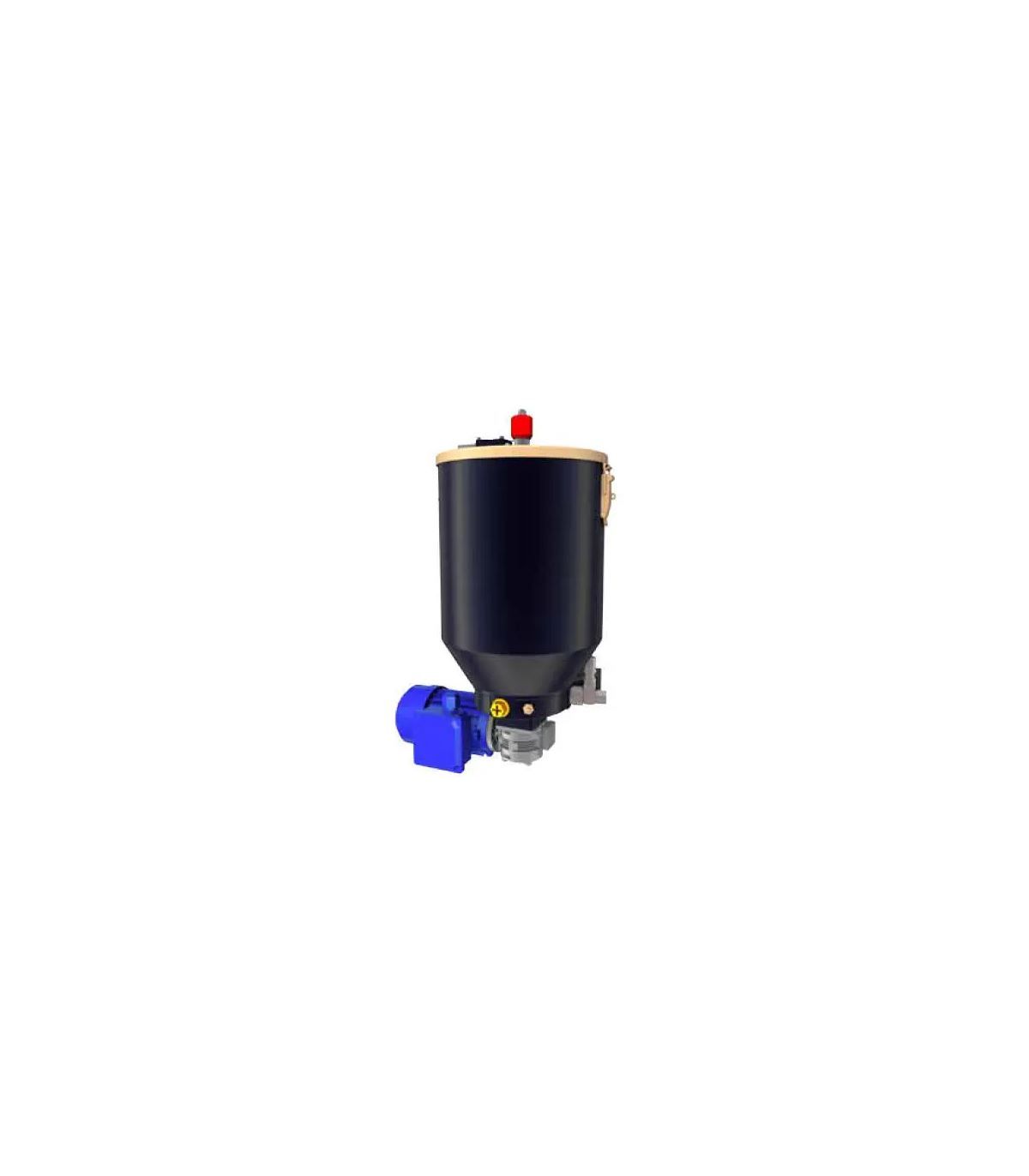

ELECTRIC OIL GREASE PUMP
ELECTRIC OIL GREASE PUMP
ELECTRIC OIL GREASE PUMP
ELECTRIC OIL GREASE PUMP
ELECTRIC OIL GREASE PUMP
ELECTRIC OIL GREASE PUMP

ELECTRIC OIL GREASE PUMP

The electric oil grease pump is ideal for the automatic lubrication of any type of industrial or agricultural machinery. Lubrication cycles can be programmed via an external PLC according to application requirements.

Main features:

  • Maximum recommended pressure 350 bar. Standard setting 250 bar.
  • Motor power 90W THREE-PHASE
  • Motor voltage 220-240/380-420 V 50 Hz
  • Recommended oils: Minerals 50-1500 cSt.
  • Two tank capacities 5 or 10 Kg. Metallic.
  • Cycle flow rate with fixed pumping element 0.16 cc
  • Operating temperature: -30ºC to +80ºC
  • Vertical installation
  • It is supplied with one pumping element. (Possibility of 2 more outlets)
  • 1/4" Gas Drive Fitting
  • IP-65 protection rating

*See other settings.

DOWNLOAD TECHNICAL CATALOGUE

€1,694.00 (tax included)
€1,400.00 (tax excl.)
CHOOSE MODEL
  • 5 Kg.
  • 10 Kg.
VOLTAGE/VOLUME
  • 220VAC
Reference:
630809
Description

Electric oil grease pump

The electric oil lubrication pump is specifically designed for oil transfer and application. This unit combines the power of a high-performance motor with the precision of a constant flow control system.

It is the ideal solution for filling tanks and lubricating critical points in industrial, mining and construction environments where compressed air is not available.

Technical advantages

  • Greater lubrication efficiency
  • Reduction of wear and tear and extension of the useful life of equipment
  • Reliable operation under demanding conditions
  • Less manual intervention (automated lubrication)

Applications

  • Centralized lubrication systems
  • Industrial and automotive maintenance
  • Heavy machinery and production equipment
  • Presses, reducers, bearings and linear guides
  • Installations where high pressure and precise oil dosing are required

Technical specifications of an electric oil grease pump:

Product Details
630809
