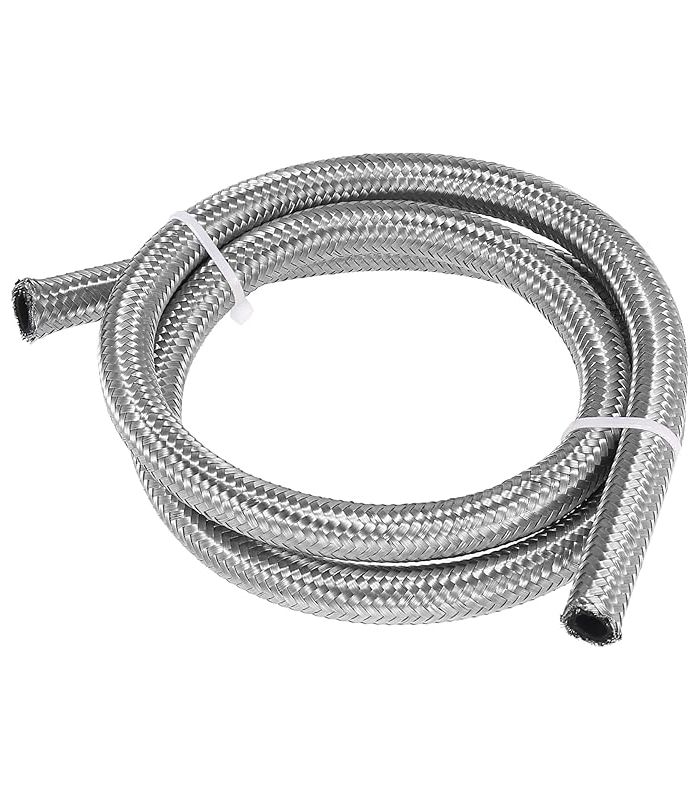

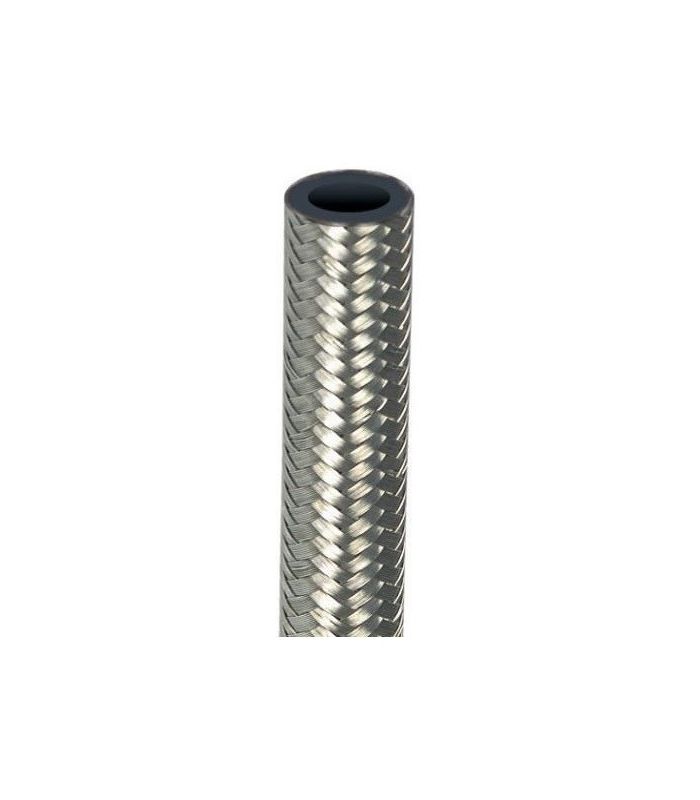

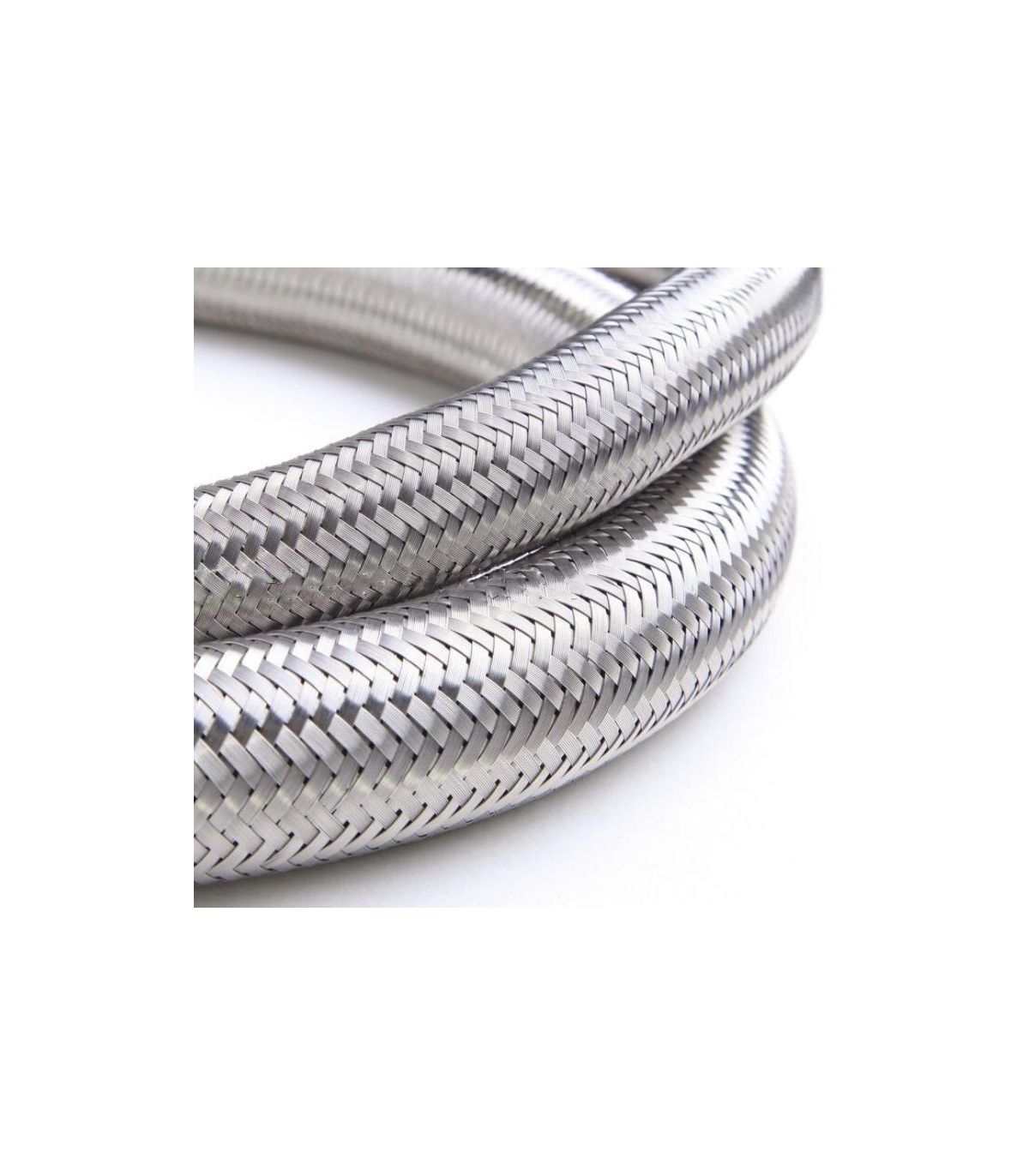

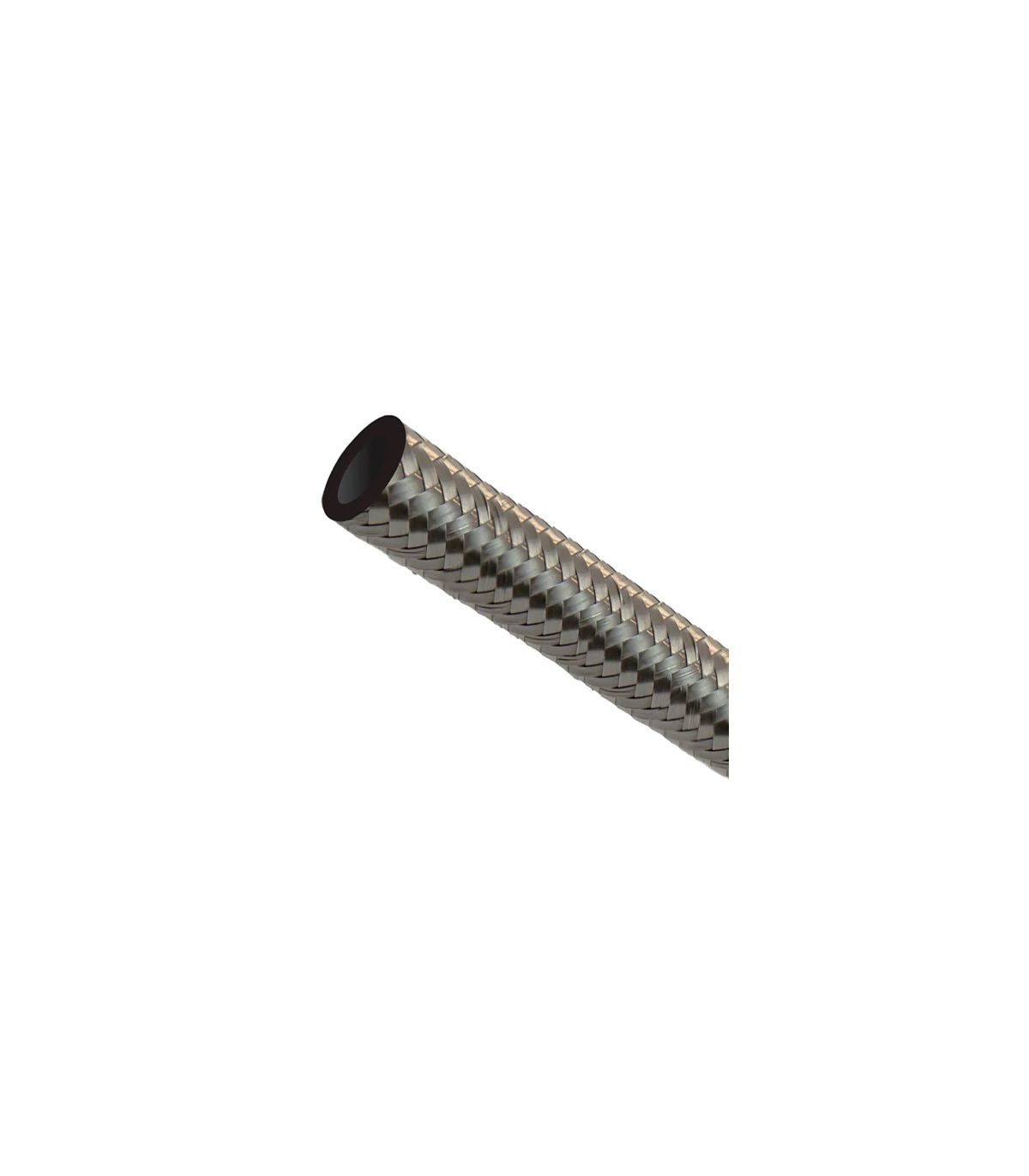

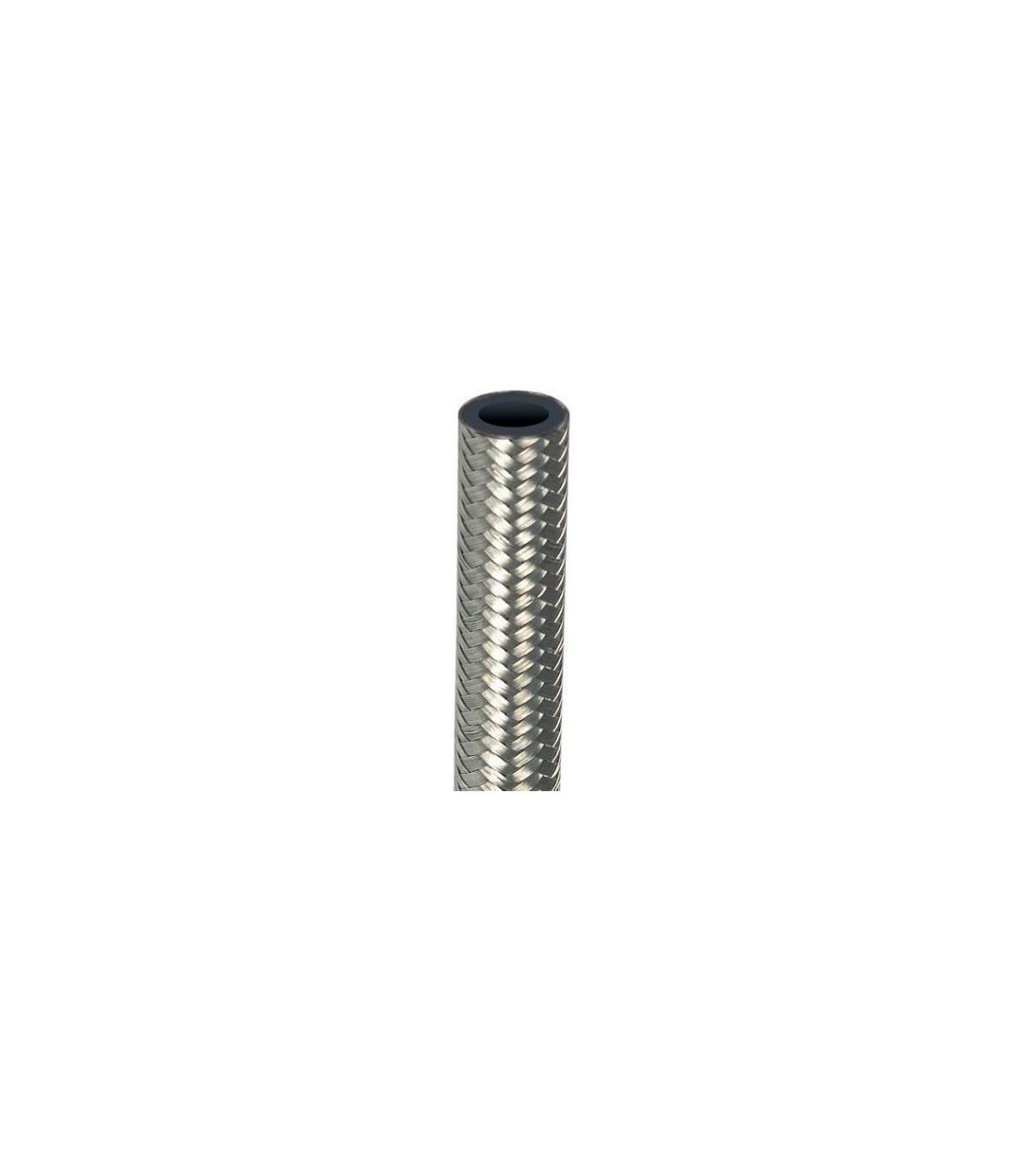

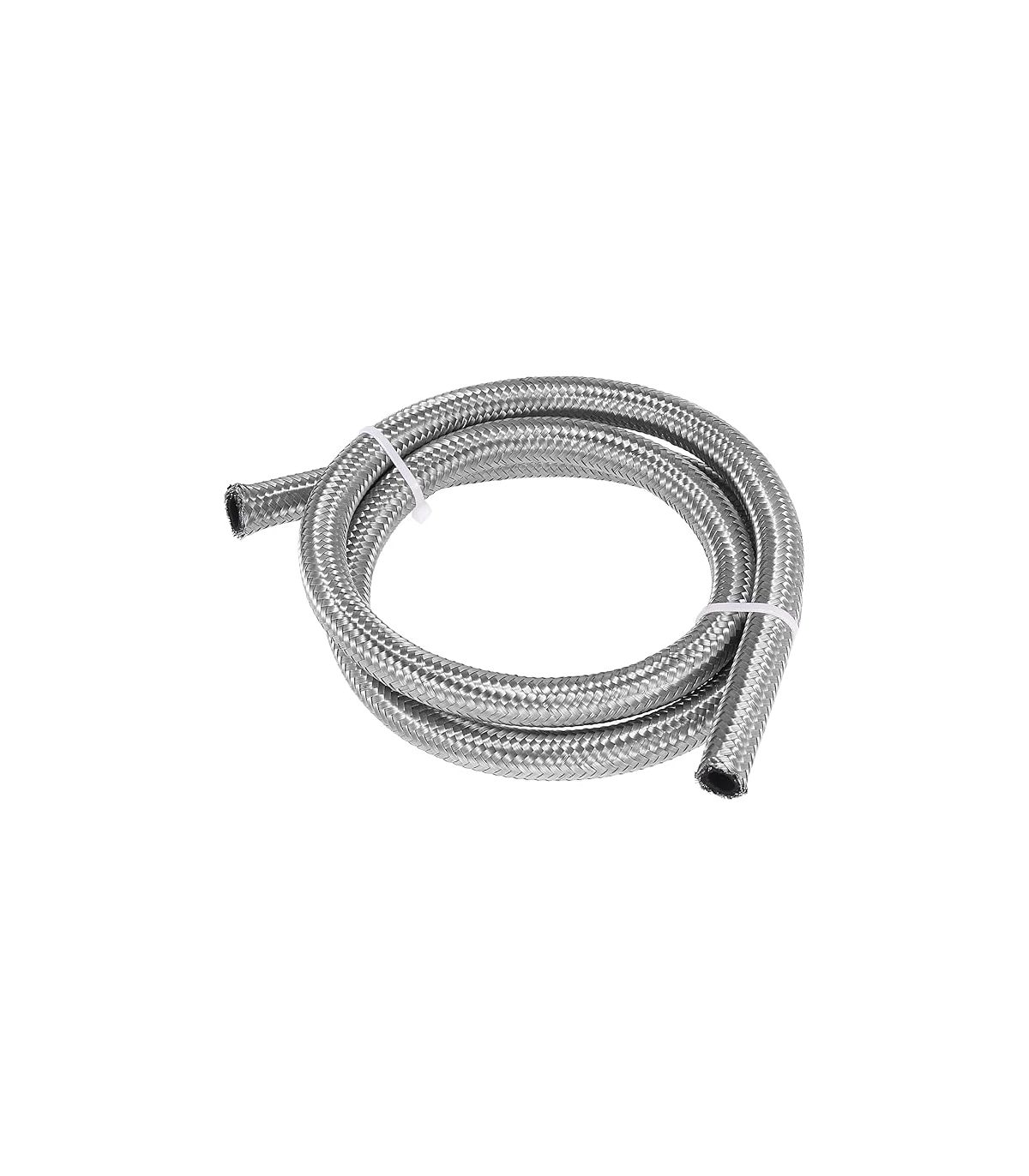

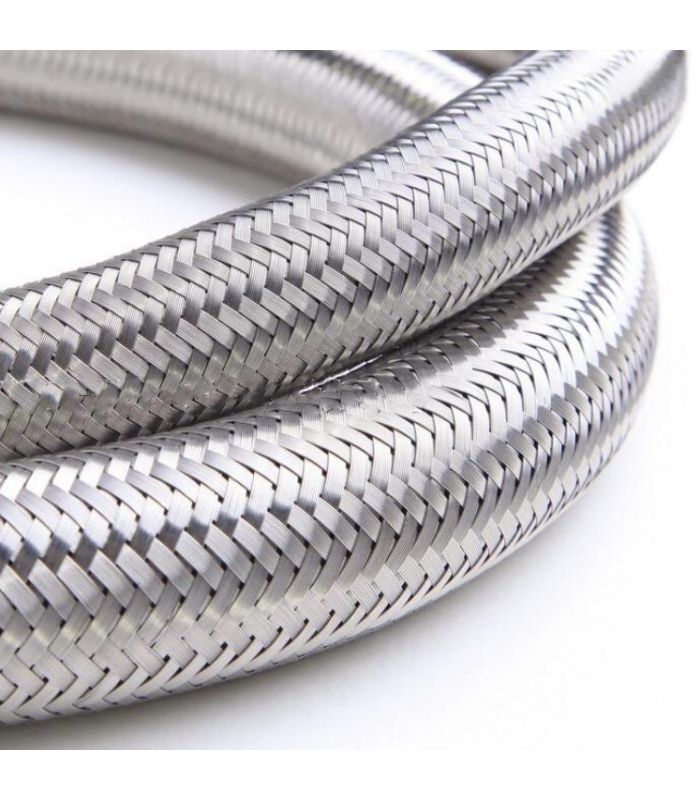

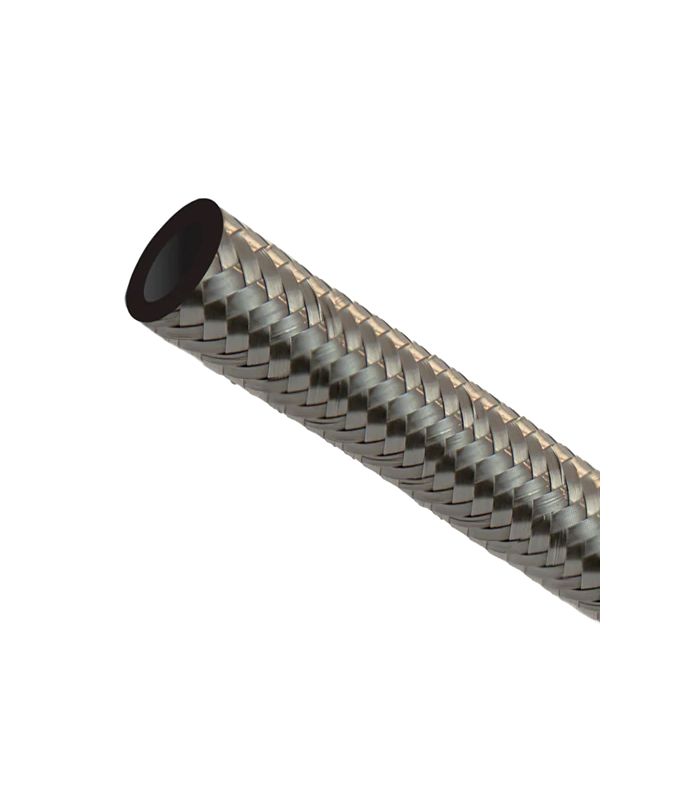

The metal braided hose is a flexible conduit for transporting liquids and gases, primarily in industrial applications. It stands out for its strength and durability, thanks to the metal braid in its structure. It is capable of withstanding high working pressures and abrasion.
Applications: gasoline, diesel, mineral and glycol-based liquids, lubricants, cooling water, compressed air, etc. in the petroleum industry, chemical industry, agriculture, construction, industrial machinery.
Main features:
The selection is by inner diameter.
Choose full rolls or linear meters, according to your needs.
The metal braided hose is a flexible and resistant solution designed for the conduction of fluids and air in industrial applications that require high mechanical resistance and safety in working under pressure.
Made with a high-quality flexible tube and reinforced externally with a metal braid, this hose offers excellent protection against pressure, abrasion, deformation, and mechanical stress.

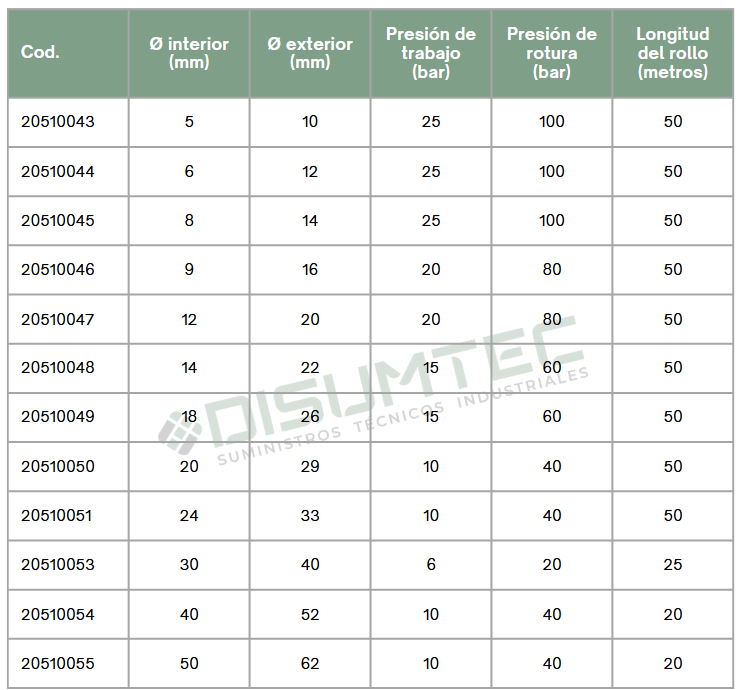

Technical specifications for a metallic braided hose:
| Code | Inner diameter (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure (bar) | Roll length (m) |
| 20510043 | 5 | 10 | 25 | 100 | 50 |
| 20510044 | 6 | 12 | 25 | 100 | 50 |
| 20510045 | 8 | 14 | 25 | 100 | 50 |
| 20510046 | 9 | 16 | 20 | 80 | 50 |
| 20510047 | 12 | 20 | 20 | 80 | 50 |
| 20510048 | 14 | 22 | 15 | 60 | 50 |
| 20510049 | 18 | 26 | 15 | 60 | 50 |
| 20510050 | 20 | 29 | 10 | 40 | 50 |
| 20510051 | 24 | 33 | 10 | 40 | 50 |
| 20510053 | 30 | 40 | 6 | 20 | 25 |
| 20510054 | 40 | 52 | 10 | 40 | 20 |
| 20510055 | 50 | 62 | 10 | 40 | 20 |
