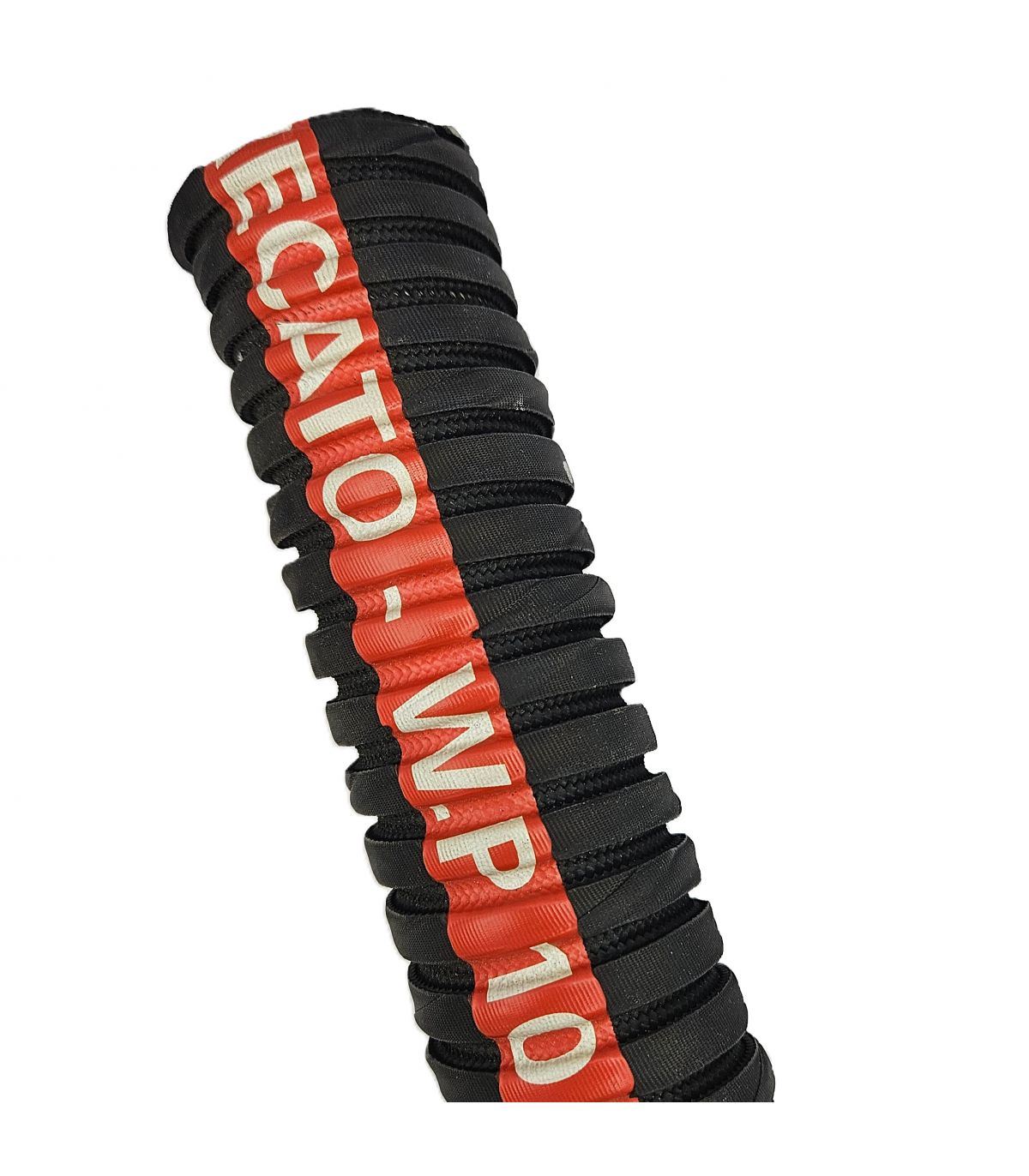

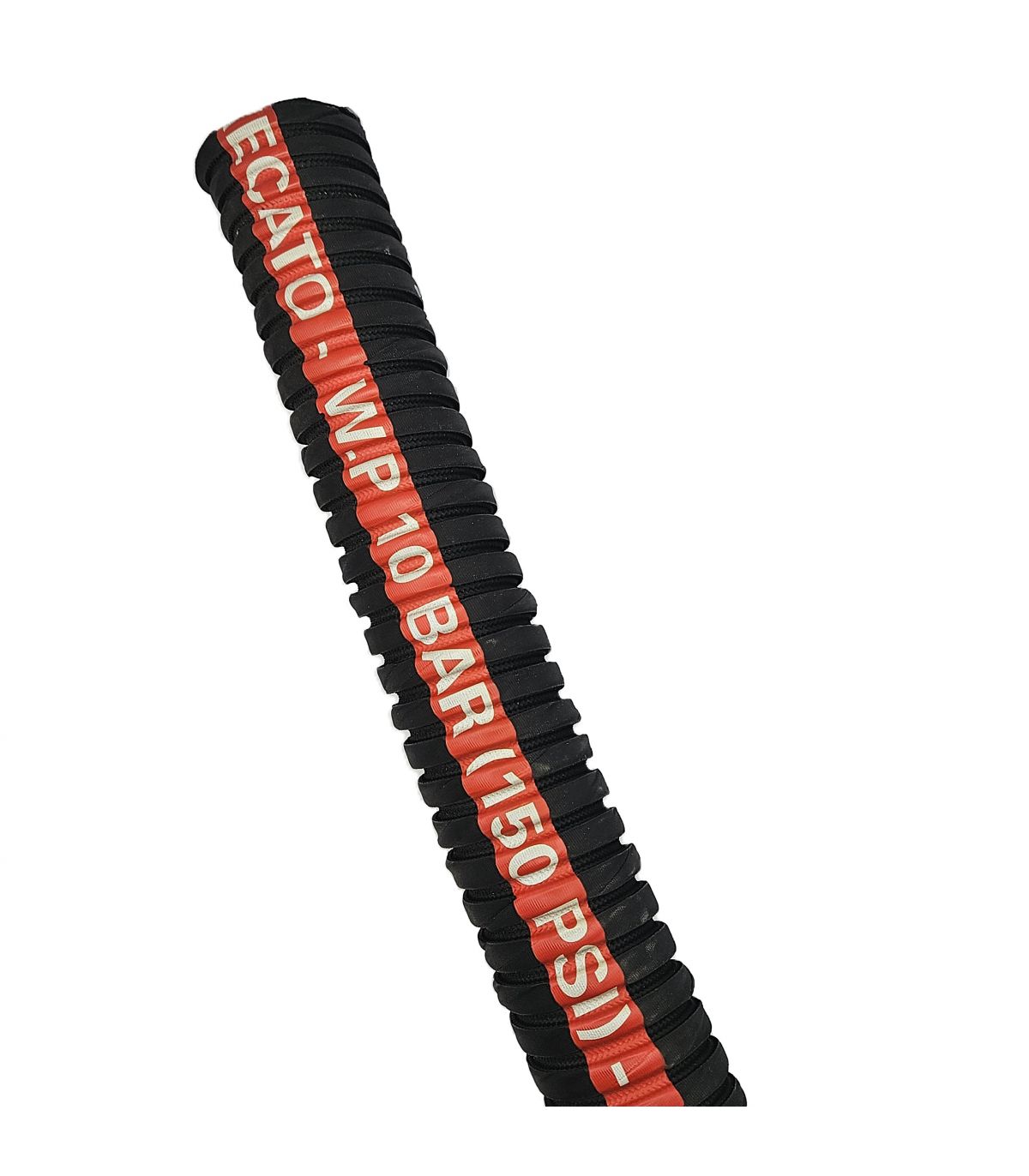

The 10 bar hydrocarbon suction and discharge hose is designed for the safe transport of gasoline, diesel, mineral oils, fuels and other petroleum derivatives in loading, unloading and transfer operations.
Applications: industrial facilities, fuel depots, tanker trucks and service stations.
Main features:
The selection is by inner diameter.
Choose full rolls or linear meters, according to your needs.

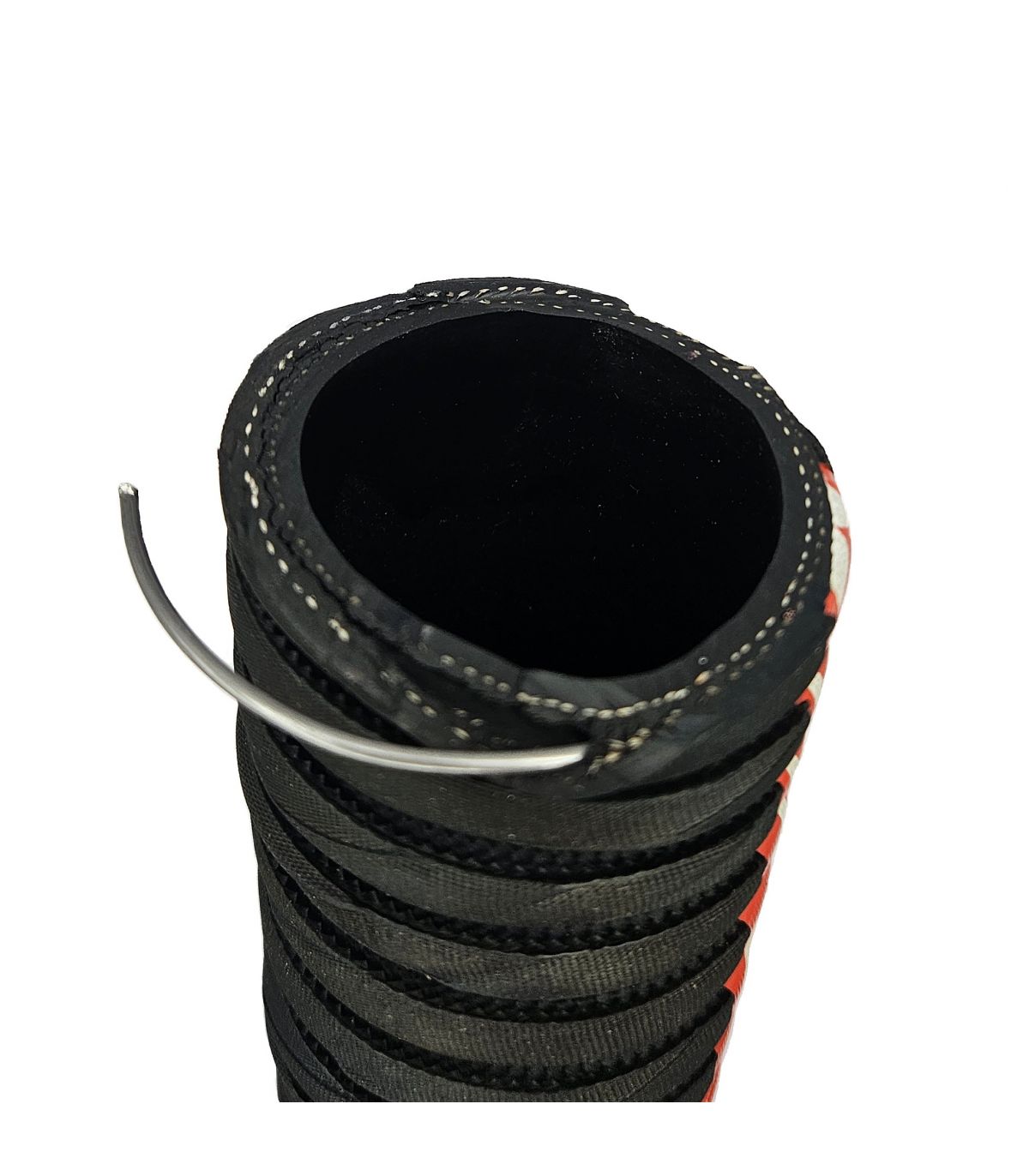

The hydrocarbon suction and discharge hose is designed for the safe transport of fuels, mineral oils, diesel, gasoline, and other petroleum products in industrial applications. Thanks to its reinforced construction with a metal spiral and high-strength textile reinforcements, it can be used for both suction and discharge, guaranteeing excellent performance even under demanding service conditions.
Its outer shell, resistant to abrasion, weathering and aging, provides a long service life, while the inner tube is specially formulated to offer high compatibility with commonly used hydrocarbons and fuels.
The hydrocarbon suction and discharge hose is suitable for:
It is recommended to periodically inspect the condition of the hose, checking for cracks, wear or deformation, verifying the condition of the fittings and avoiding exceeding the pressure or minimum bending radius specified by the manufacturer.
Technical specifications for the hydrocarbon suction and discharge hose:
| Reference | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Weight (kg/m) | Working pressure (bar) | Depression (mH2O) | Curve radius (mm) | Roll length (m) |
| 20671 | 16 | 25 | 4.50 | 0.350 | 10 | 9 | 35 | 40 |
| 20672 | 19 | 28 | 4.50 | 0.475 | 10 | 9 | 40 | 40 |
| 20673 | 22 | 31 | 4.50 | 0.550 | 10 | 9 | 45 | 40 |
| 20674 | 25 | 34 | 4.50 | 0.600 | 10 | 9 | 55 | 40 |
| 20675 | 30 | 39 | 4.50 | 0.800 | 10 | 9 | 65 | 40 |
| 20676 | 32 | 41 | 4.50 | 0.830 | 10 | 9 | 68 | 40 |
| 20677 | 35 | 45 | 5.00 | 0.875 | 10 | 9 | 75 | 40 |
| 20678 | 38 | 48 | 5.00 | 0.950 | 10 | 9 | 80 | 40 |
| 20679 | 40 | 50 | 5.00 | 1.050 | 10 | 9 | 85 | 40 |
| 20680 | 45 | 55 | 5.00 | 1,280 | 10 | 9 | 95 | 40 |
| 20681 | 51 | 61 | 5.00 | 1,400 | 10 | 9 | 125 | 40 |
| 20682 | 60 | 71 | 5.50 | 1,725 | 10 | 9 | 155 | 40 |
| 20683 | 63 | 76 | 6.50 | 1,875 | 10 | 9 | 170 | 40 |
| 20684 | 70 | 82 | 6.00 | 2,050 | 10 | 9 | 185 | 40 |
| 20685 | 76 | 88 | 6.00 | 2,450 | 10 | 9 | 200 | 40 |
| 20686 | 80 | 93 | 6.50 | 2,975 | 10 | 9 | 225 | 40 |
| 20687 | 90 | 104 | 7.00 | 3,450 | 10 | 9 | 255 | 40 |
| 20688 | 102 | 116 | 7.00 | 4,250 | 10 | 9 | 280 | 40 |
