REINFORCED CLAMP W2
REINFORCED CLAMP W2
REINFORCED CLAMP W2
REINFORCED CLAMP W2
REINFORCED CLAMP W2
REINFORCED CLAMP W2

REINFORCED CLAMP W2

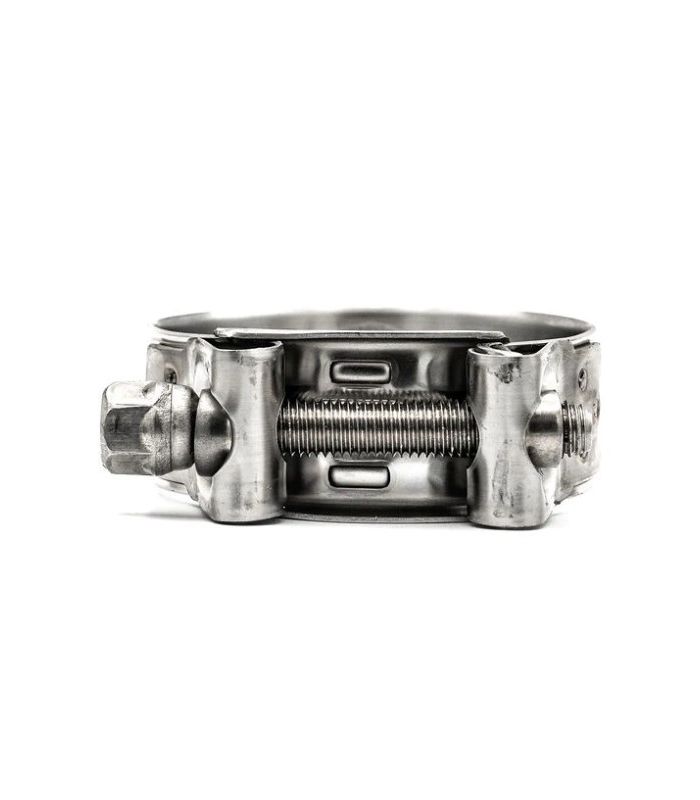

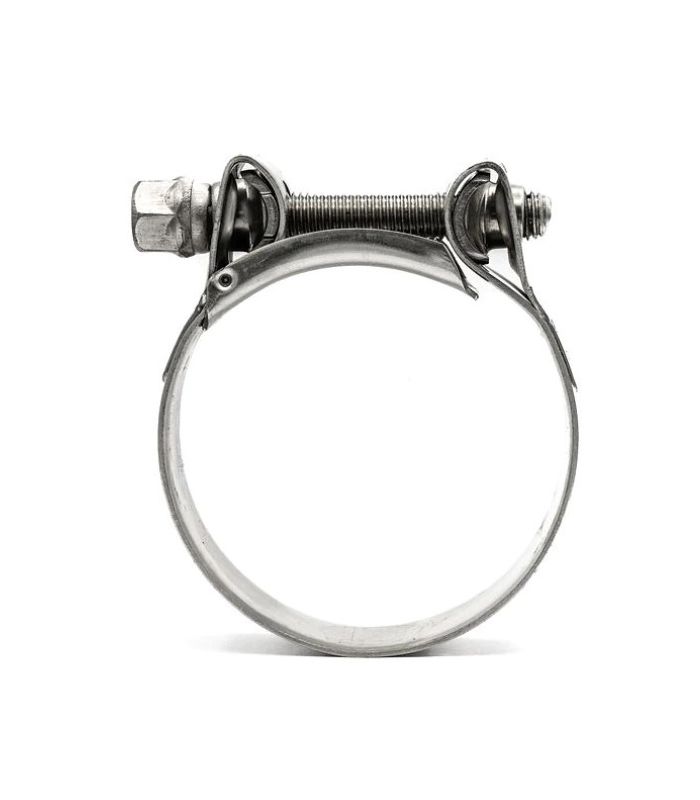

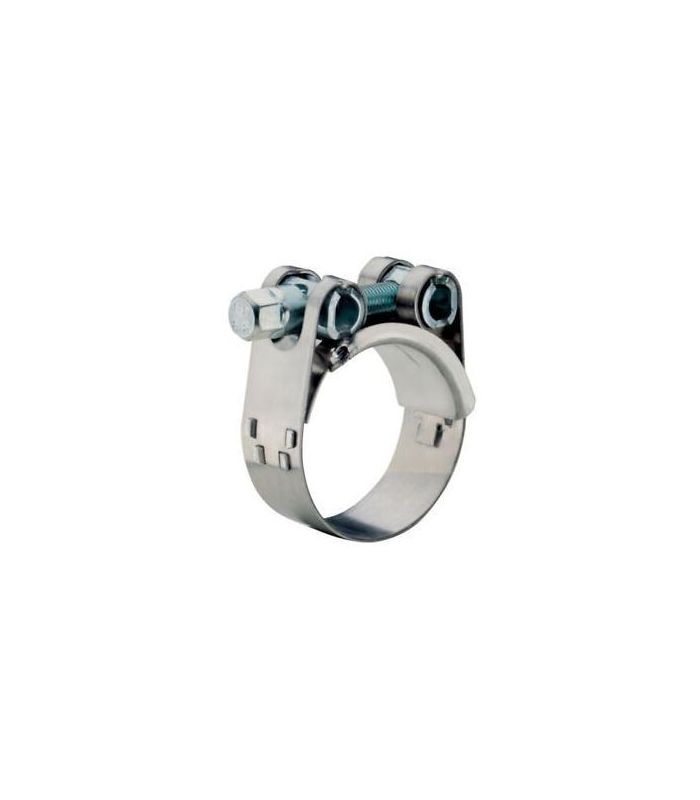

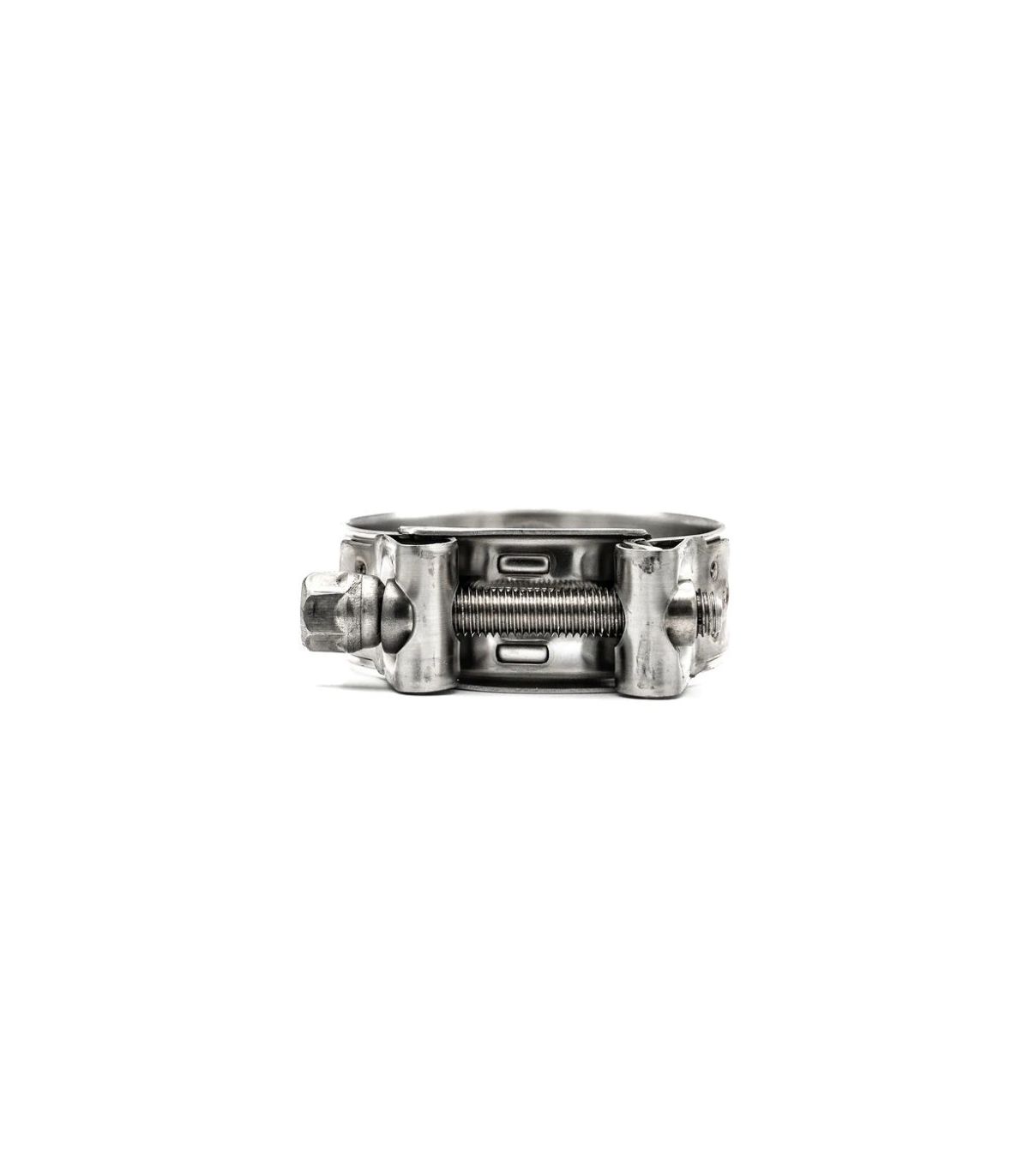

Reinforced clamp W2

A reinforced W2 clamp is a fastener designed for high-pressure and heavy-duty applications. Thanks to its screw, it ensures a firm grip, vibration resistance, and durability.

Applications: Industrial applications, Cooling and heating systems, Heavy machinery, Piping and hose systems where high pressure is required, Large diameter hose connections.

Main features :

  • Manufactured according to DIN 3017
  • Zinc-plated steel screw
  • Belt and head in stainless steel X6Cr17 (DIN 1.4016) (AISI-430)
  • Wide range of diameters.
€1.46 (tax included)
€1.21 (tax excl.)
DIAMETERS
  • Ø19-21
  • Ø21-23
  • Ø23-25
  • Ø25-27
  • Ø27-29
  • Ø29-31
  • Ø31-34
  • Ø34-37
  • Ø37-40
  • Ø40-43
  • Ø43-47
  • Ø47-51
  • Ø51-55
  • Ø55-59
  • Ø59-63
  • Ø63-68
  • Ø68-73
  • Ø73-79
  • Ø79-85
  • Ø85-91
  • Ø91-97
  • Ø97-104
  • Ø104-112
  • Ø112-121
  • Ø121-130
Reference:
2024001
Description

Reinforced clamp W2

The reinforced W2 clamp is a fastening element designed to secure high-demand hoses in industrial applications, especially where high tightening capacity, vibration resistance and durability are required.

The reinforced design incorporates an oversized housing and a wider or thicker band , allowing for a uniform and secure tightening without damaging the hose, even in high-pressure environments.

Advantages

  • High tightening capacity thanks to the reinforced design
  • Longer lifespan than a standard clamp
  • Good resistance to corrosion and demanding environments
  • Compatible with reinforced or thick-walled hoses

Common applications

  • Industrial water, air and fluid systems
  • Agricultural and industrial machinery
  • Automotive and heavy vehicles
  • Irrigation and pumping installations
  • light marine applications
  • Medium-high pressure connections

Technical specifications for the reinforced clamp W2:

Code Ø (mm) r and to b

Maximum values

Par Nm

Maximum values

Pres. bar
2024001 19-21 M6 8 18 19.8 10 45
202401 21-23 M6 8 18 20 10 45
202402 23-25 M6 8 18 19.8 10 45
202403 25-27 M6 8 18 20 10 45
202404 27-29 M6 8 18 19.8 10 45
202405 29-31 M7 10 20 22 13 40
202406 31-34 M7 10 20 22 13 40
202407 34-37 M7 10 20 22 13 40
202408 37-40 M7 10 20 22 13 40
202409 40-43 M7 10 20 22 13 40
202410 43-47 M7 10 20 22 16 36
202411 47-51 M7 10 20 22 16 36
202412 51-55 M7 10 20 22 16 36
202413 55-59 M7 10 20 22 16 36
202414 59-63 M7 10 20 22 16 36
202415 63-68 M7 10 20 22 16 36
202416 68-73 M8 13 25 27.5 30 28
202417 73-79 M8 13 25 28 30 28
202418 79-85 M8 13 25 27.5 30 28
202419 85-91 M8 13 25 27.5 30 20
202420 91-97 M8 13 25 27.5 30 20
202421 97-104 M8 13 25 27.5 30 20
202422 104-112 M8 13 25 27.5 30 12
202423 112-121 M8 13 25 27.5 30 12
202424 121-130 M8 13 25 27.5 30 12

Product Details
2024001
