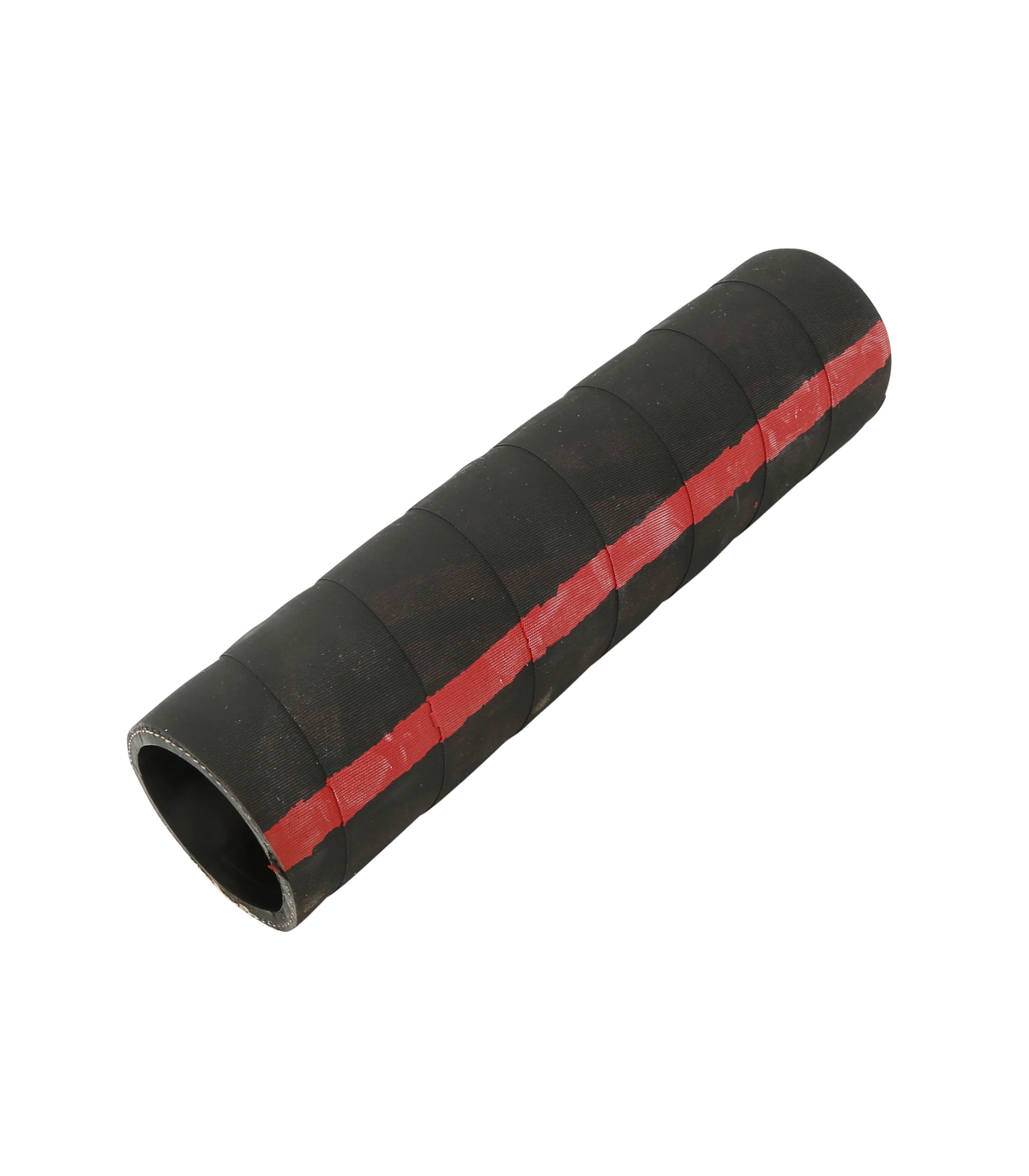

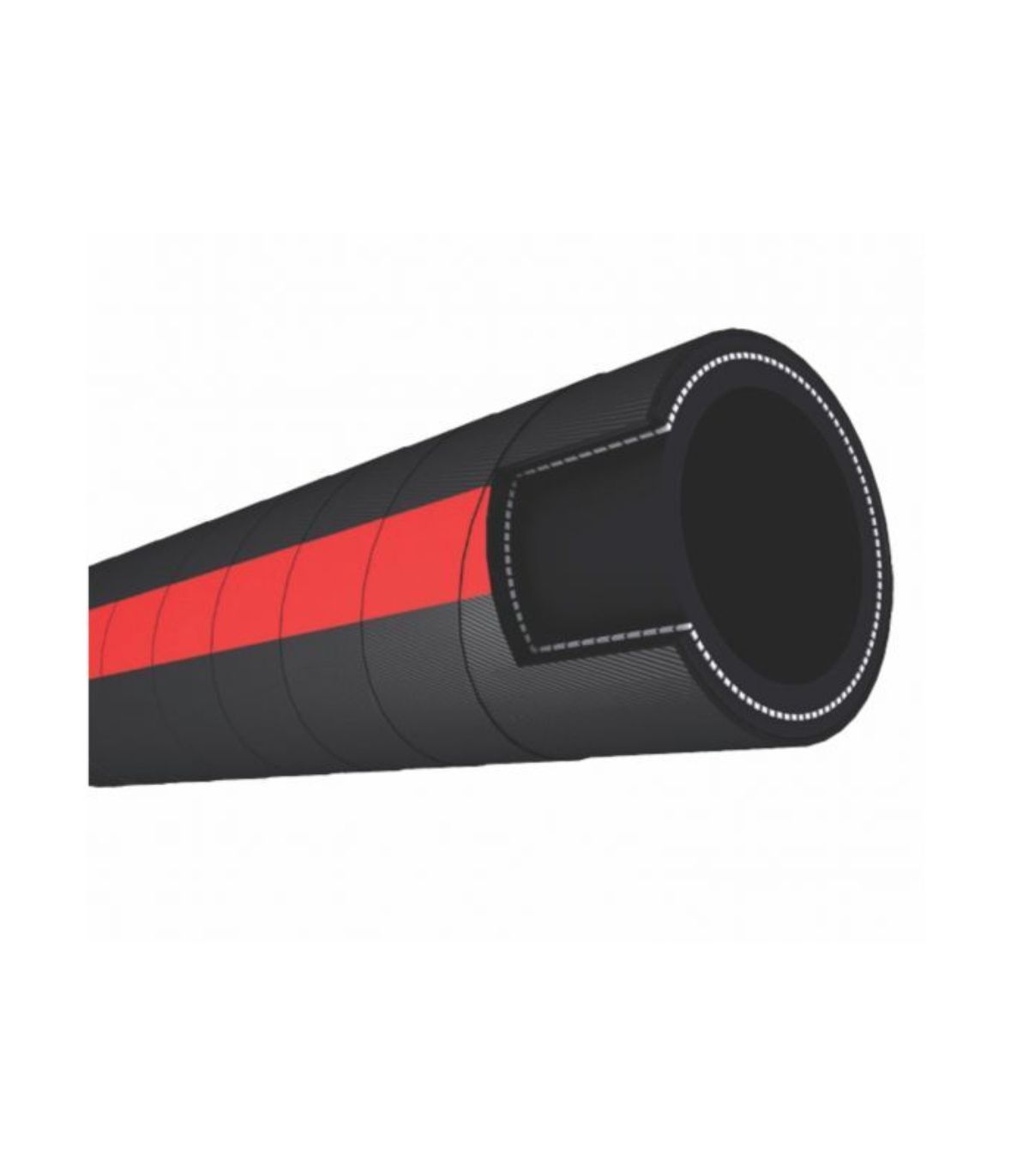

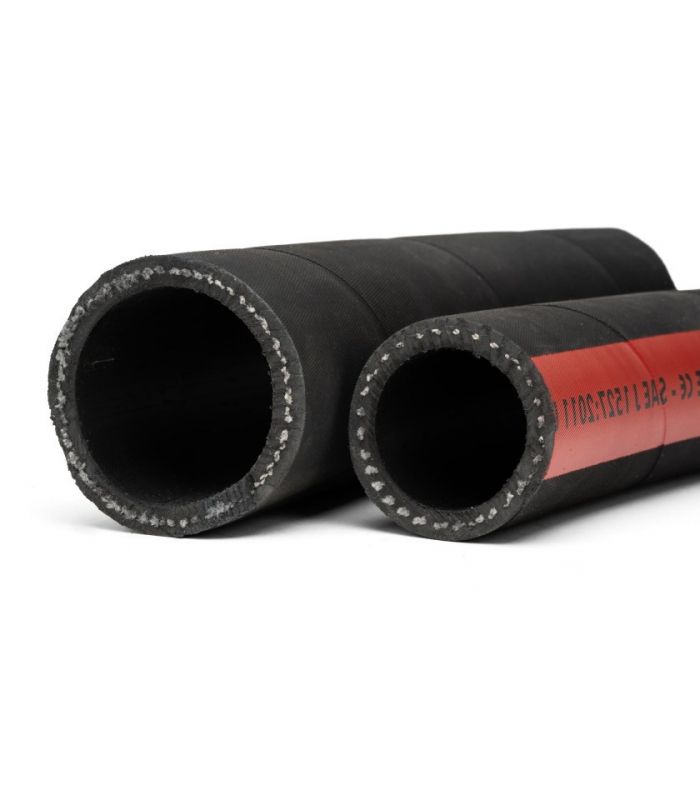

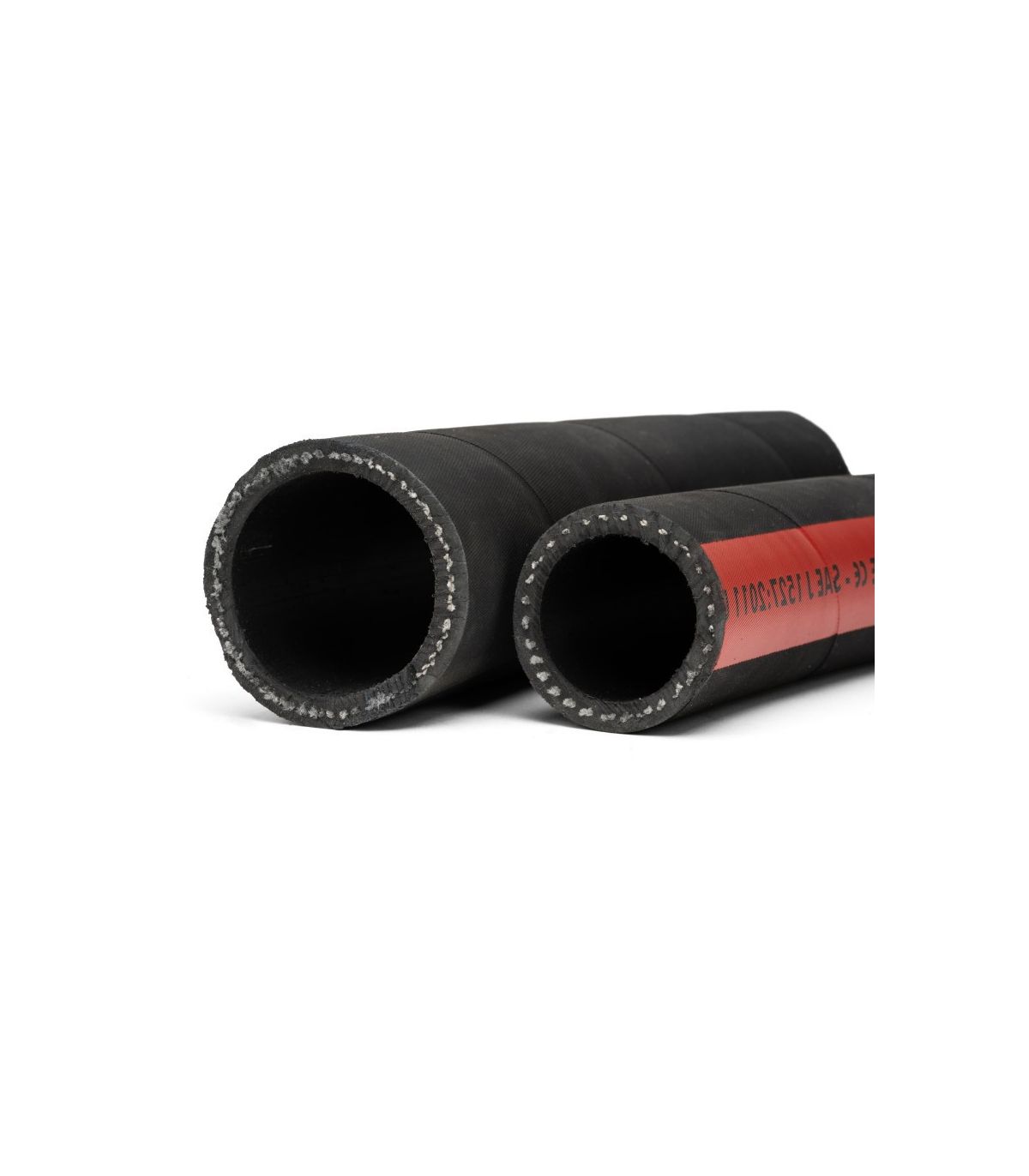

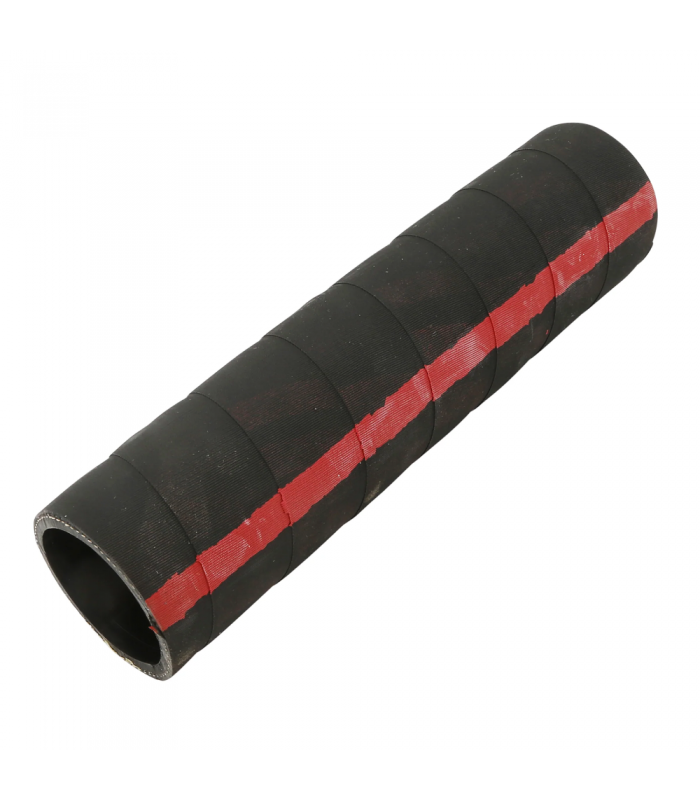

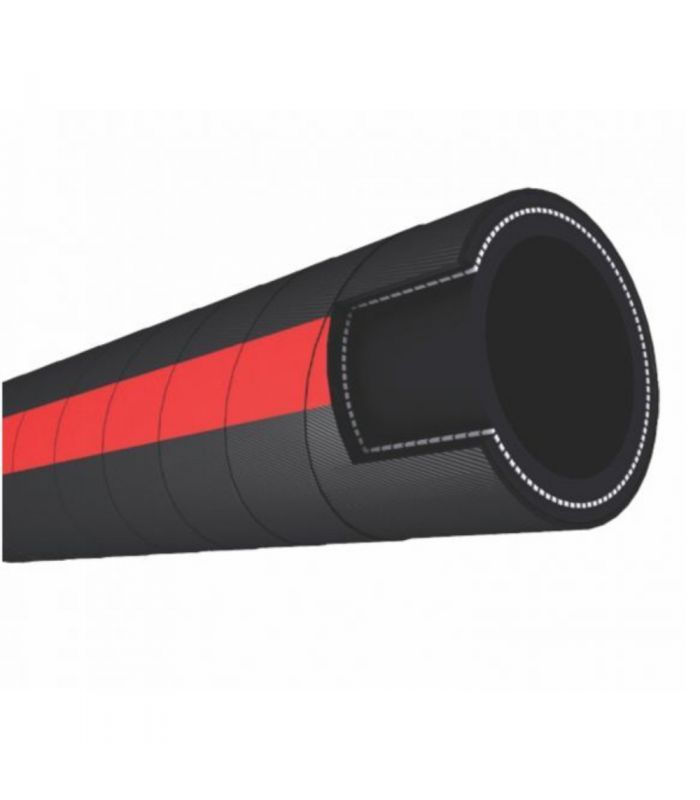

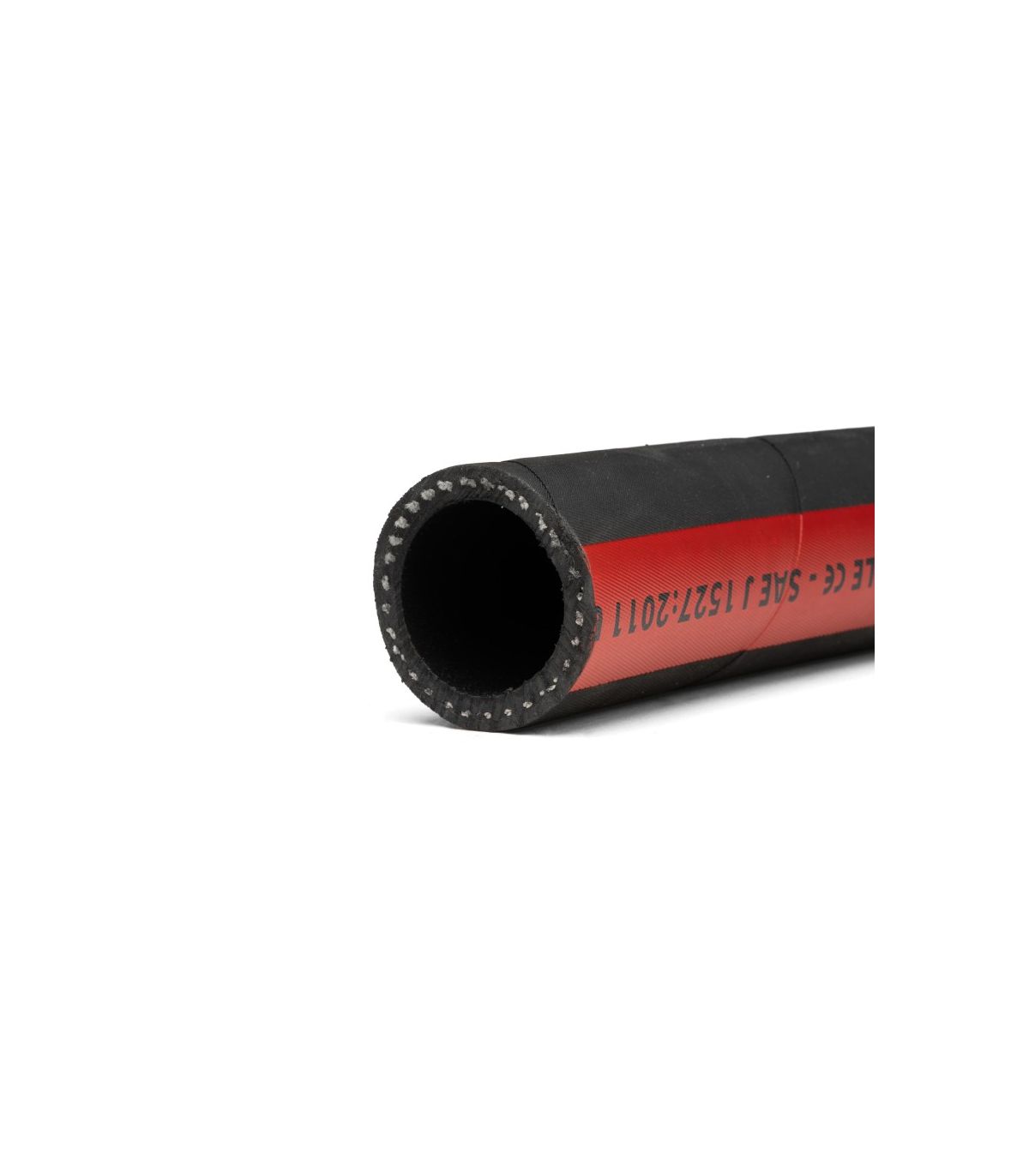

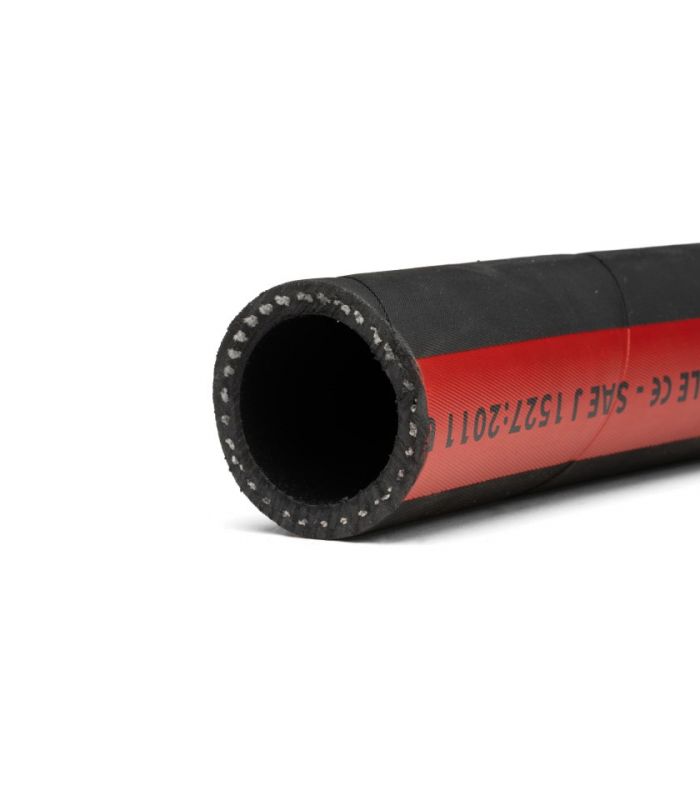

HYDROCARBON PUMPING HOSE 16 BAR

The 16 bar hydrocarbon pumping hose is a mandrel-built tube for pumping oils, mineral greases and hydrocarbons with up to 50% aromatic content.

It is frequently used in tanker trucks, gas stations, ships, etc.

Technical specifications:

  • Inner tube: Smooth black NBR synthetic rubber – resistant to hydrocarbons.
  • Reinforcement: High-tenacity synthetic braid. Incorporates copper wire for electrostatic discharge.
  • Outer cover: Black NBR/EPDM synthetic rubber resistant to abrasion, weathering, and severe operating conditions. Surface with a fine fabric print.
  • Working pressure 16 bar.
  • Temperature -20ºC / 80ºC

The selection is by inner diameter.

Choose full rolls or linear meters, according to your needs.

Read moreShow less
€11.21 (tax incl.)
€9.26 (tax excl.)
DIAMETERS
  • Ø 13
  • Ø 16
  • Ø 19
  • Ø 22
  • Ø 25
  • Ø 30
  • Ø 32
  • Ø 35
  • Ø 38
  • Ø 40
  • Ø 45
  • Ø 50
  • Ø 60
  • Ø 63
  • Ø 70
  • Ø 75
  • Ø 80
  • Ø 90
  • Ø 100
  • Ø 110
  • Ø 114
  • Ø 127
  • Ø 140
  • Ø 152
  • Ø 168
  • Ø 178
  • Ø 200
  • Ø 220
  • Ø 250
  • Ø 300
DIAMETERS:
metros
metros
Reference:
20550016
Description

Hydrocarbon pumping hose 16 bar

A 16 bar hydrocarbon pumping hose is a type of industrial hose specifically designed to transport fuels and petroleum products, such as gasoline, diesel, oils, kerosene, or mixtures with aromatics.

Characteristics

  • Internal material: hydrocarbon-resistant synthetic rubber (NBR, nitrile, or special blends).
  • Reinforcement: textile layers or metal spirals to withstand pressure and prevent collapse.
  • Outer layer: resistant to abrasion, weathering and in some cases to hydrocarbons as well.
  • Temperature range between -20 °C and +80 °C.
  • Working pressure: 16 bar

Common uses

  • Fuel pumps (gas stations).
  • Transfer of gasoline or diesel in industry.
  • Loading and unloading of tanker trucks.
  • Flexible pipes in agricultural or construction machinery.
  • Industrial systems where mineral oils circulate.

Technical data sheet for the 16 bar hydrocarbon hose:

Code Inner diameter (mm) Outer diameter (mm) Weight kg/m Working pressure (bar) Roll length (m)
20550016 13 23 0.50 16 40
20550019 16 27 0.55 16 40
20550021 19 29 0.60 16 40
20550022 22 33 0.75 16 40
20550027 25 36 0.85 16 40
20550030 30 43 1.03 16 40
20550031 32 45 1.11 16 40
20550033 35 48 1.21 16 40
20550035 38 52 1.37 16 40
20550036 40 54 1.59 16 40
20550039 45 59 1.92 16 40
20550041 50 65 2.09 16 40
20550044 60 75 2.46 16 40
20550046 63 78 2.46 16 40
20550047 70 85 3.08 16 20
20550048 75 91 3.27 16 40
20550049 80 96 3.40 16 20
20550050 90 106 3.82 16 20
20550051 100 118 4.26 16 20
20550052 110 127 8.39 16 30
20550053 114 129 4.65 16 30
20550054 127 142 7.04 16 30
20550055 140 162 8.00 16 30
20550056 152 173 8.39 16 30
20550057 168 189 9.22 16 30
20550058 178 200 10.23 16 30
20550059 200 227 12.69 16 30
20550060 220 243 13.64 16 30
20550061 250 279 16.39 16 10
20550062 300 300 19.53 16 10

Read moreShow less
