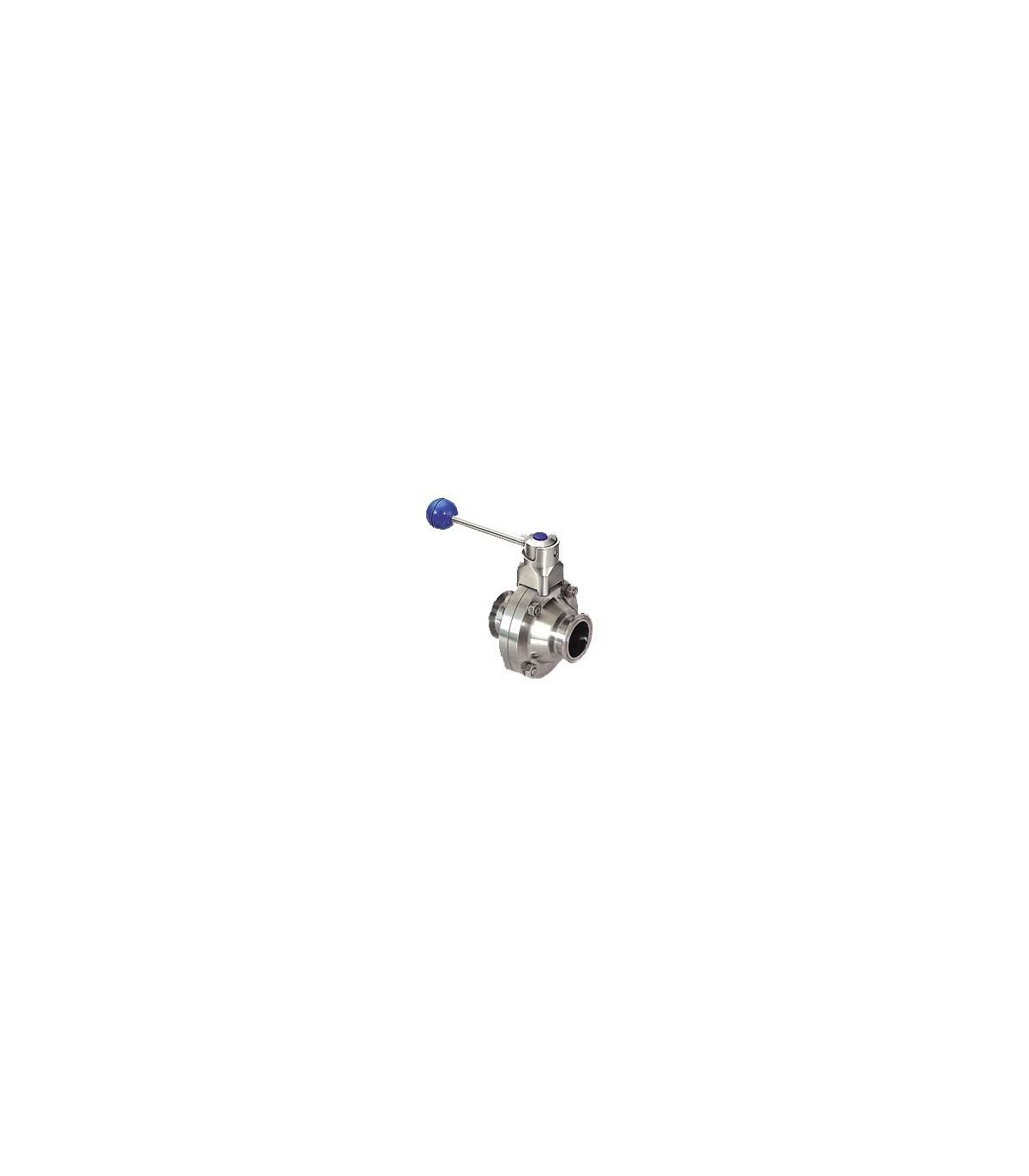

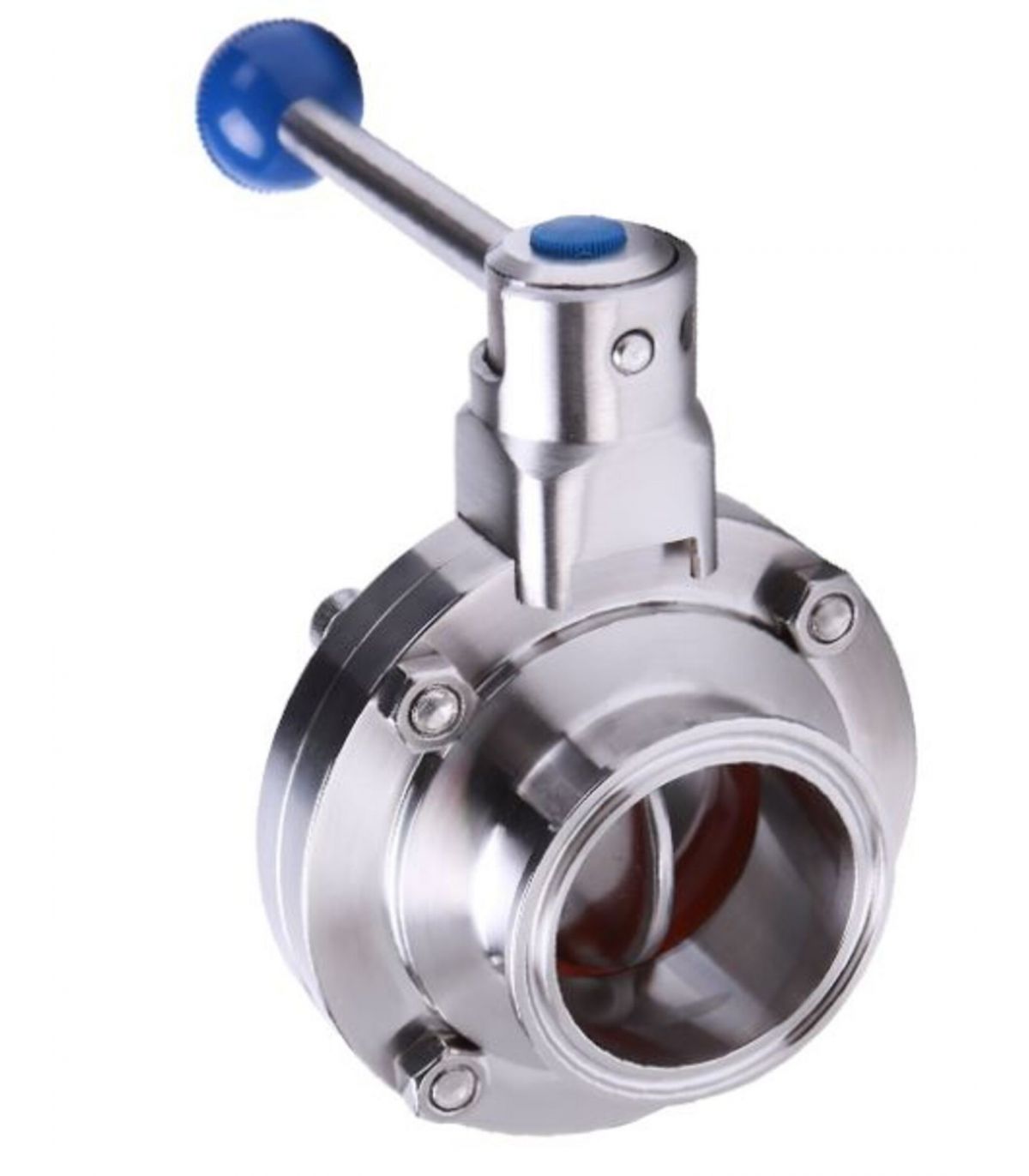

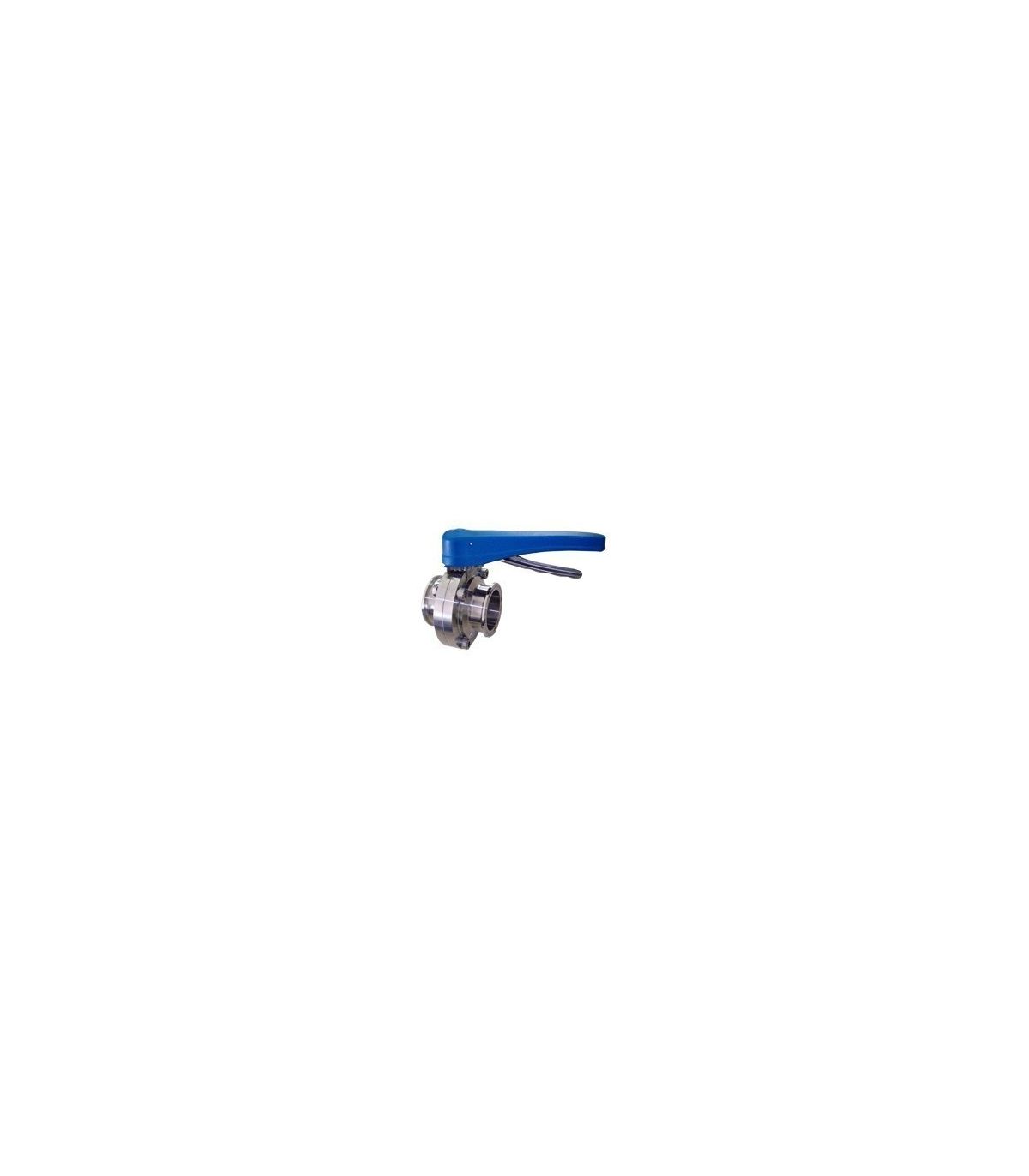

SANITARY BUTTERFLY VALVE CLAMP BS-4835

A CLAMP BS-4835 sanitary butterfly valve is used in most applications involving liquids and solids, and generally for non-obstructive liquids. The design facilitates installation and maintenance, allowing the valve to be removed using four bolts, leaving the flanges welded to the fitting.

They are used in the food, pharmaceutical and chemical industries.

Technical sheet:

According to BS 4825-3
Made of INOX-304 or 316
EPDM series gasket (see other materials).
Safety handle.
Easy disassembly for cleaning.
Working pressure 10 bar.
Temperature 120ºC.

€217.80 (tax included)

€180.00 (tax excl.)

DIAMETERS

Reference:

67120019

Description
Comments

Description

Sanitary butterfly valve CLAMP BS-4835

Product Details

Reference 67120019

Comments

CLAMP CONNECTION MALE THREAD

€18.00 (tax excl.)

€21.78 (tax included)

A male threaded Clamp Link is an industrial pipe fitting designed to join a Tri-Clamp sanitary quick-connect system with a component provided with a female thread. Applications: Food and beverage industry,...

CLAMP BS-4835

€4.79 (tax excl.)

€5.80 (tax included)

The BS-4835 clamp is primarily used in the food, pharmaceutical, and biotechnology industries. BS-4835 specifies the dimensions and tolerances for this type of connection, ensuring a sanitary, fast, and secure...

CLAMP JOINT BS-4835

€0.38 (tax excl.)

€0.46 (tax included)

A BS-4835 clamp fitting , also called a tri-clamp fitting or SMS fitting, is a type of sanitary connection. It is ideal for humid and chemical environments. It ensures a secure and leak-proof seal. Used primarily in...

CONCENTRIC REDUCTION CLAMP BS-4835

€21.98 (tax excl.)

€26.60 (tax included)

Concentric reduction Clamp in inches to BS 4825-3 Manufactured in INOX 316. Pressure 10 bar. Polished finish.

BLANK COVER CLAMP BS-4835-3

€6.05 (tax excl.)

€7.32 (tax included)

The Clamp BS-4825-3 blanking cap is a stainless steel sanitary fitting used to close or seal the end of a Clamp connection conforming to British Standard BS 4825-3. Applications: food, pharmaceutical and chemical...
