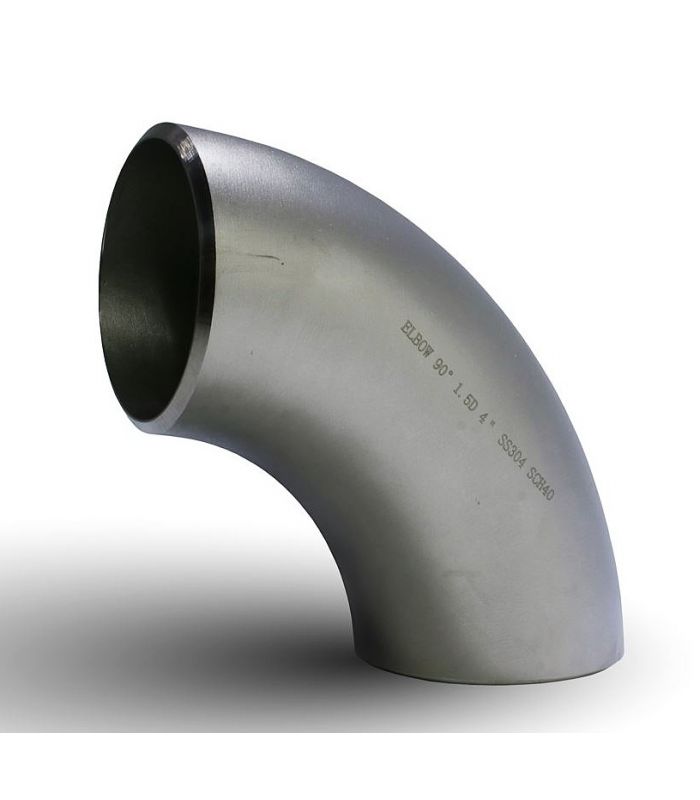

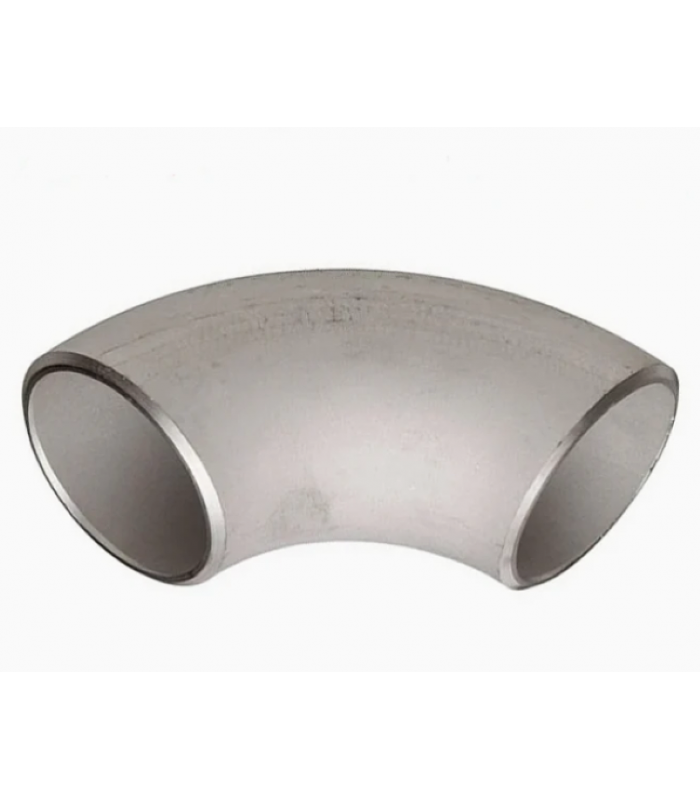

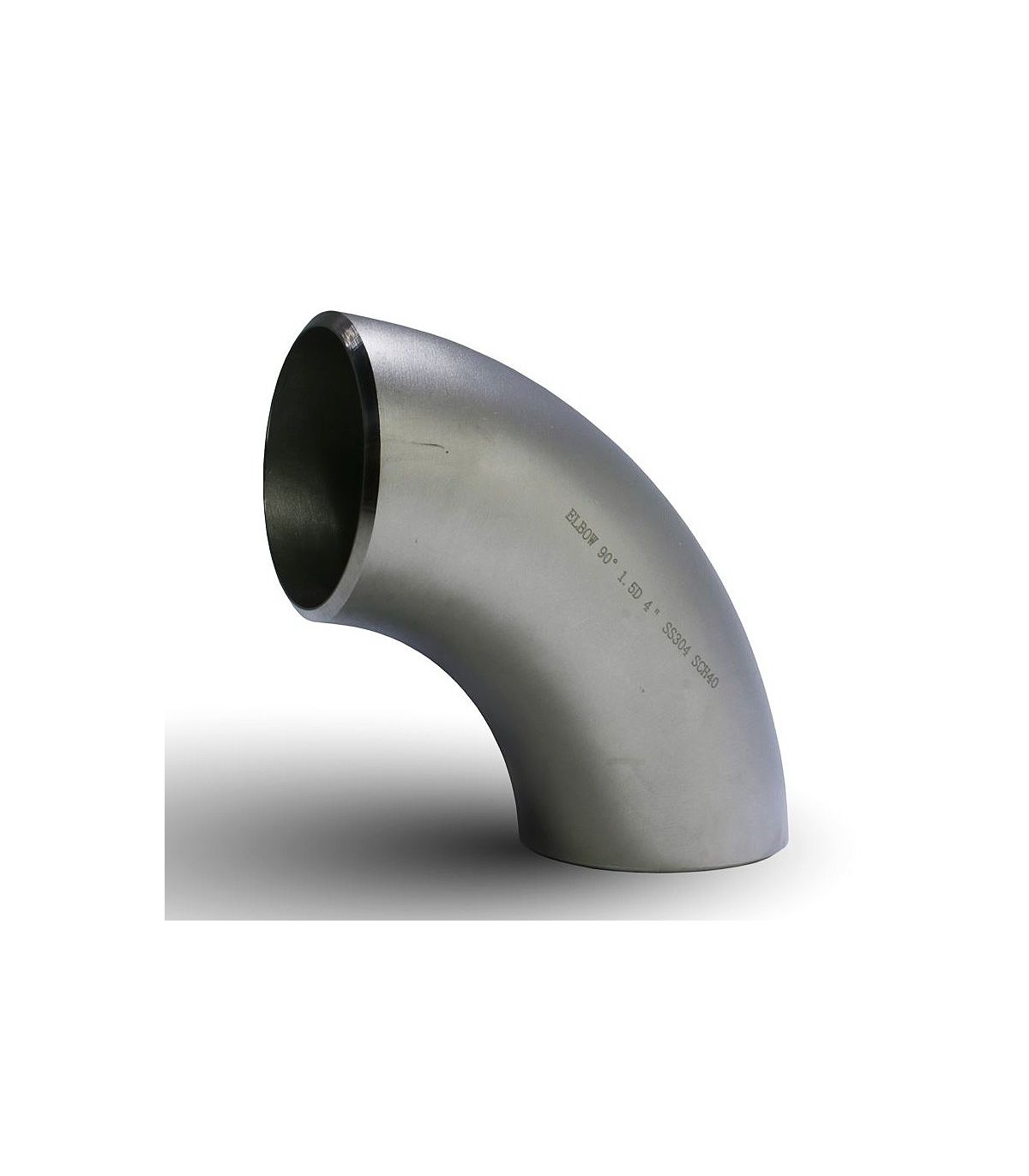

90º SCH-40 A-316L ELBOW
90º SCH-40 A-316L ELBOW
90º SCH-40 A-316L ELBOW
90º SCH-40 A-316L ELBOW

90º SCH-40 A-316L ELBOW

A 90º SCH-40 A-316L elbow is an industrial pipe fitting, designed to change the direction of fluid flow at a 90º angle.

Applications: Petrochemical and Refineries, Pharmaceutical and Biotechnology Industry, Food and Beverage Industry, Naval and Offshore Industry, Water Treatment Plants.

Technical sheet:

  • With welding.
  • ASTM-A403 Quality
  • Dimensions according to ANSI/ASME B16.9-2007
  • Fluid pipelines, boilers, condensers, exchangers, reactors, etc.
  • For the chemical, pharmaceutical, natural gas, food, corrosive media and extreme temperature industries.
€4.33 (tax included)
€3.58 (tax excl.)
DIAMETERS
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"
  • 5"
  • 6"
  • 8"
  • 10"
  • 1/2"
Reference:
660000251
Description

90º elbow SCH-40 A-316L

Product Details
660000251
