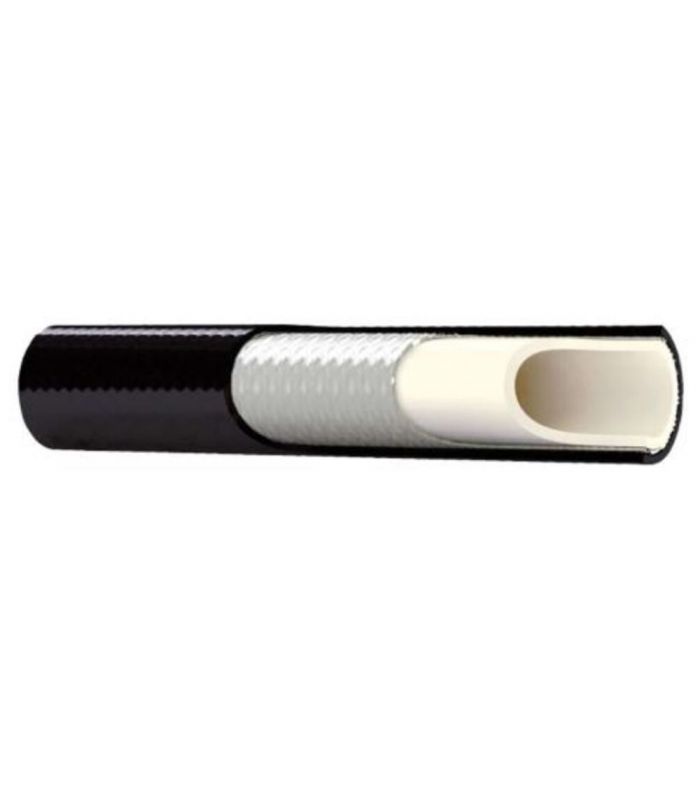

SAE100 R7 HOSE
The SAE100 R7 hose is a thermoplastic hose designed for medium pressures and applications where low conductivity, lightness and chemical resistance are required.
Main features:
- Complies with SAE standards
- Inner tube in thermoplastic polymer
- Reinforcement: high-strength synthetic fiber braid.
- Cover: Black polyurethane.
- Temperature -40º / 100ºC
- Suitable for hydraulic fluids, mineral, synthetic or water-based oils.
- Good resistance to chemicals, aging and abrasion.
- Good qualities where electrical insulation is required.
Price per meter
Check price for a full roll
€2.20
(tax included)
€1.82
(tax excl.)
Reference:
S002032102

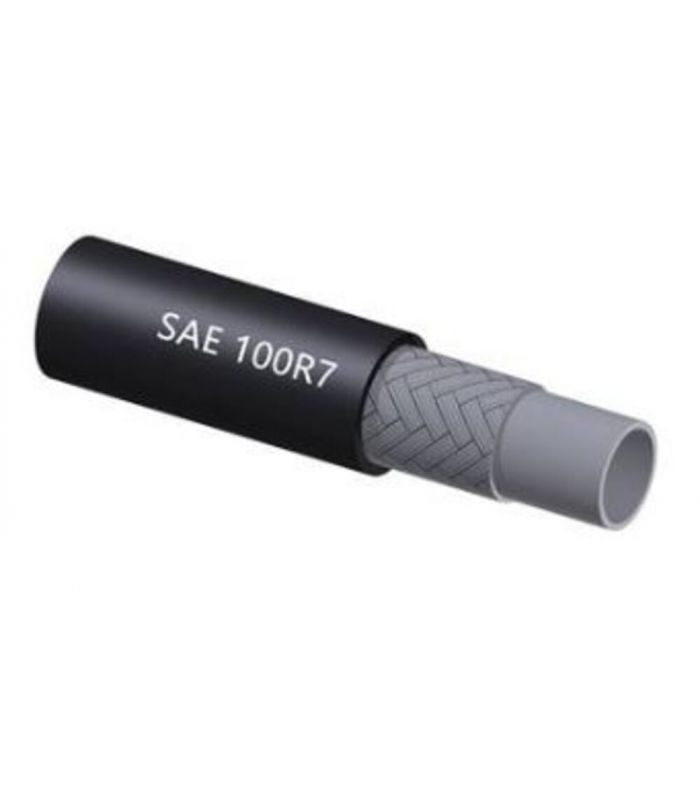

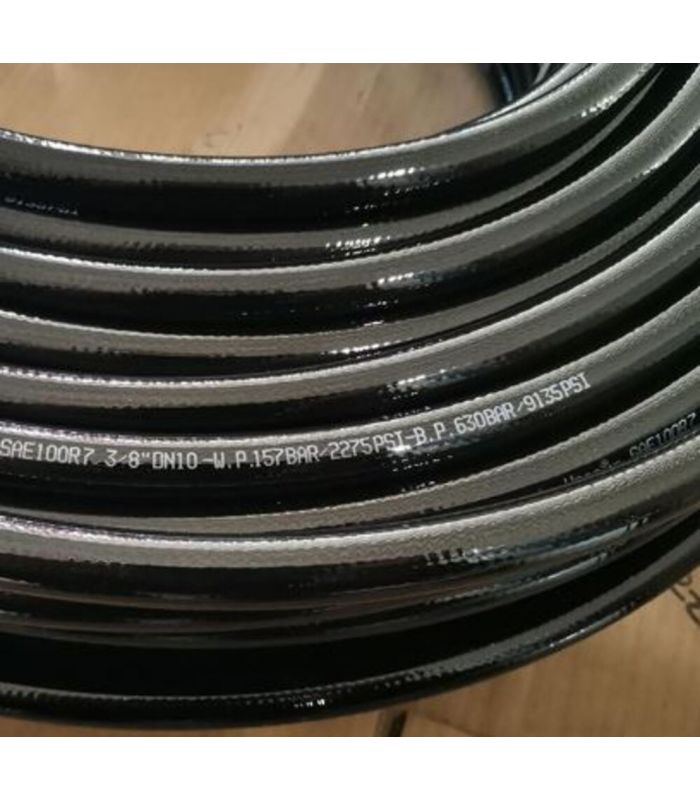

SAE100 R7 Hose

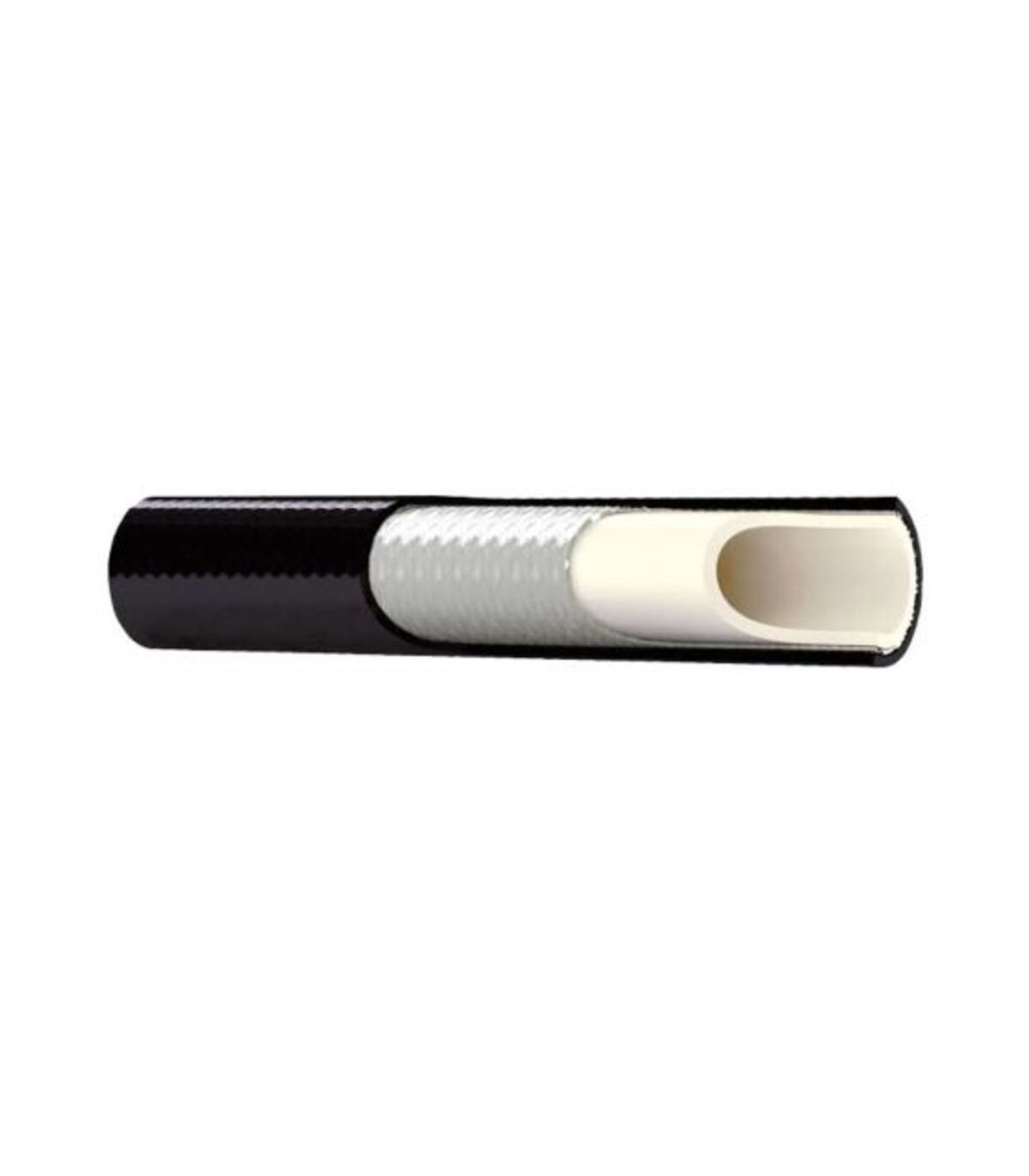

An SAE100 R7 hose is a thermoplastic hose designed for medium pressures and applications requiring low conductivity, light weight, and chemical resistance . It consists of a thermoplastic inner tube, synthetic fiber reinforcement, and a thermoplastic outer cover.
Its non-conductive design makes it ideal for environments where electrical transmission must be avoided, such as industrial machinery and mobile equipment.
Main features
- Standard: SAE 100 R7.
- Construction: thermoplastic + synthetic fiber reinforcement.
- Lightweight, flexible and easy to handle.
- Low electrical conductivity.
- Excellent chemical and abrasion resistance.
- Suitable for synthetic hydraulic fluids, mineral oil and air.
Applications
- Medium pressure hydraulic systems.
- Agricultural and industrial machinery.
- Lifting platforms, forklifts and mobile equipment.
- Applications where a non-conductive hose is required.
- Lubrication and automation systems.
Technical data sheet for an SAE100 R7 hose:
| Code | Ø nominal | Inner diameter (mm) | Outer diameter (mm) | Maximum working pressure (bar) | Bursting pressure (bar) | Minimum curve radius (mm) | Weight (g/m) |
| S002032102 | 1/8" | 3.2 | 8.2 | 210 | 840 | 25 | 57 |
| S002032103 | 3/16" | 4.8 | 10 | 210 | 840 | 25 | 80 |
| S002032104 | 1/4" | 6.6 | 11.8 | 200 | 800 | 32 | 114 |
| S002032106 | 5/16" | 8.18 | 14.3 | 190 | 760 | 45 | 142 |
| S002032106 | 3/8" | 9.65 | 16 | 175 | 700 | 55 | 164 |
| S002032108 | 1/2" | 12.7 | 20.3 | 140 | 560 | 77 | 229 |
| S002032112 | 3/4" | 19 | 26.5 | 90 | 360 | 140 | 356 |
| S002032116 | 1" | 25.5 | 33.3 | 70 | 280 | 200 | 504 |
