SK216 2-MESH HOSE (EXC.R17 2SC)
SK216 2-MESH HOSE (EXC.R17 2SC)
SK216 2-MESH HOSE (EXC.R17 2SC)
SK216 2-MESH HOSE (EXC.R17 2SC)
SK216 2-MESH HOSE (EXC.R17 2SC)
SK216 2-MESH HOSE (EXC.R17 2SC)

SK216 2-MESH HOSE (EXC.R17 2SC)

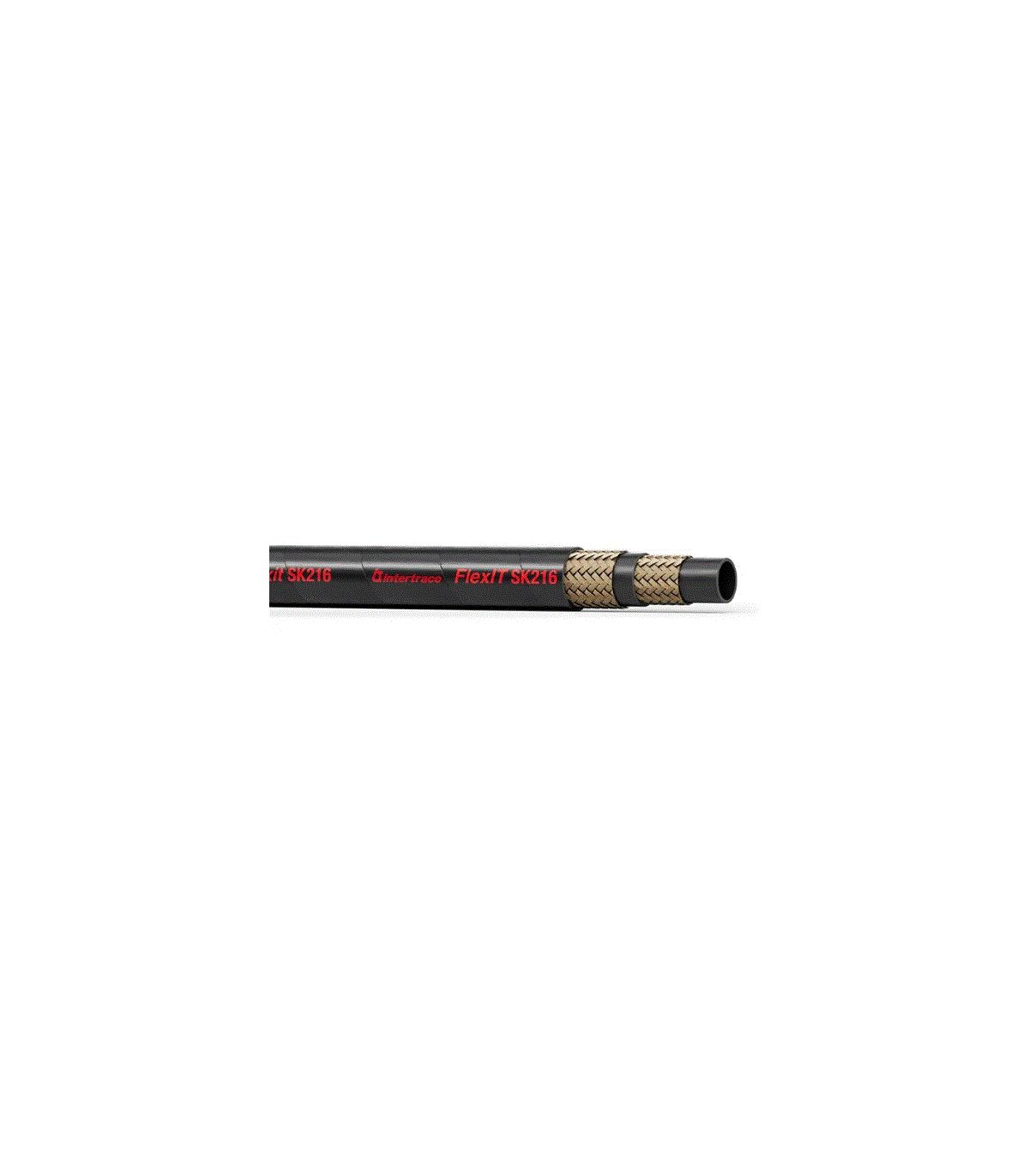

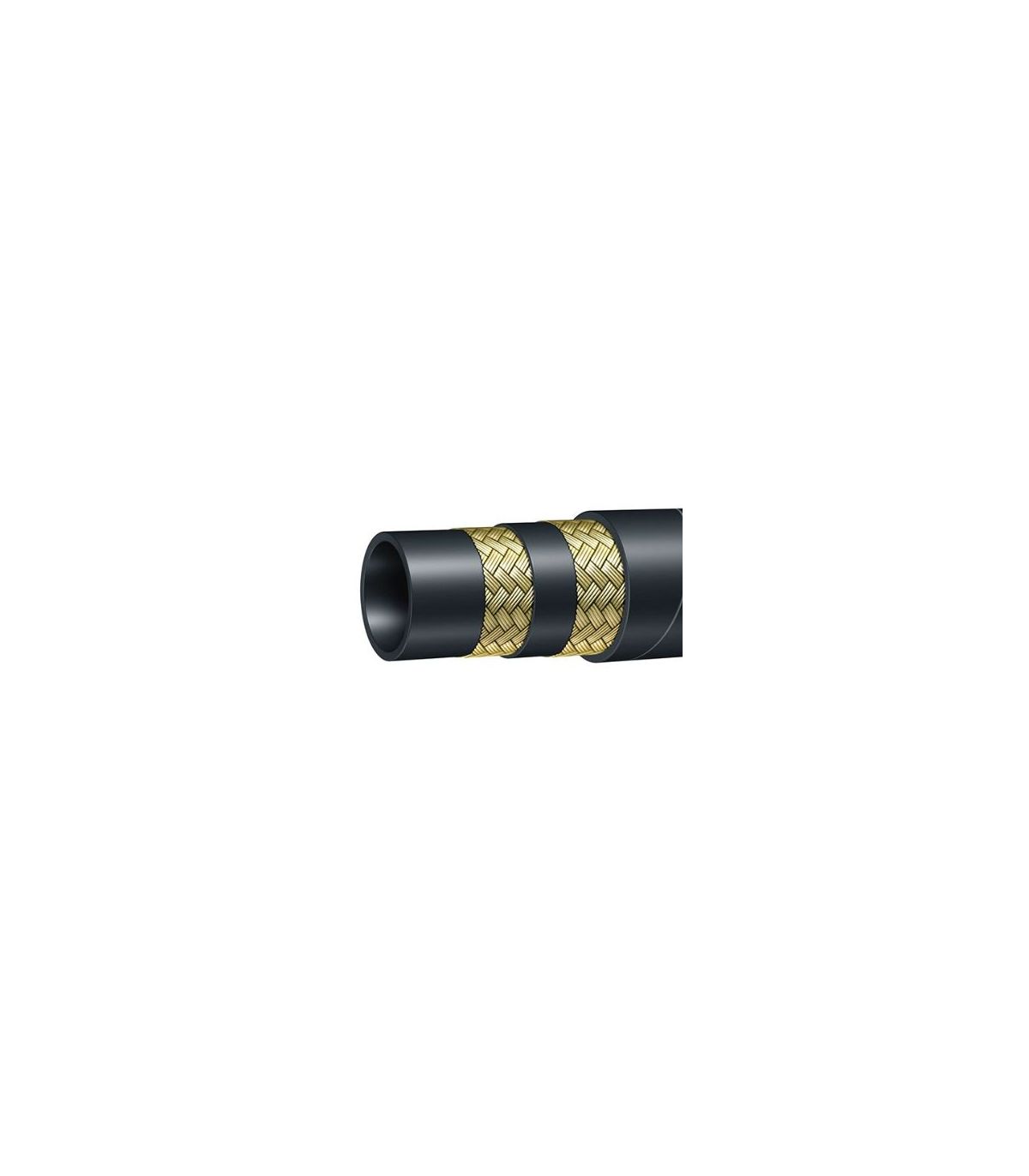

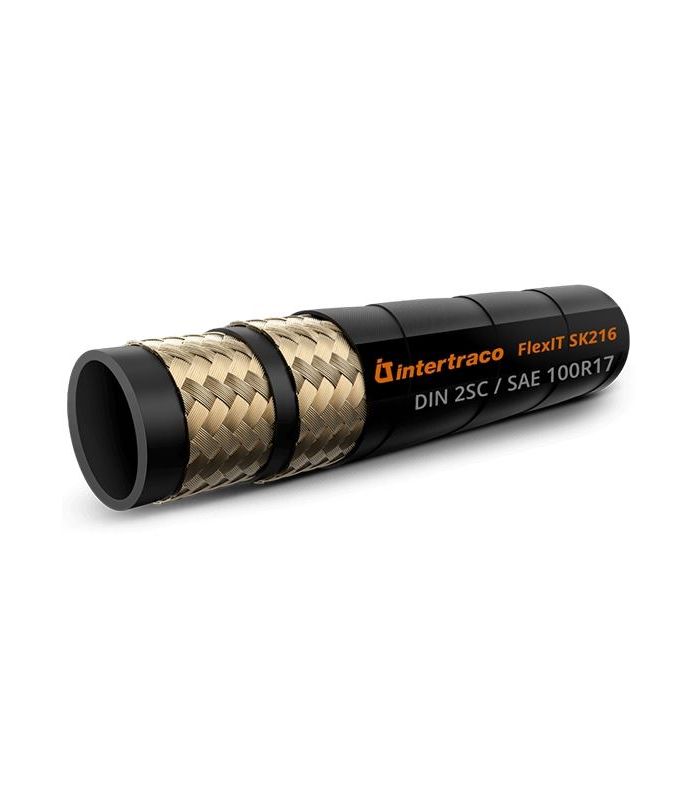

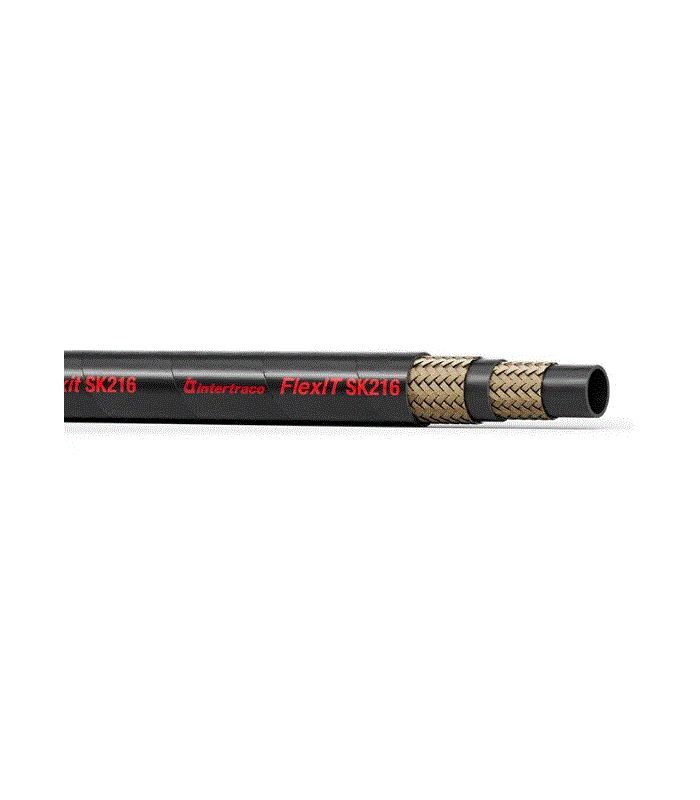

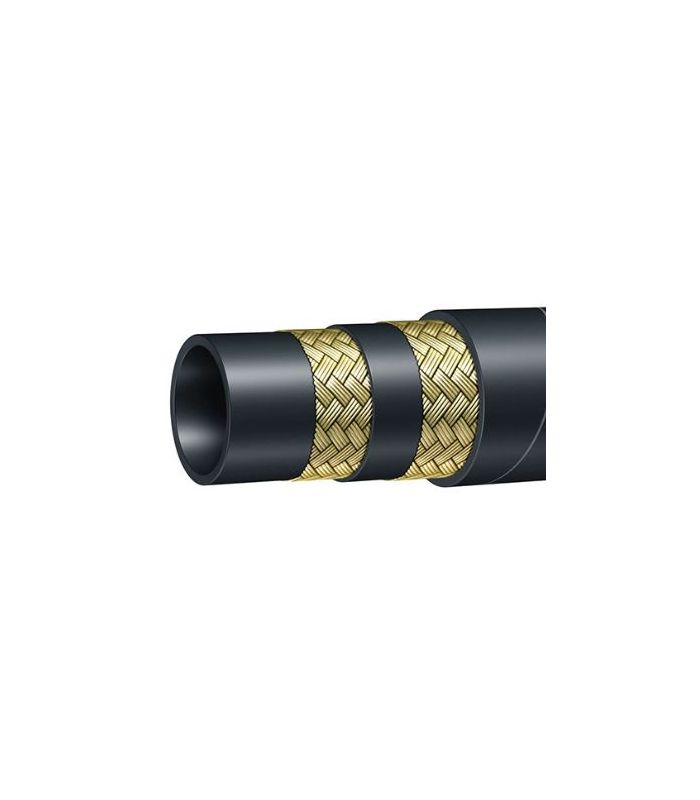

A SK216 2 mesh hose (Exc.R17 2SC) is a high-pressure flexible hose, constructed with two steel wire braids that provide excellent mechanical strength and reliable performance in demanding hydraulic applications.

Applications: hydraulic, mineral and biological oils, polyglycos-based oils, water-oil and water emulsions.

Main features :

  • Interior construction of a synthetic rubber tube.
  • Exceeds EN857 2SC and SAE-100-R17
  • Reinforcement of two braids in high-tenacity steel.
  • Flame retardant rubber outer cover.
  • Temperature -40 / 100ºC
  • This hose does not require peeling the ends for crimping.

Price per meter

Check the price per full roll

€5.02 (tax included)
€4.15 (tax excl.)
DIAMETERS
  • Ø 1/4
  • Ø 5/16"- Ø 5/16"
  • Ø 3/8
  • Ø 1/2"
  • Ø 5/8"
  • Ø 3/4"
  • Ø 1"
Reference:
A000T82004
Description

SK216 2-mesh hose (Exc.R17 2SC)

The SK216 (EXC.R17 2SC) 2-ply hose is a high-pressure hose designed for demanding hydraulic applications. It is constructed with two layers of high-strength steel braiding, providing excellent flexibility, durability, and the ability to operate in medium-to-high pressure systems. It offers high pressure capacity, a tight bend radius, and a cover resistant to abrasion, oil, and environmental conditions.

Main features

  • Reinforcement: 2 high-strength steel meshes.
  • Equivalent standards: R17 / 2SC.
  • Uses: High pressure hydraulic lines and return.
  • Cover: Synthetic rubber resistant to oils, abrasion and atmospheric agents.
  • Interior: Tube compatible with mineral and synthetic hydraulic oils.
  • Flexibility: Excellent bending radius for compact installations.
  • Operating temperature: usually between -40 °C and +100 °C.

Applications

  • Mobile and industrial hydraulic systems.
  • Agricultural and public works machinery.
  • Lifting equipment, presses and pressure lines.
  • High-pressure hydraulic oil circuits.
  • Compact connections where superior flexibility is required.

Technical data sheet for a 2-mesh hose SK216 (EXC.R17 2SC):

Product Details
A000T82004
