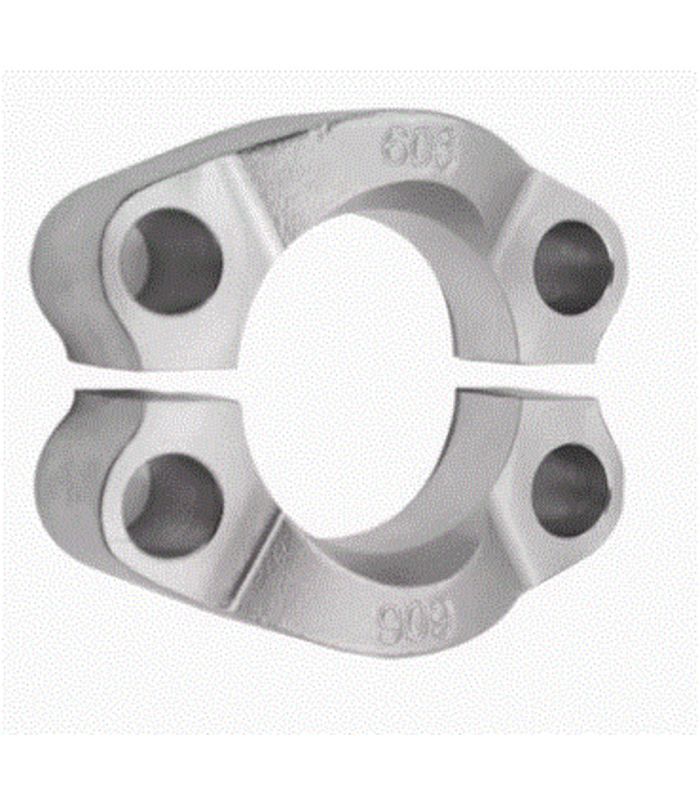

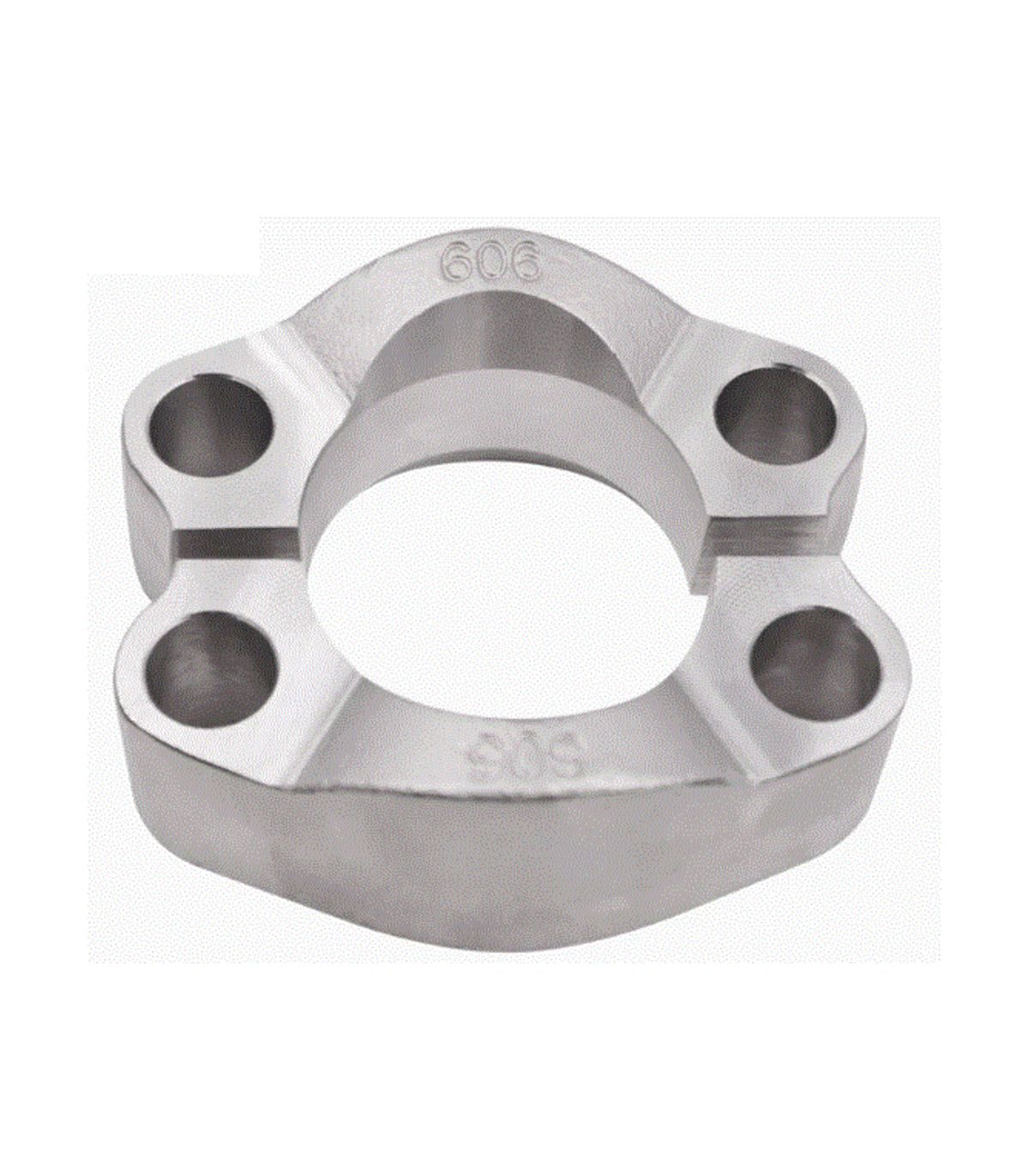

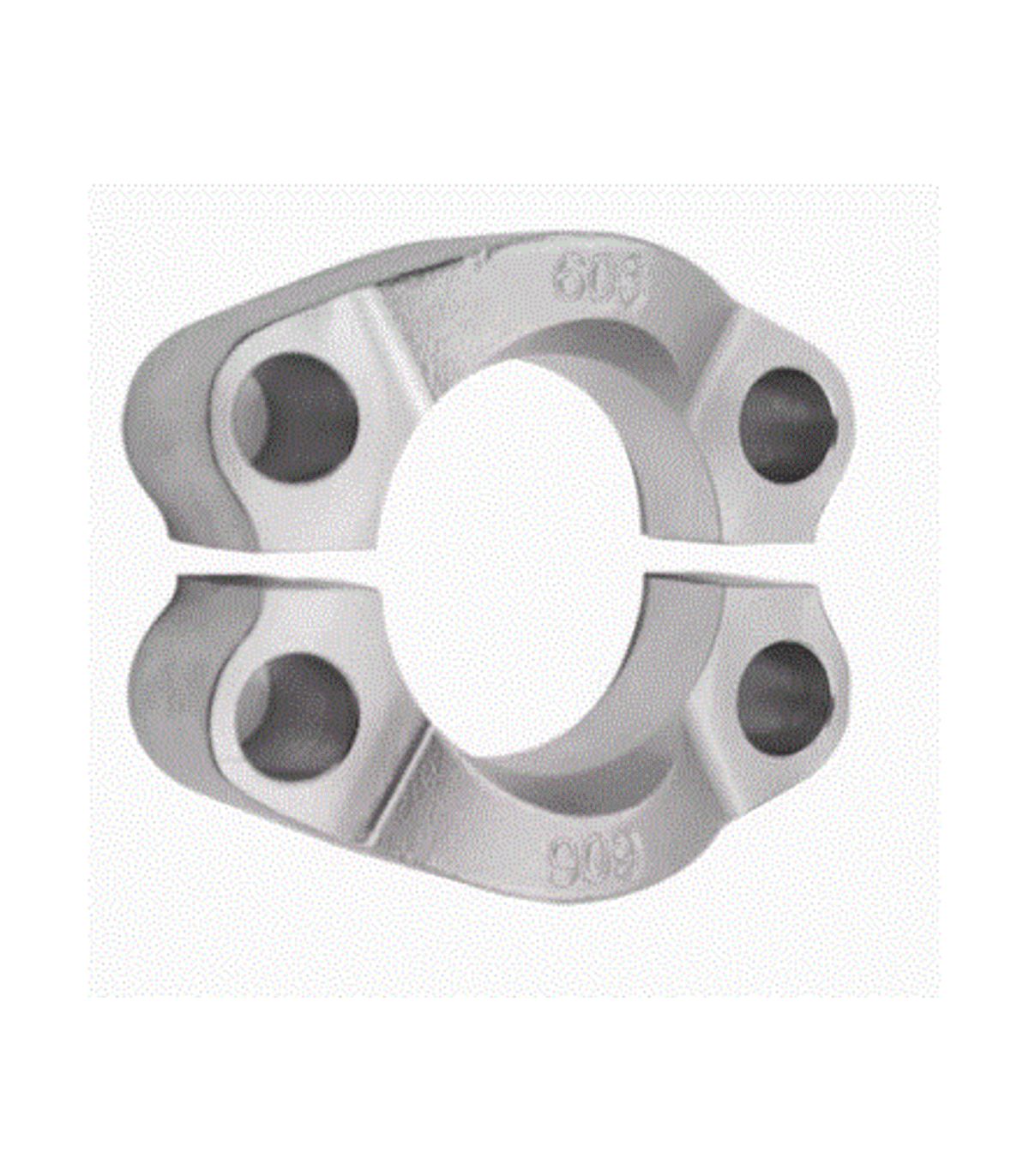

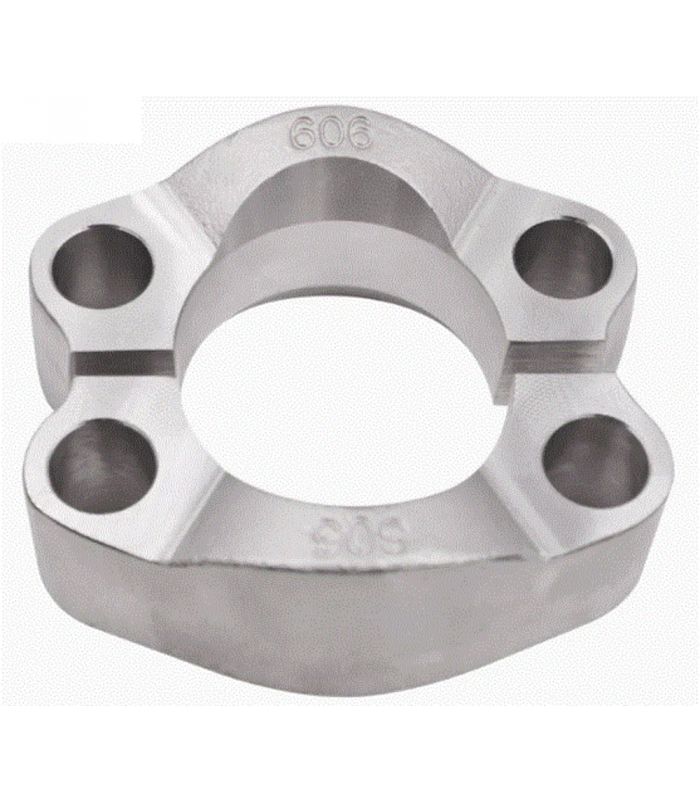

SAE SEMI-BRIDGE

An SAE half flange is a metallic mechanical component used in pairs to secure connections on high-pressure flexible pipes.

Applications: automotive, construction, industrial hydraulic systems, mining and naval sector.

Main features:

  • Option in SAE-3000 and SAE-6000
  • SAE-J518 Standard
  • Made of carbon steel.

Both half-flanges are supplied per unit.

Read moreShow less
€2.42 (tax incl.)
€2.00 (tax excl.)
SIZE
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
FLANGE TYPE
  • SAE-3000
  • SAE-6000
Reference:
444501
Description

SAE half flange

An SAE half flange is a hydraulic connection component designed to attach high-pressure hoses or pipes to blocks, pumps, or motors.

Instead of being a solid circular piece, the flange is divided into two symmetrical halves that fit together around the fitting head. This makes assembly easier in tight spaces, as it's not necessary to slide the flange along the entire length of the hose before installing the fittings.

Technical specifications

  • High mechanical resistance
  • Excellent vibration damping performance
  • Easy assembly using screws
  • Compatible with O-rings for sealing

Applications

  • Industrial hydraulic systems
  • Heavy machinery
  • Agricultural equipment
  • High pressure systems

Technical data sheet for an SAE half flange:

Read moreShow less
Product Details
444501
Comments (0)
8 other products in the same category:
SAE STRAIGHT THREADED COUNTER FLANGE | Buy online SAE STRAIGHT THREADED COUNTER FLANGE | Buy online

€18.00 (tax excl.)
€21.78 (tax incl.)
A straight threaded SAE counter flange is a component used in hydraulic systems for the secure and detachable connection of pipes, hoses, or fittings by means of threading. Applications: Medium and high pressure...

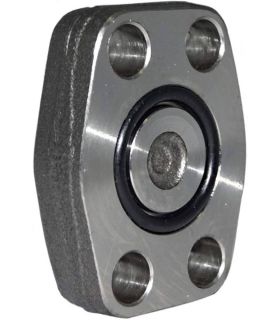

SAE BLIND FLANGE FOR GASKET | Buy online now SAE BLIND FLANGE FOR GASKET | Buy online now

€9.00 (tax excl.)
€10.89 (tax incl.)
An SAE blind flange for gaskets is a safety and maintenance component designed to block or hermetically seal an SAE outlet port. Unlike weld-on or threaded flanges, it has no center hole; it is a solid disc that...
Cone Weld Flange with Metric Gasket | Buy online Cone Weld Flange with Metric Gasket | Buy online

€7.00 (tax excl.)
€8.47 (tax incl.)
A metric flange weld cone is a high-pressure hydraulic connection component designed to join a rigid pipe to an SAE flange port by butt welding. Applications: construction, industry, shipbuilding and mining. Main...
Cone Weld Metric Flange Counter Flange | Buy Cone Weld Metric Flange Counter Flange | Buy

€8.00 (tax excl.)
€9.68 (tax incl.)
A cone weld counter flange metric flange for welding connection between pipes and counter flanges with a metric flange system. Applications: industrial and fluid handling installations. Main features: Cone for welding...
SAE Flange O-Ring | Buy online at Disumtec SAE Flange O-Ring | Buy online at Disumtec

€0.50 (tax excl.)
€0.61 (tax incl.)
An SAE flange O-ring is the elastomeric sealing element specifically designed to fit into the front groove of flange terminals or weld cones under the SAE standard. Applications: heavy machinery, energy and oil,...
SAE STRAIGHT WELDING COUNTER FLANGE | Buy online SAE STRAIGHT WELDING COUNTER FLANGE | Buy online

€11.00 (tax excl.)
€13.31 (tax incl.)
A straight weld SAE counter flange is designed to be welded directly to a pipe or metal structure, allowing connection via standard SAE flanges with an O-ring seal. Applications: hydraulics, construction, heavy...
SAE 90° Weld Flange for Gasket | Buy online SAE 90° Weld Flange for Gasket | Buy online

€26.00 (tax excl.)
€31.46 (tax incl.)
A SAE 90° weld flange for joint is a monobloc hydraulic connection component that combines a right-angle change of direction with high-security bolt fastening. Applications: naval sector, steel and metallurgy, mining,...

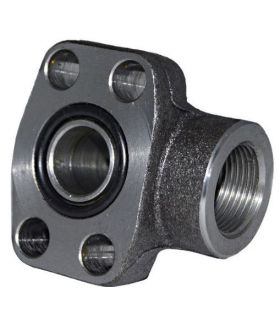

SAE 90° STRAIGHT THREADED FLANGE FOR GASKET | Buy SAE 90° STRAIGHT THREADED FLANGE FOR GASKET | Buy
