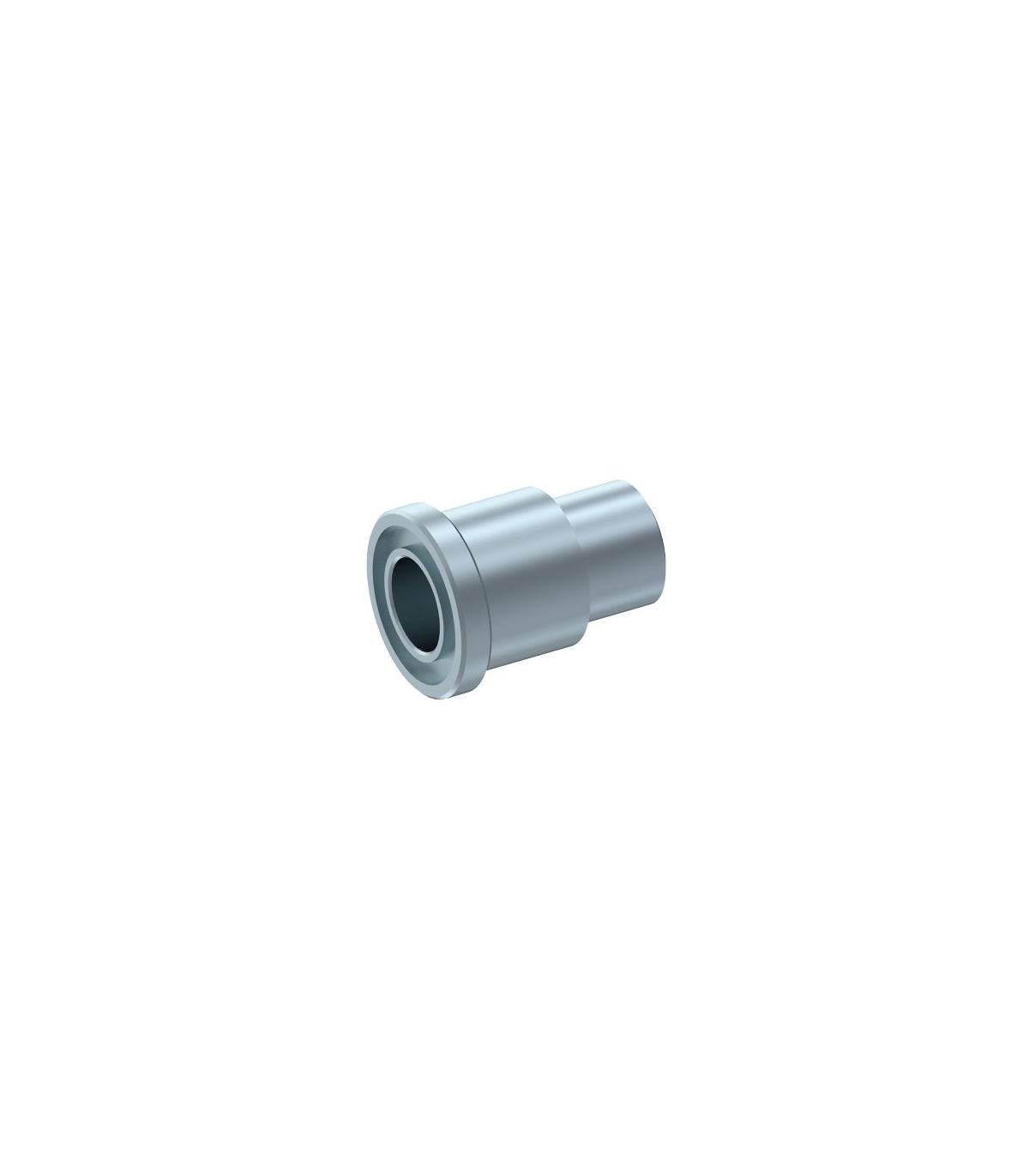

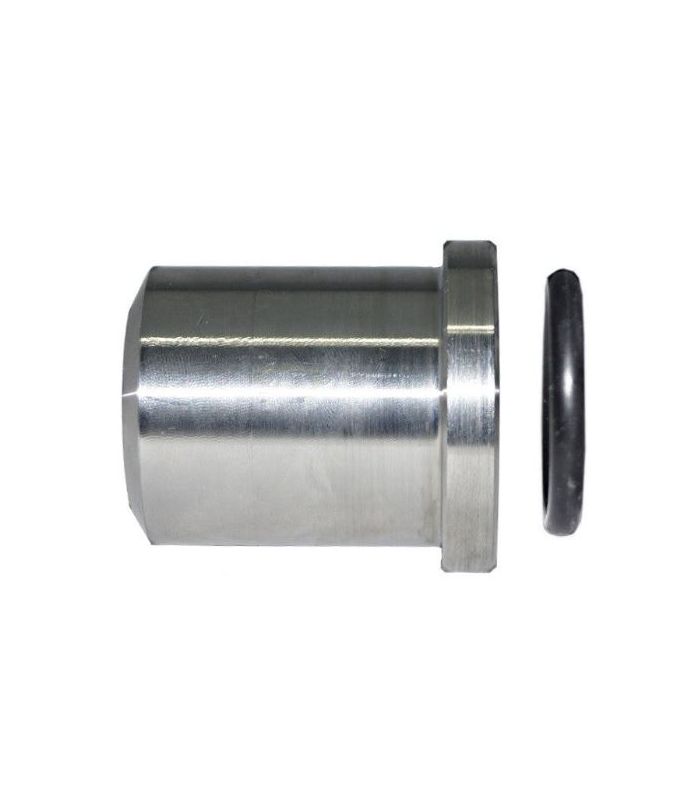

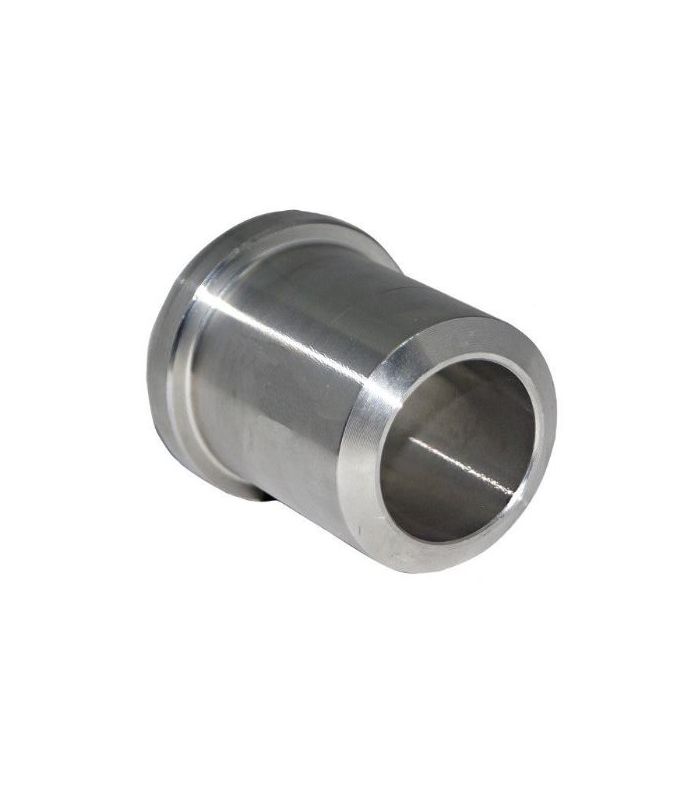

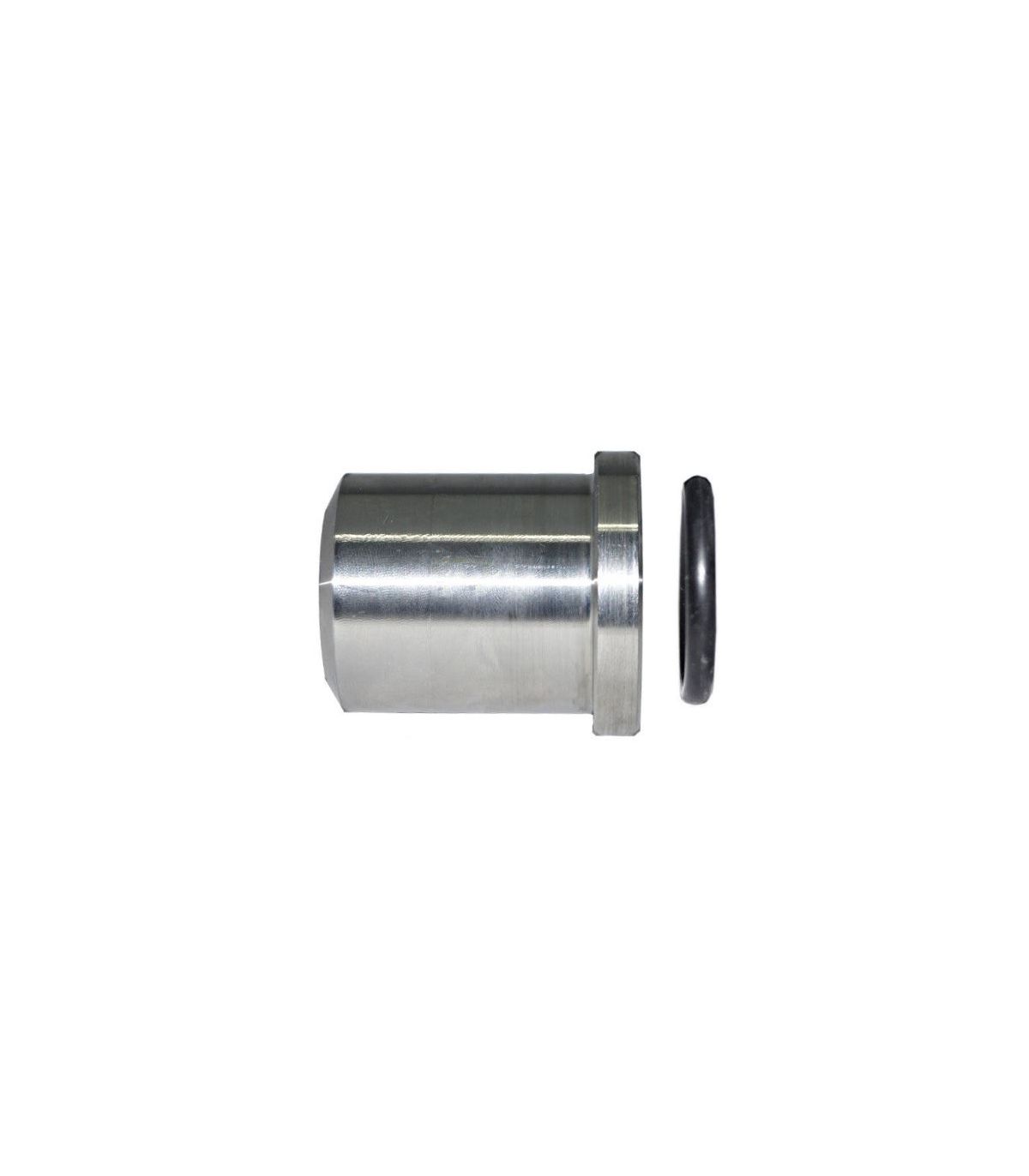

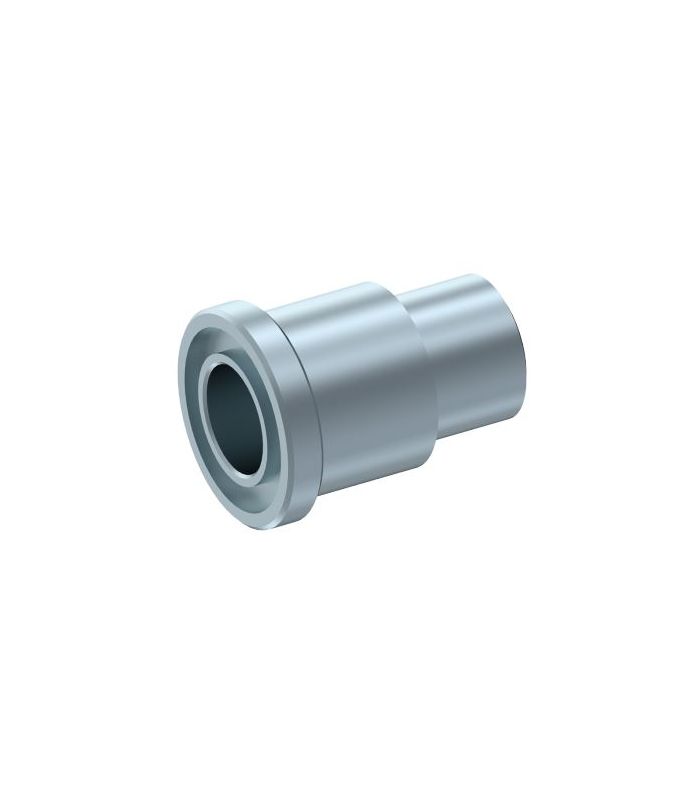

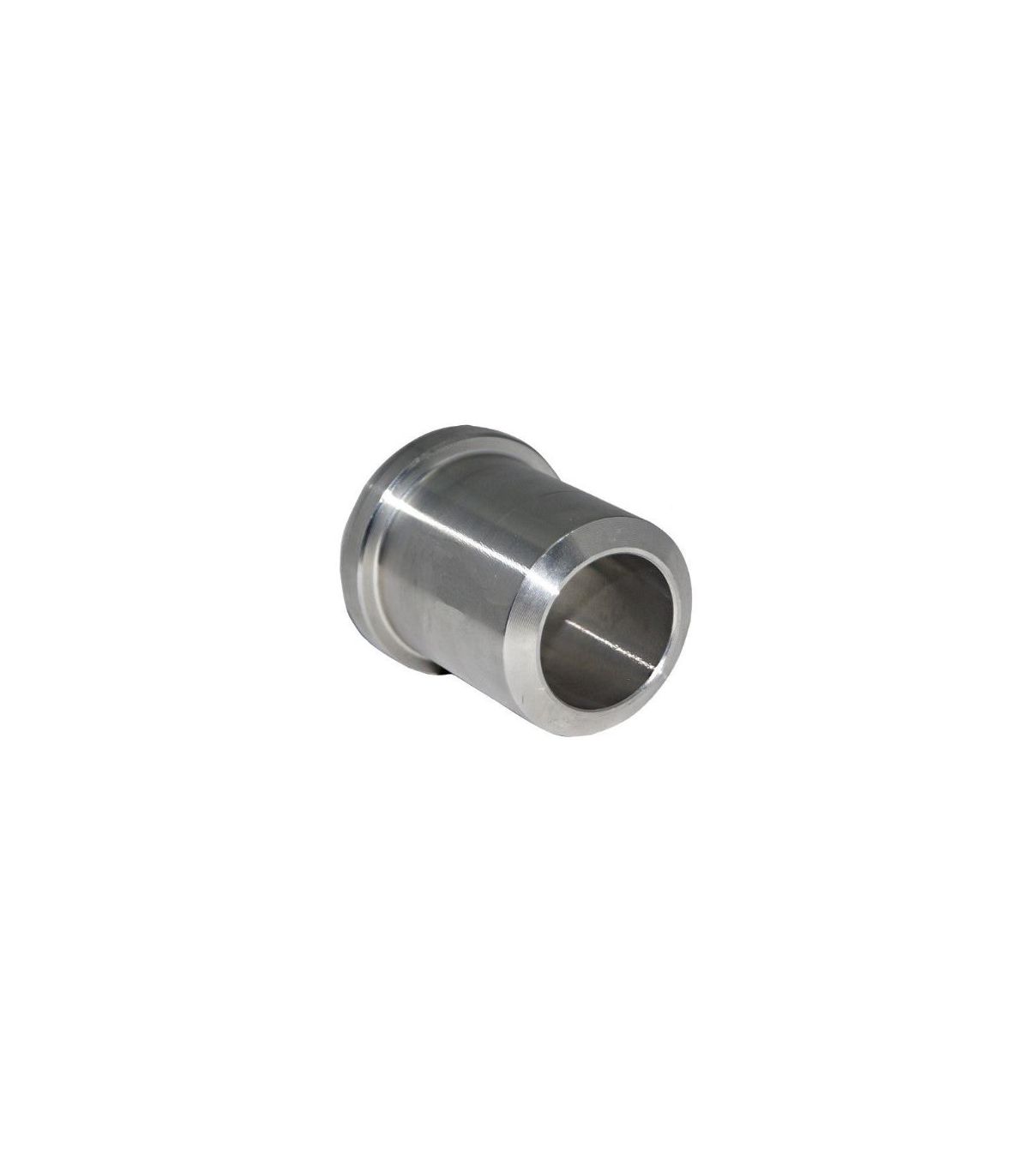

CONE FOR WELDING FLANGE WITH METRIC JOINT
CONE FOR WELDING FLANGE WITH METRIC JOINT
CONE FOR WELDING FLANGE WITH METRIC JOINT
CONE FOR WELDING FLANGE WITH METRIC JOINT
CONE FOR WELDING FLANGE WITH METRIC JOINT
CONE FOR WELDING FLANGE WITH METRIC JOINT

CONE FOR WELDING FLANGE WITH METRIC JOINT

A metric flange weld cone is a high-pressure hydraulic connection component designed to join a rigid pipe to an SAE flange port by butt welding.

Applications: construction, industry, shipbuilding and mining.

Main features:

  • Cone for welding on flanges with gasket.
  • Made of carbon steel.
  • Pressures of 3000 and 6000 PSI.

Screws and gaskets are not included.

€8.47 (tax included)
€7.00 (tax excl.)
SIZE
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
FLANGE TYPE
  • SAE-3000
  • SAE-6000
Reference:
4447101
Description

Cone weld flange with metric gasket

A weld-on flange cone with a metric joint is a connecting element designed for welding pipes or fittings together, incorporating a sealing cone compatible with metric joint systems. It ensures optimal sealing in hydraulic, pneumatic, and industrial installations.

Main features

  • Connection by soldering
  • Cone sealing system + metric gasket
  • High resistance to pressure and vibration
  • Compatible with metric standard fittings and flanges

Applications

  • High-pressure hydraulic systems
  • Pneumatic circuits
  • Industrial facilities
  • Machinery and mobile equipment

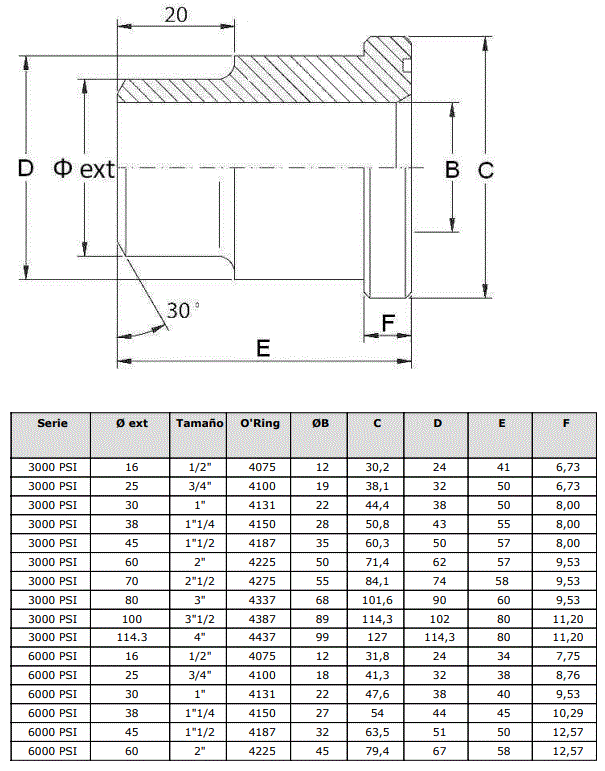

Technical data sheet for a flange welding cone with metric gasket:

ç

Product Details
4447101
