SAE FLANGE
SAE FLANGE
SAE FLANGE
SAE FLANGE

SAE FLANGE

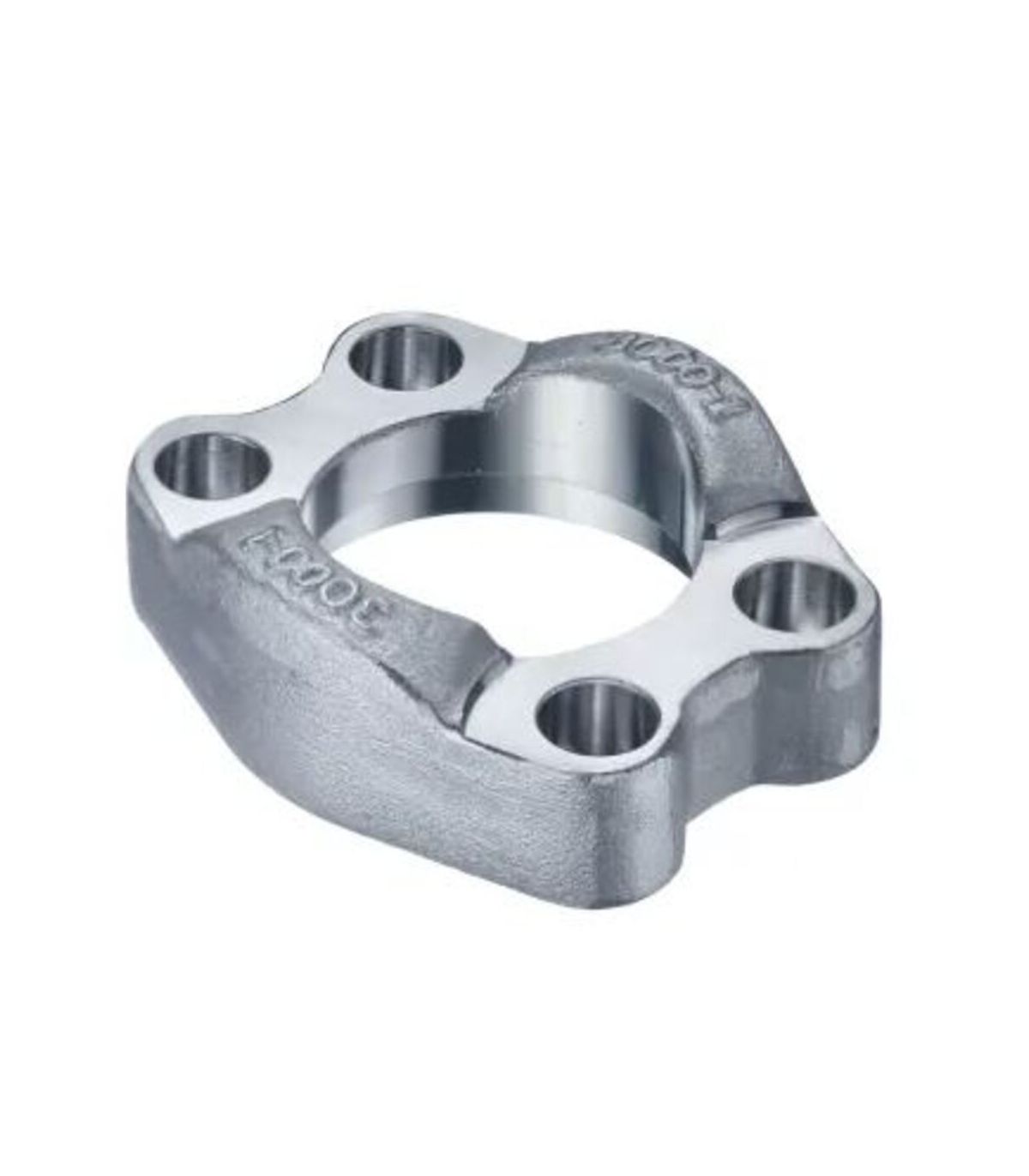

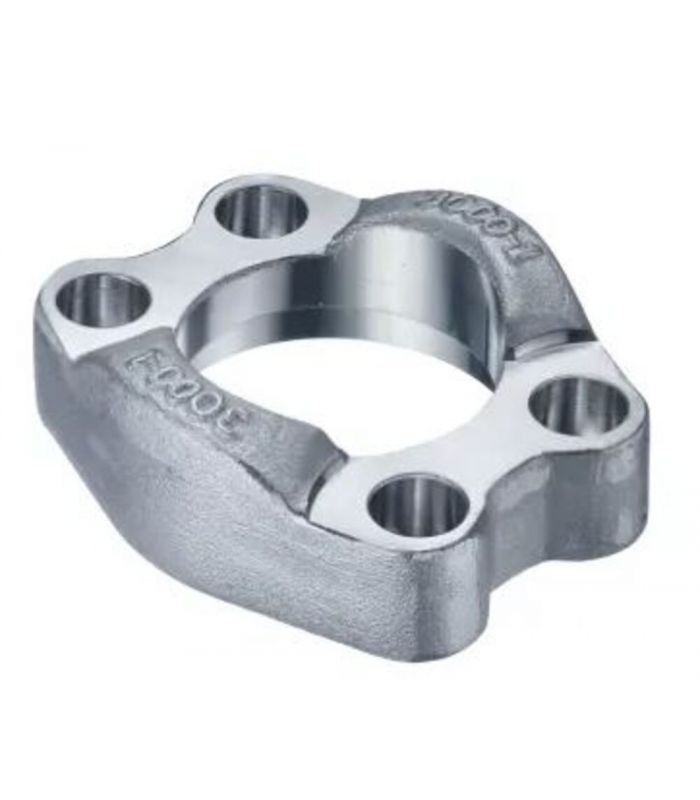

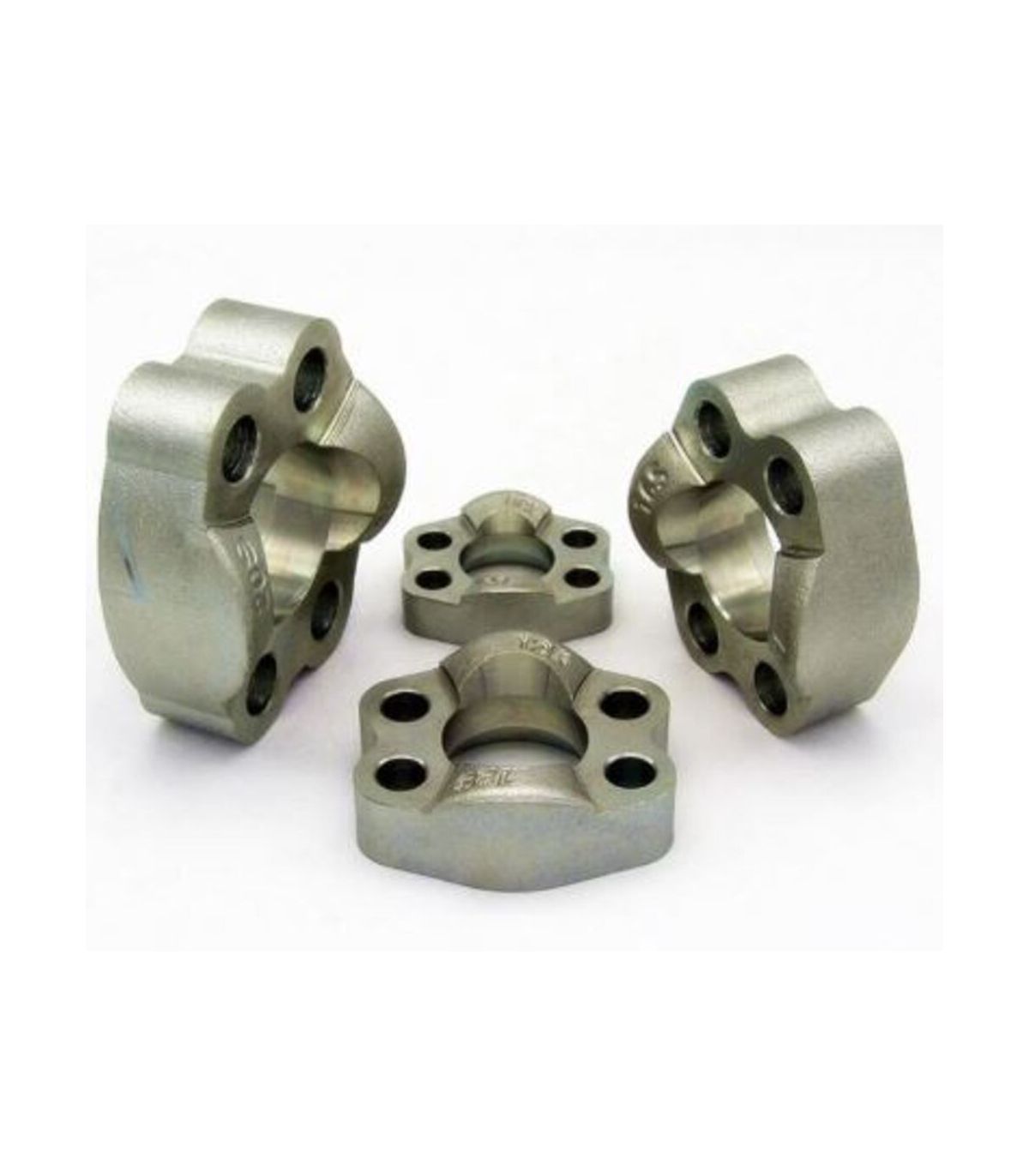

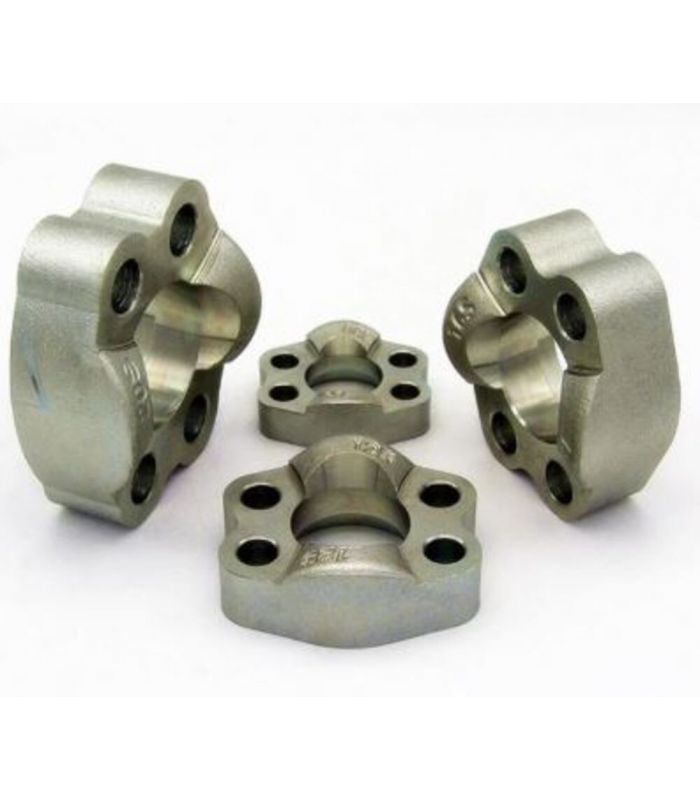

An SAE full flange is a metallic mechanical component used in pairs to secure connections on high-pressure flexible pipes.

Applications: industrial machinery, mobile hydraulics and heavy equipment.

Main features:

  • Option in SAE-3000 and SAE-6000
  • SAE-J518 Standard
  • Made of carbon steel.
€4.84 (tax included)
€4.00 (tax excl.)
SIZE
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
FLANGE TYPE
  • SAE-3000
  • SAE-6000
Reference:
444601
Description

SAE full flange

The SAE solid flange is a hydraulic connection element designed for high-pressure systems. The SAE solid flange allows for a secure connection between components using bolts, ensuring a leak-proof seal with an O-ring.

Technical specifications

  • High resistance to pressure and vibration
  • Quick and safe assembly
  • Excellent watertightness
  • Reusable with gasket replacement
  • Compatible with SAE blocks, valves, pumps and pipes

Applications

  • Industrial hydraulic systems
  • Public works machinery
  • Agricultural equipment
  • Hydraulic presses
  • Pressurized fluid transport systems

Technical data sheet for a complete SAE flange:

Product Details
444601
