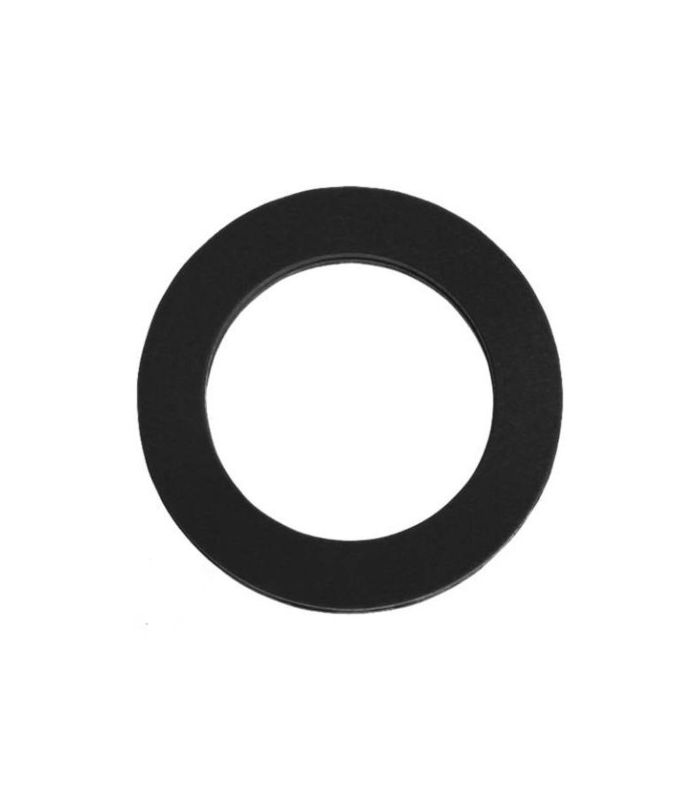

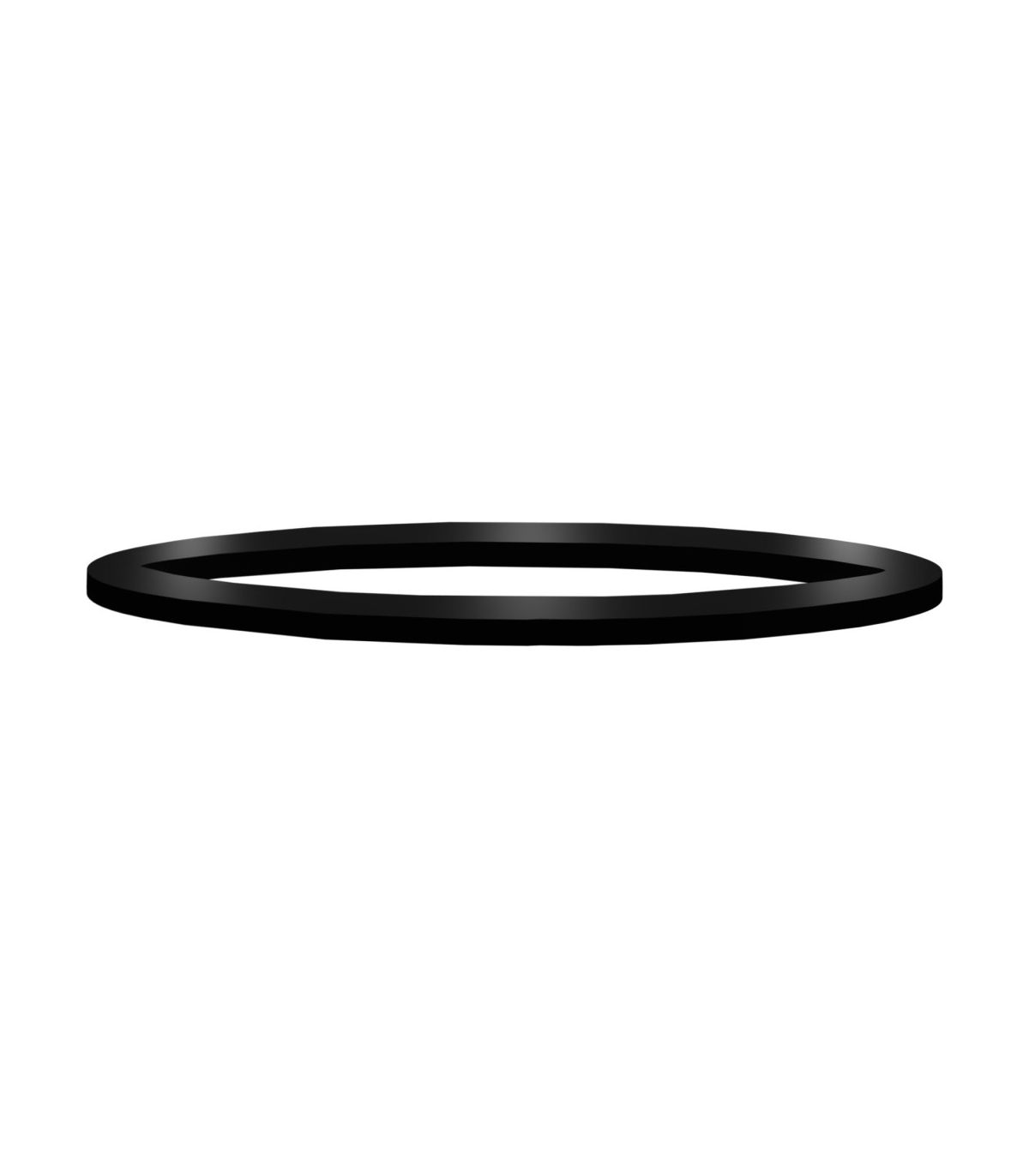

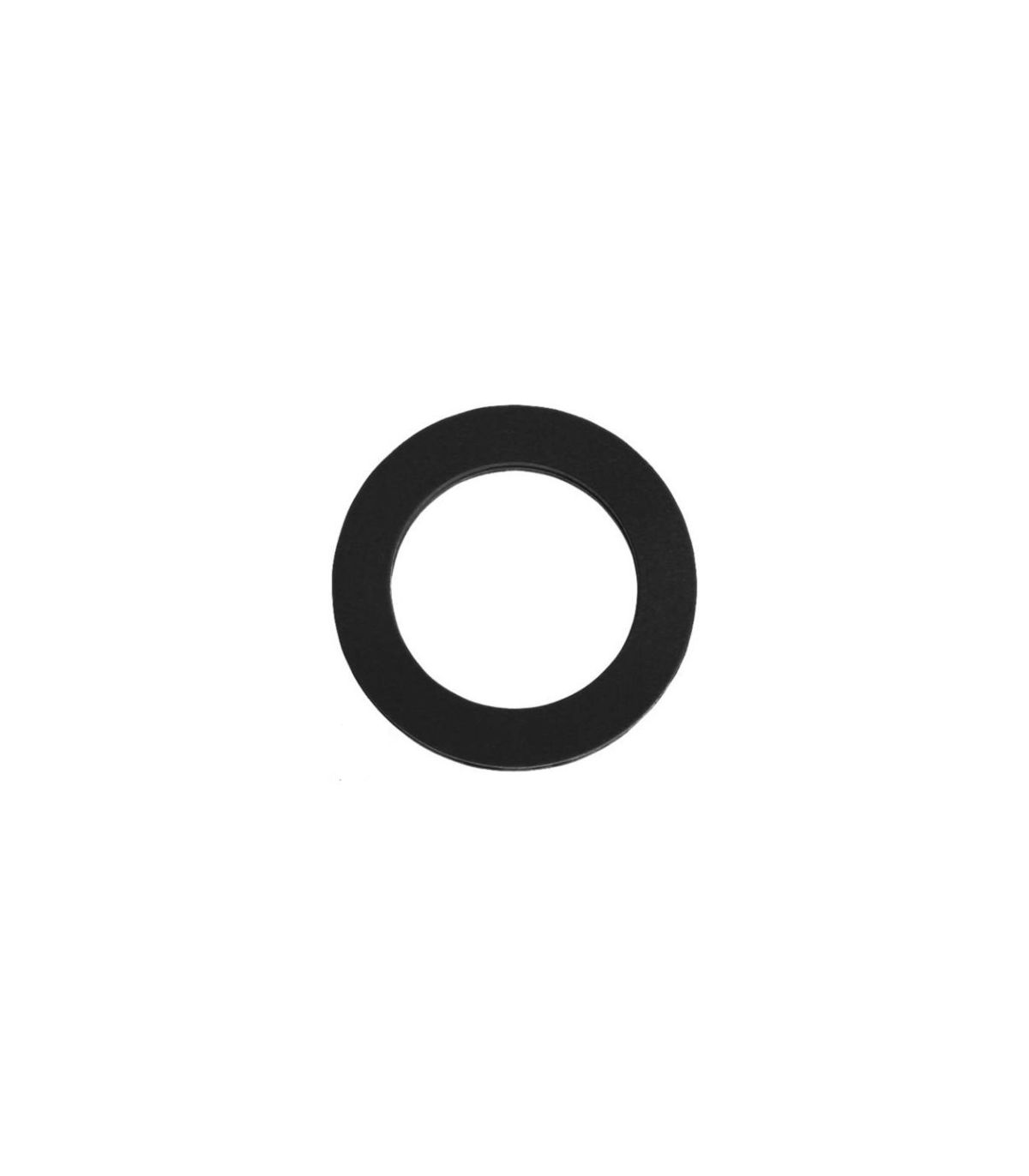

NBR CAMLOCK GASKET
NBR CAMLOCK GASKET
NBR CAMLOCK GASKET
NBR CAMLOCK GASKET

NBR CAMLOCK GASKET

The NBR camlock gasket is a seal made of nitrile butadiene rubber (NBR), an elastomeric material known for its strength, durability, and flexibility. The gasket is placed inside the camlock coupling, specifically between the male and female parts. Its function is to create a watertight seal, protect the metal surfaces, and dampen vibrations.

Technical specifications:

  • Made of NBR (other materials available upon request)
  • Sold in lots of 10 units.
€0.80 (tax included)
€0.66 (tax excl.)
SELECT THE THREAD
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"
  • 5"
Reference:
71080019
Description

NBR camlock gasket

The NBR Camlock gasket is a sealing element designed to ensure a tight seal in Camlock-type quick couplings. Made of NBR (Nitrile Butadiene Rubber), this gasket offers excellent resistance to oils, fuels, greases, and numerous industrial fluids.

It is installed inside the Camlock coupling to prevent leaks during the passage of liquids or gases, ensuring a safe and reliable connection even in demanding industrial applications.

Main features

  • Made of NBR
  • High resistance to oils and petroleum derivatives
  • Good elasticity and sealing capacity
  • Compatible with Camlock quick couplers
  • Easy replacement and maintenance

Applications

  • Chemical and industrial industry
  • Liquid transfer systems
  • Hydraulic and pneumatic installations
  • Fuels, oils and industrial fluids

Technical specifications for an NBR camlock gasket:

Code DN TO B C
71081019 1/2 26 17 3.96
71081026 3/4 35 22 5.53
71081030 1 40 27 6.35
71081035 1-1/4 49 34 6.35
71081039 1-1/2 55 41 6.35
71081042 2 66 51 6.35
71081047 2-1/2 79 60 6.35
71081050 3 94 76 6.35
71081060 4 123 102 6.35

Product Details
71080019
