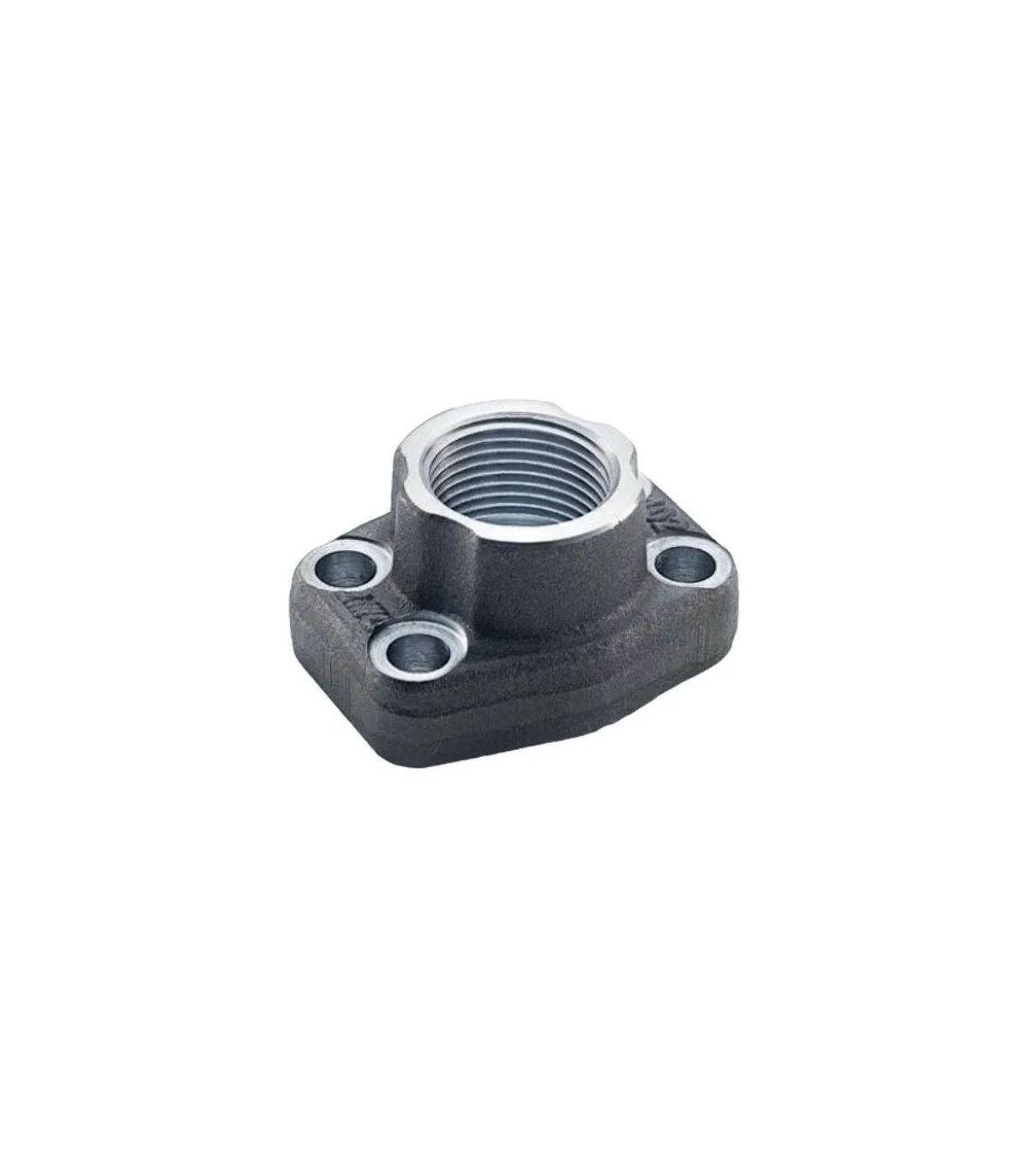

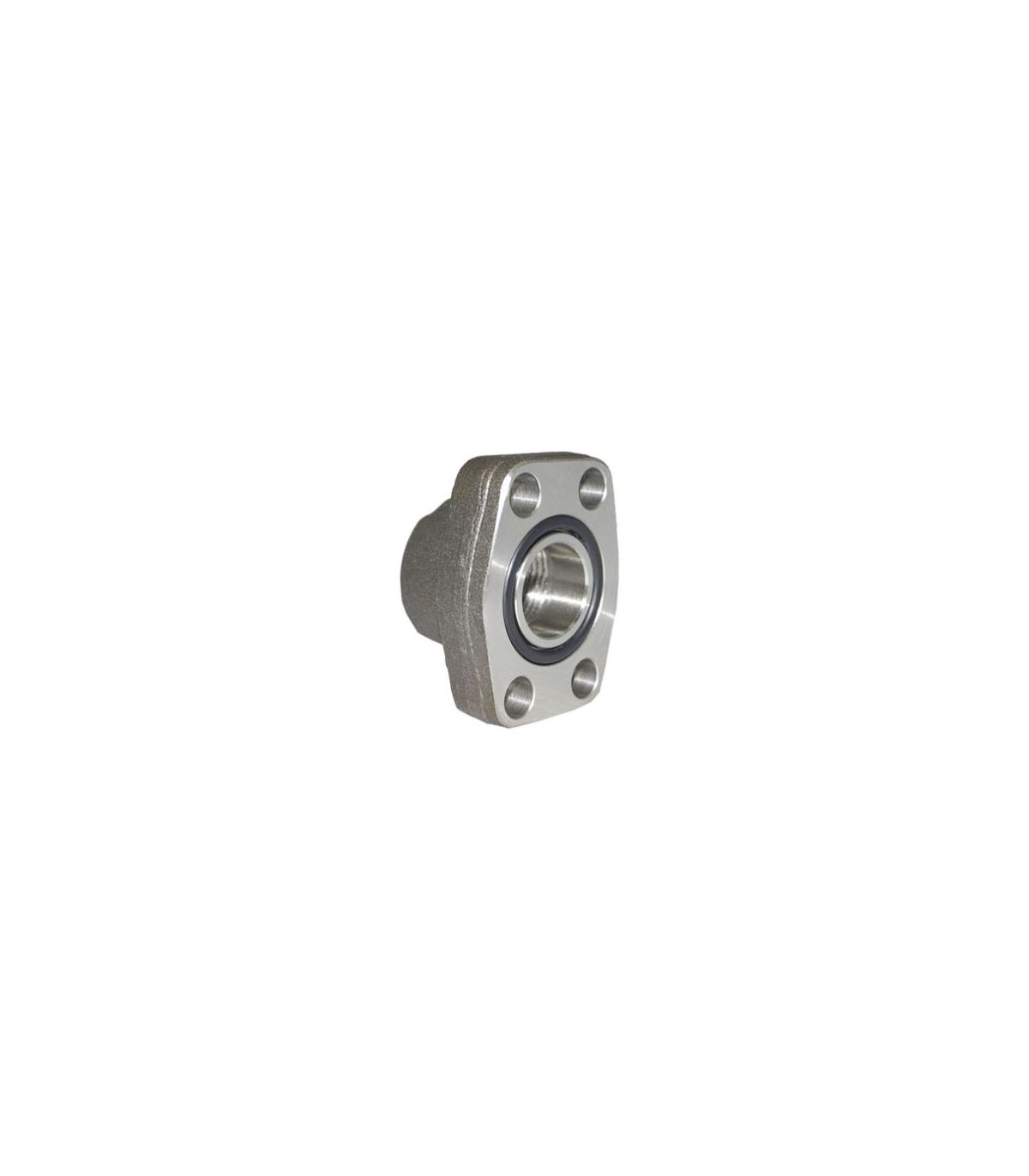

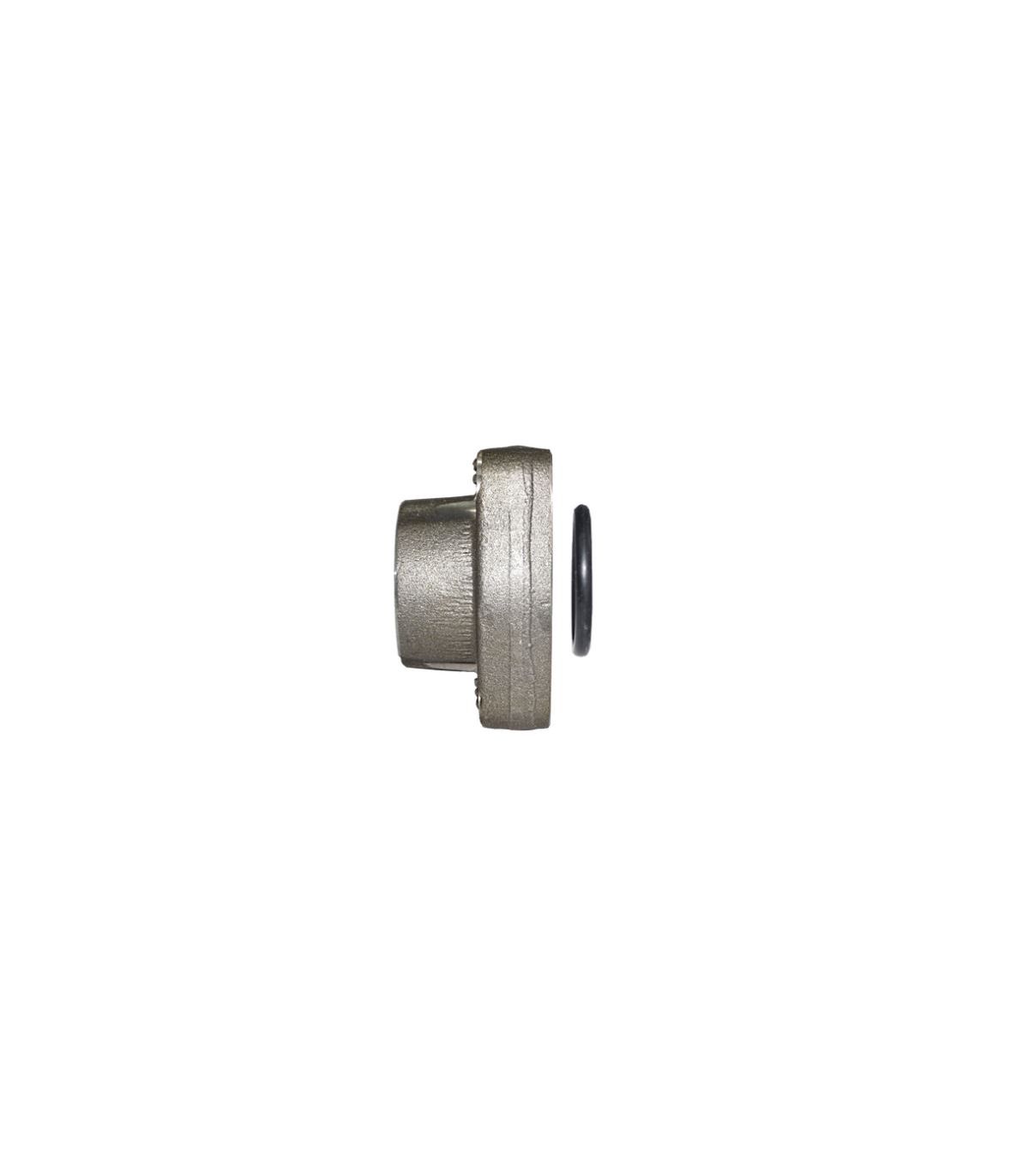

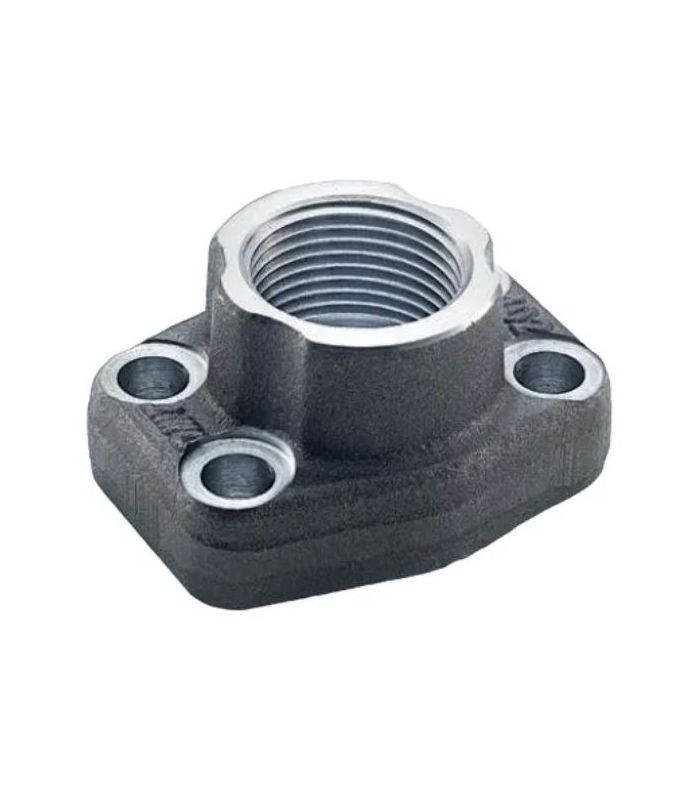

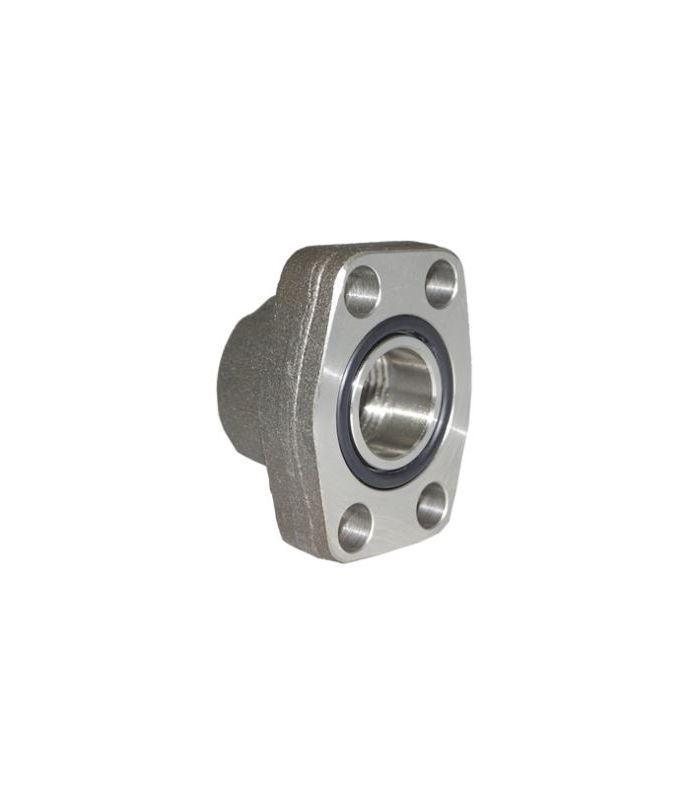

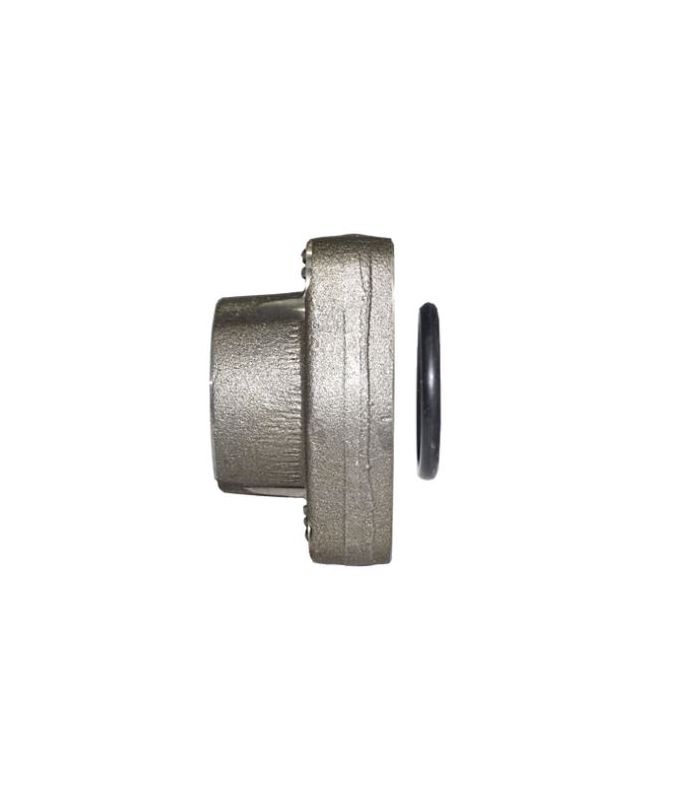

SAE STRAIGHT THREADED FLANGE FOR GASKET
SAE STRAIGHT THREADED FLANGE FOR GASKET
SAE STRAIGHT THREADED FLANGE FOR GASKET
SAE STRAIGHT THREADED FLANGE FOR GASKET
SAE STRAIGHT THREADED FLANGE FOR GASKET
SAE STRAIGHT THREADED FLANGE FOR GASKET

SAE STRAIGHT THREADED FLANGE FOR GASKET

A straight threaded SAE flange for a joint is designed to connect a hose or pipe with a threaded end directly to a flange port, without the need for welding. It is the ideal solution for quick installations and maintenance where a secure thread-to-flange transition is required.

Applications: medium and high pressure hydraulic circuits, industrial machinery, mobile equipment, oil and technical fluid systems.

Main features:

  • BSPP thread
  • Made of carbon steel.
  • Pressures of 3000 and 6000 PSI.

Screws and gaskets are not included.

€20.57 (tax included)
€17.00 (tax excl.)
SIZE
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
FLANGE TYPE
  • SAE-3000
  • SAE-6000
Reference:
444801
Description

SAE straight threaded flange for gasket

A straight threaded SAE flange for a gasket is a connection component designed according to SAE standards , with a straight internal thread, used to join elements in hydraulic systems using a sealing gasket. It allows for secure, detachable connections, ensuring an effective seal without the need for welding.

Available models

  • 3000 PSI Series: Used in medium-pressure applications. The design is lighter and the screws are closer together.
  • 6000 PSI Series: Designed for high pressure and extreme fatigue. The flange body is noticeably thicker and the bolts are of a larger diameter.

Applications

  • medium and high pressure hydraulic circuits
  • industrial machinery
  • mobile devices
  • oil and technical fluid systems

Technical data sheet for SAE straight threaded flange for gasket:

Product Details
444801
