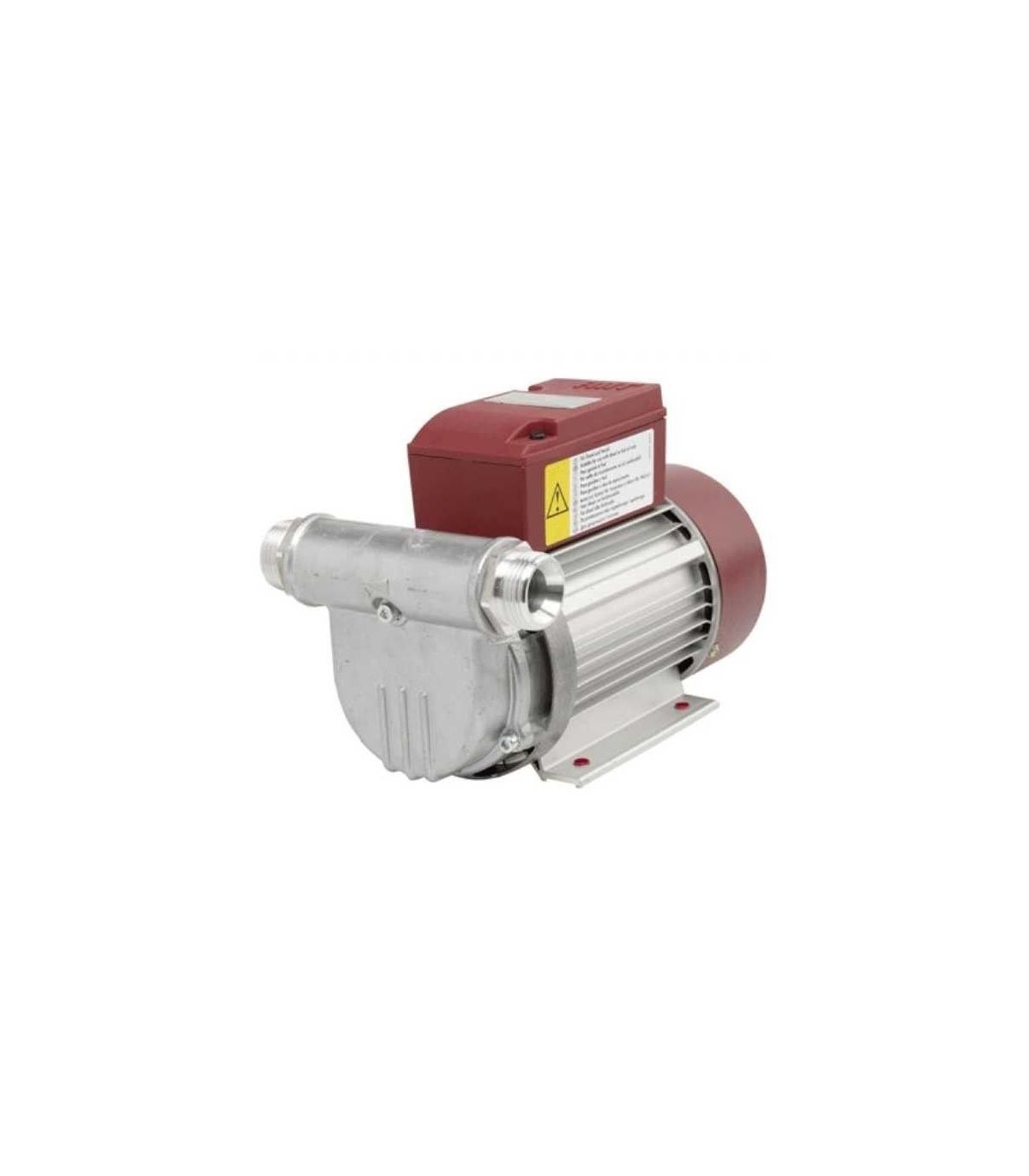

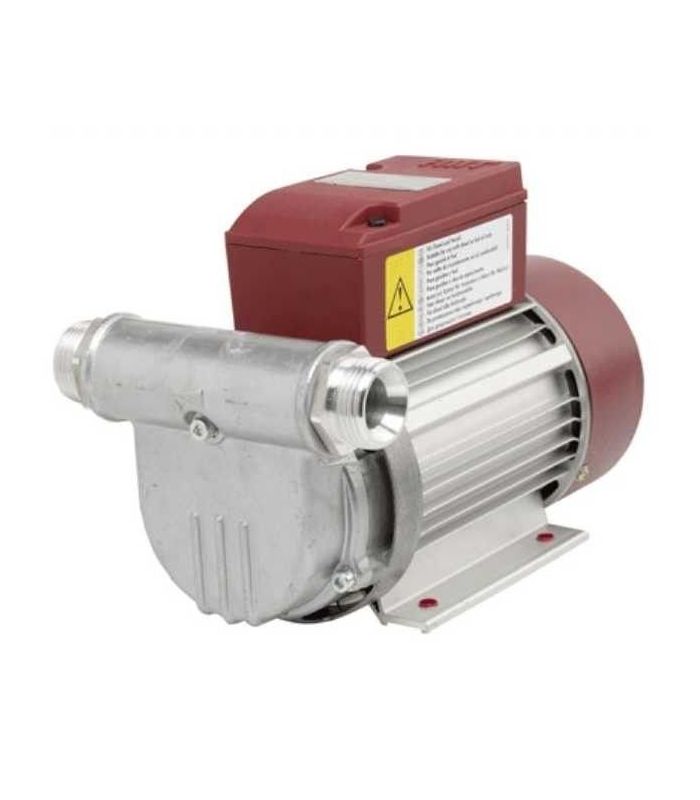

SELF-PRIMING ELECTRIC PUMP 56 lmin

Technical data
Connection cable (m): 1.8
Suction connection: G 1'' i
Supply connection: G 1'' i
Information: Paddle pump, "self-priming"
Flow rate with free discharge (l/min): 56
Suction height (m): 4
Supply pressure (bar): 1.8
Medium: Heating oil and diesel

Engine specifications:
Voltage (V): 230
Frequency (Hz): 50
Power consumption in amperes (A): 2.4
Power (kW): 0.37
Thermal Protection: Automatic Restart
Connection duration (min): continuous operation
Torque (Nm): 1.27
Number of revolutions: 2800 rpm
Manufacturing model: IMB 3
Protection rating: IP 54

Surface material of the parts:
Together: Perbunán 70
Pump casing: AlSi 12 (seawater resistant)
Stator material: GG 25
Paddle material: PEI
Tolerance between the vanes and the pump casing (mm): ± 0.025
LAA Dimensions (mm): 250 x 115 x 170
Weight (kg): 6.3

Specification:
* Vane pump with integrated bypass
* On/off switch
* Ram protector, regulated according to the WHG (Water Protection Act), continuous operation
* It is possible to assemble a three-digit counter (23193)

Special features:
* Due to the tight tolerances, high performance is achieved in both the development of suction power and pressure.
* The blade-stator connection guarantees structural stability of the blades up to 200°C
* The selection of materials results in a very light weight and extraordinary durability
