PVC HOSE WITH STEEL SPIRAL
PVC HOSE WITH STEEL SPIRAL
PVC HOSE WITH STEEL SPIRAL
PVC HOSE WITH STEEL SPIRAL

PVC HOSE WITH STEEL SPIRAL

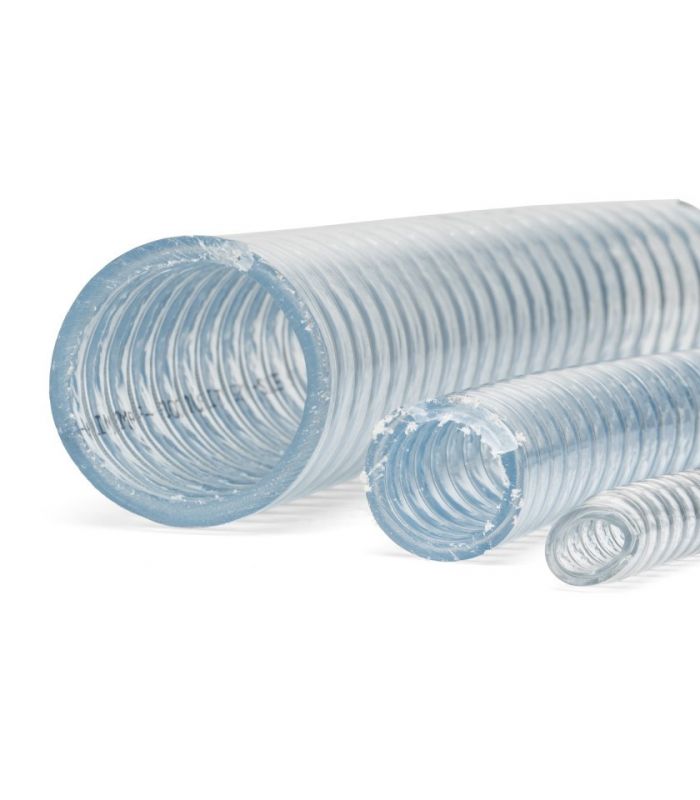

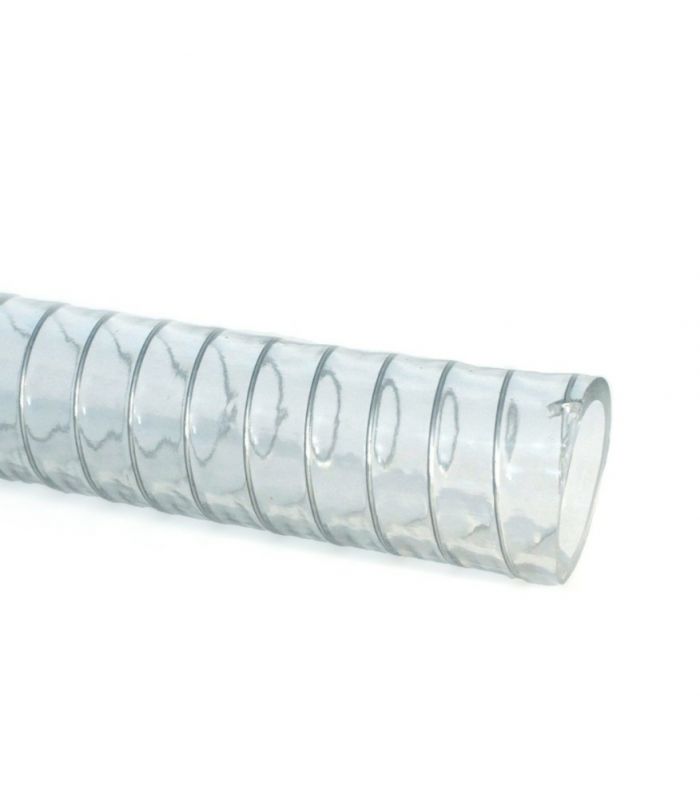

PVC hose with steel spiral

The PVC hose with steel spiral is used for the suction and discharge of all types of industrial liquids, including chemicals and food-grade liquids. It is compatible with the following models: Springvin, Transacer, Bosphorus L, Transmetal, Rylaspir, Plutone, and Armorvin.

Applications: Food industry, Chemical industry, Agriculture, Construction, Shipbuilding industry.

Technical specifications:

  • Smooth interior and exterior walls that facilitate the flow of liquids and reduce the accumulation of residue.
  • Galvanized steel inner spiral that provides greater rigidity, pressure resistance and abrasion resistance.
  • Transparent color.
  • Temperature -15 / 60ºC
  • Non-toxic, food-grade. (European Directive 2002/72/EC and 2007/19/EC)
  • Radius of curvature 3.5 x diameter.

The selection is by inner diameter.

* Choose full rolls or linear meters, according to your needs *

€1.07 (tax included)
€0.88 (tax excl.)
DIAMETERS
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 14
  • Ø 16
  • Ø 18
  • Ø 20
  • Ø 22
  • Ø 25
  • Ø 30
  • Ø 32
  • Ø 35
  • Ø 38
  • Ø 40
  • Ø 42
  • Ø 45
  • Ø 50
  • Ø51
  • Ø 60
  • Ø 63
  • Ø 70
  • Ø 75
  • Ø 80
  • Ø 90
  • Ø 100
  • Ø 110
  • Ø 120
  • Ø 125
  • Ø 127
  • Ø 140
  • Ø 150
DIAMETERS:
metros
metros
Reference:
20390013
Description

PVC hose with steel spiral

The PVC hose with steel spiral is a flexible conduit made of PVC that incorporates an internal galvanized steel spiral that provides it with high resistance to vacuum, pressure and deformation by crushing.

It is suitable for suction and pumping of liquids, air, gases and granular materials, even under demanding conditions.

Main features

  • Made of high-quality flexible PVC .
  • Internal reinforcement using galvanized steel spiral .
  • Excellent resistance to vacuum, crushing and bending.
  • Suitable for suction and discharge .
  • Smooth interior to improve flow and prevent scale buildup.
  • Lightweight, easy to handle, and with good transparency for visualizing the fluid.
  • Resistant to atmospheric agents, light abrasion and moderate chemicals.

Applications

  • Suction and pumping of water, sludge, fertilizers and industrial liquids.
  • Transport of bulk materials , shavings or particles.
  • Pumping and purification systems.
  • Agriculture, industry, construction and machinery equipment.
  • Flexible tubing for mobile equipment or environments with vibration.

Technical specifications for PVC hose with steel spiral:

Code Inner diameter (mm) Outer diameter (mm) Weight (g/m) Working pressure (bar) Roll length (m)
20390014 10 15.5 154 12 50
20390015 12 18 186 11.5 50
20390016 14 20 220 11 50
20390017 16 22 250 10.5 50
20390018 18 25 286 10 50
20390022 20 27 330 10 50
20390027 25 33 506 9.5 50
20390030 30 38 610 9 50
20390031 32 40 640 9 50
20390032 35 44 726 8 50
20390035 38 46 776 7.5 50
20390036 40 50 920 7.5 50
20390037 42 52 970 7 50
20390039 45 55 1.116 6.5 50
20390041 50 61 1,260 6 50
20390042 51 62 1,260 6 30
20390044 60 72 1,696 5.5 30
20390045 63 75 1,746 5 30
20390047 70 84 2,036 5 30
20390048 75 89 2,180 4.5 30
20390049 80 94 2,426 3.5 30
20390050 90 105 2,810 3 30
20390052 100 117 3,540 3 30
20390053 110 127 3,830 2.5 30
20390054 120 137 4.136 2.5 30
20390055 125 142 4,460 23 30
20390056 127 144 4,576 23 20
20390057 140 159 5,330 2.2 20
20390058 150 170 6,300 2 20

Product Details
20390013

Specific References

upc
1
Comments
12 other products in the same category:
FOOD GRADE STEAM HOSE 20 BAR

€11.43 (tax excl.)
€13.83 (tax included)
The 20 bar food-grade steam hose is used for all types of cleaning, especially in the food industry. It is resistant to heat, pressure, and chemicals used in the food industry. It is mainly used in the food and...
ENDLESS CLAMP W2

€0.38 (tax excl.)
€0.46 (tax included)
The W2 endless clamp is ideal for automotive and industrial applications. It is used to secure and seal hoses and pipes. Applications: Cooling and heating systems, Fuel and air systems in automobiles, Industrial and...
DIN 11851 BUSHING FOR HOSE

€40.45 (tax excl.)
€48.94 (tax included)
DIN 11851 hose ferrule The DIN 11851 hose fitting is a type of connector used to join hoses to other system components, such as pipes or valves. It consists of a threaded part and a part that is inserted into the...
REINFORCED CLAMP W2

€1.21 (tax excl.)
€1.46 (tax included)
Reinforced clamp W2 A reinforced W2 clamp is a fastener designed for high-pressure and heavy-duty applications. Thanks to its screw, it ensures a firm grip, vibration resistance, and durability. Applications:...
DOUBLE BRIDGE CLAMP W2

€12.36 (tax excl.)
€14.95 (tax included)
The W2 double bridge clamp is a fastening element designed to securely hold hoses, pipes and conduits in industrial installations. Applications: Air conditioning, ventilation and extraction systems. Main features: 430...
FLEXIBLE FOOD GRADE HOSE 10 BAR

€26.55 (tax excl.)
€32.13 (tax included)
The 10 bar flexible food-grade hose is used for food-grade pumping and suction applications. It is a non-toxic, food-grade hose for pumping and suction of food-grade beverages and chemicals with up to 99% alcohol....
10 BAR FOOD SUCTION HOSE

€15.07 (tax excl.)
€18.24 (tax included)
Food grade suction hose 10 bar A 10 bar food-grade suction hose is defined as a non-toxic, mandrel-shaped tube for the suction and discharge of food-grade liquids, such as milk, oil, wine, juice, and beer. Maximum...
HOSE FOR SUCTION AND DISCHARGE OF FOOD-GRADE LIQUIDS

€386.88 (tax excl.)
€468.12 (tax included)
Hose for suction and discharge of food-grade liquids The hose for suction and discharge of food liquids , also compatible with S-370, is widely used in the food industry for the transport of liquids such as milk,...

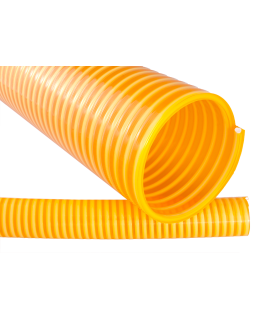

PVC LIQUID HOSE WITH PVC SPIRAL
