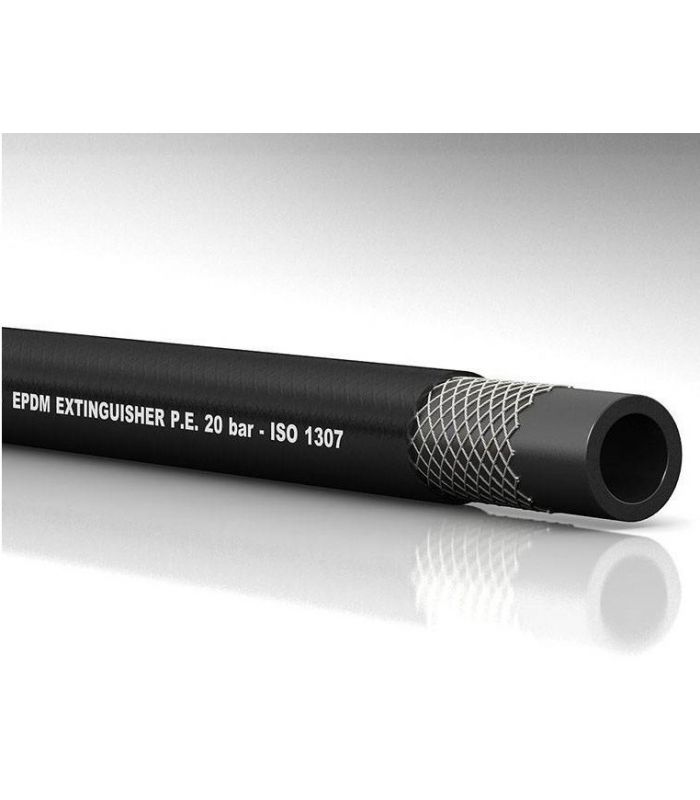

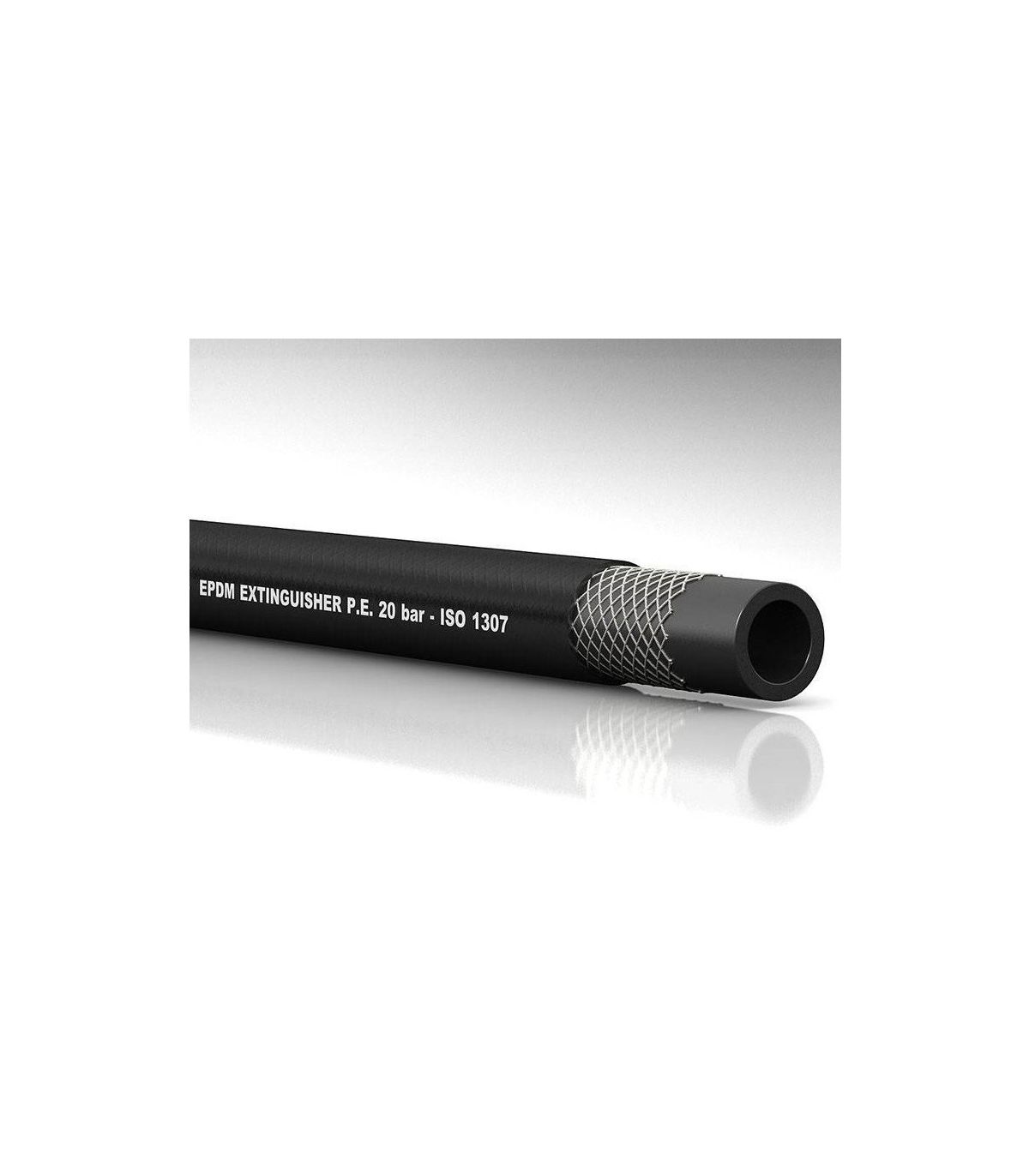

The 20 bar smooth EPDM hose is manufactured continuously, offering high resistance to aging and weathering, and is lightweight and easy to handle. It is specially designed for conveying compressed air in mining, public works, water, non-aggressive chemicals, and various industrial applications.
Main features :
The selection is by inner diameter.
Choose full rolls or linear meters, according to your needs.
The 20 bar EPDM smooth hose is a robust and versatile solution designed for industrial applications requiring high resistance to pressure, temperature, and atmospheric agents . Manufactured from high-quality EPDM rubber , it offers reliable performance in water systems, pressure equipment, and firefighting applications.
Technical data sheet for smooth EPDM hose:
| Code | Inner diameter (mm) | Outer diameter (mm) | Weight kg/m | Thickness (mm) | Working pressure (bar) | Curve radius (mm) | Roll length (m) |
| 207401 | 6 | 13 | 0.180 | 3.50 | 20 | 48 | 100 |
| 207402 | 8 | 15 | 0.230 | 3.50 | 20 | 50 | 100 |
| 207403 | 10 | 17 | 0.300 | 3.50 | 20 | 60 | 100 |
| 207404 | 13 | 22 | 0.410 | 4.50 | 20 | 70 | 50 |
| 207405 | 15 | 25 | 0.480 | 5.00 | 20 | 90 | 50 |
| 207406 | 19 | 29 | 0.640 | 5.00 | 20 | 100 | 50 |
| 207407 | 25 | 36 | 0.810 | 5.50 | 20 | 110 | 50 |
