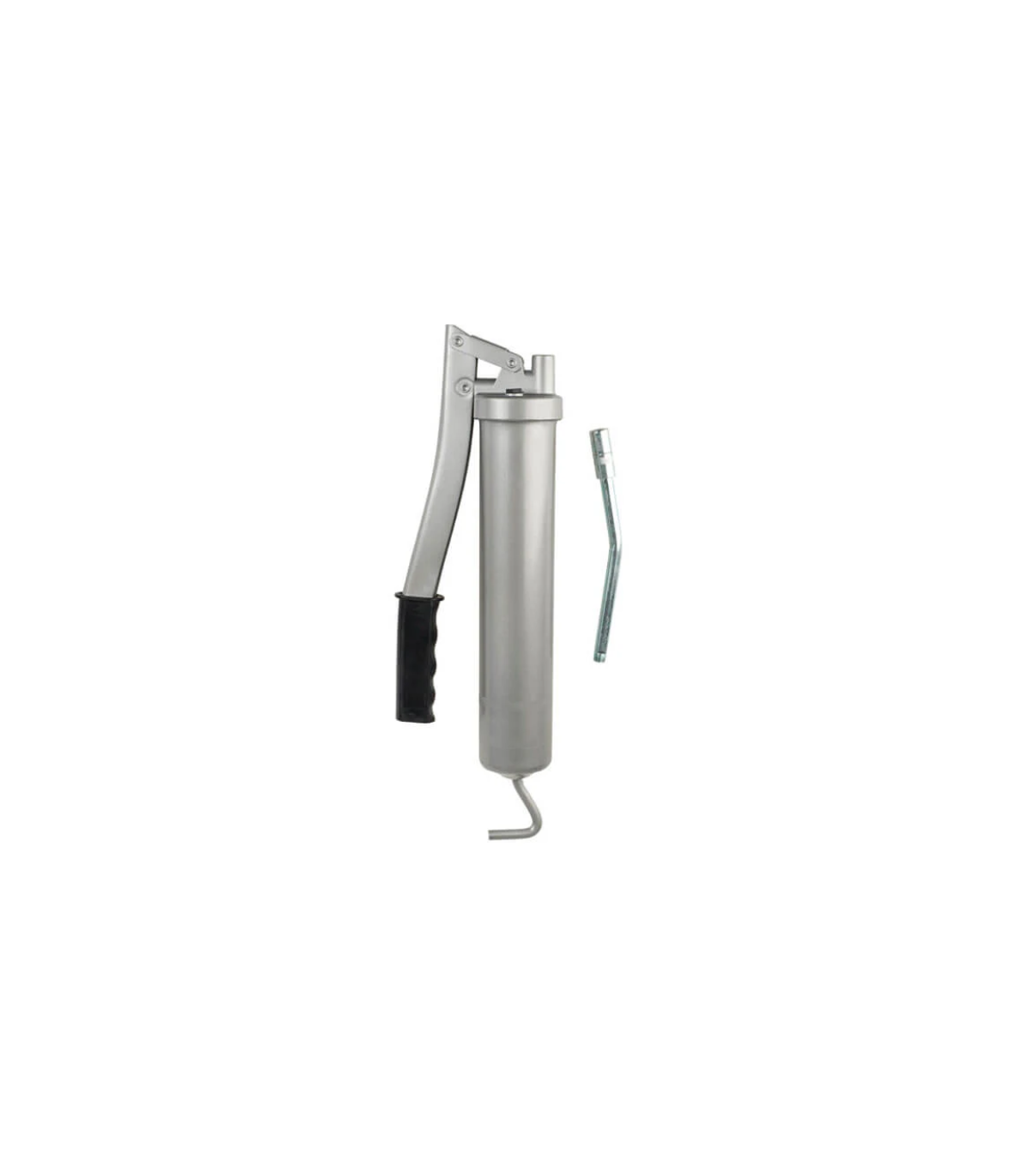

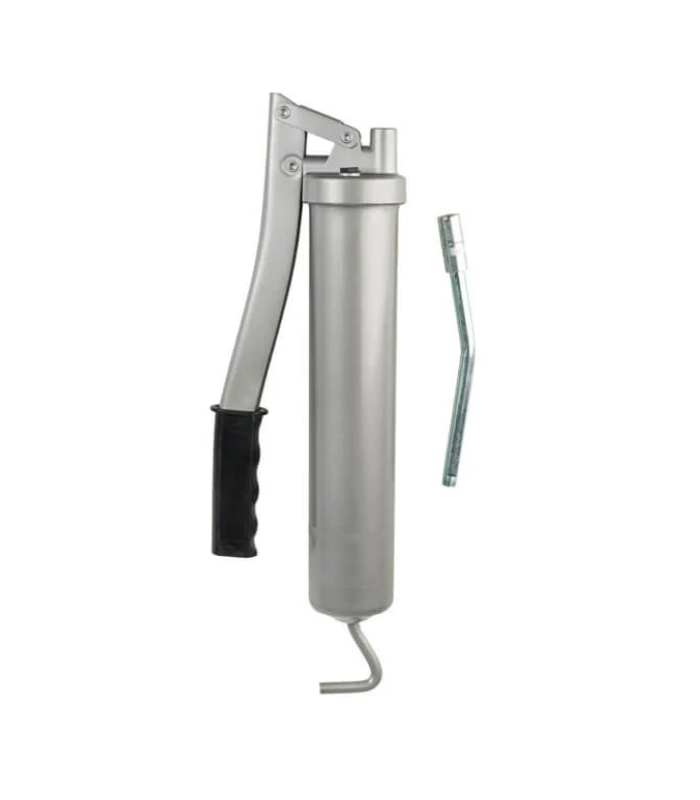

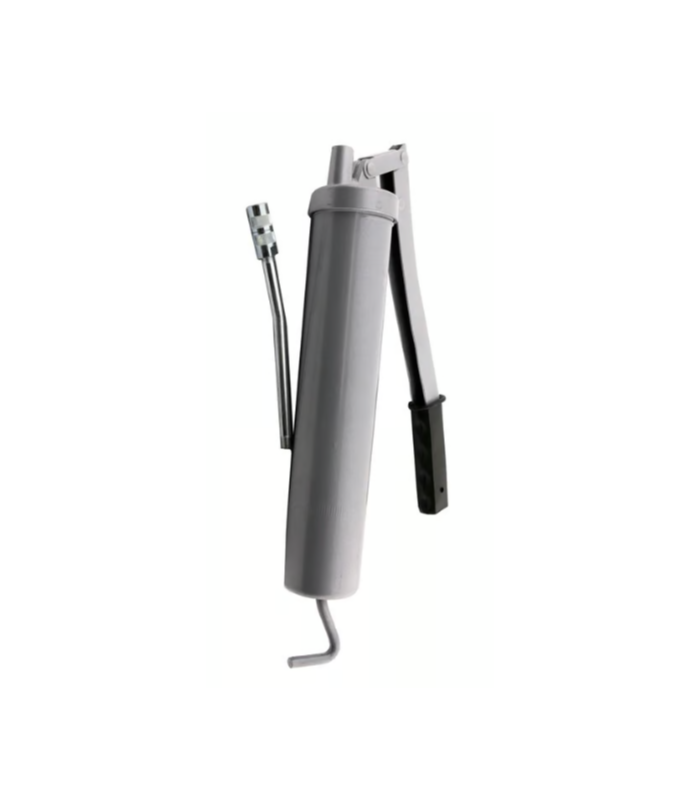

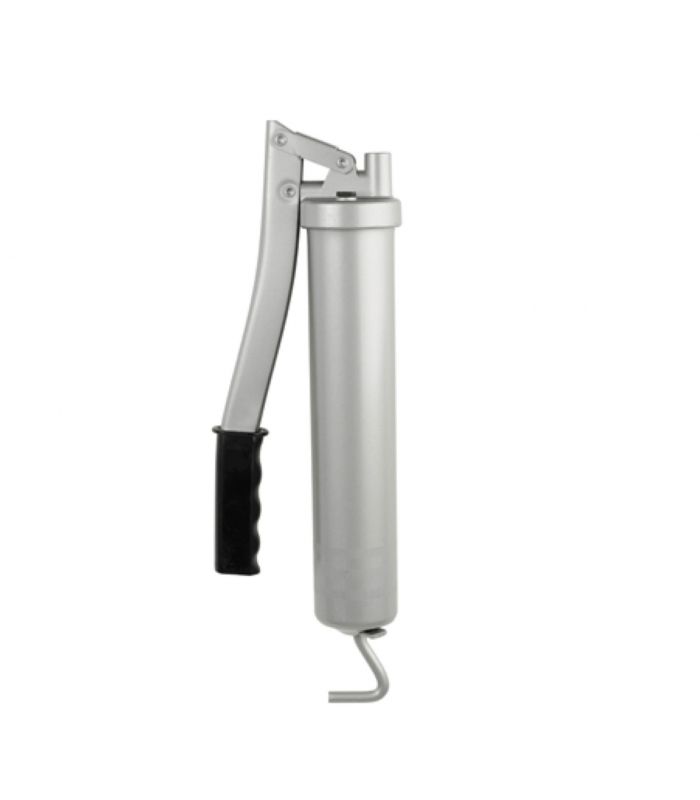

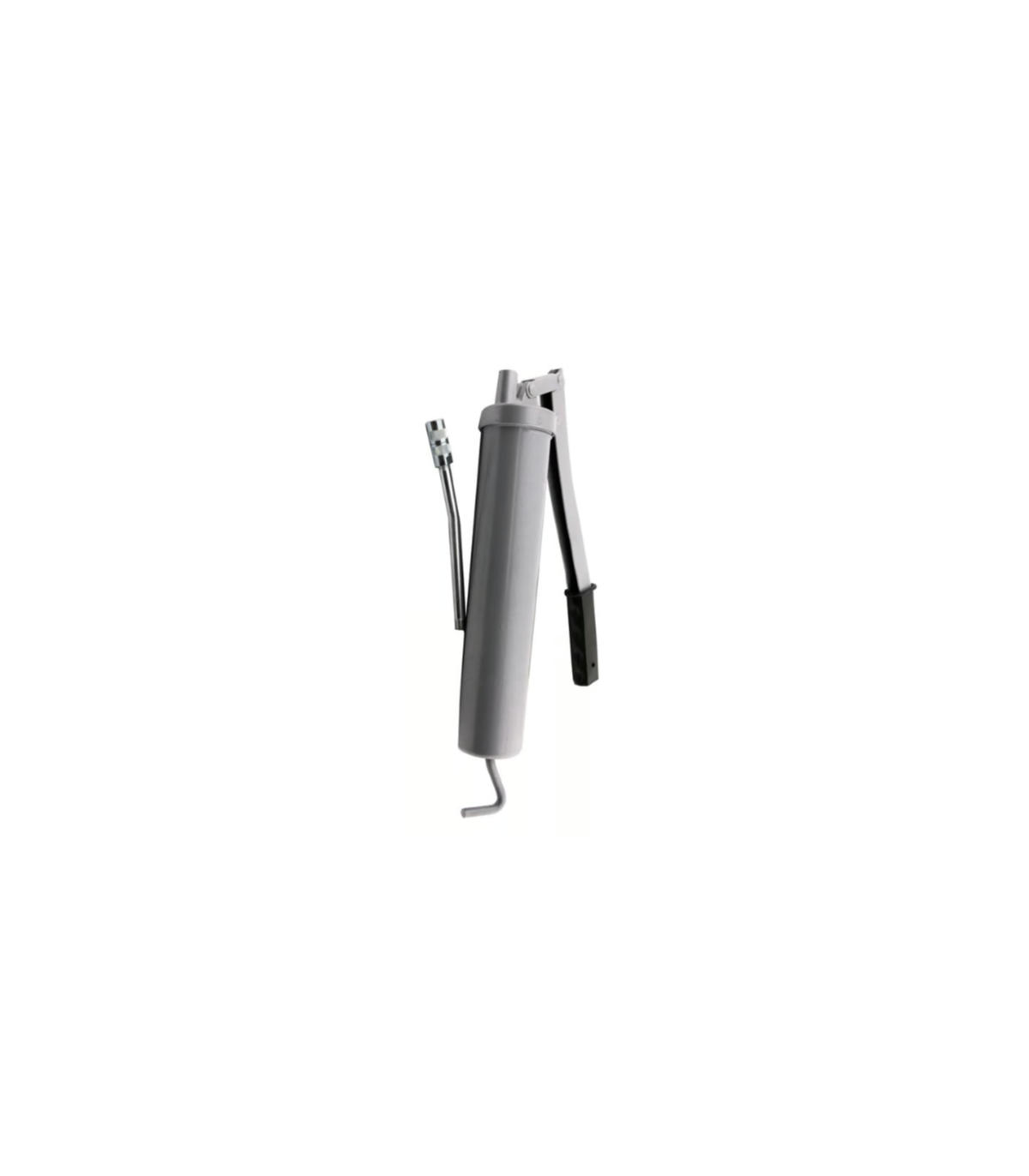

Manual oil pump 12602

The manual oil pump is used to transfer oils and liquids.

Data sheet:

  • Pump outlet connection: M 10 x 1
  • Capacity: 500ml
  • Filling options: Unscrewable lid
  • Pressure piston diameter: 9 mm
  • Oil supply piston drive: manual lifting means
  • Volume / travel: Proportional to the lever travel, max. 1.4 cm³
  • Supply pressure: up to 400 bar
  • Burst pressure (system): 850 bar
  • Burst pressure (pump head): 1200 bar
  • Tube thickness: 1.0 mm
  • Color: Silver
  • Weight: 1.2 Kg


Specifications:

  • With 1 rigid extension, angled, M 10 x 1, 150 mm
  • With 1 nozzle, 4 clamps, M 10 x 1, with hydraulic valve


Special features:

  • with double hermetic piston for fluid oil and grease
  • Double plunger pickup with a chain
  • pressure piston with high fit accuracy in the cylinder
  • Sealing system: hydraulic seals and valves prevent the compressed oil in the head of the lever oil pump from flowing back
  • Consistent performance, even after 5,000 cycles
  • Pump head and closure cover cast in injected zinc Z 410
  • Lever handle with non-slip grip
  • The minimal opening of the lever allows oil to be supplied, making it easier to work in hard-to-reach places
  • Possibility of varying the supply pressure without much effort, even with high back pressure
€49.37 (tax included)
€40.80 (tax excl.)
Reference:
6370
