VALVE 5/2 DOUBLE VB14 1501C00004
VALVE 5/2 DOUBLE VB14 1501C00004
VALVE 5/2 DOUBLE VB14 1501C00004
VALVE 5/2 DOUBLE VB14 1501C00004
VALVE 5/2 DOUBLE VB14 1501C00004
VALVE 5/2 DOUBLE VB14 1501C00004

VALVE 5/2 DOUBLE VB14 1501C00004

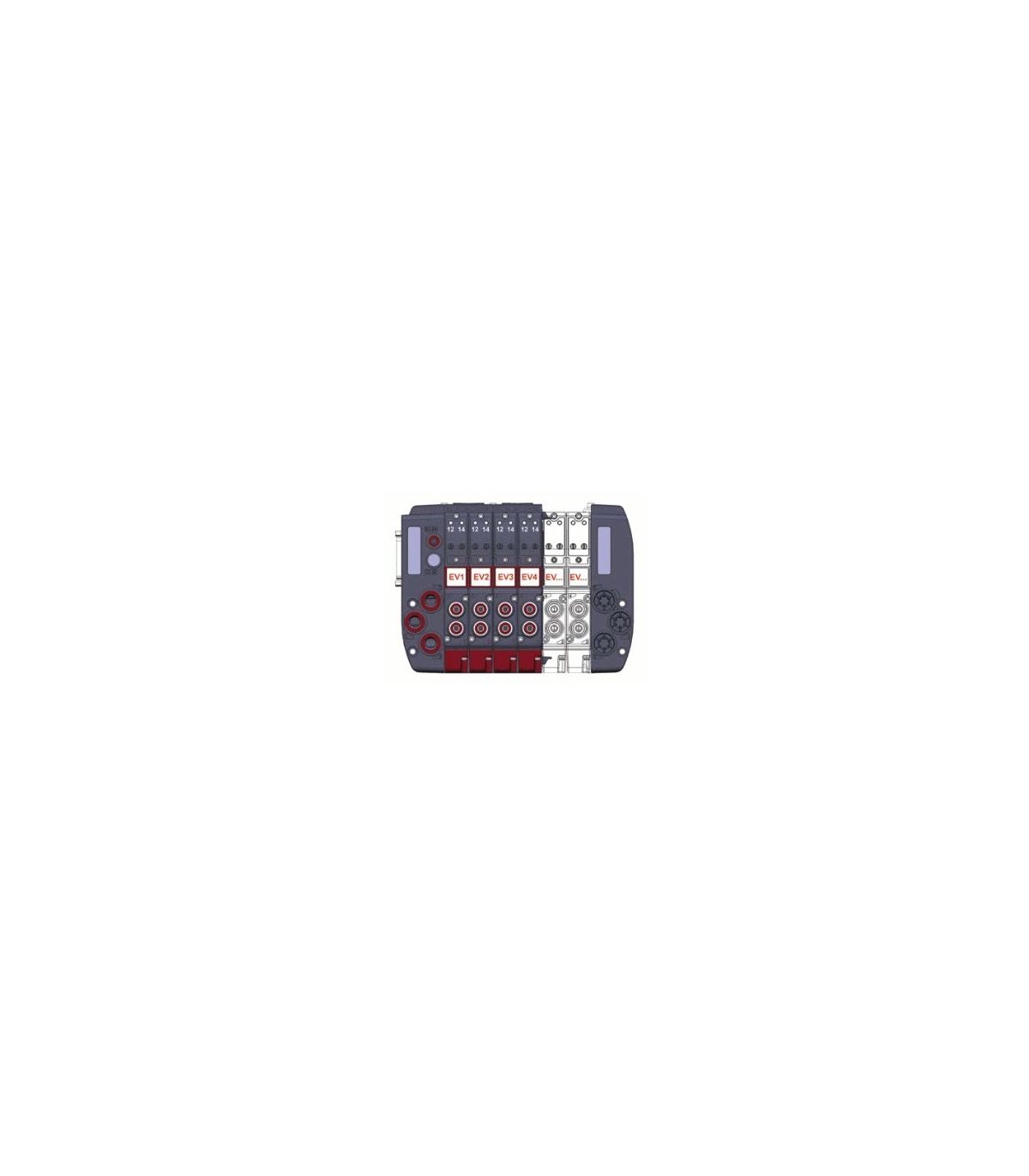

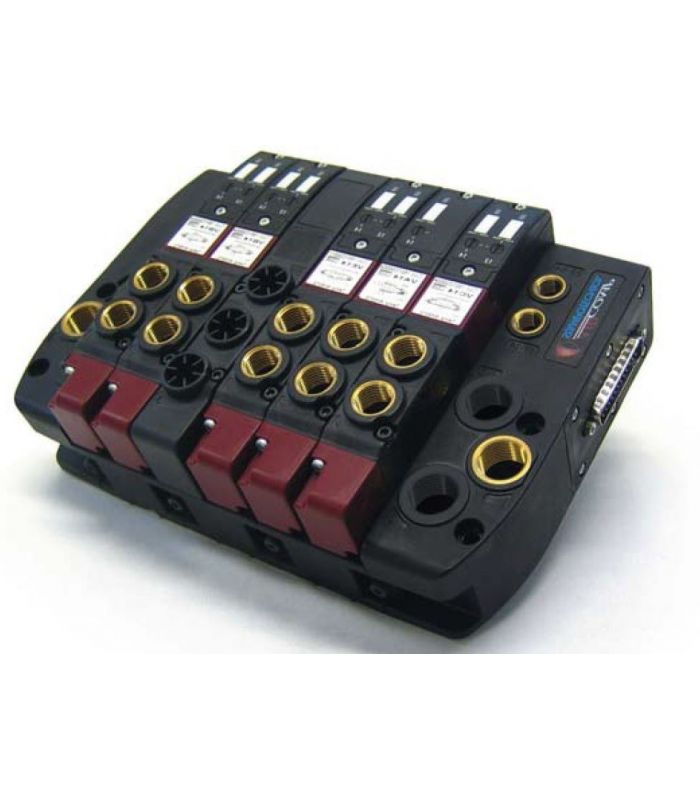

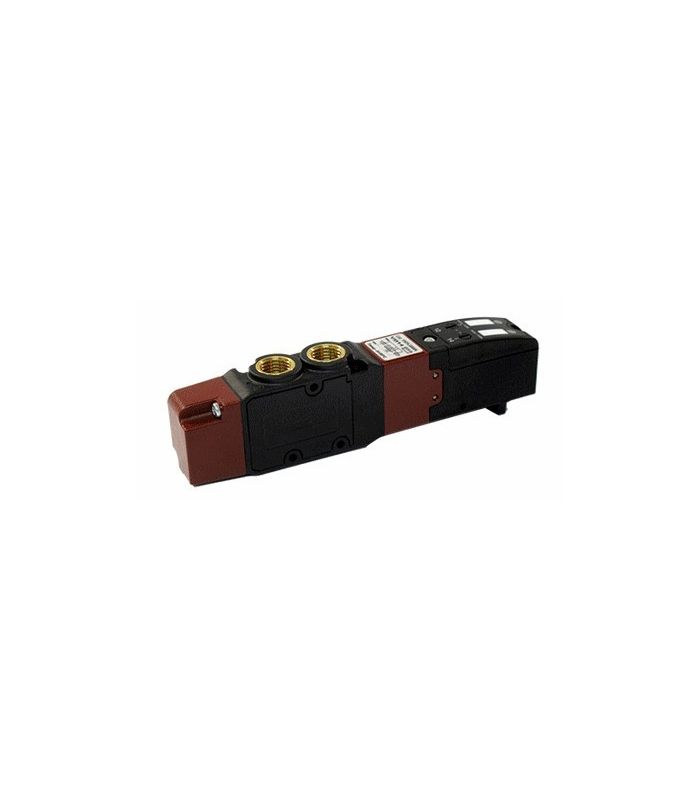

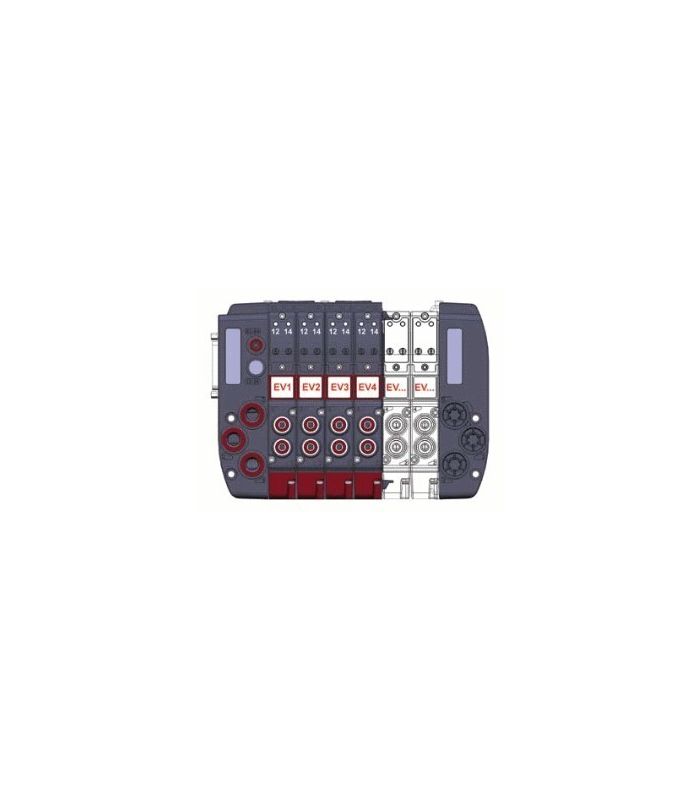

A 5/2 bistable valve VB14 1501C00004 is a pneumatic control valve used in Sub-D multipole integrated systems. It features 5 ports (2 inlet, 2 outlet, and 1 exhaust) and 2 stable operating positions (bistable).

Technical sheet:

  • Simplicity and versatility of assembly and wiring.
  • Double electro-pilot, housed on one side, reducing the size of the battery.
  • Wide range of valves and modules, threads and pitches.
  • Possibility of mounting up to 20 bistable solenoid valves in the same block (40 signals)
  • Multipolar 25-pin connector for 2 to 10 valve positions. Or 44-pin connector for 2 to 20 valve positions.
  • Protection degree IP-40 in 25 pin or IP-65 in 25 and 44 pins
  • Voltage 24V DC Power 1.3 W Electrical configuration PNP
  • Working temperature -5ºC / 50ºC
  • Working pressure Vacuum -1 / 10 bar.
€76.23 (tax included)
€63.00 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • Ø 6
  • Ø 8
Reference:
57050009
Description

valve 5/2 bistable VB14 1501C00004
