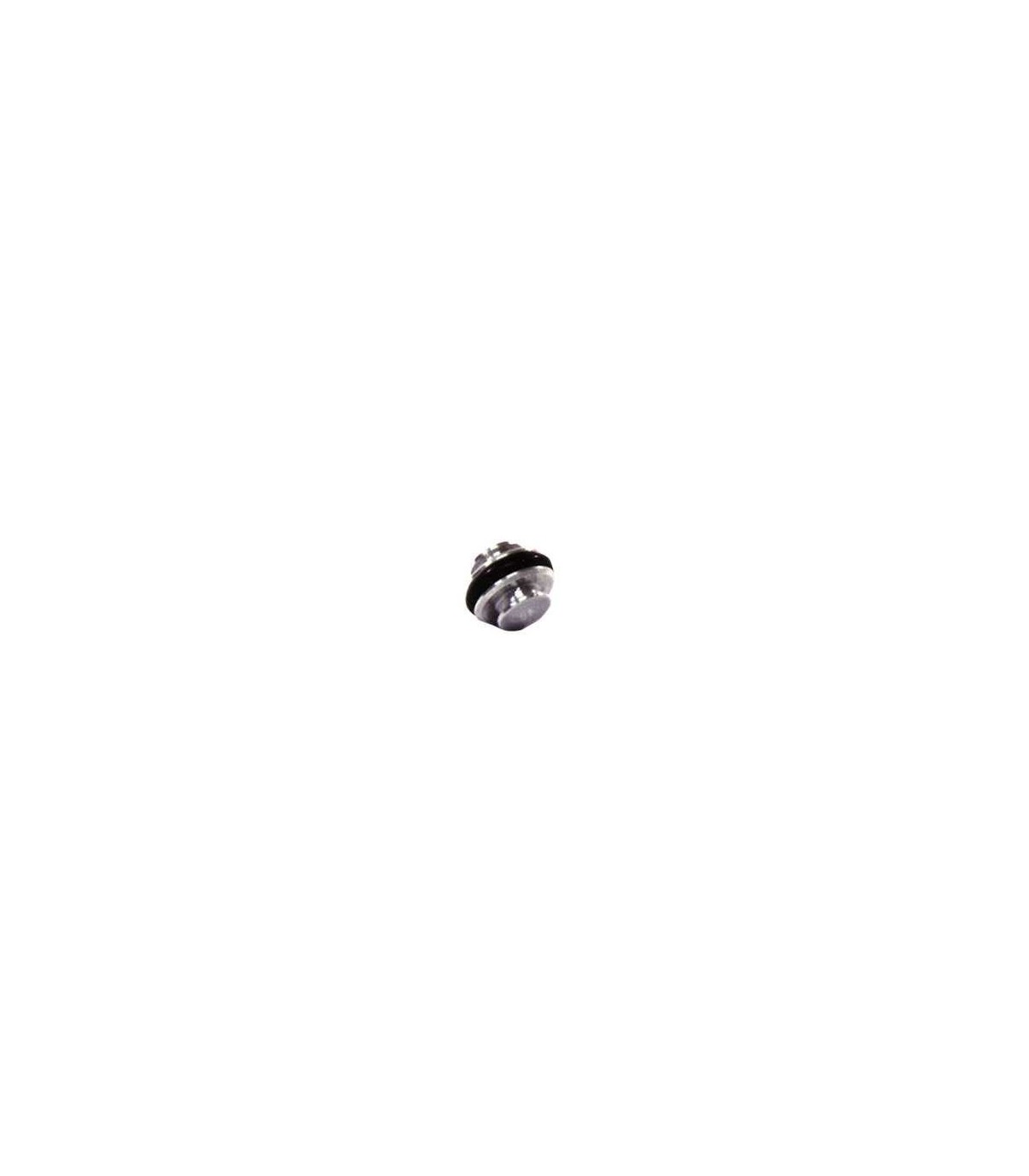

MODULE CLOSURE PLUG 1531C00010

A 1531C00010 module plug is essential in electrical or electronic systems. Its main function is to close and seal a port or connection. It prevents the entry of dust particles, moisture, or any other contaminant. It provides electrical insulation, preventing short circuits or current leaks.

Technical specifications:

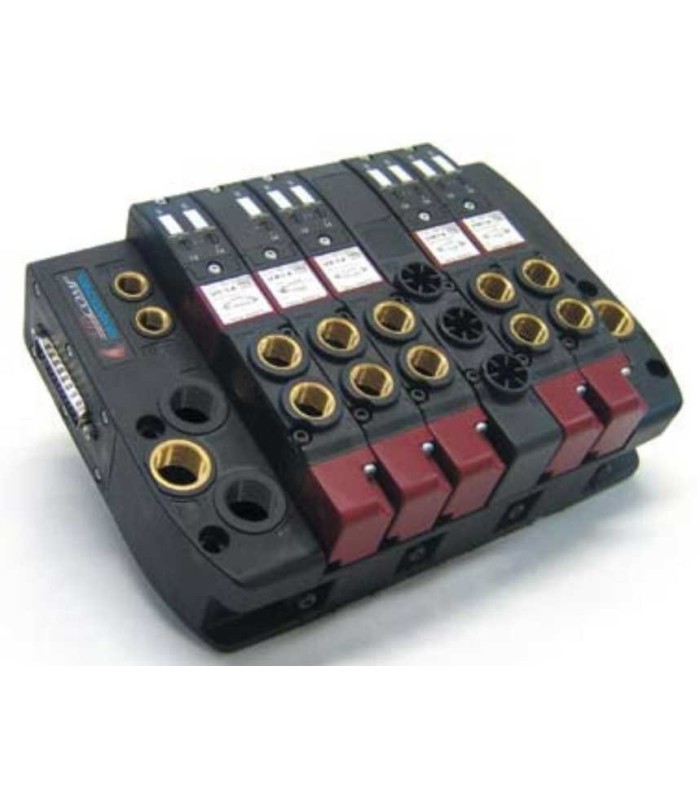

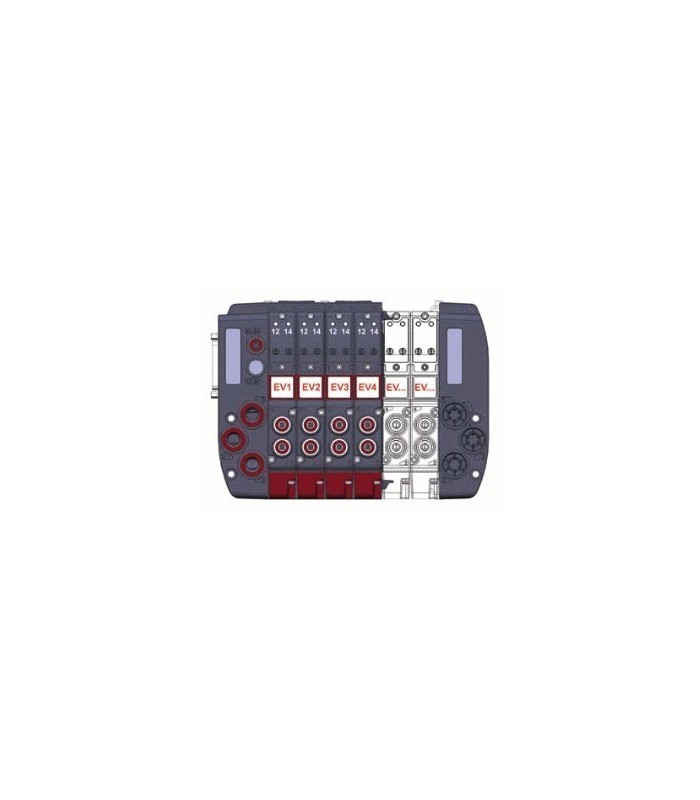

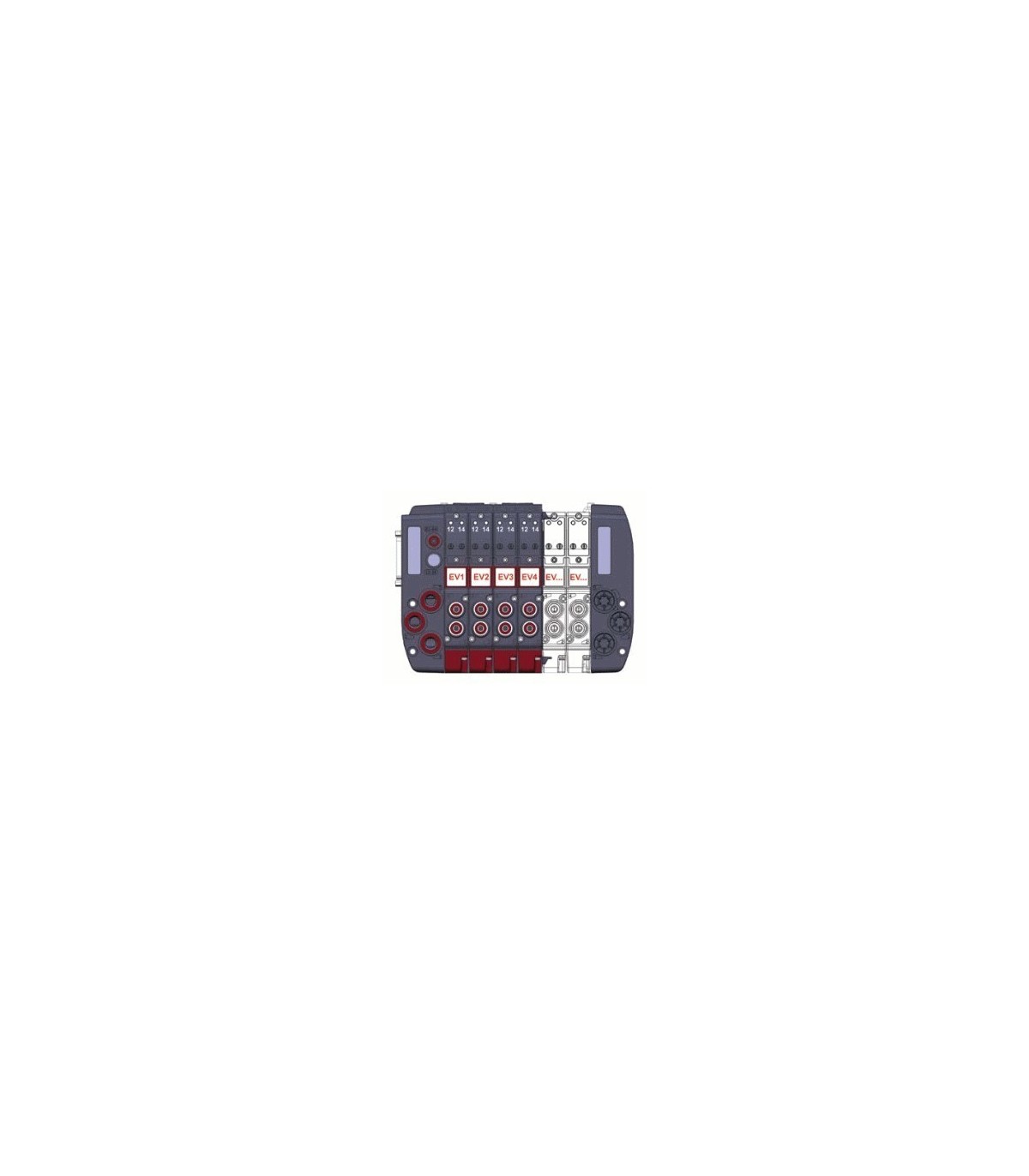

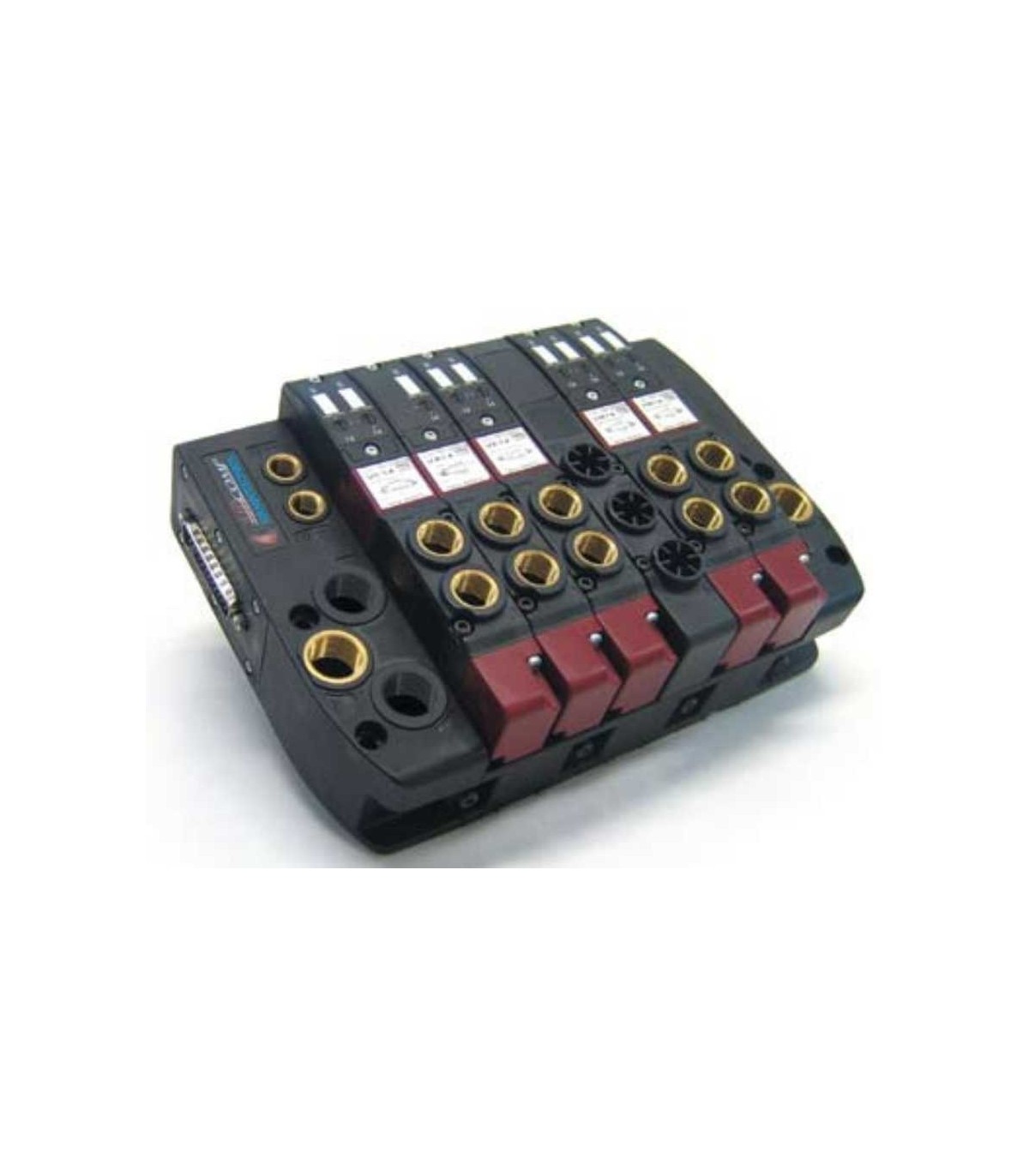

• Sub-D multipolar integrated system

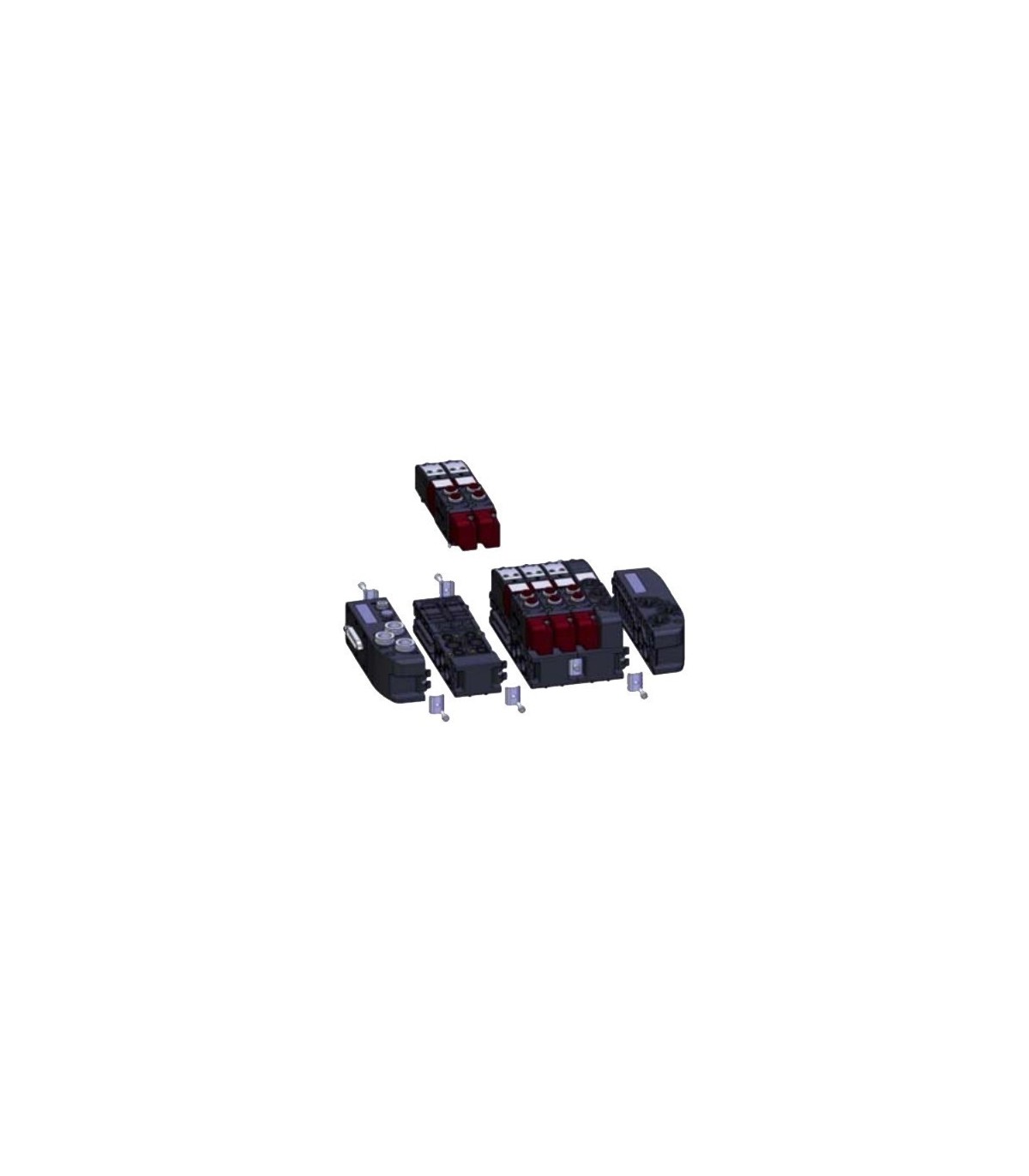

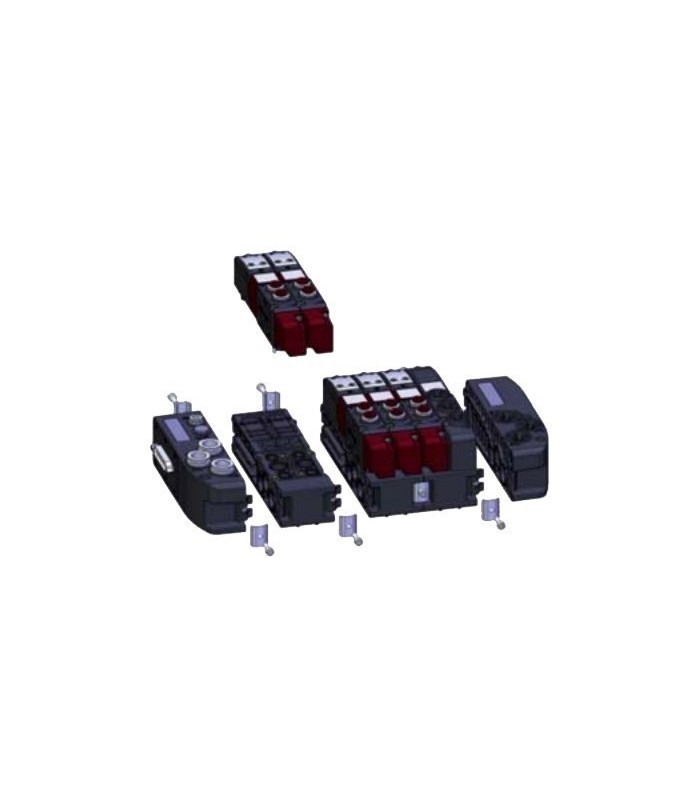

• Simplicity and versatility of assembly and wiring.
• Double electric pilot, housed on the same side, reducing the size of the battery.
• Wide range of valves and modules, threads and pitches.
• Possibility of mounting up to 20 bistable solenoid valves in the same block (40 signals)
• Multipolar connector 25 pin for 2 to 10 valve positions or 44 pin for 2 to 20 valve positions.
• IP-40 protection rating for 25 pins or IP-65 for 25 and 44 pins
• Voltage 24V DC
• Power 1.3 W
• PNP electrical configuration
• Operating temperature -5ºC / 50ºC
• Working pressure Vacuum -1 / 10 bar.
