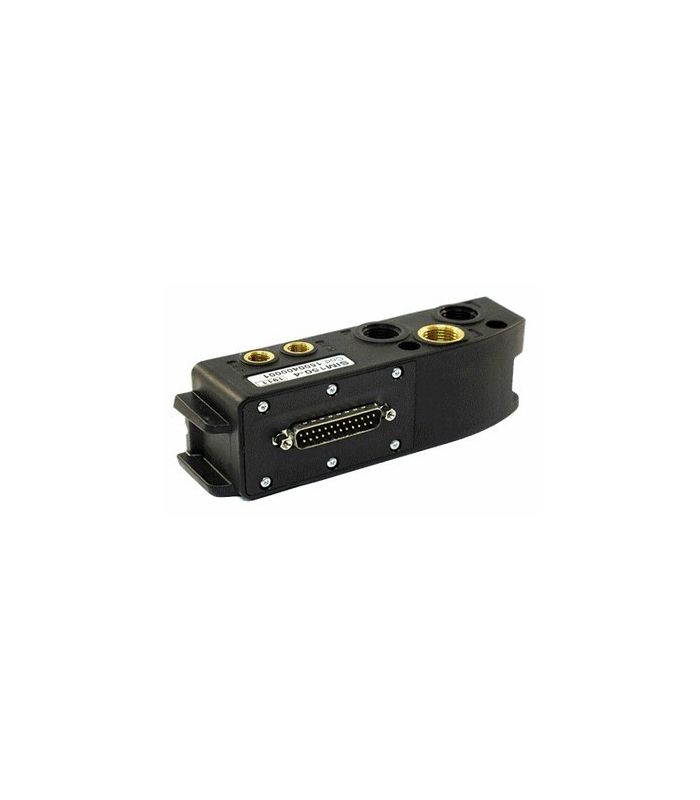

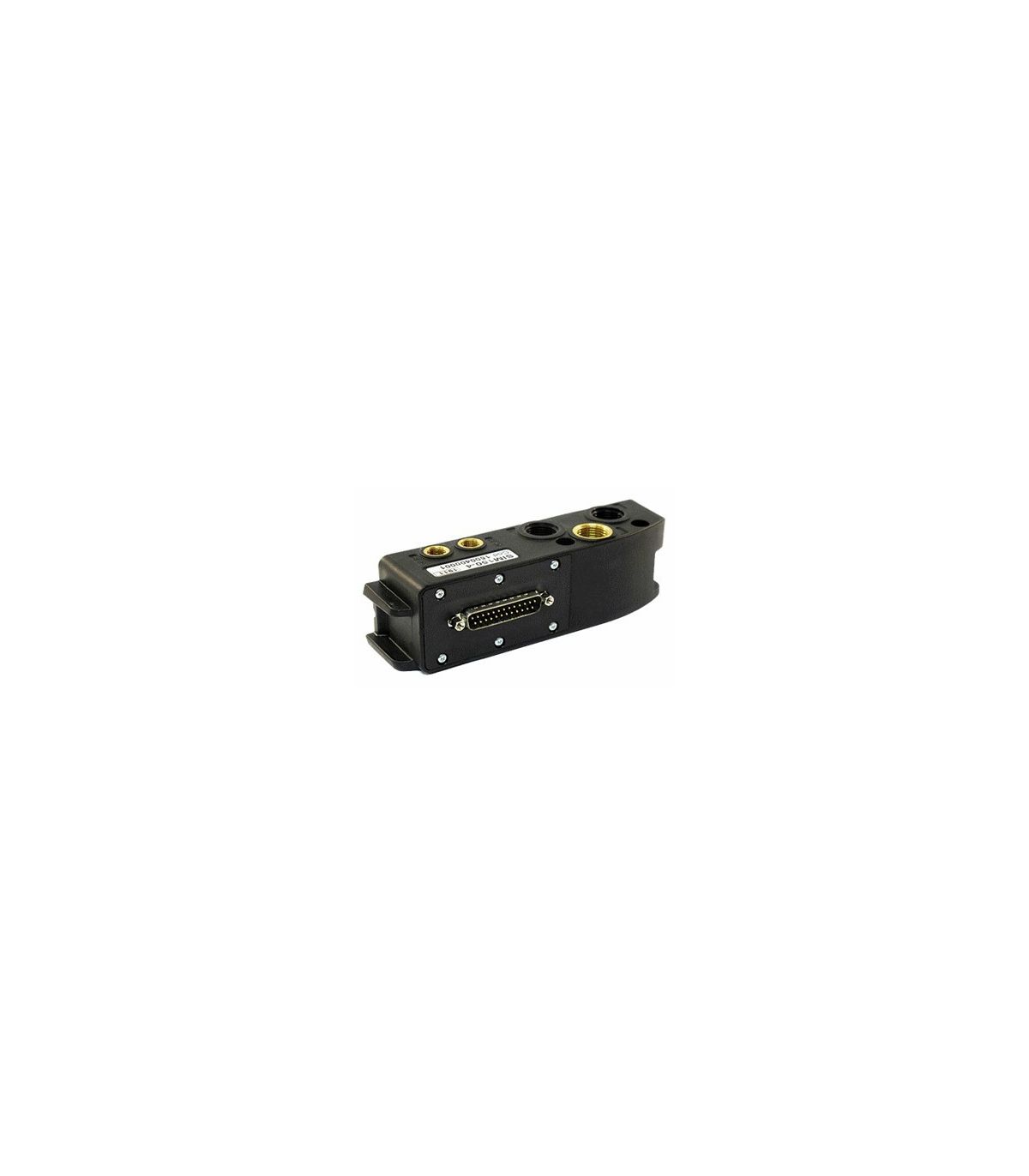

LEFT MULTIPOLE COVER 44 PINS TI 1501C000124

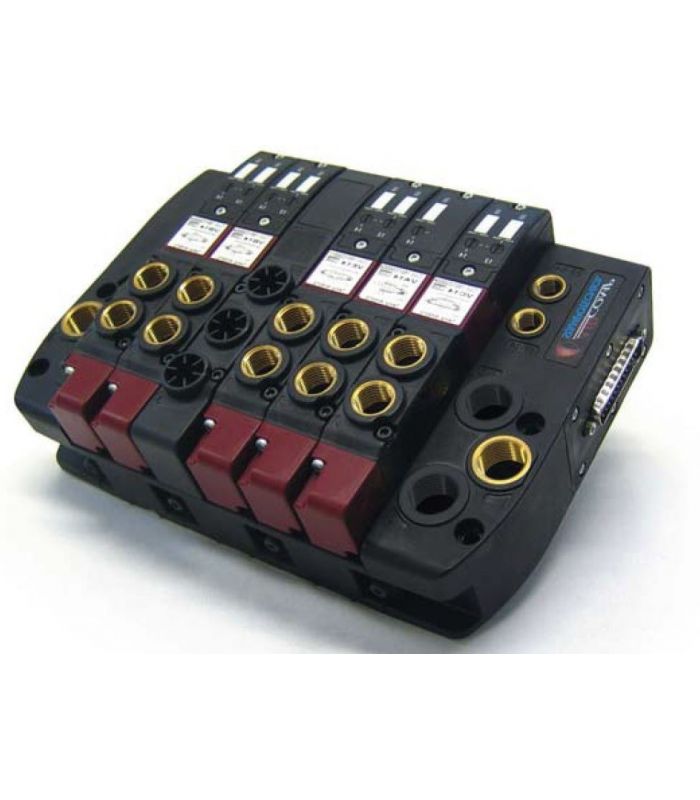

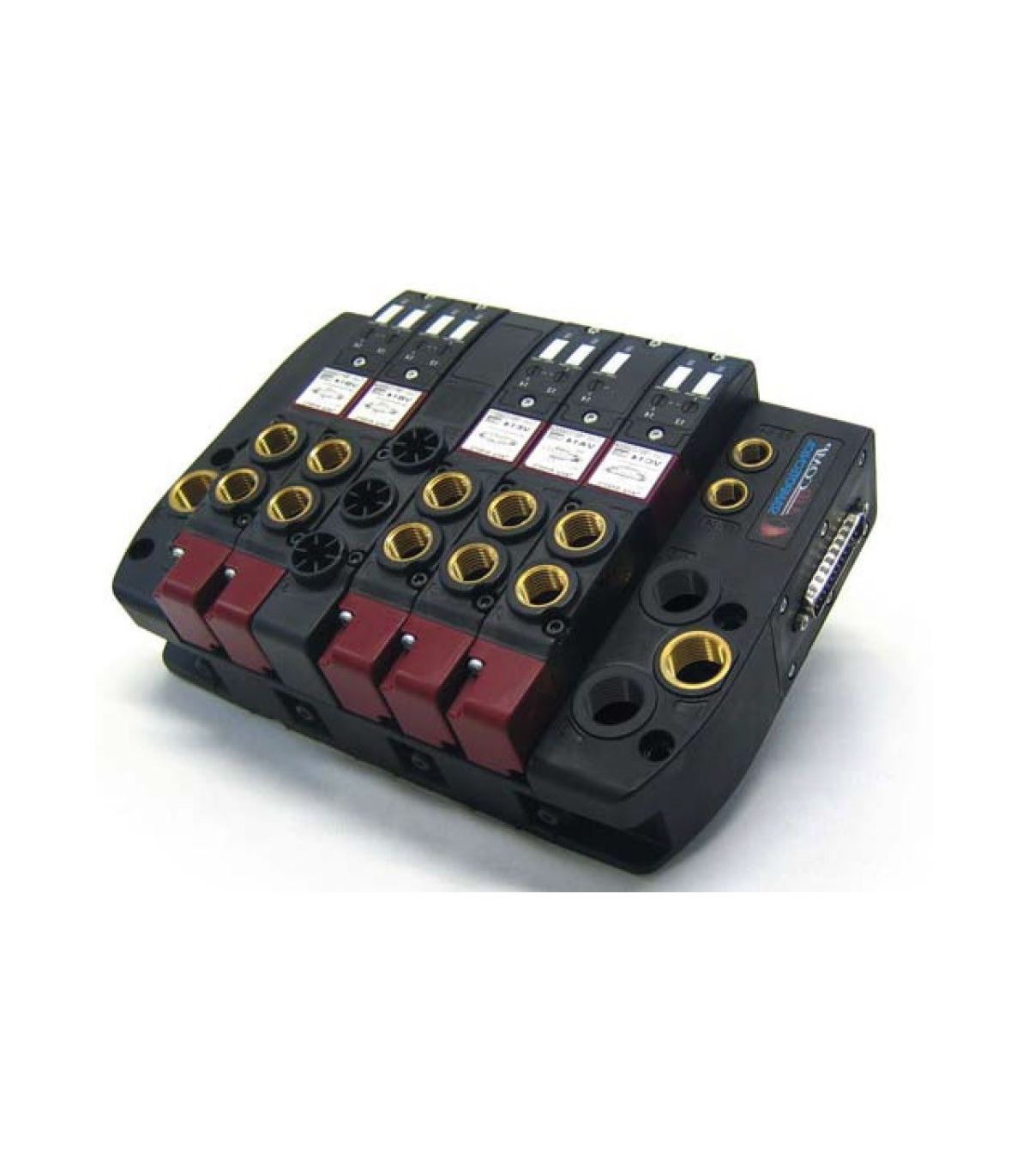

Sub-D multipolar integrated system

Simplicity and versatility of assembly and wiring.
Double electric pilot, housed on the same side, reducing the size of the battery.
Wide range of valves and modules, threads and pitches.
Possibility of mounting up to 20 bistable solenoid valves in the same block (40 signals)
Multipolar connector 44 pin for 2 to 20 valve positions.
IP-65 protection rating for 25 and 44 pins
Voltage 24V DC Power 1.3 W Electrical configuration PNP
Operating temperature -5ºC / 50ºC
Working pressure Vacuum -1 / 10 bar.

€38.72 (tax included)

€32.00 (tax excl.)

SELECT THE THREAD

3/8"
12"

Reference:

57020013

Description
Comments

Description

Product Details

Reference 57020013

Comments
