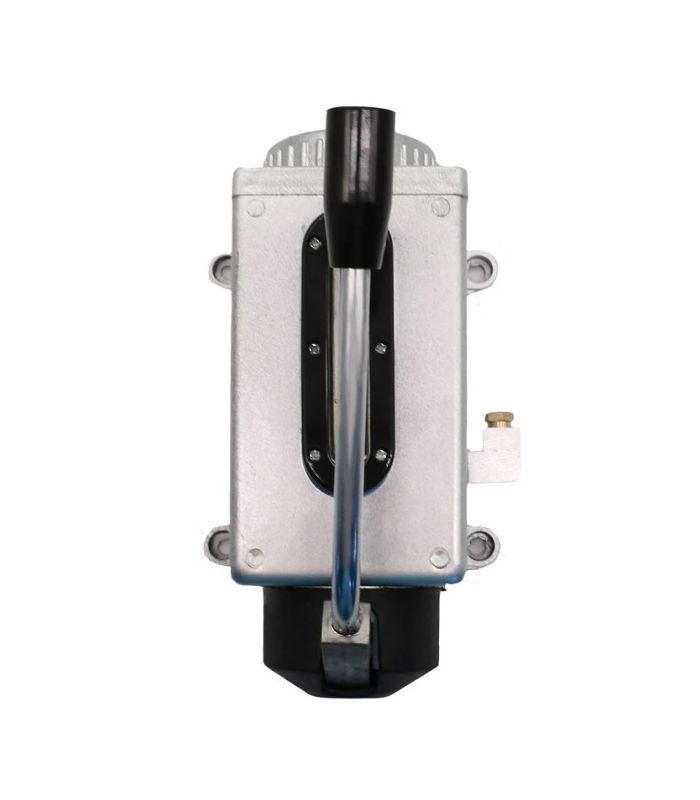

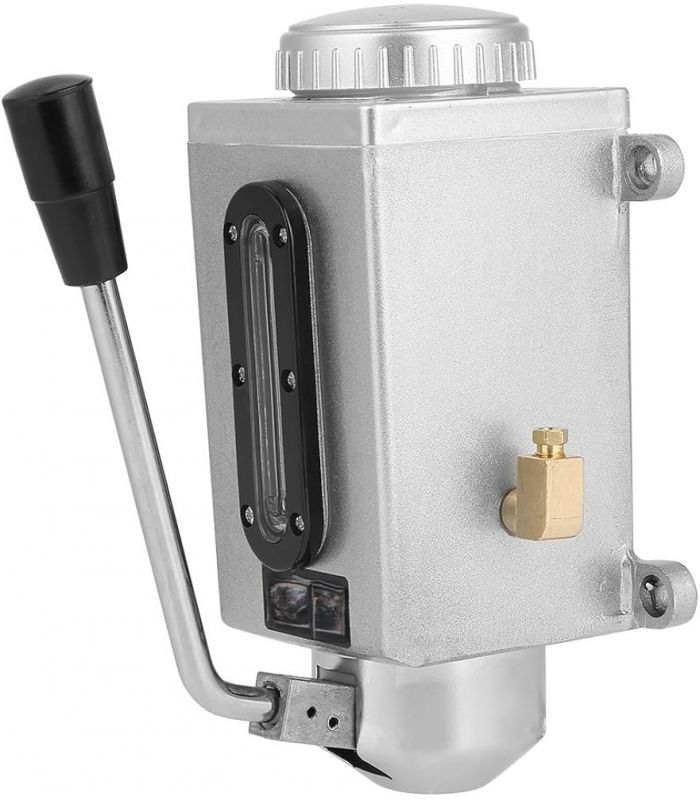

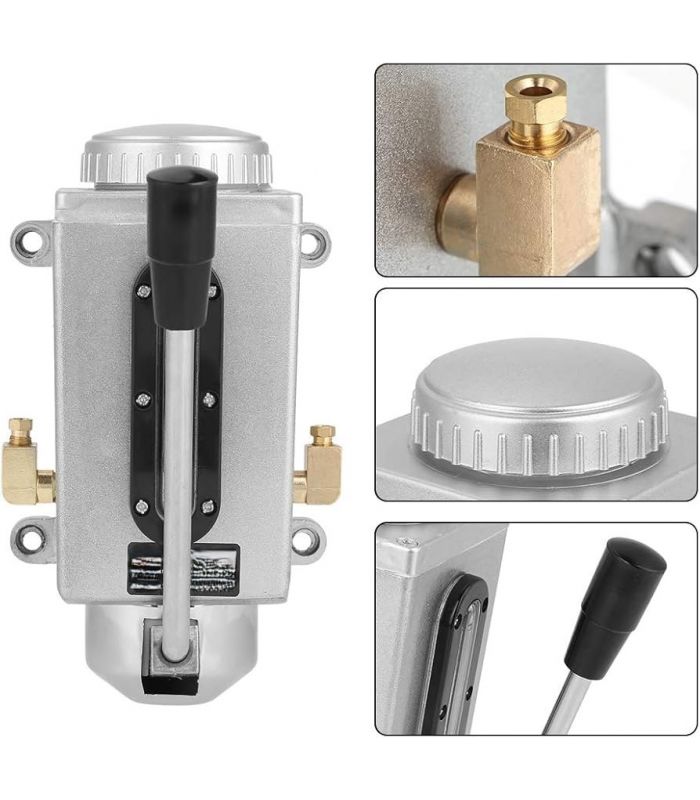

L6P VOLUMETRIC HAND PUMP 30 bar

A 30 bar L6P volumetric manual pump is designed to feed single line lubrication systems, volumetric system.

Operation: Lubricant is injected into the lubrication circuit by operating the control lever. When the lever returns to its initial position, a valve decompresses the circuit, allowing the volumetric dispensers to prepare for the next cycle. A safety valve calibrated to 20 bar protects the circuit against overpressure.

Technical specifications:

• Max. flow rate 6 cm³ /carrera
• Pressure 30 bar.
• Tank capacity 0.6 liters.
• Serving temperature 80ºC.
• Recommended lubricants: Mineral oil with viscosities from 30 to 3000 cSt
• 2 M-10X100 pump outlets
