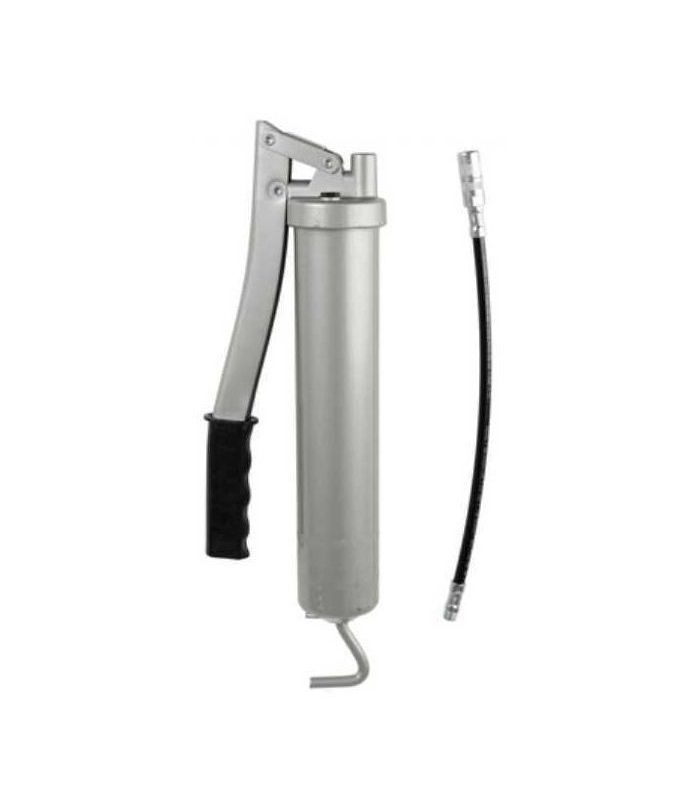

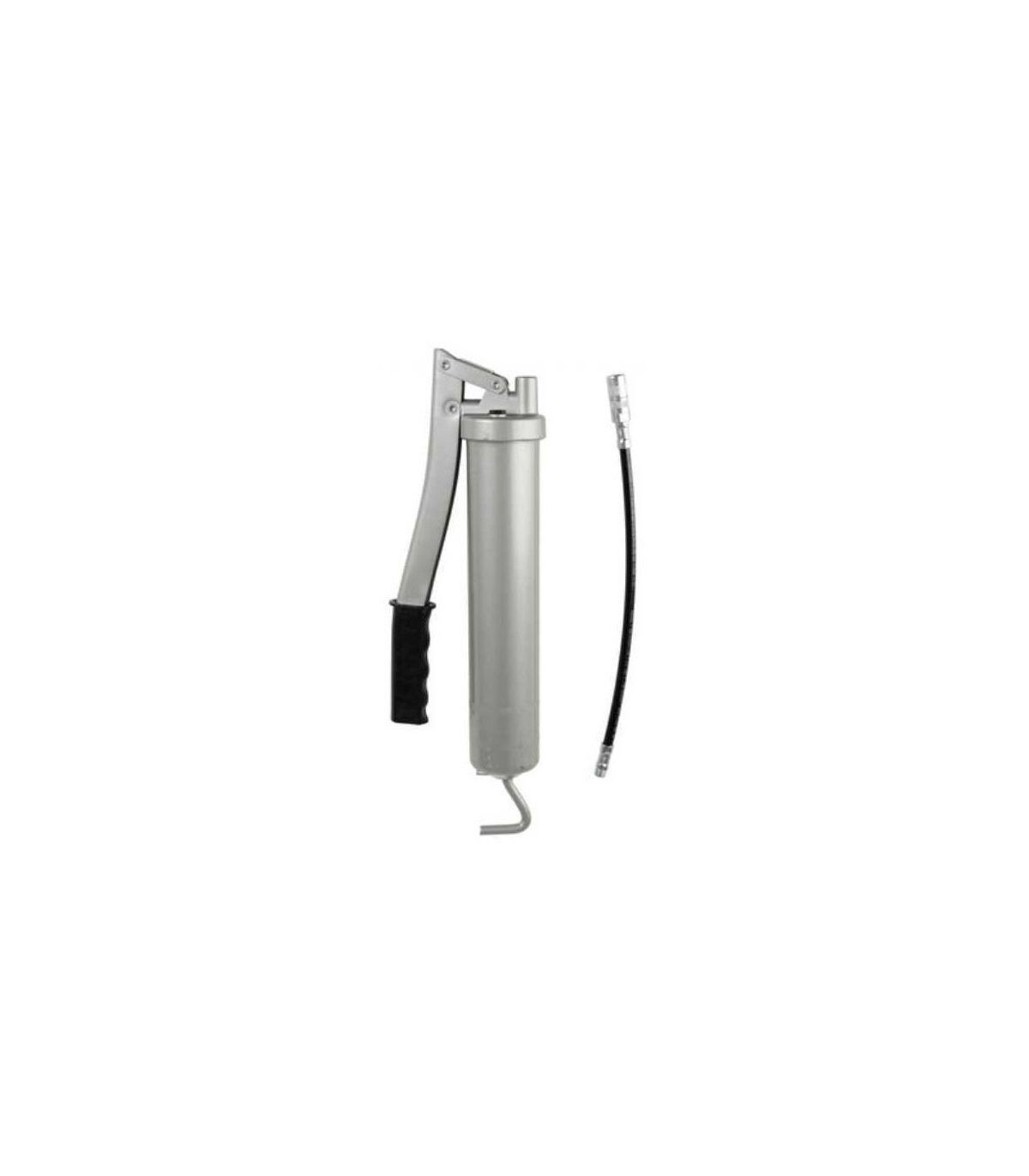

GREASE PUMP WITH HOSE 500 gr 12633

Technical data

Pump outlet connection: M 10 x 1
Capacity: 500ml
Filling options: 400 g, Lubricationcartridge, DIN 1284, or bulk grease
Grease supply piston diameter: 8mm
Grease supply piston actuation: lever
Volume / stroke: 1.2 cm³, with back pressure of 400 bar
Supply pressure: up to 400 bar
Burst pressure (system): 850 bar
Burst pressure (manual Lubricationpump head): 1200 bar
Loading rod drive: via an L-shaped grip handle
Closing cover: Removable
Pump body thickness: 1.0
Color: Silver
Specification
* With 1 reinforced hose, M 10 x 1, 8 x 300 mm
* With 1 nozzle, 4 clips, M 10 x 1

Special features
* This pump works Lubricationup to NLGI 2
* The shape of the plug seal with hermetic seat in case of Lubricationor cartridge loss
* Following DIN 1283
* High precision metal piston (no losses)
* Constant performance, even after 5,000 cycles
* Z 410 die-cast zinc manual Lubricationpump head
* Non-slip handle thanks to the relief of the pump body
* Loading rod with grab handle
* Lever handle with non-slip grip
* The removable lid with fixation (ratchet) for the loading rod allows bulk Lubricationto be compressed manually and in any position; with a spring. Another purpose is to adjust the plunger more easily in damaged cartridges.
* Minimum effort, thanks to the constructive characteristics (dimensions) of the lever
* Rapid ventilation through half a turn of the body of the manual Lubricationpump.
