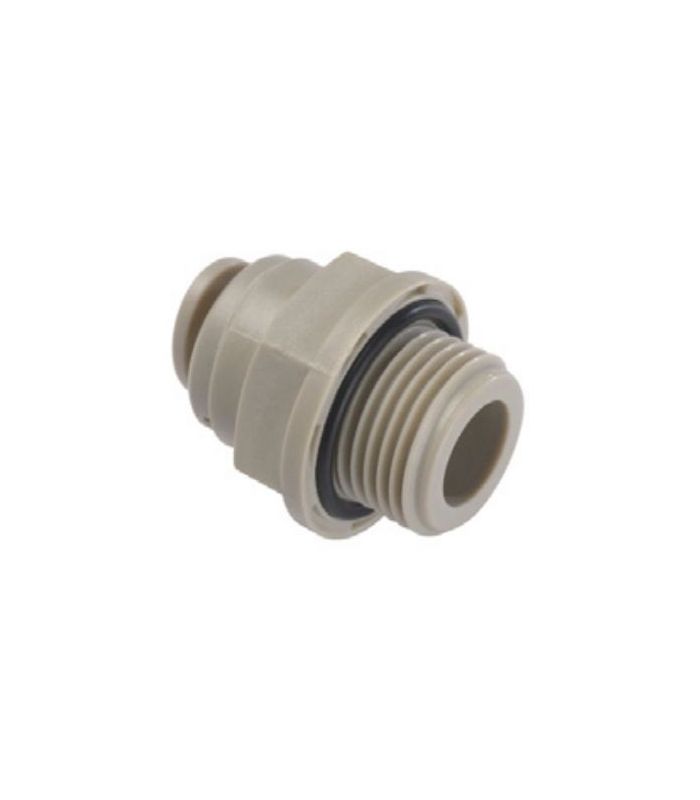

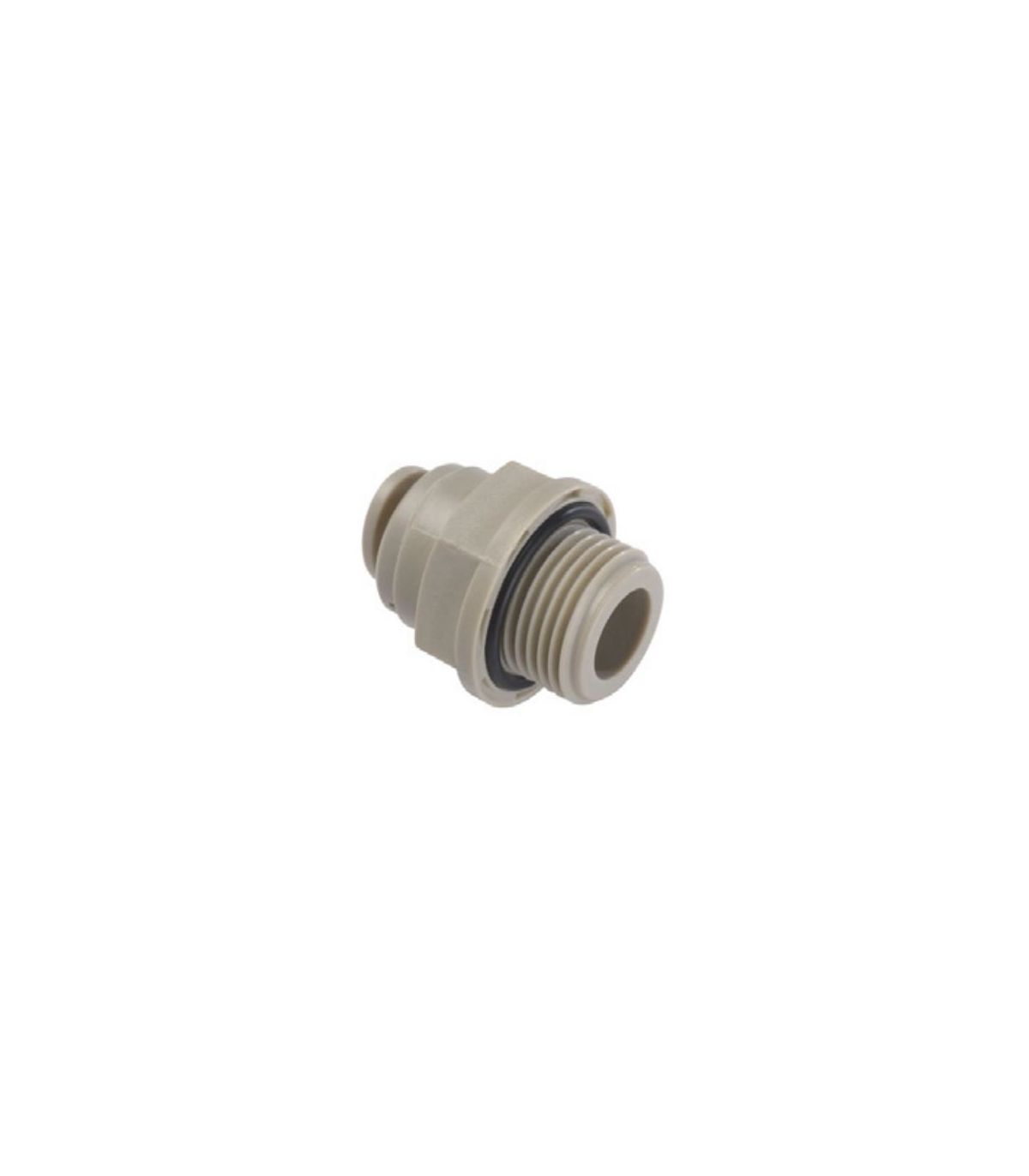

Straight union pipe cylindrical thread metric
A straight union with metric cylindrical thread is a connection fitting used to join a pipe to a component that has an internal or external metric cylindrical thread, maintaining a direct and aligned connection.
Main features:
A straight union with metric cylindrical thread is a connection fitting used to join a pipe to a component that has an internal or external metric cylindrical thread, maintaining a direct and aligned connection.
It is a piece designed with one end for tube connection and one end with cylindrical metric thread , standardized under the ISO metric system, which requires an additional sealing element such as an O-ring or washer to ensure watertightness.
Technical data sheet for the straight joint between a metric cylindrical threaded tube:
| CODE | ØD | T | TO | B | ØE | L | H (Hex) | WEIGHT (g) |
| 36010010 | 4 | G1/8" | 6.0 | 14.7 | 16.6 | 21.9 | 15 | 3.3 |
| 36010011 | G1/4" | 8.5 | 14.7 | 20.5 | 23.9 | 18 | 4.8 | |
| 36010019 | 6 | G1/8" | 6.0 | 16.1 | 16.6 | 24.1 | 15 | 3.3 |
| 36010020 | G1/4" | 8.5 | 16.1 | 20.5 | 24.1 | 18 | 4.8 | |
| 36010023 | 8 |
G1/8" | 6.0 | 17.5 | 18.5 | 27.0 | 17 | 5.2 |
| 36010024 | G1/4" | 8.5 | 17.5 | 20.5 | 28.5 | 18 | 6.1 | |
| 36010025 | G3/8" | 9.0 | 17.5 | 24.0 | 26.5 | 21 | 7.0 | |
| 36010026 | G1/2" | 12.5 | 17.5 | 28.5 | 29.5 | 26 | 11.9 | |
| 36010029 | 10 | G1/4" | 8.5 | 17.5 | 24.1 | 30.8 | 19 | 7.2 |
| 36010030 | G3/8" | 9.0 | 20.1 | 24.2 | 26.3 | 21 | 7.0 | |
| 36010031 | G1/2" | 12.5 | 20.1 | 28.5 | 29.8 | 26 | 7.9 | |
| 36010033 | 12 | G3/8" | 9.0 | 24.7 | 27.0 | 34.2 | 24 | 11.6 |
| 36010034 | 1/2" | 12.5 | 24.7 | 28.5 | 32.7 | 26 | 12.5 |
