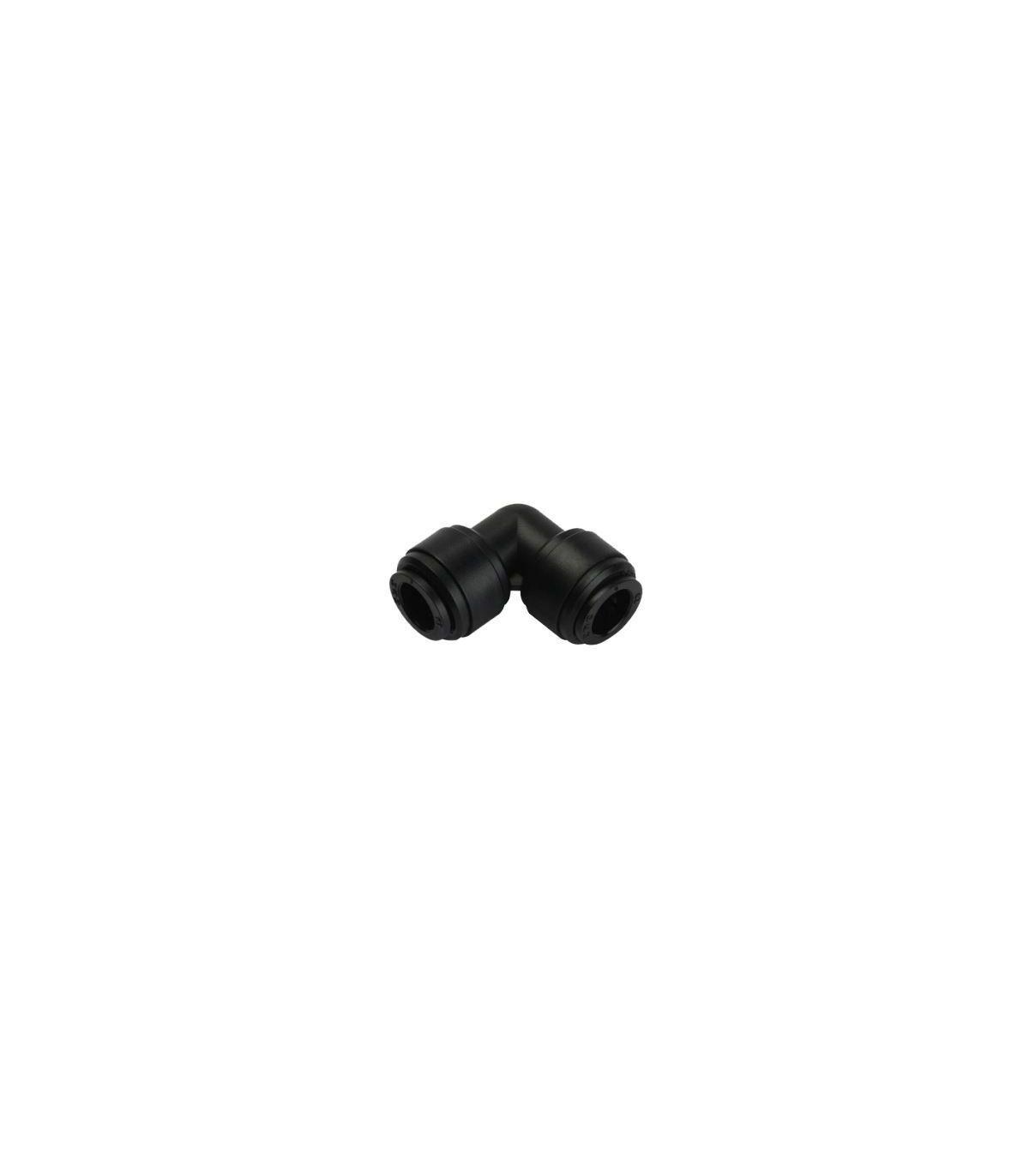

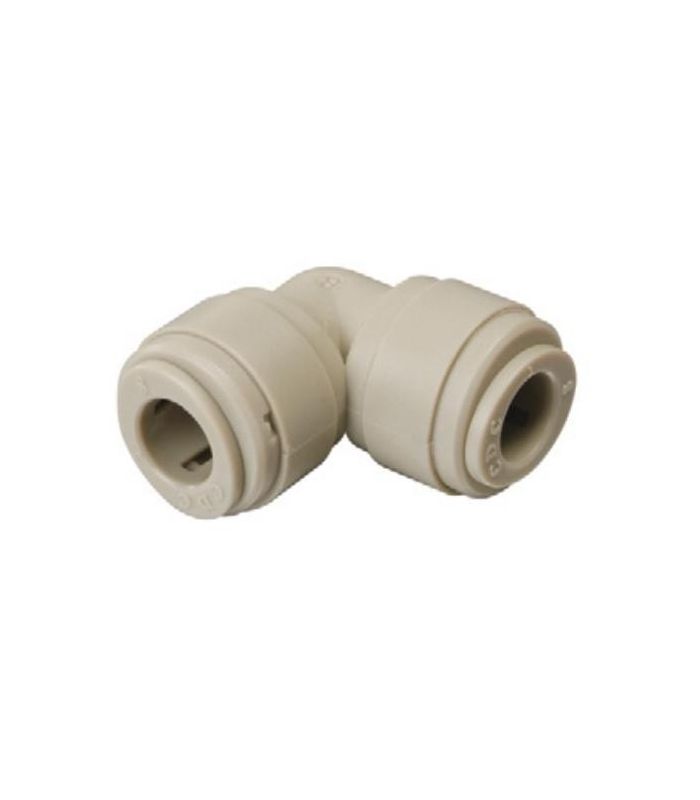

METRIC ELBOW TUBE UNION
METRIC ELBOW TUBE UNION
METRIC ELBOW TUBE UNION
METRIC ELBOW TUBE UNION

METRIC ELBOW TUBE UNION

A metric elbow pipe fitting is used in fluid systems in industries where hygiene and food safety are paramount. It allows for a 90° fluid flow change.

Applications: Food and Beverage Industry, Pharmaceutical and Biotechnology Industry, Drinking Water Systems, Packaging and Packaging Machinery, Dispensers.

Technical sheet:

  • High-performance instant fitting for food use.
  • Working pressure -1/20 bar
  • Serving temperature -20 / 90ºC
  • Body and clamp in POM (acetal resin), E-PDM seals (suitable for contact with food)
  • Available tube diameters 4-6-8-10-12 (metric series) and 5/32-3/16-1/4-5/16-3/8-1/2 (inch series)
  • They can be connected to rigid pipes such as stainless steel, dekabon or copper.
  • Available threads 1/8-1/4-3/8-1/2 (metric series) and 1/8NPT-1/4NPT-3/8NPT-1/2NPT (inch series)
  • They offer better performance than other models available on the market.
  • Approved in accordance with directive 200//95/EC RoHS and 1907/2006 and other European regulations.
€1.62 (tax included)
€1.34 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø6-Ø8
Reference:
36090006
Description

metric elbow tube union

UNION TUBO CODO METRICAUNION TUBO CODO METRICA

Product Details
36090006
