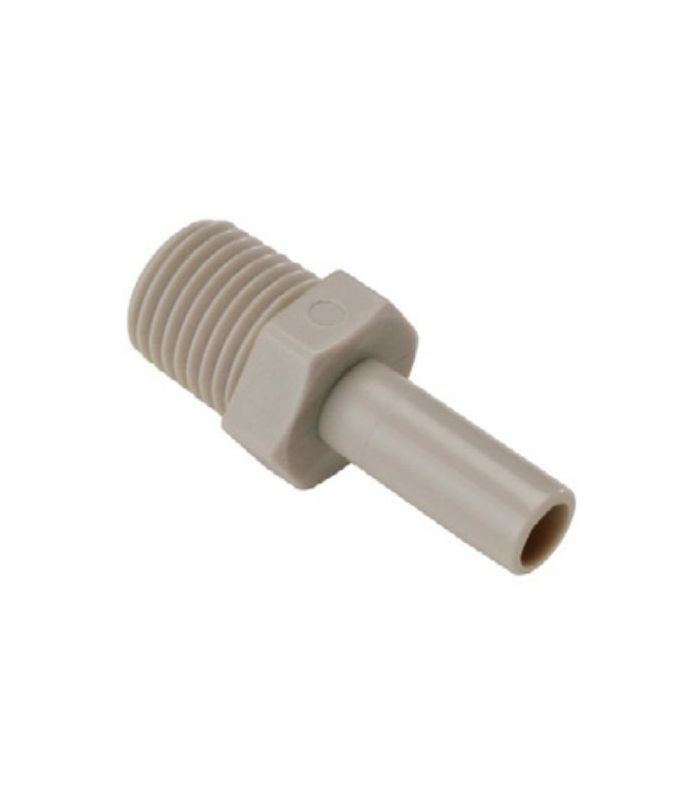

Metric male thread tube adapter
A metric male threaded pipe adapter is a connection fitting used to join a pipe or hose to a component that has a metric female thread, ensuring a firm and watertight joint.
Main features:
The metric male threaded tube adapter is a piece designed with one end for tube connection and one end with a standardized male thread under the metric system, used in pneumatic, hydraulic or industrial systems for the conduction of fluids or air.
Technical specifications for the metric male threaded tube adapter:
| Code | ØD | T | TO | B | ØE | L | H (Hex) | Weight (g) |
| 36040010 | 4 | R1/8" | 9.1 | 18.0 | 14.4 | 33.1 | 13 | 2.6 |
| 36040011 | R1/4" | 13.1 | 18.0 | 18.5 | 37.1 | 17 | 4.2 | |
| 36040019 | 6 | R1/8" | 9.1 | 19.5 | 14.4 | 34.6 | 13 | 2.8 |
| 36040020 | R1/4" | 13.1 | 19.5 | 18.5 | 38.6 | 17 | 4.3 | |
| 36040023 | 8 | R1/8" | 9.1 | 21.0 | 14.4 | 36.1 | 13 | 3.0 |
| 36040024 | R1/4" | 13.1 | 21.0 | 18.5 | 40.1 | 17 | 4.6 | |
| 36040025 | R3/8" | 13.5 | 21.0 | 23.0 | 40.5 | 21 | 6.2 | |
| 36040029 | 10 | R1/4" | 13.1 | 24.0 | 18.5 | 43.1 | 17 | 5.3 |
| 36040030 | R3/8" | 13.5 | 24.0 | 23.0 | 44.0 | 21 | 6.8 | |
| 36040031 | R1/2" | 16.3 | 24.0 | 26.5 | 47.0 | 24 | 10.6 | |
| 36040033 | 12 | R3/8" | 13.5 | 28.0 | 23.0 | 48.0 | 21 | 7.3 |
| 36040034 | R1/2" | 16.5 | 28.0 | 26.5 | 51.0 | 24 | 11.0 |
