METRIC TAPERED THREADED PIPE ELBOW UNION
METRIC TAPERED THREADED PIPE ELBOW UNION
METRIC TAPERED THREADED PIPE ELBOW UNION
METRIC TAPERED THREADED PIPE ELBOW UNION

METRIC TAPERED THREADED PIPE ELBOW UNION

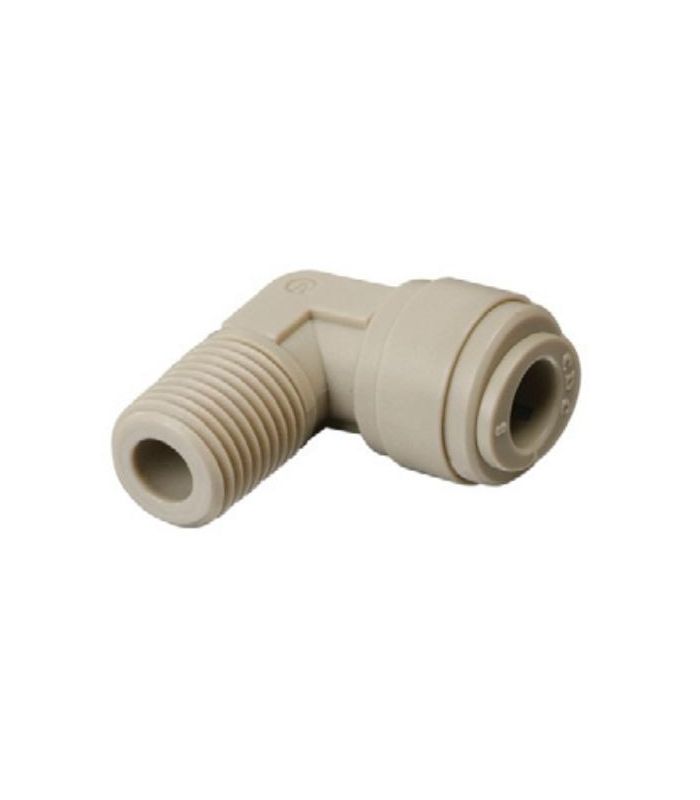

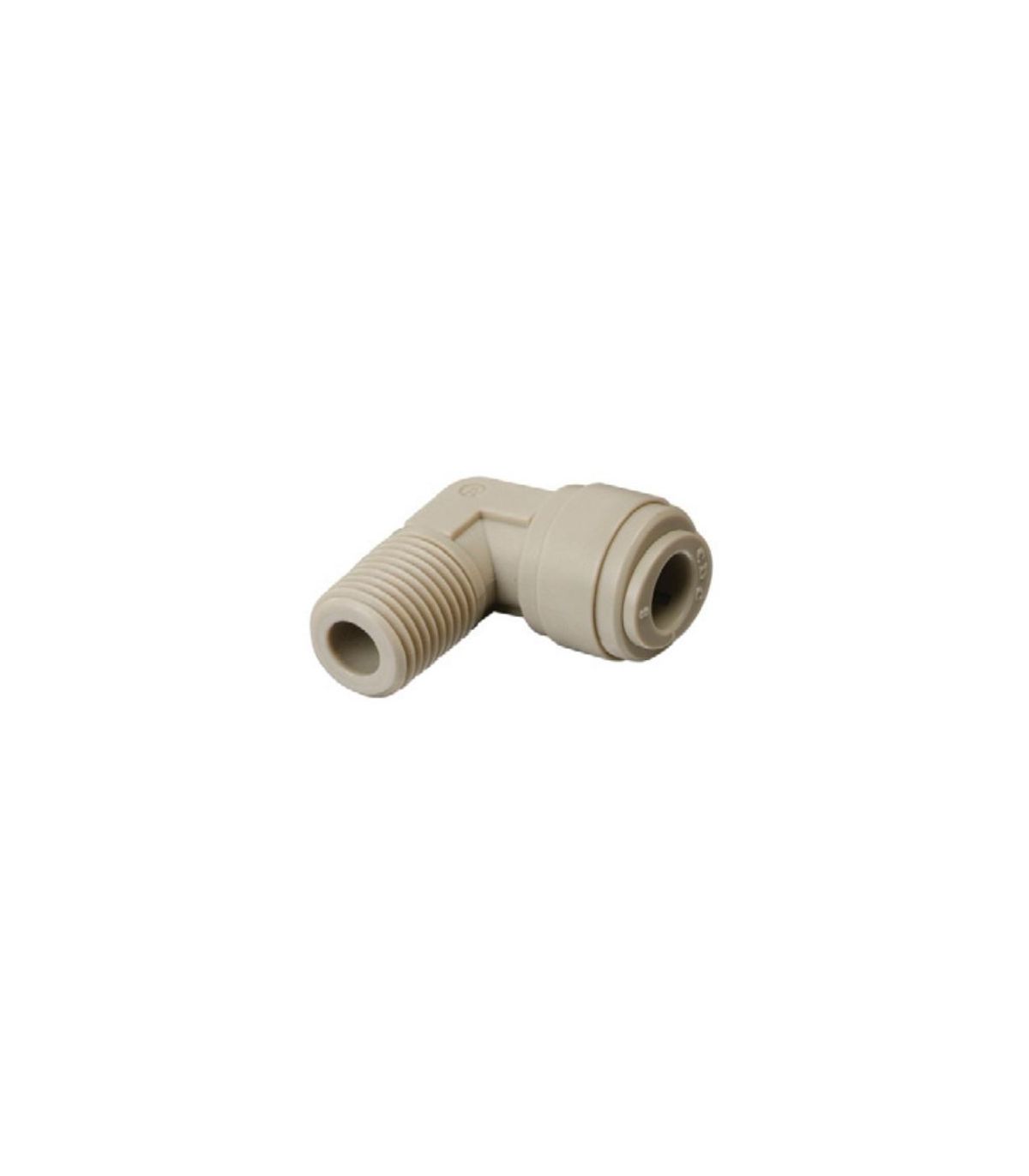

Metric tapered threaded pipe elbow union

A metric tapered threaded elbow fitting is a pipe or hose connection fitting designed to divert fluid flow at a 90° angle in liquid transport systems, complying with food-grade regulations. It combines an instant pipe coupling with a metric tapered thread that allows for a quick and secure connection to threaded equipment or fittings.

Applications: transport of liquids, beverages, oils and other food products where hygiene, safety and ease of maintenance are required.

Main features:

  • High-performance instant fitting for food use.
  • Working pressure -1 / 20 bar
  • Serving temperature -20 / 90ºC
  • Body and clamp in POM (acetylic resin), seals E-PDM (suitable for contact with food)
  • Available tube diameters: 4-6-8-10-12 (metric series) and 5/32-3/16-1/4-5/16-3/8-1/2 (inch series)
  • They can be connected with rigid tubes such as stainless steel, dekabon or copper.
  • Available threads: 1/8-1/4-3/8-1/2 (metric series) and 1/8NPT-1/4NPT-3/8NPT-1/2NPT (inch series)
  • They offer better performance than other models available on the market.
  • Approved in accordance with Directive 200/95/EC RoHS and 1907/2006 and other European regulations.
€2.08 (tax included)
€1.72 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/4
  • Ø 10-3/8
  • Ø 12-3/8
Reference:
36030010
Description

Elbow joint with metric tapered thread

An instant food fitting in the form of an elbow with a tube union and metric tapered thread is a connection accessory for liquid or gas transport systems in the food industry, designed to divert the flow at a 90° angle and allow quick and secure connections between pipes or hoses with metric standards.

Advantages

  • Quick and safe installation without special tools
  • Food-grade certified materials
  • Resistant to moderate temperatures and common chemicals
  • Compact design that allows for leak-free changes of direction
  • Easy maintenance and cleaning

Applications

  • Food and beverage industries
  • Pharmaceutical liquid systems
  • Food processing and packaging equipment
  • Drinking water or beverage pipe networks

UNION CODO TUBO ROSCA CONICA METRICAUNION CODO TUBO ROSCA CONICA METRICA

Product Details
36030010
