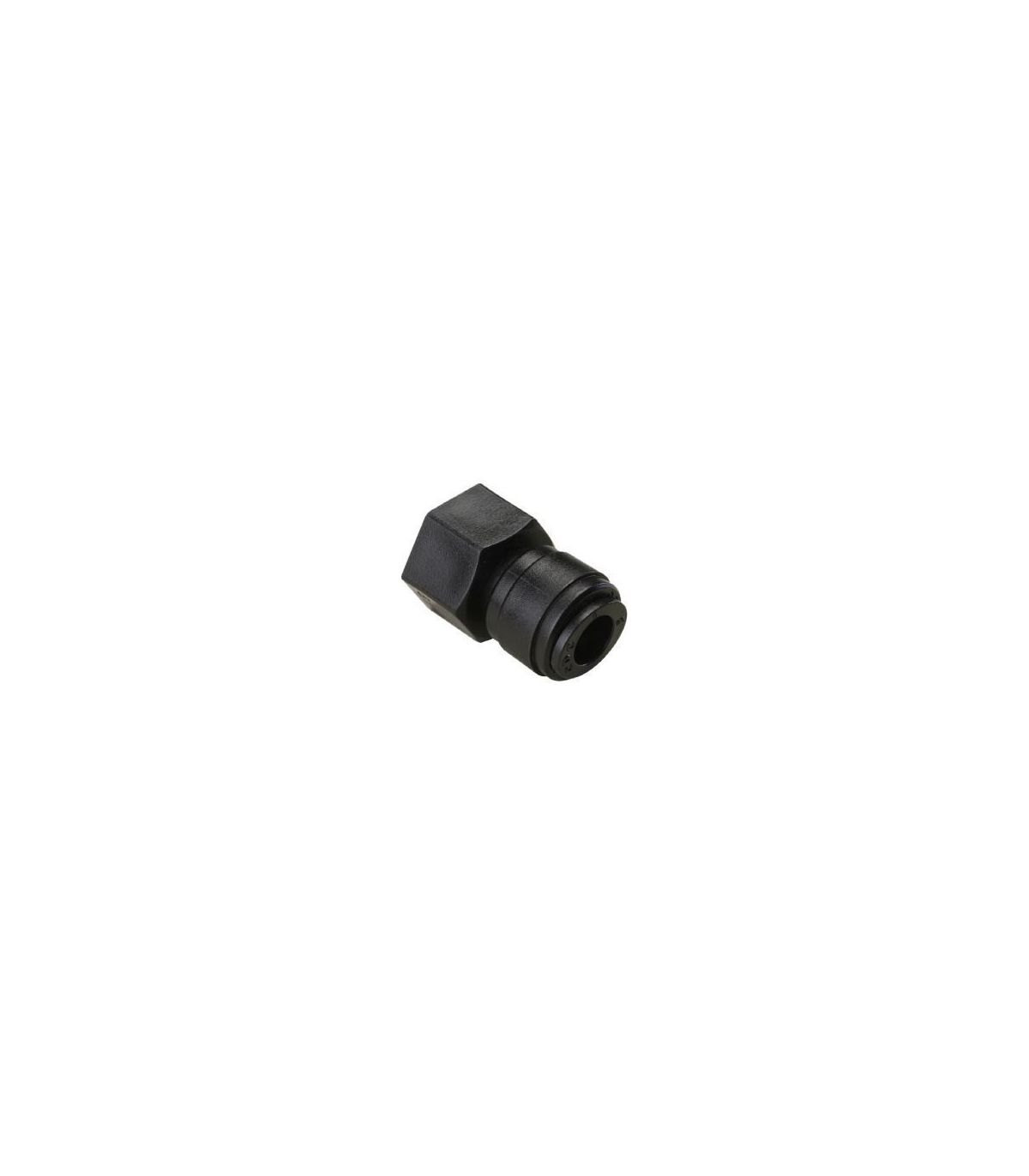

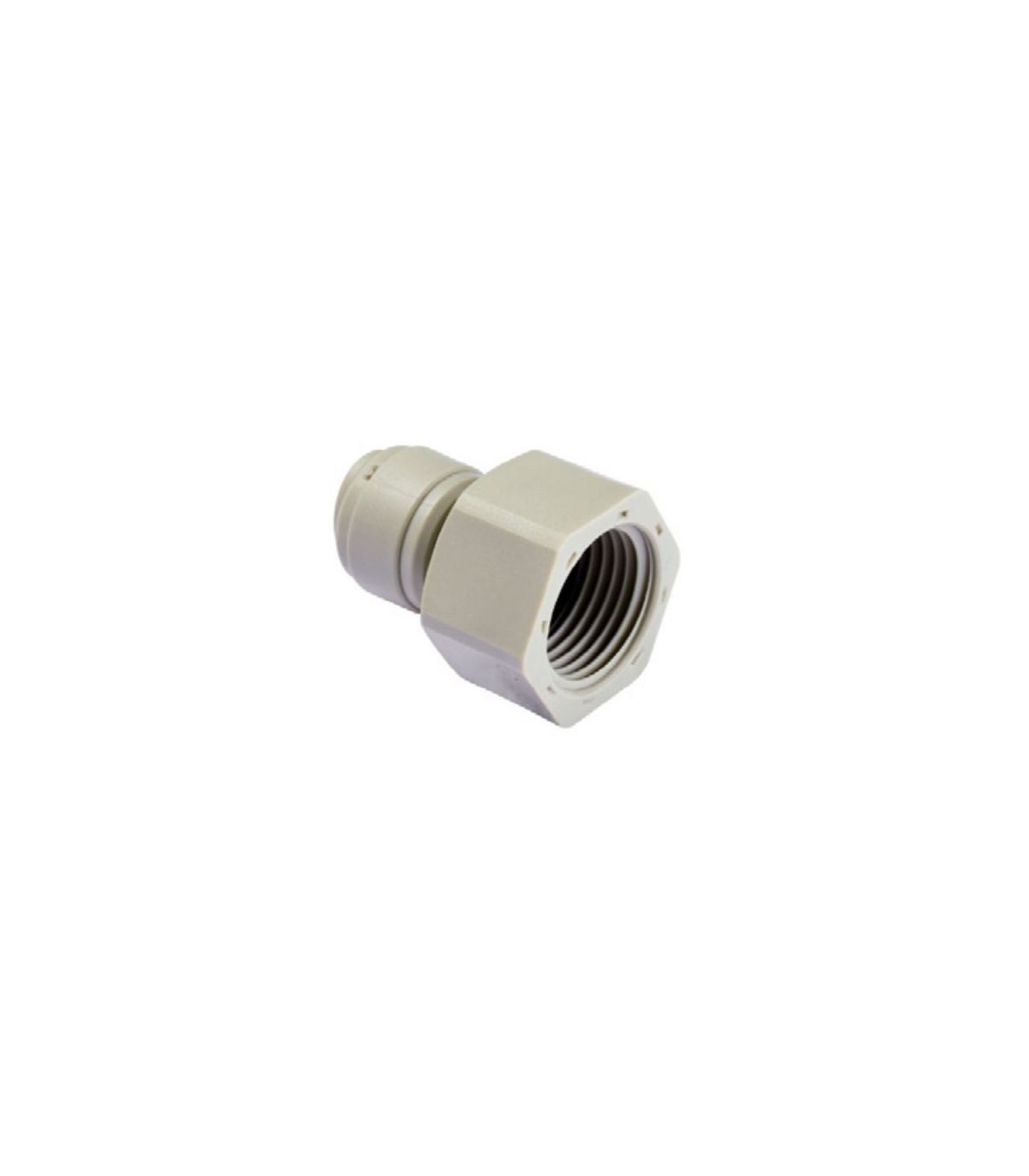

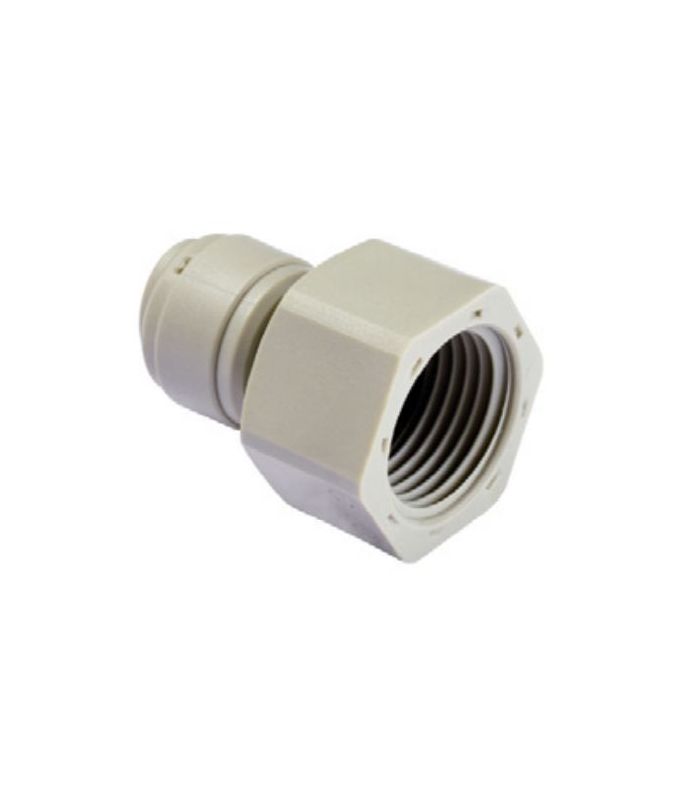

STRAIGHT CONNECTION PIPE FEMALE METRIC THREAD
STRAIGHT CONNECTION PIPE FEMALE METRIC THREAD
STRAIGHT CONNECTION PIPE FEMALE METRIC THREAD
STRAIGHT CONNECTION PIPE FEMALE METRIC THREAD

STRAIGHT CONNECTION PIPE FEMALE METRIC THREAD

Straight union pipe female metric thread

A straight metric female threaded pipe union is a connecting fitting used to link a pipe to a component that has a metric male thread, maintaining the straight alignment of the system.

Applications: pneumatic and industrial systems for the conduction of air or fluids.

Main features:

  • High-performance instant fitting for food use.
  • Working pressure -1 / 20 bar
  • Serving temperature -20 / 90ºC
  • Body and clamp in POM (acetylic resin), seals E-PDM (suitable for contact with food)
  • Available tube diameters: 4-6-8-10-12 (metric series) and 5/32-3/16-1/4-5/16-3/8-1/2 (inch series)
  • They can be connected with rigid tubes such as stainless steel, dekabon or copper.
  • Available threads: 1/8-1/4-3/8-1/2 (metric series) and 1/8NPT-1/4NPT-3/8NPT-1/2NPT (inch series)
  • They offer better performance than other models available on the market.
  • Approved in accordance with Directive 200/95/EC RoHS and 1907/2006 and other European regulations.
€2.76 (tax included)
€2.28 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
36020019
Description

Straight union pipe female metric thread

A straight metric female threaded tube union is a connecting fitting used to link a tube to a component that has a metric male thread, maintaining the straight alignment of the system.

It is a piece designed with one end for tube connection and one end with a metric female thread, standardized according to the metric system, used in pneumatic, light hydraulic and industrial installations.

Main features

  • Straight connection, no change of direction
  • Standardized metric female thread
  • Compatible with rigid or semi-rigid tubes
  • Made from materials such as nickel-plated brass, stainless steel, or engineering plastic
  • It allows for quick and safe assembly and disassembly.

Common applications

  • Pneumatic systems
  • Industrial automation
  • Compressed air and fluid circuits
  • Industrial machinery and equipment

UNION RECTA TUBO ROSCA HEMBRA METRICA

Product Details
36020019
