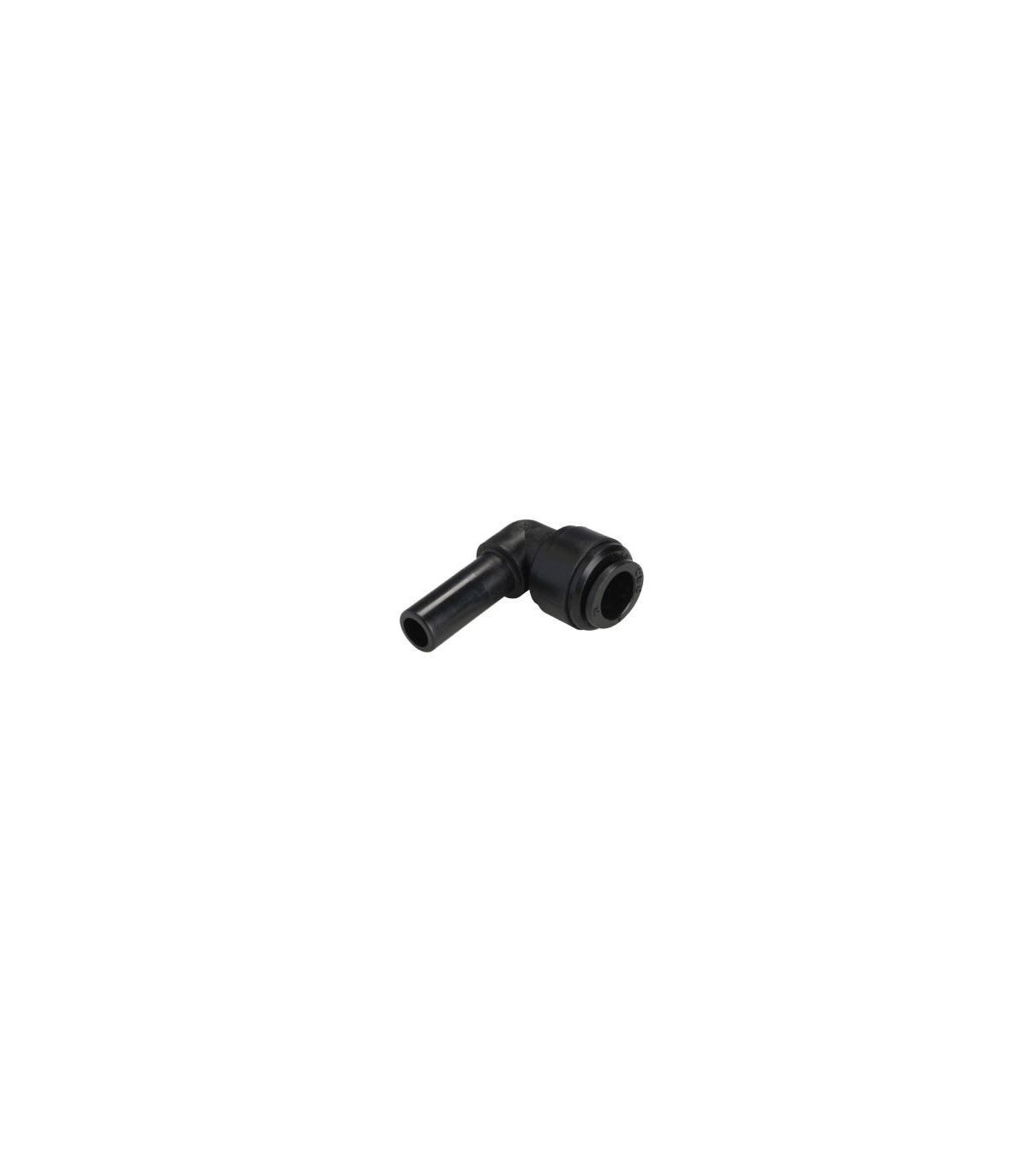

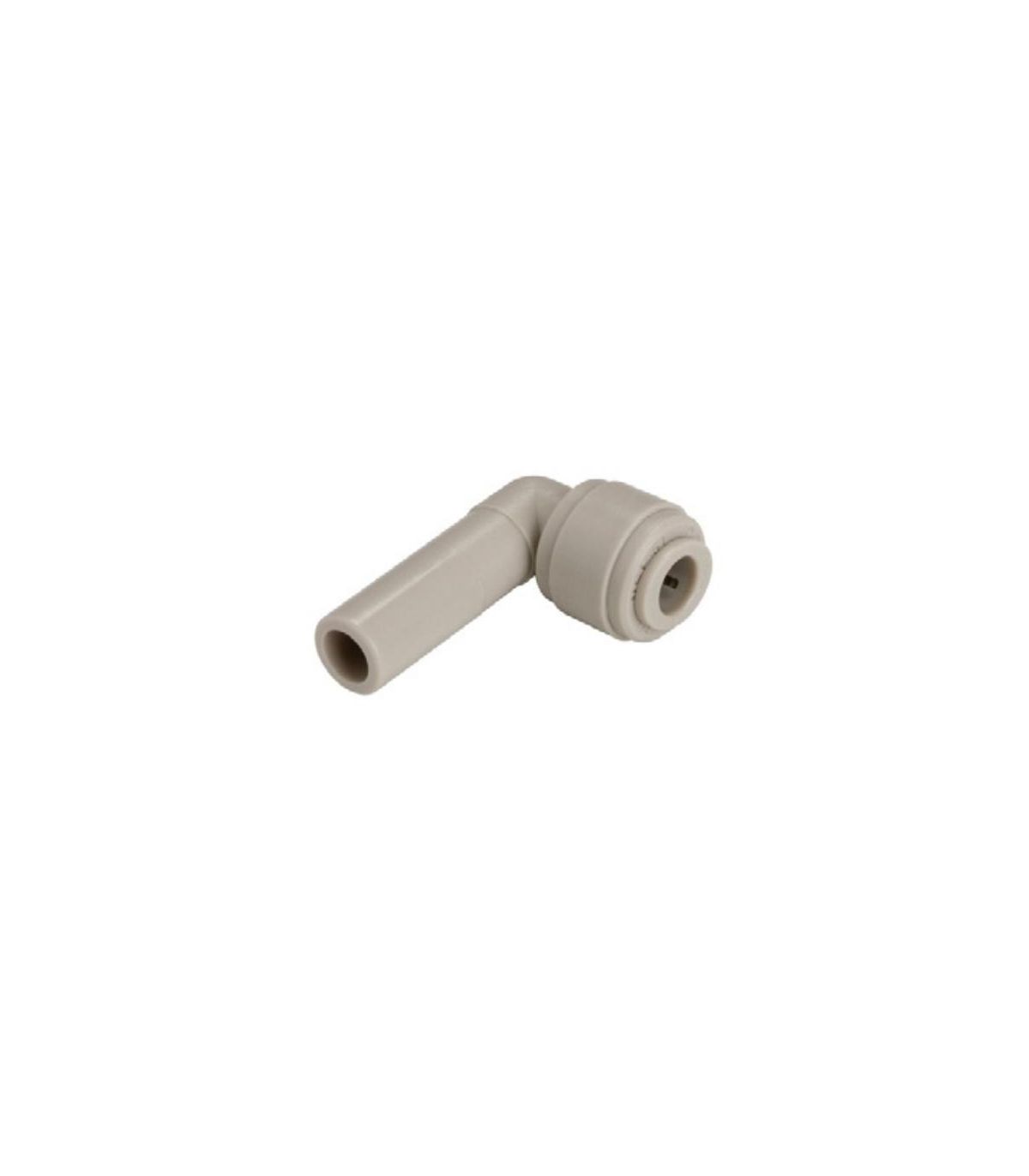

METRIC INSERTABLE ELBOW
METRIC INSERTABLE ELBOW
METRIC INSERTABLE ELBOW
METRIC INSERTABLE ELBOW

METRIC INSERTABLE ELBOW

A metric insert elbow is designed to join two sections of metric flexible or semi-rigid tubing at a 90° angle. It features a quick, tool-free connection mechanism.

Applications: Beverage dispensers, Dosing systems in the food industry, Air or fluid control lines in food processing equipment, Packaging and bottling, Laboratory and pharmaceutical equipment.

Technical sheet:

  • High-performance instant fitting for food use.
  • Working pressure -1/20 bar
  • Serving temperature -20 / 90ºC
  • Body and clamp in POM (acetyl resin), E-PDM seals (suitable for contact with food)
  • Available tube diameters 4-6-8-10-12 (metric series) and 5/32-3/16-1/4-5/16-3/8-1/2 (inch series)
  • They can be connected to rigid pipes such as stainless steel, dekabon or copper.
  • Available threads 1/8-1/4-3/8-1/2 (metric series) and 1/8NPT-1/4NPT-3/8NPT-1/2NPT (inch series)
  • They offer better performance than other models available on the market.
  • Approved in accordance with directive 200//95/EC RoHS and 1907/2006 and other European regulations.
€1.56 (tax included)
€1.29 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
Reference:
36070006
Description

metric insertable elbow

CODO INSERTABLE METRICACODO INSERTABLE METRICA

Product Details
36070006
