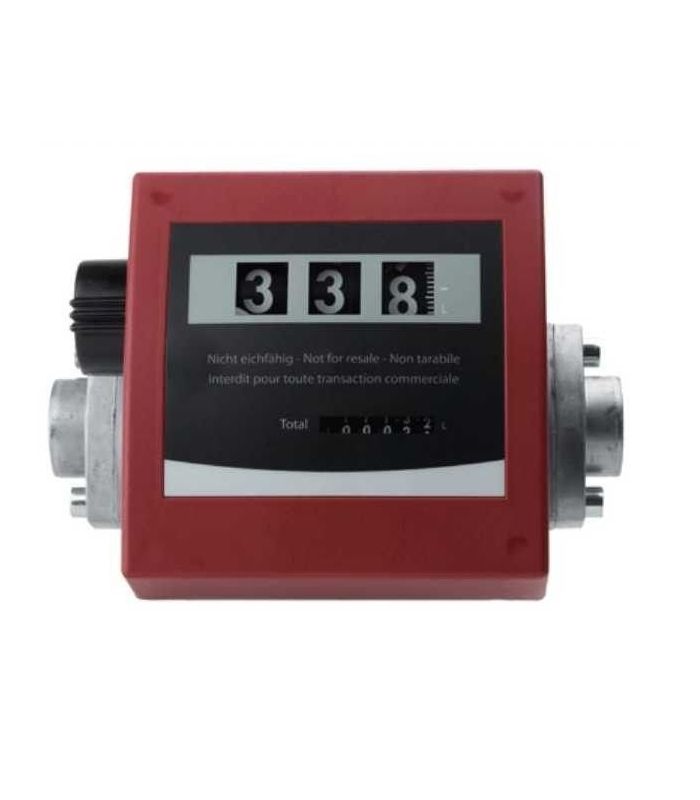

MECHANICAL COUNTER 3 DIGITS 23193

Technical data
Flange inlet/outlet distance (mm): 175
Dual connection: G 1'' i
Fluid measurement: self-lubrication through narrow conduits
Minimum flow rate (l/min): 20
Max. flow rate (l/min): 120
Material temperature indicator, approved (°C): max. 40
Approved ambient temperature indicator (°C): +10 to +50
Measurement accuracy: ± 1
Nominal pressure (bar): 3.5
Burst pressure (bar): 28
Meter housing: AlSi 12 (water resistant)
Measuring chamber and oscillating discs: POM (polyoxymethylene)
Turntable and change: POM (polyoxymethylene)
Shaft for oscillating discs: 1.4305
Together: Perbunán 70
External dimensions LxWxH (mm): 195 x 155 x 135
Weight (kg): 1.9

Specification
* Counter: daily counter, zeroing, partial 100 ml
* 6-digit counter, steps in liter units
* 999 999 l starts the counter from 0
