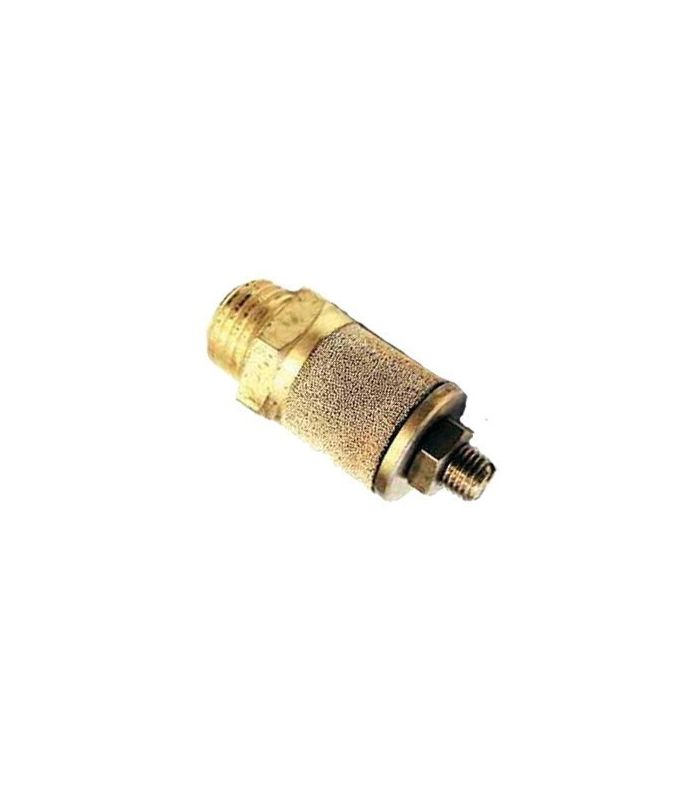

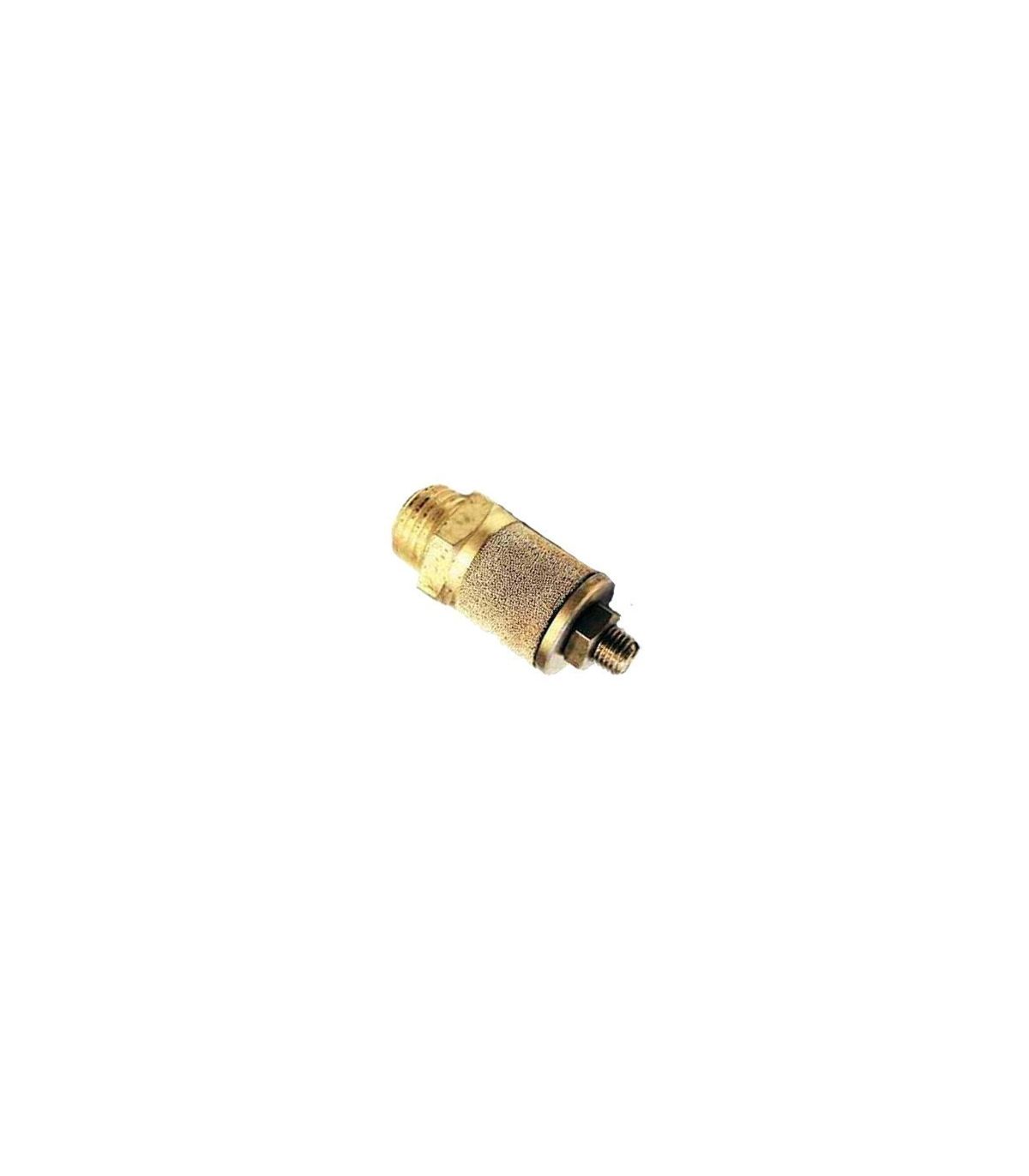

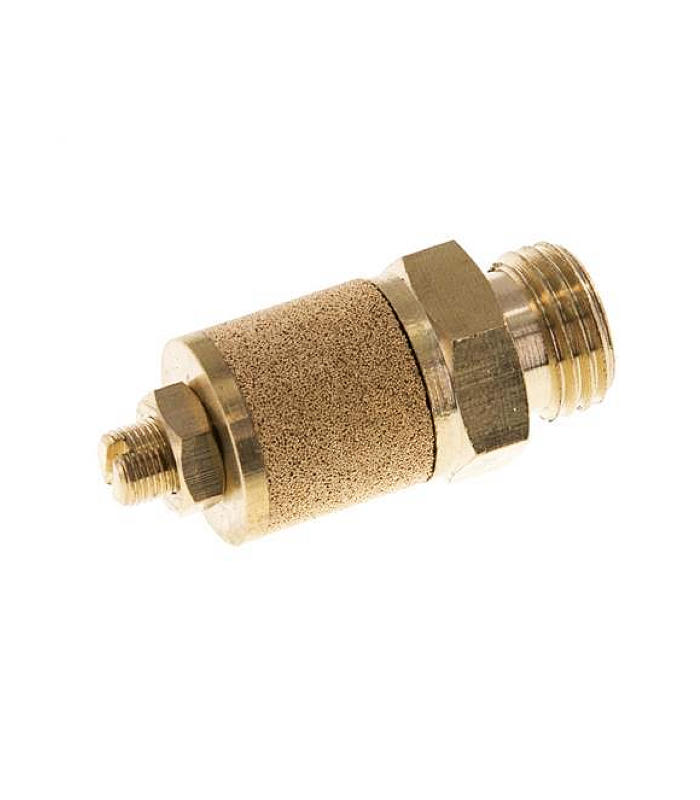

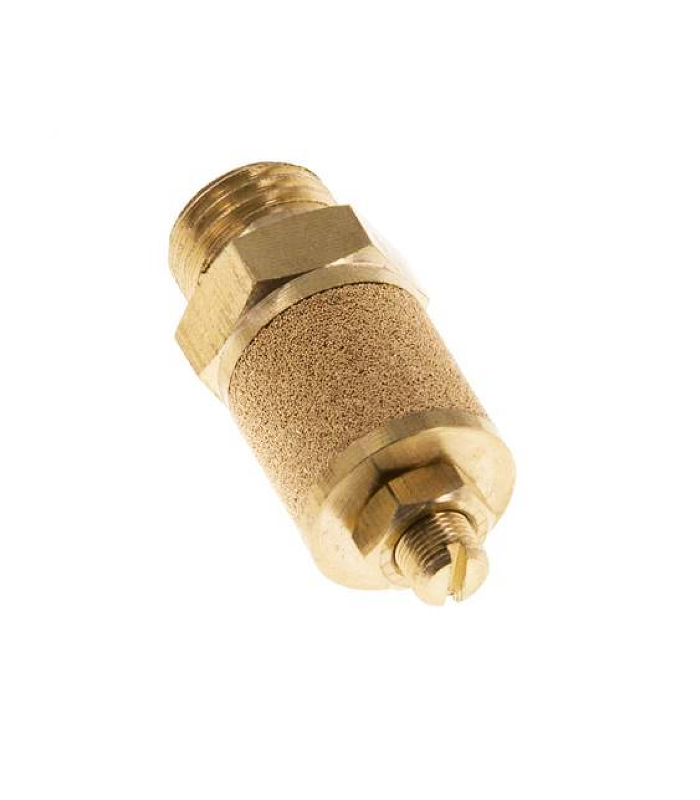

MUFFLER WITH MICRO-ADJUSTMENT

Silencer with micro-adjustment

The micro-regulating muffler is a dual-function silencer, combining effective noise reduction with precise airflow control. It is installed on exhaust outlets to reduce the noise level generated by the exhaust.

Applications: valves, cylinders and pneumatic equipment.

Main features:

It is very suitable as a speed controller for pneumatic cylinders.
The thread is of the cylindrical type.
Made of brass.
The adjusting screw operates the conical throttle valve and controls the airflow.

€6.49 (tax included)

€5.36 (tax excl.)

SELECT THE THREAD

M5
1/8"
1/4"
3/8"
1/2"

Reference:

16120002

Description
Comments

Description

Silencer with micro-adjustment

The micro-regulating silencer is designed for installation on pneumatic exhaust outlets , effectively reducing compressed air noise while allowing for flow regulation . It incorporates a sintered bronze porous element and an adjustment screw to control the air discharge velocity.

Applications

Pneumatic valves
Cylinders
Compressed air systems
Industrial automation.

Technical specifications of a silencer with micro-adjustment:

Code	Thread	Broad	L min.	L max.
16120002	M5	8	18	23
16120005	1/8"	16	30	36
16120009	1/4"	16	30	36
16120013	3/8"	22	38	50
16120019	1/2"	22	38	50

Product Details

Reference 16120002

Comments

12 other products in the same category:

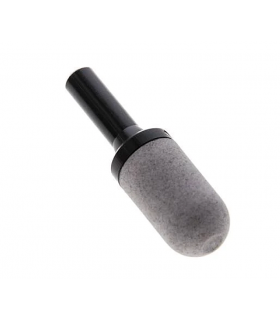

INSERTABLE POLYETHYLENE MUFFLER

€3.00 (tax excl.)

€3.63 (tax included)

Insertable polyethylene silencer An insertable polyethylene silencer is designed to reduce the noise level generated by air discharge in valves, cylinders, and compressed air equipment, while allowing free evacuation...

SYNTHESIZED BRONZE SILENCER

€0.78 (tax excl.)

€0.94 (tax included)

A synthetic bronze silencer is an essential component in pneumatic systems for reducing the noise level generated by compressed air escaping into the atmosphere, while also acting as a particle filter. Applications:...

SOUND ABSORBENT SILENCER FOR VACUUM

€14.40 (tax excl.)

€17.42 (tax included)

A vacuum sound-absorbing silencer is a component used in vacuum systems to reduce exhaust air noise propagating through ducts or openings, using materials that dissipate sound energy. It is commonly used in...

SILENCER WITH ADJUSTMENT

€2.23 (tax excl.)

€2.70 (tax included)

A regulated silencer is used in compressed air systems to reduce the noise level generated by escaping air from valves, cylinders, or any other pneumatic equipment. It allows for controlling the exhaust air flow rate...

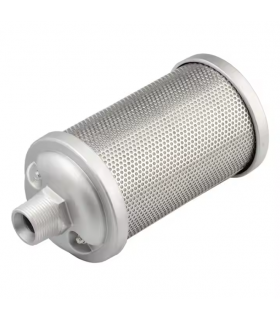

SILENCER WITH SOUND ABSORBING FIBER
