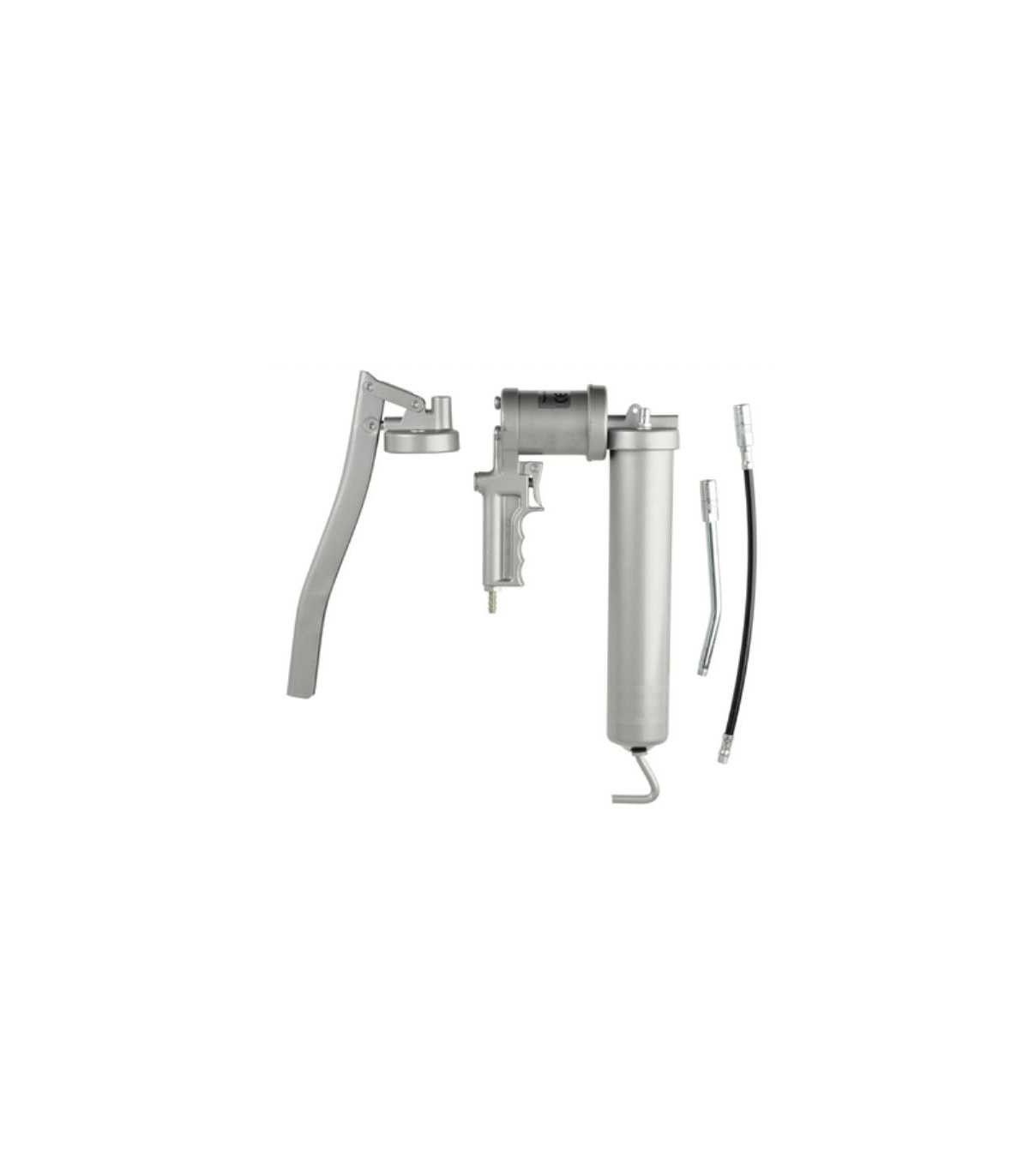

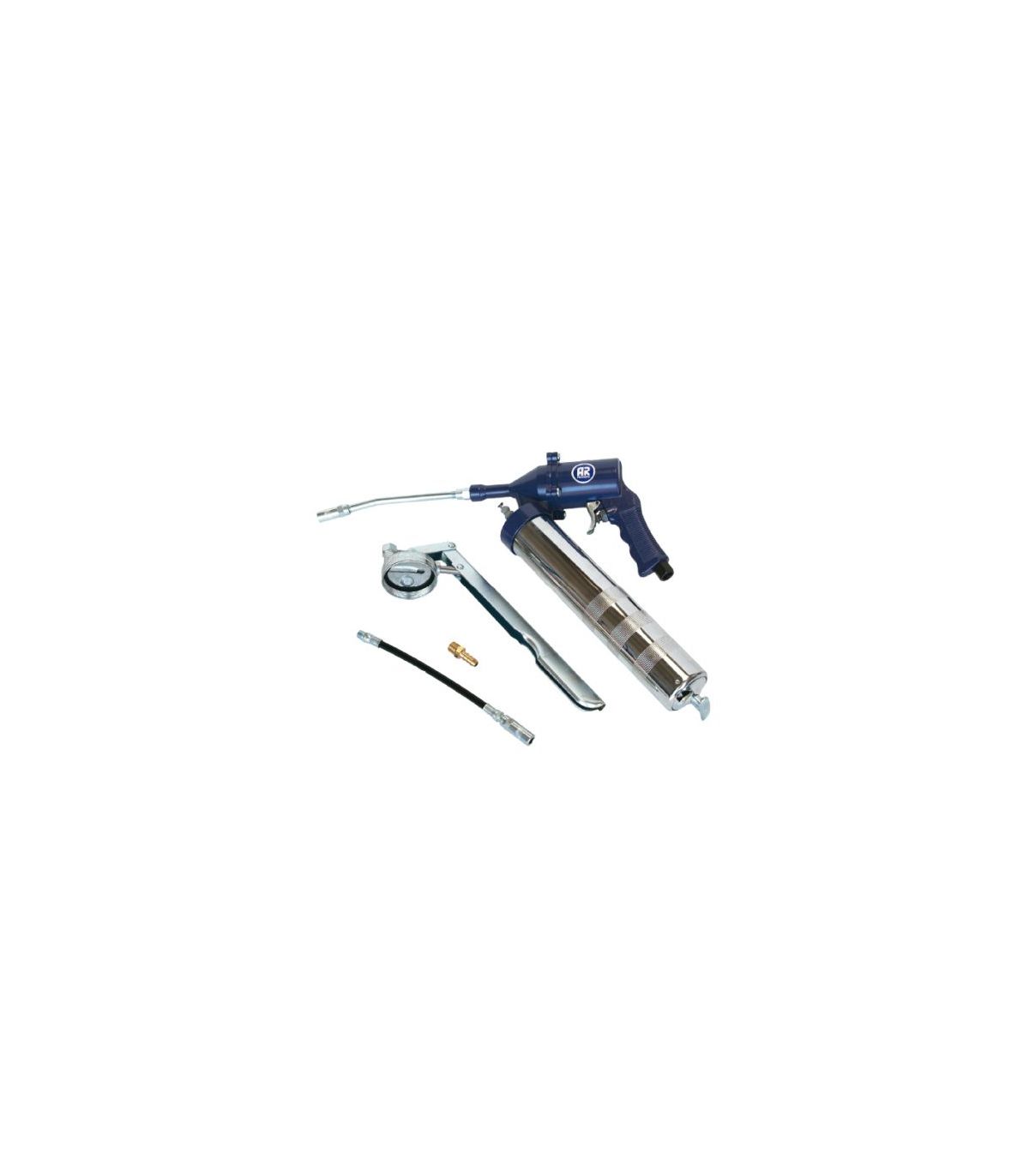

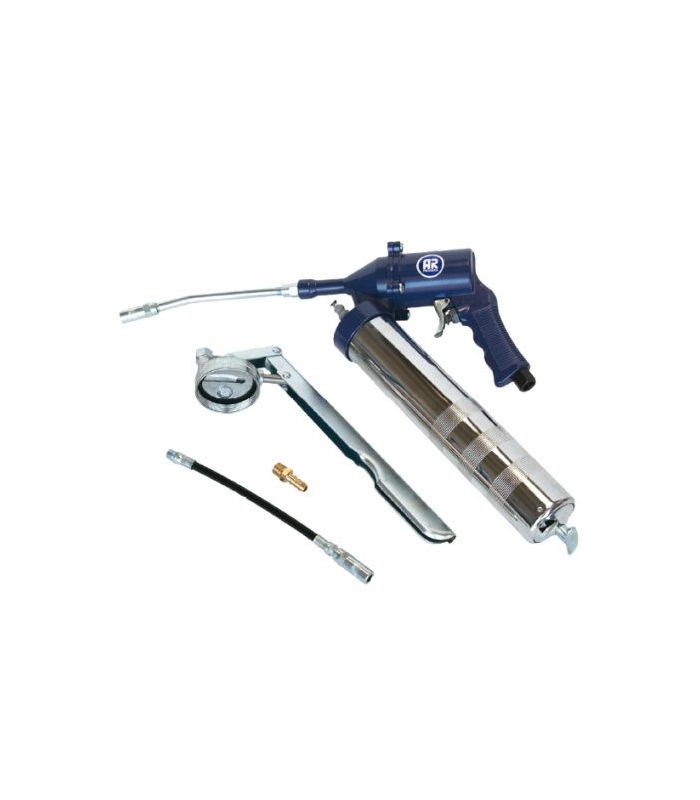

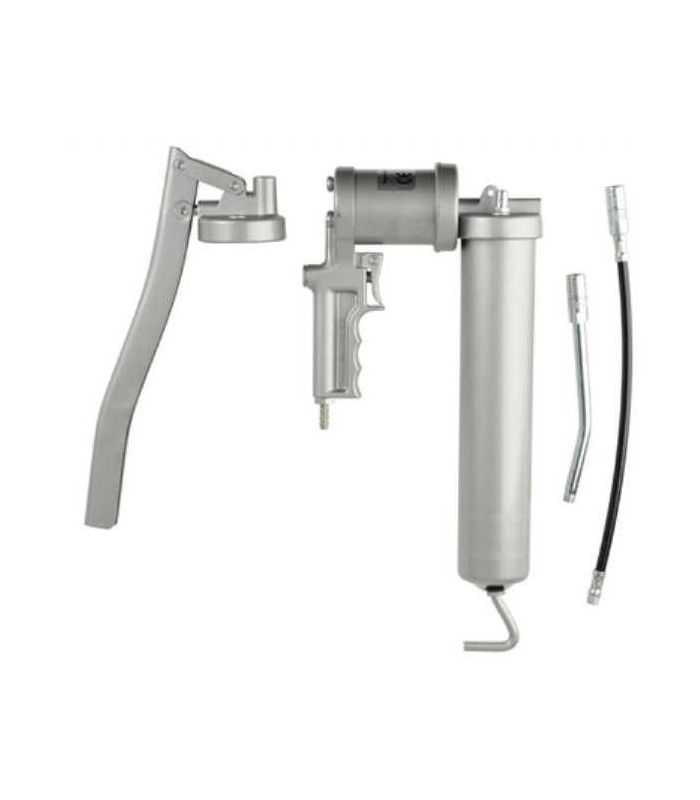

PNEUMATIC AND MANUAL GREASE PUMP

A pneumatic and manual grease pump is used to apply grease to lubrication points on machinery and equipment. It is notable for its versatility, as it can be operated in two different ways.

Technical specifications:

This device works on fat up to NLGI 2
The shape of the sealing gasket with a hermetic seat in case of grease loss or cartridge failure
High-precision metal piston (no leaks)
Consistent performance, even after 5,000 cycles
Z 410 Die Cast Zinc Manual Grease Pump Head
Non-slip grip thanks to the textured surface of the pump body
Loading rod with grip handle
The removable lid with ratchet lock for the loading rod allows for manual compression of bulk grease in any position, thanks to a spring mechanism. It also facilitates easier adjustment of the plunger in damaged cartridges.
Minimal effort, thanks to the lever's construction characteristics (dimensions).
Rapid ventilation by means of a half turn of the manual grease pump body
With an additional lever-operated grease pump head, for changing operation.

€95.18 (tax included)

€78.66 (tax excl.)

Reference:

6367

Description
Comments

Description

pneumatic and manual grease pump

Technical data

Pump outlet connection: M 10 x 1
Filling valve and vent valve for grease guns: M 10 x 1
Capacity: 400 ml.
Grease gun filling options: 400g grease cartridge, DIN 1284 grease dispenser or bulk grease
Grease pump filling options: 400 g, grease cartridge, DIN 1284, loose grease
Transmission ratio: 50:1
Grease supply to the manual grease pump head: By mechanical actuation via a spring
Grease supply piston diameter: 6 mm
Actuation of the lubrication piston: With "trigger" (squeeze-release-squeeze)
Volume / stroke: 0.8 cm³
Working pressure (bar): 6
Minimum pressure (pneumatic propulsion): 2 bar
Maximum air pressure (bar): 8
Air connection: Adapter with barb, 6 mm, for hose, DN 6 (20 132)
Grease pressure piston diameter (grease pump): 8 mm
Lubrication piston actuation: lever operated
Loading rod operation: via an L-shaped grip handle
Closure cover: Removable
Pump body thickness: 1.0
Color: Silver/blue

Specs

With 1 reinforced hose, M 10 x 1, 8 x 300 mm
With 1 nozzle, 4 BA, M 10 x 1

Product Details

Reference 6367

Comments
