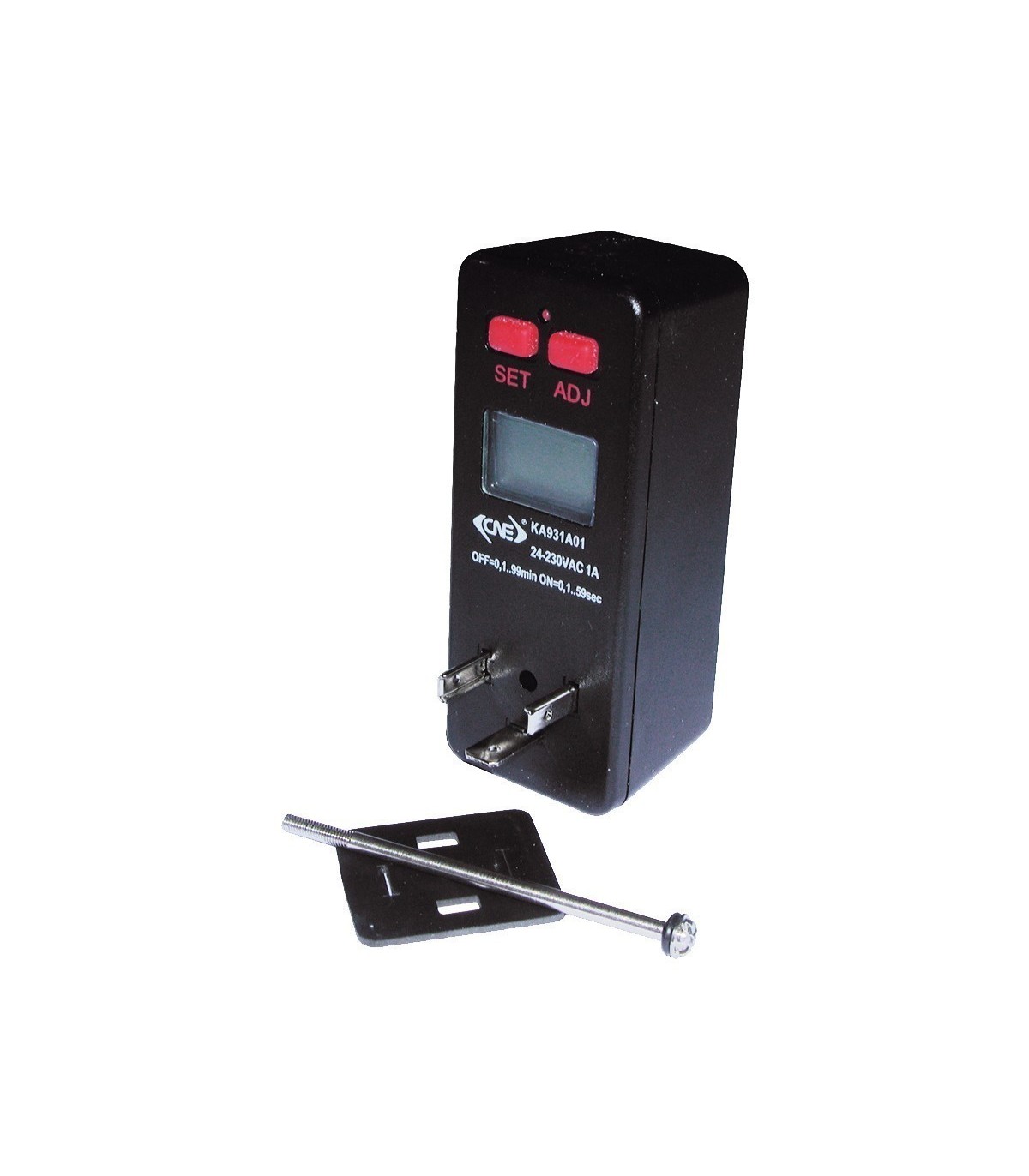

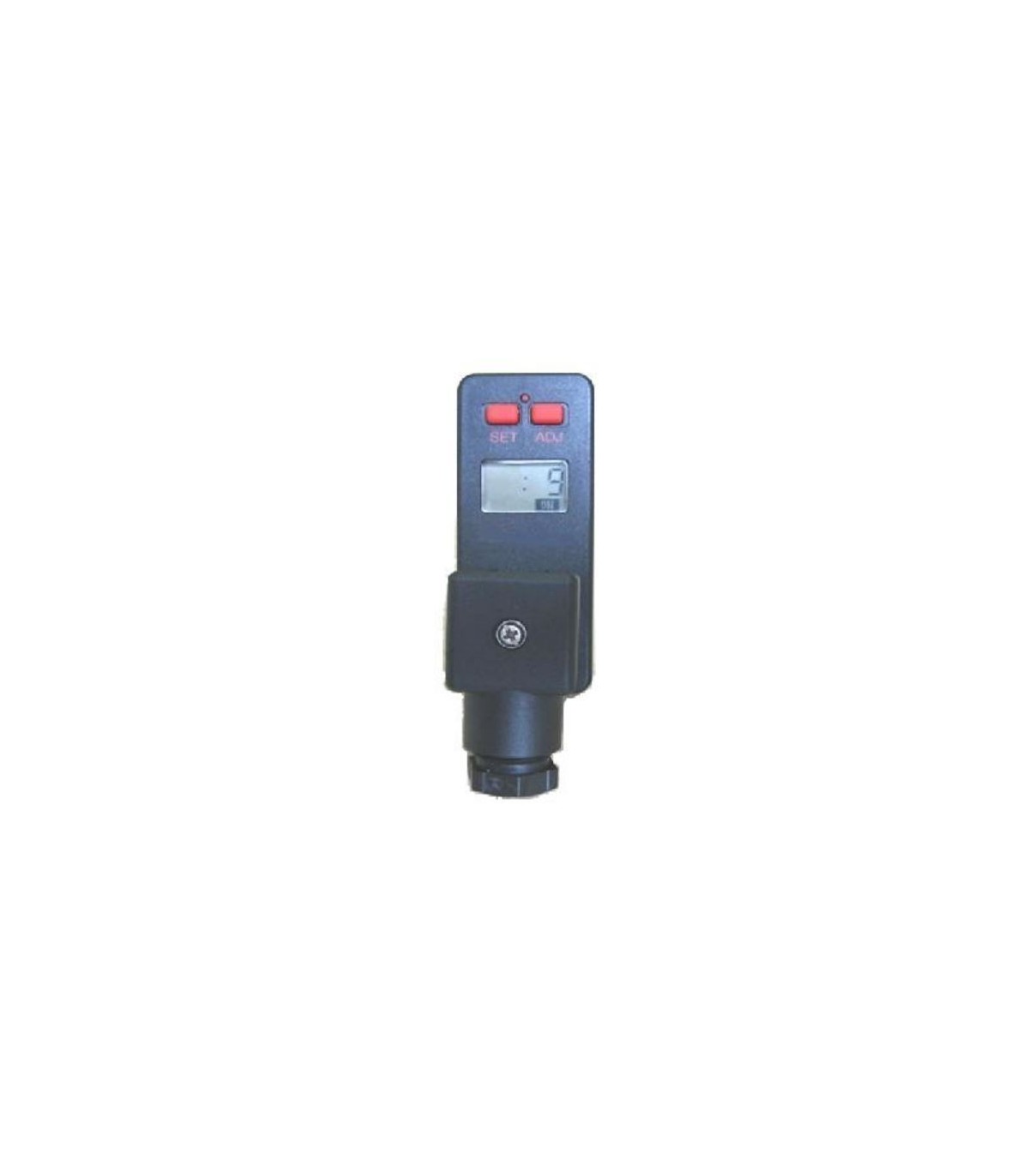

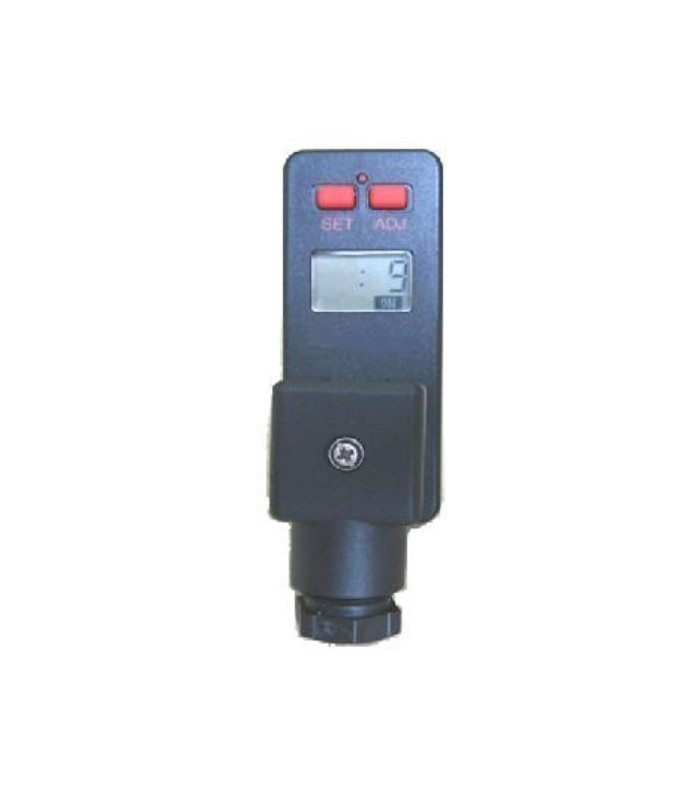

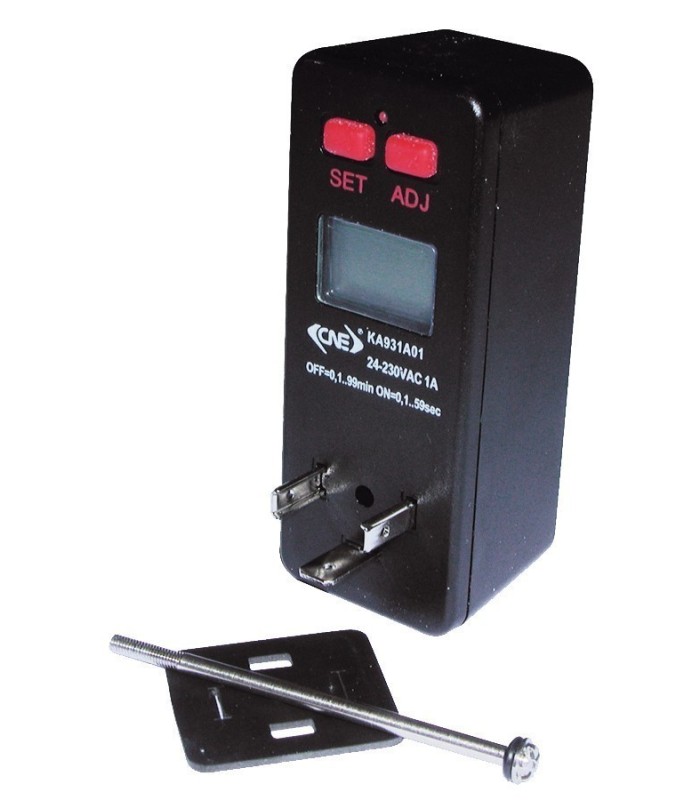

T-30 ELECTRONIC TIMER

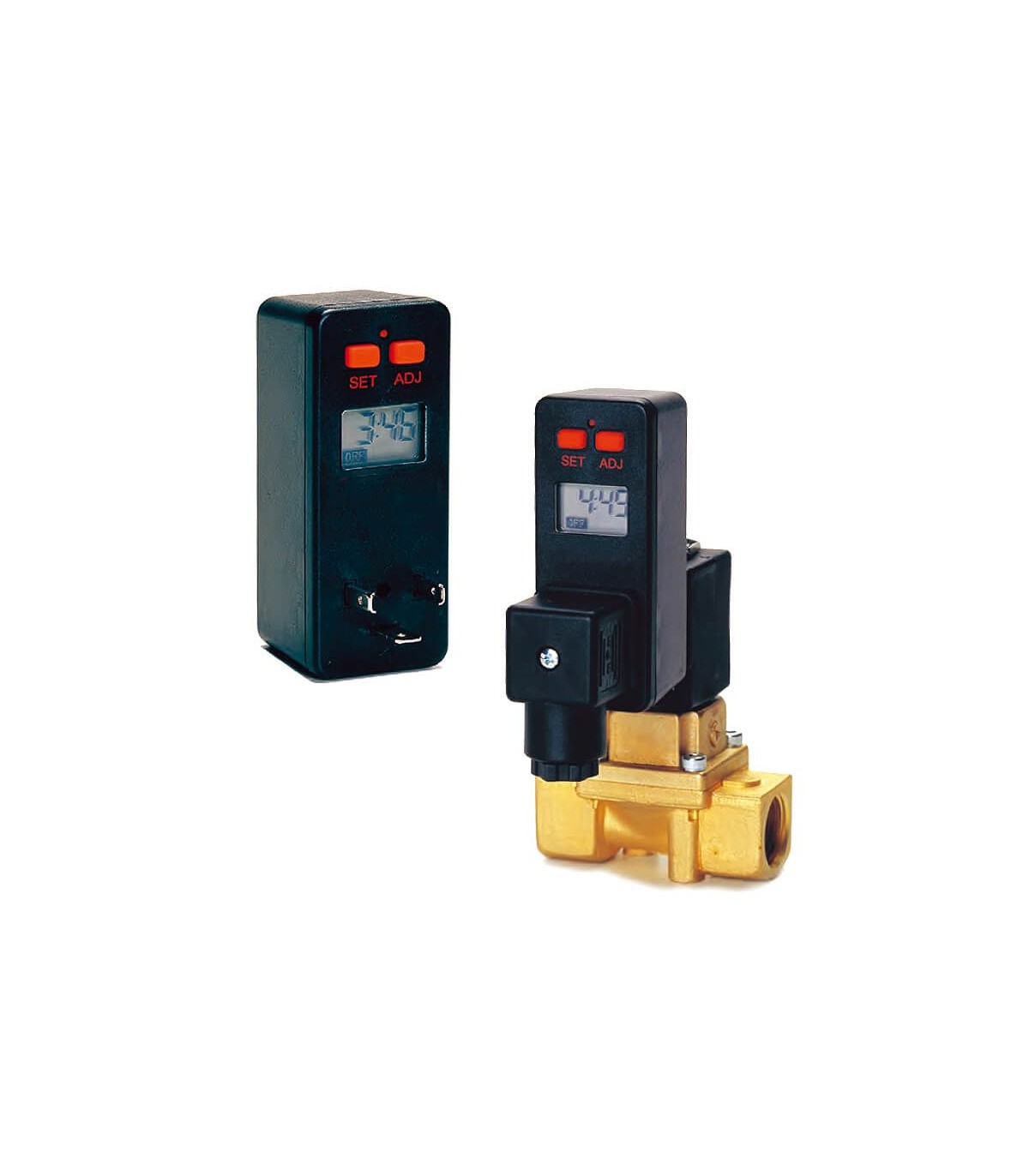

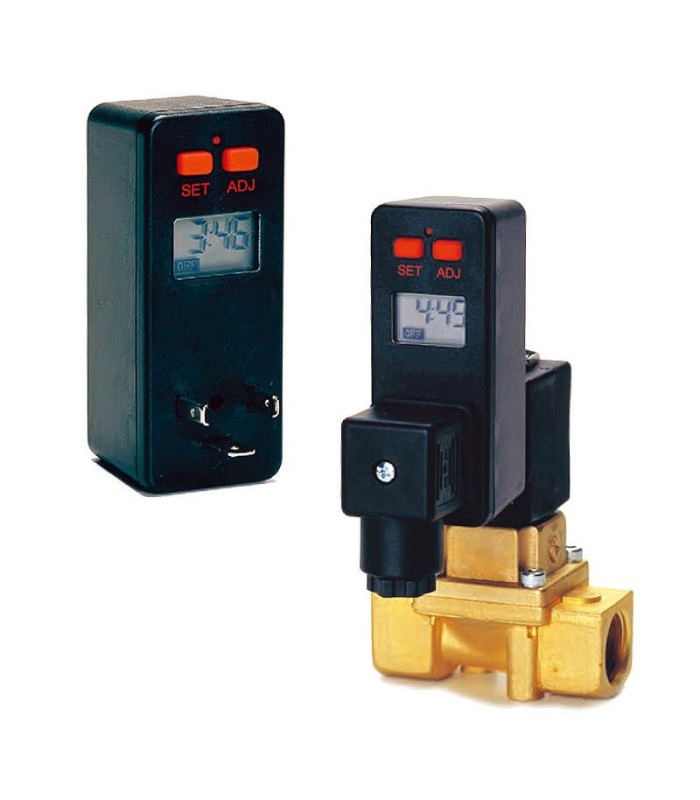

The T-30 electronic timer is a programmable device for use with components that have a DIN 43650 A or B connection. It features a manual or "test" button, as well as selectors for setting the desired operating or stop time. It is used with solenoid valves for draining compressor tanks, air conveying lines, pneumatic vibration conveying systems (e.g., agricultural silos, aggregate silos), or automatic lubrication systems.

Technical specifications:

• Battery life: 5 years
• Valve connection: DIN 43650-A ISO-4400/6952.
• ON setting time: 0.1 - 59 sec.
• OFF setting time: 0.1 - 99.59 min.
• Power supply voltage: 24-240 Vac 50/60 Hz.
• I switching: 1A.
• I consumption: 4 mA.
• Operating temperature: -10ºC to +50ºC.
• Protection rating: IP 65.
• Insulation: VDE 01101/89 Class C.
