ANALOG TIMER T-30

The T-30 analog timer is an electromechanical device used to switch an electrical circuit on or off after a preset time. Similar to the T-22 DIN 43650-B but with some differences, it is used to control processes that require a time delay.

Technical specifications:

• Valve connection: DIN 43650 ISO-4400/6952.
• T setting ON: 1 - 30 secs.
• OFF setting time: 1.5 - 45 min.
• Power supply voltage: 24-240 Vac 50/60 Hz 24 – 240 Vdc.
• I switching: 1A.
• I consumption: 4 mA.
• Operating temperature: -10ºC to +50ºC.
• Protection rating: IP 65 NEMA IV.
• Programmable electronic timer for use with elements that have a DIN 43650 A or B type connection.

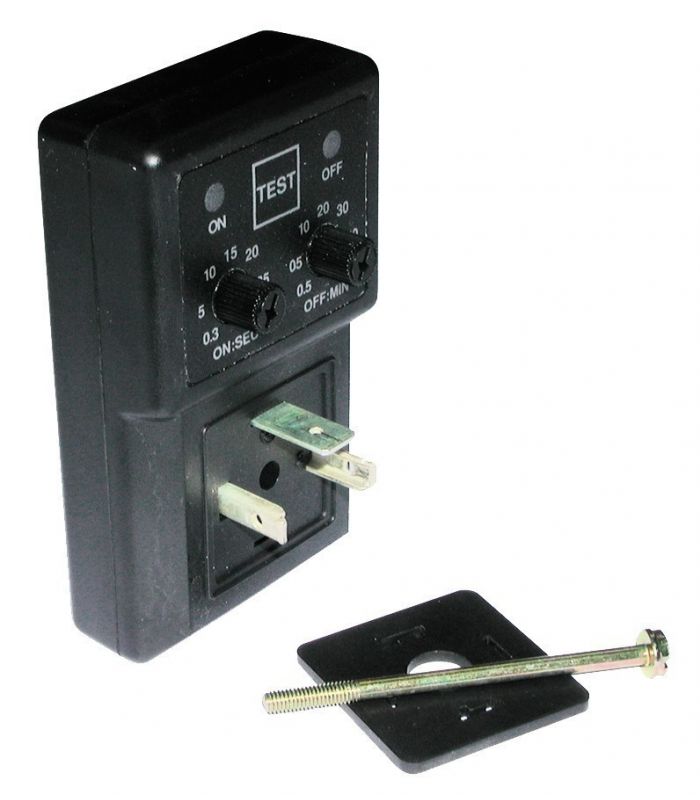

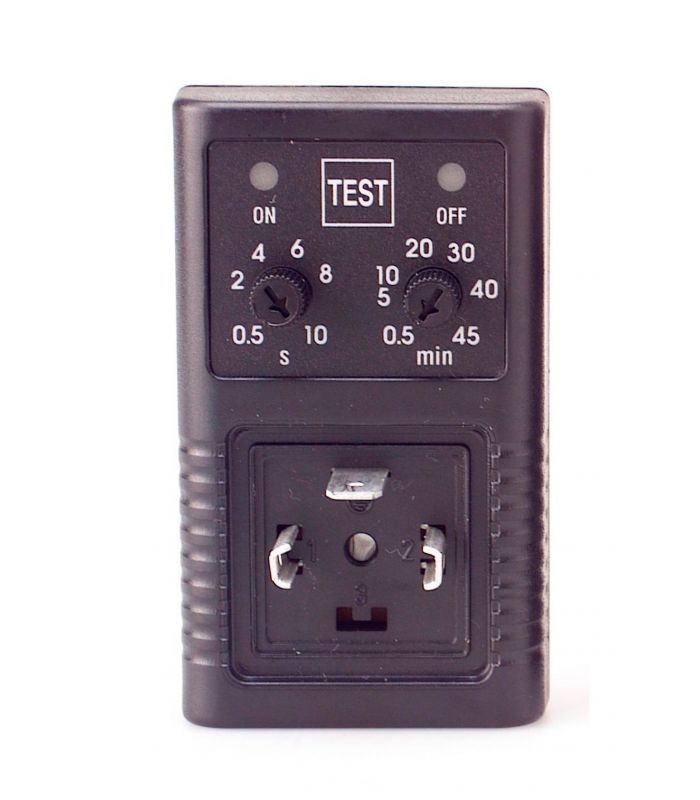

• It has a manual or "test" button, as well as selectors to adjust the desired operating or stop time.
• This type of device is applied with solenoid valves for draining compressor tanks such as air transport lines, pneumatic vibration transport systems (e.g., agricultural silos, aggregate silos) or automatic lubrication systems.
