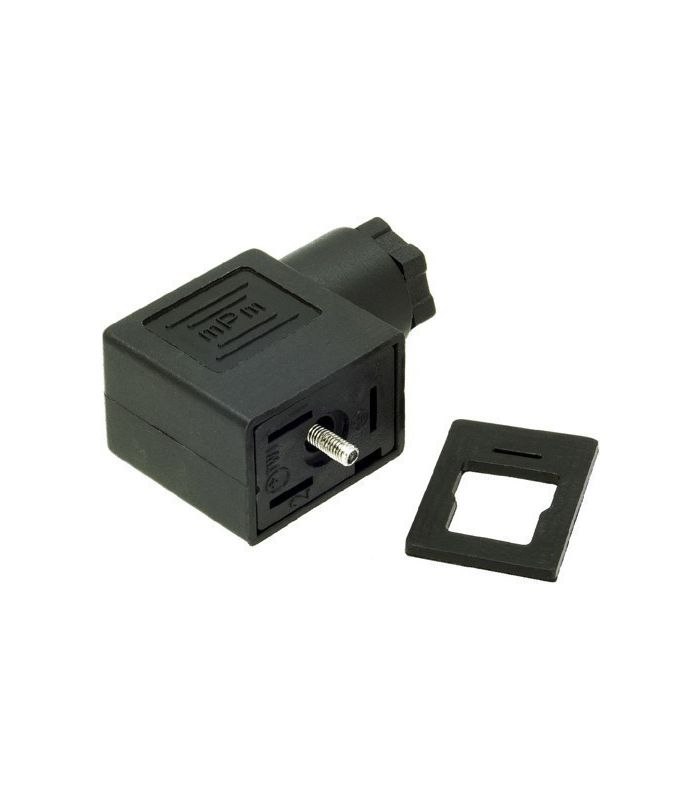

T-22 COIL CONNECTOR DIN-43650-B

T-22 COIL CONNECTOR DIN-43650-B

A T-22 DIN-43650-B coil connector is an industrial electrical connector primarily designed to safely and reliably connect a power or control source to a coil of an electromechanical device. The T-22 designation refers to a type of connection that involves a screw contact to ensure a solid electrical connection.

Applications: packaging systems, machinery, industrial automation.

Technical sheet:

  • Contacts: Nut with protection for the conductors.
  • Number of poles: 2 + Ground.
  • Contact distance: 11 mm.
  • Cable entry: PG7 – PG9.
  • Lining: NBR profile (Different, on request).
  • Fixing nut: M3 x 32.
  • Standard ground position: H 12 (Opposite the cable exit).
  • Degree of protection: IP 65 (Connected).
  • Maximum conductor cross-section: 1.5 mm²
€1.21 (tax included)
€1.00 (tax excl.)
Reference:
6003
Description

T-22 coil connector DIN-43650-B

CONECTOR BOBINA T-22 DIN-43650-B

Product Details
6003
