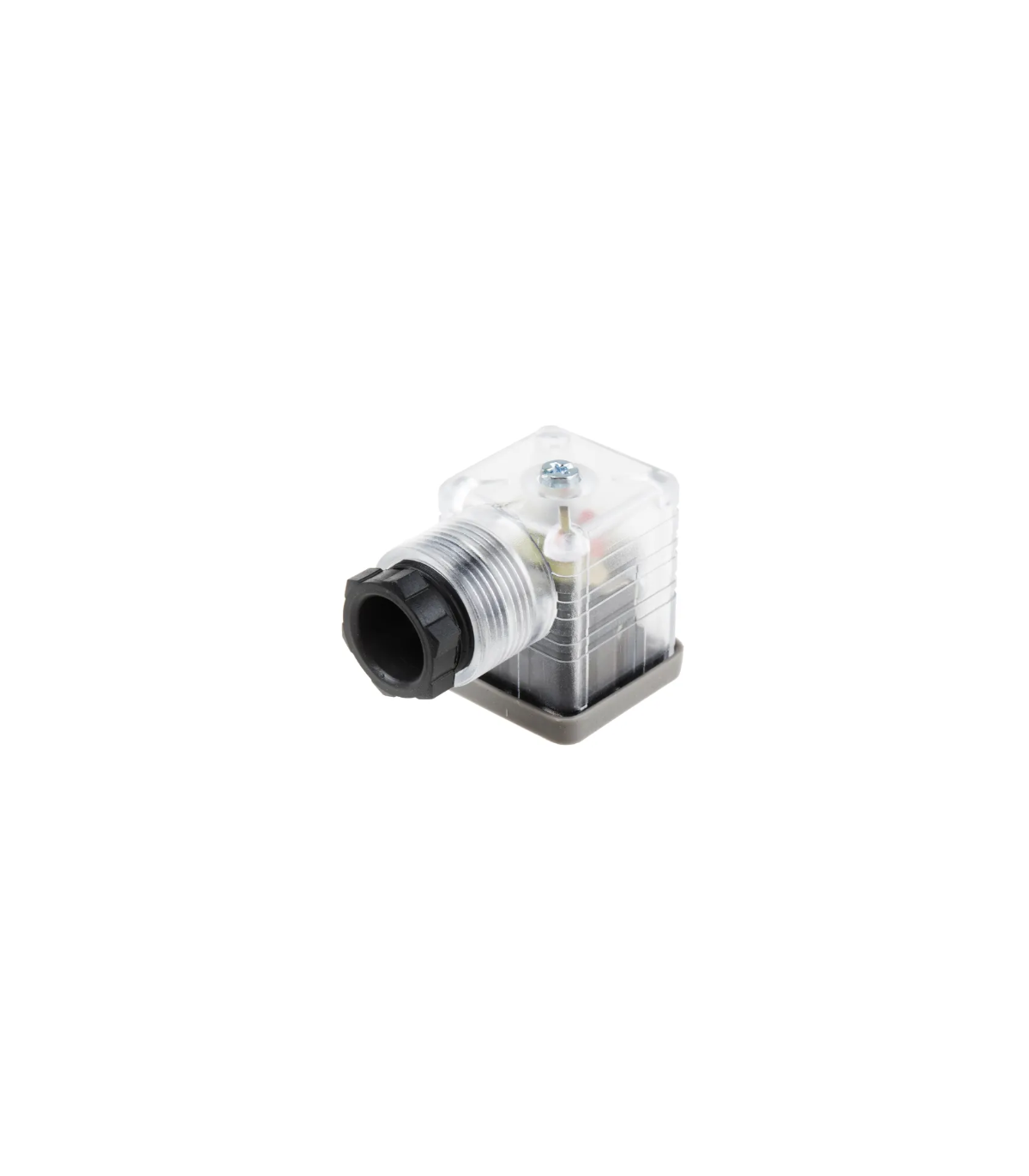

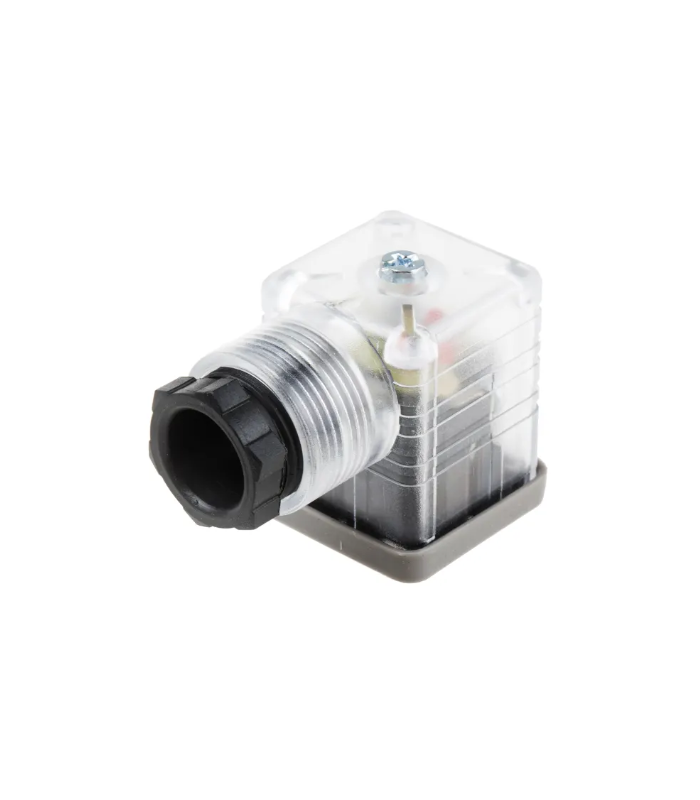

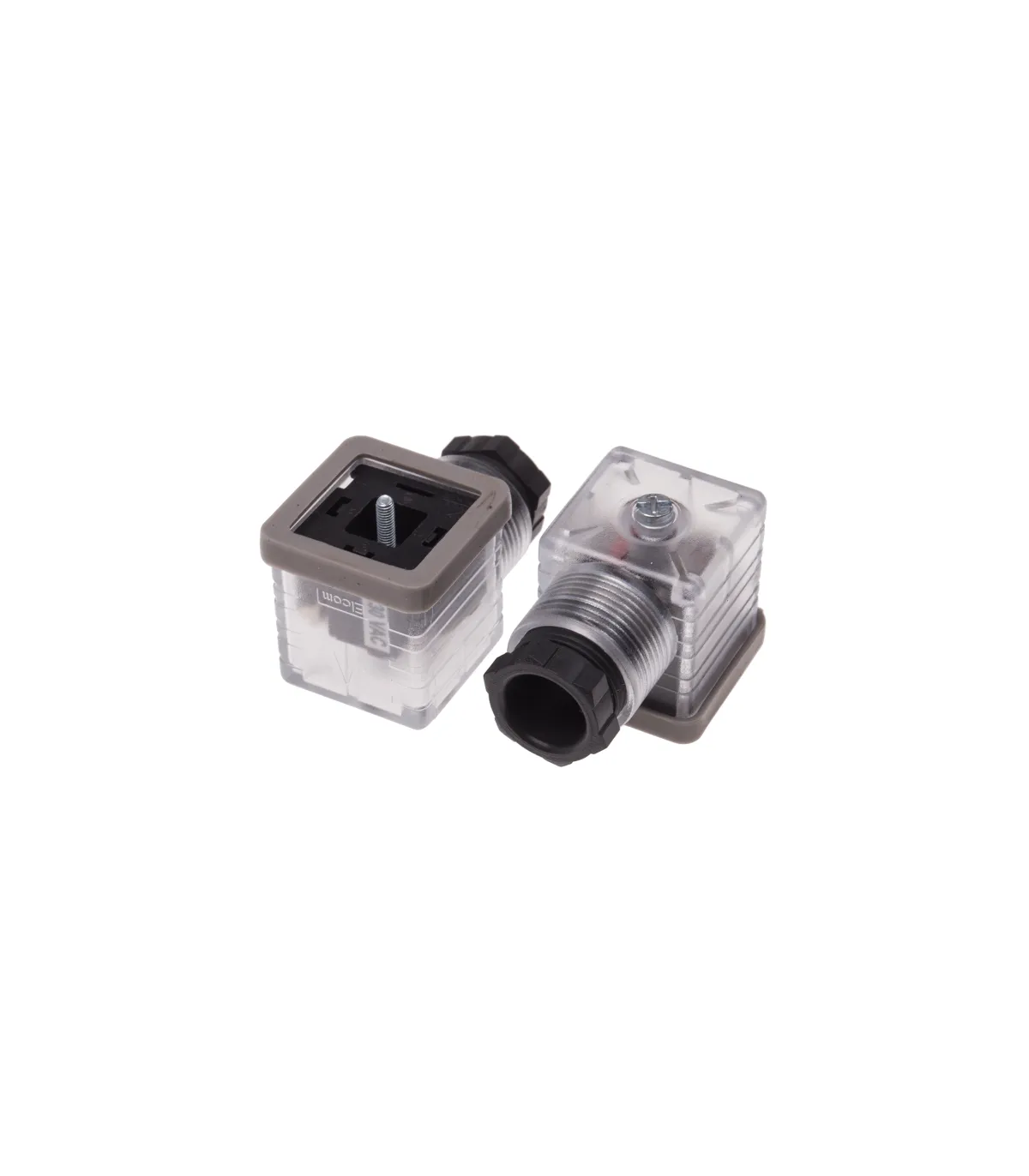

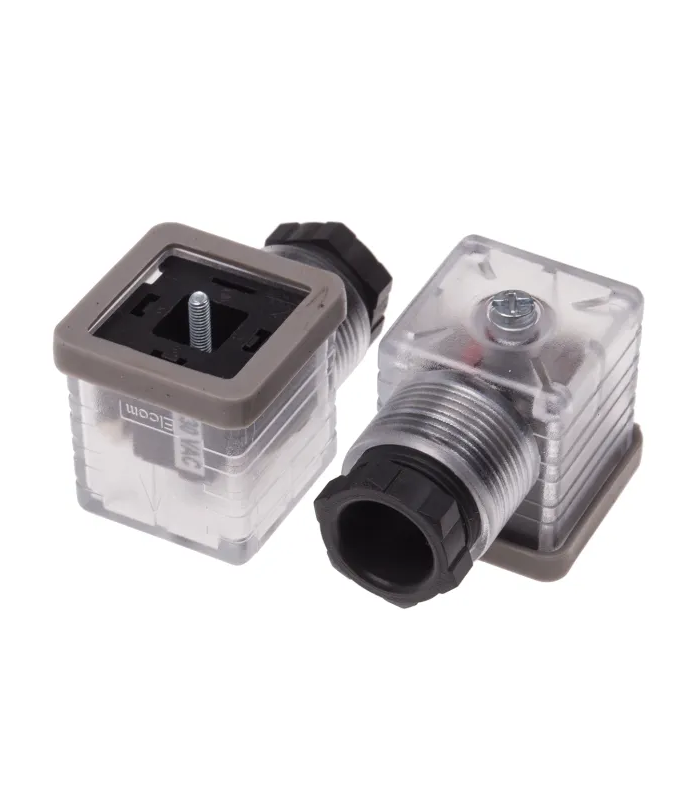

LED T-15 DIN-43650-C CONNECTOR
LED T-15 DIN-43650-C CONNECTOR
LED T-15 DIN-43650-C CONNECTOR
LED T-15 DIN-43650-C CONNECTOR

LED T-15 DIN-43650-C CONNECTOR

A DIN-43650-C T-15 LED Connector establishes a safe and reliable connection between a power or control source and a coil of an electromechanical device, such as a solenoid valve. It incorporates an indicator LED that allows the operating status of the device to which it is connected to be displayed.

Applications: Industrial automation, Packaging, Material handling and Medical equipment.

Technical data sheet:

  • Contacts: Nut with protection for the conductors.
  • Number of poles: 2/3 + Ground.
  • Contact distance: 9.4 mm.
  • Cable entry: PG7.
  • Lining: NBR profile (Different, on request).
  • Fixing nut: M2.5 x 28.
  • Standard ground position: H 6 (Next to cable outlet).
  • Protection class: IP 65 (Connected).
  • Max. conductor section: 0.75 mm²
  • Yellow LED

See other types of contact

€5.01 (tax included)
€4.14 (tax excl.)
POWER
  • 24VAC
  • 24V DC
  • 110V AC
  • 110V DC
  • 220VAC
Reference:
60130007
Description

T-15 DIN-43650-C LED connector

CONECTOR LUMINOSO T-15 DIN-43650-CCONECTOR LUMINOSO T-15 DIN-43650-C

Product Details
60130007
