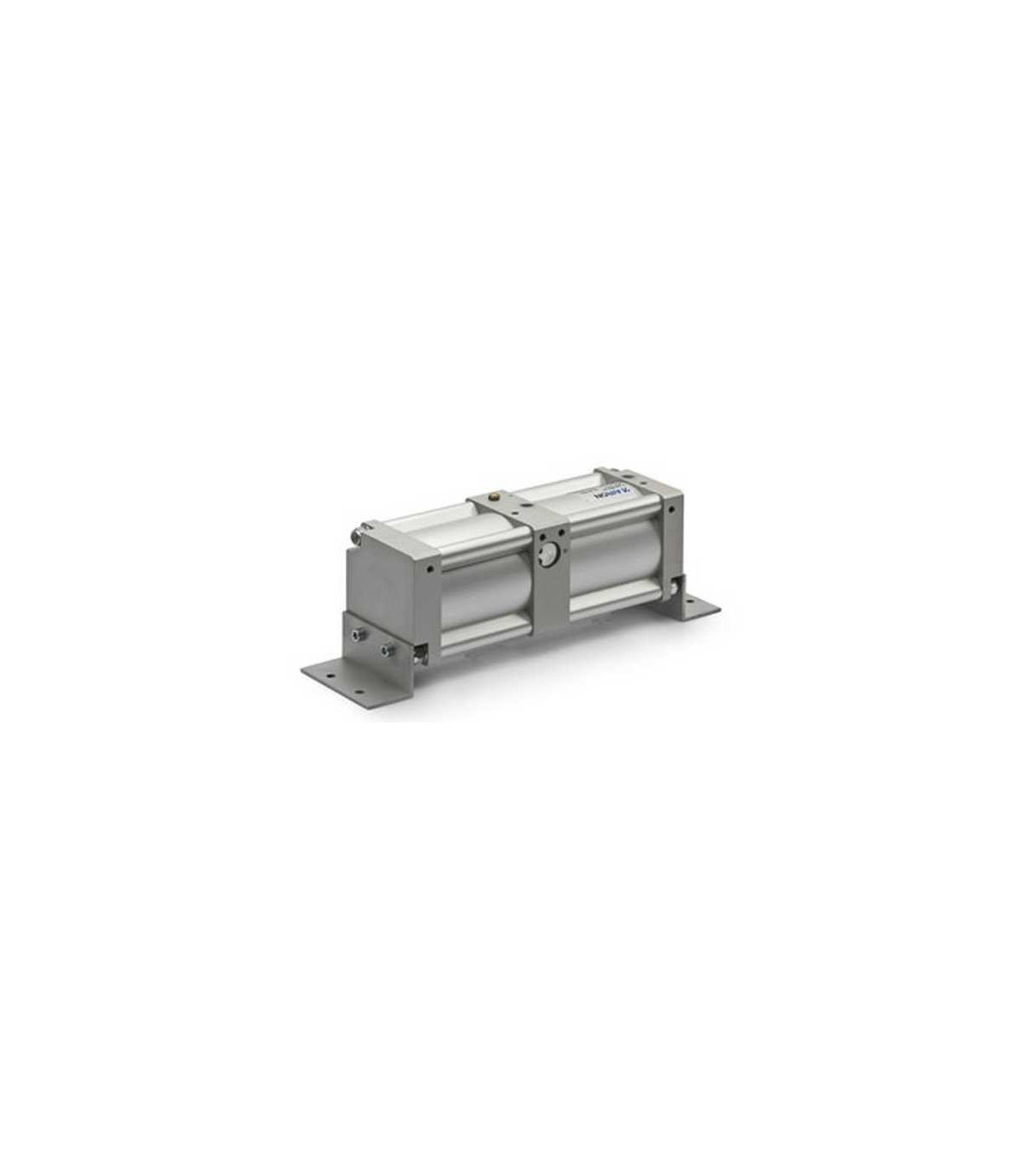

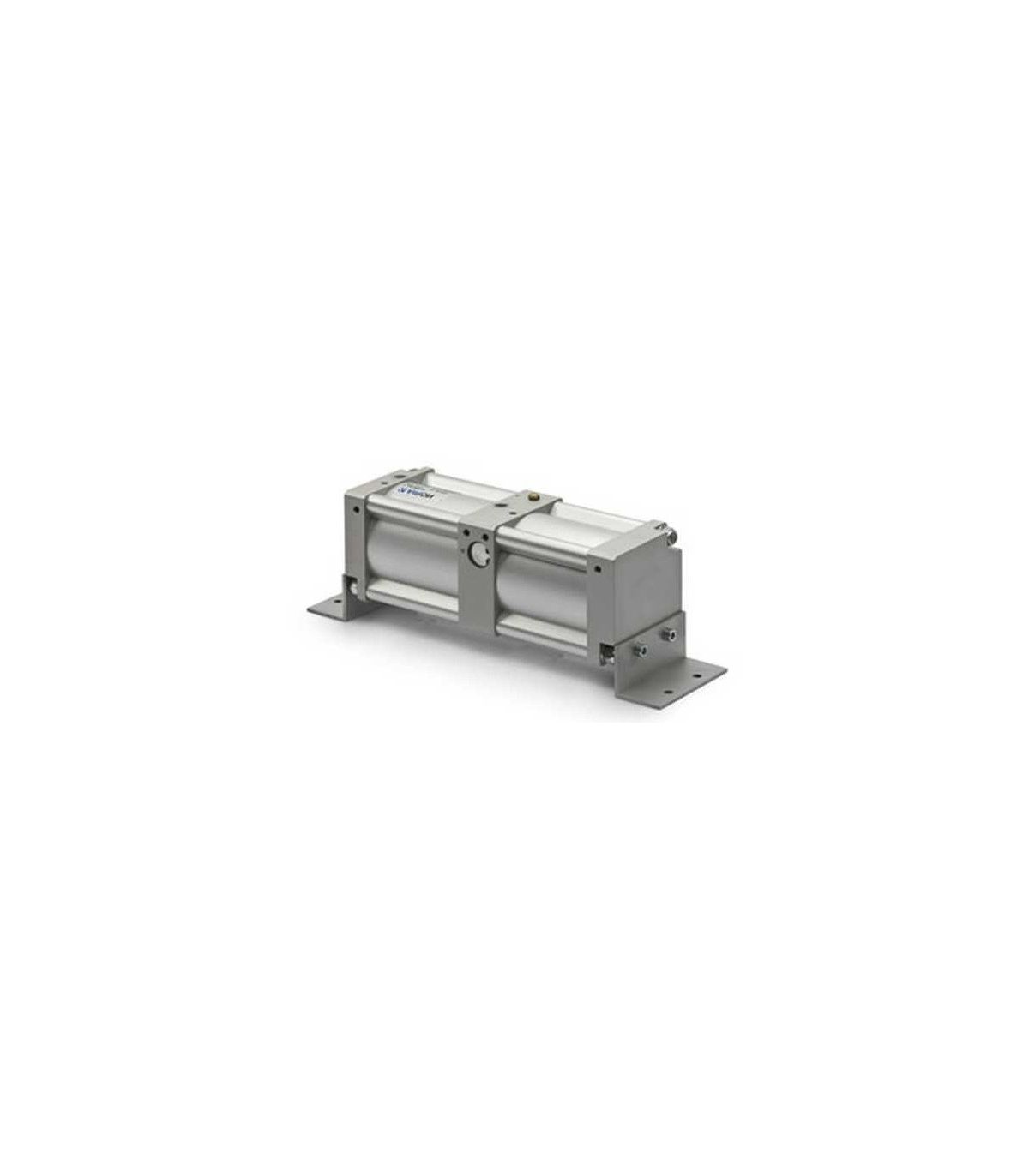

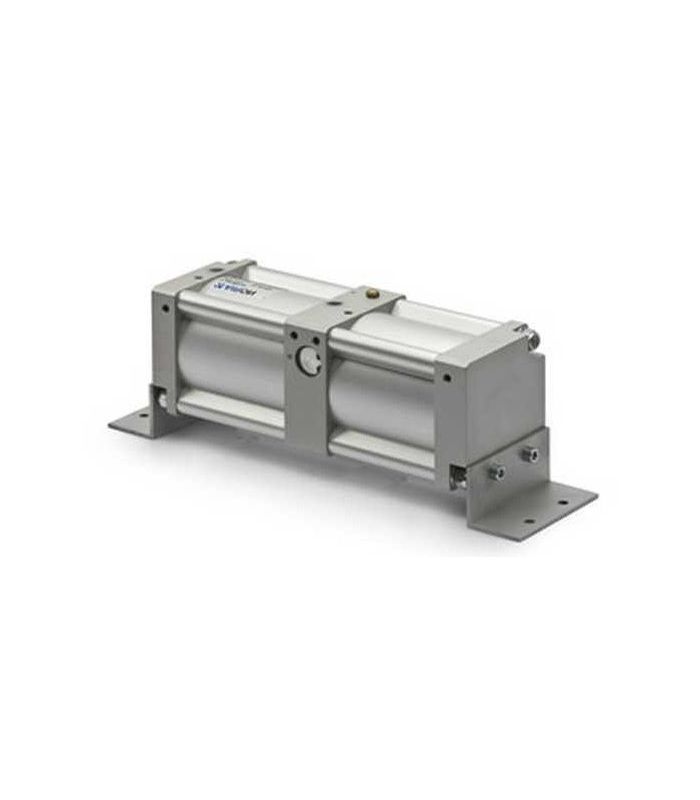

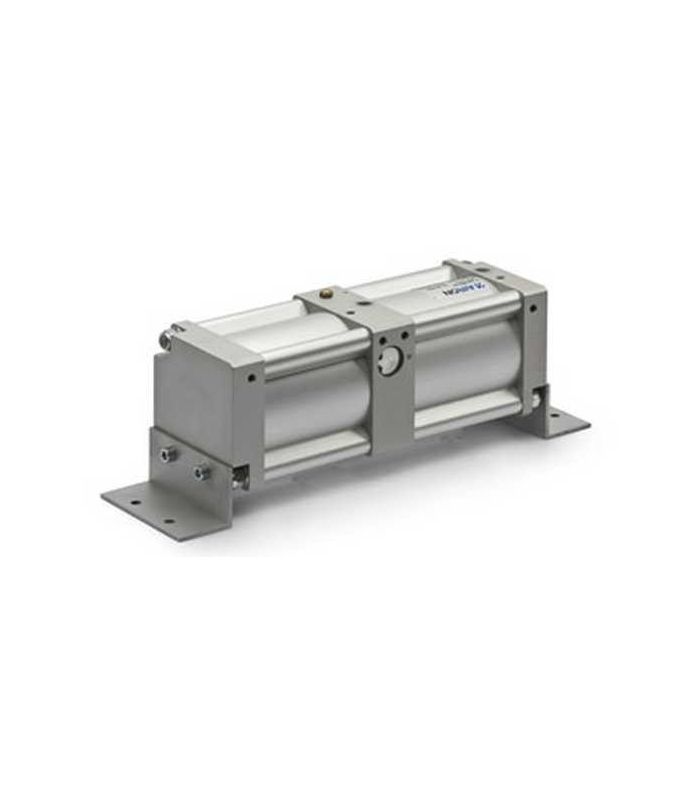

AIR PRESSURE MULTIPLIER BOOSTER 1:2.5
AIR PRESSURE MULTIPLIER BOOSTER 1:2.5
AIR PRESSURE MULTIPLIER BOOSTER 1:2.5
AIR PRESSURE MULTIPLIER BOOSTER 1:2.5

AIR PRESSURE MULTIPLIER BOOSTER 1:2.5

A 1:2.5 air pressure booster is a device that allows for higher output pressure than input pressure. The system's integrated control circuit allows the desired pressure to be achieved by adjusting only the input pressure.

Technical sheet:

  • Compression ratios 1:2.5
  • It is recommended at the entrance, air filtered to 25 microns.
  • Working temperature 10ºC / 50ºC
  • Inlet pressure 3-8 bar.
  • Easy to apply, its small size, with a good flow rate can be the answer to all practical and economical applications that require a higher pressure than that supplied by the compressor.
  • Typically used to increase the force of pneumatic cylinders and achieve greater forces with reduced dimensions and lower weight. High-pressure blow-molding of components, component burst testing, or component burst testing.
  • It is advisable to use a tank to have a constant output pressure.
  • Consult us for tank flow and volume ratios.

Supplied without fixing bracket.

€817.96 (tax included)
€676.00 (tax excl.)
Reference:
5400
Description

Booster air pressure multiplier 1:2.5

MULTIPLICADOR PRESION AIRE BOOSTER 1:2.5

MULTIPLICADOR PRESION AIRE BOOSTER 1:2.5

------------------------------------------------------------------------------------------

Example of air amplifier assembly

1.- Air treatment group 3206

2.- Pressure regulator 3403

3.- Pressure Multiplier 5400

4.- Non-return valve 1501

5.- Compressed air boiler 4315

MULTIPLICADOR PRESION AIRE BOOSTER 1:2.5
