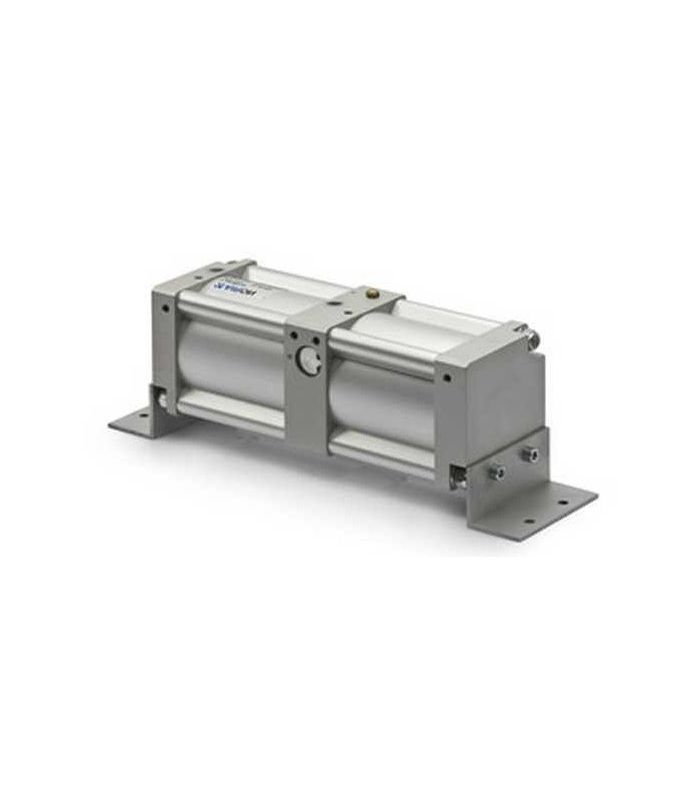

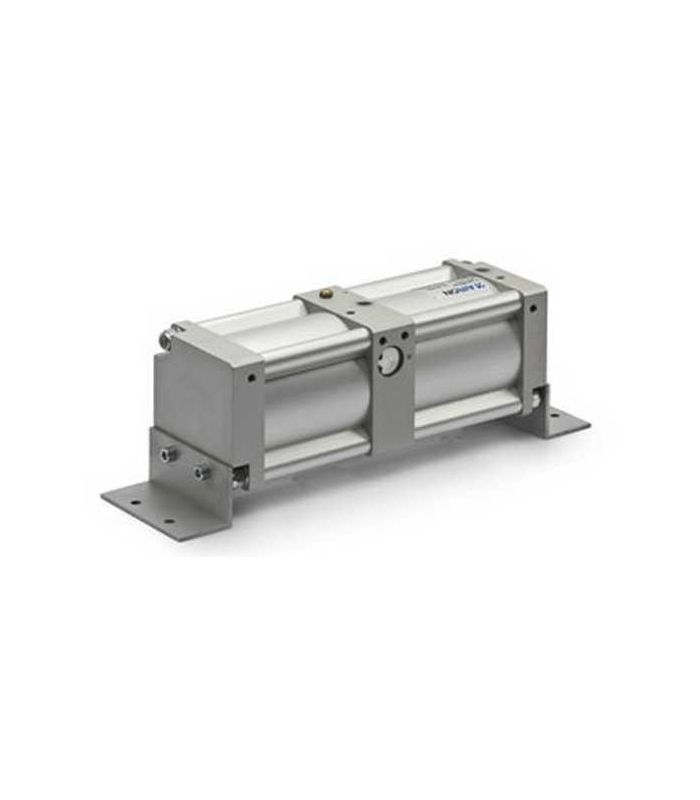

AIR PRESSURE MULTIPLIER BOOSTER 1:3.5

A 1:3.5 booster air pressure multiplier is a device that allows you to obtain a higher output pressure than the input pressure.

Technical sheet:

Compression ratios 1:3.5
It is recommended at the entrance, air filtered to 25 microns.
Working temperature 10ºC / 50ºC
Inlet pressure 3-8 bar.
The control circuit integrated into the system allows the desired pressure to be obtained by adjusting only the inlet pressure.
Easy to apply, its small size, with a good flow rate can be the answer to all practical and economical applications that require a higher pressure than that supplied by the compressor.
Typically used to increase the force of pneumatic cylinders and achieve greater forces with reduced dimensions and lower weight. High-pressure blow-molding of components, component burst testing, or component burst testing.
It is advisable to use a tank to have a constant output pressure.

SUPPLIED WITHOUT FIXING BRACKETS

€868.30 (tax included)

€717.60 (tax excl.)

Reference:

5401

Description
Comments

Description

Booster air pressure multiplier 1:3.5

Product Details

Reference 5401
