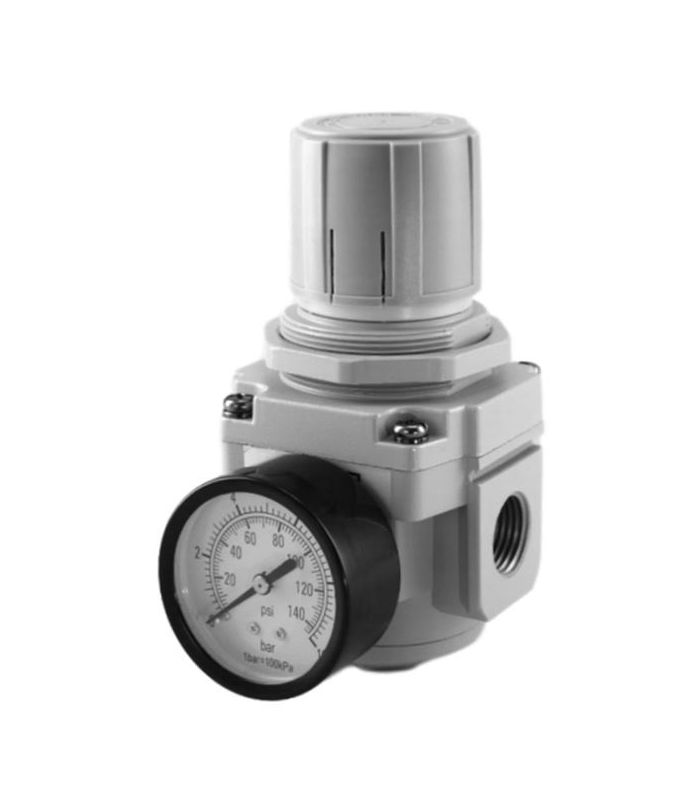

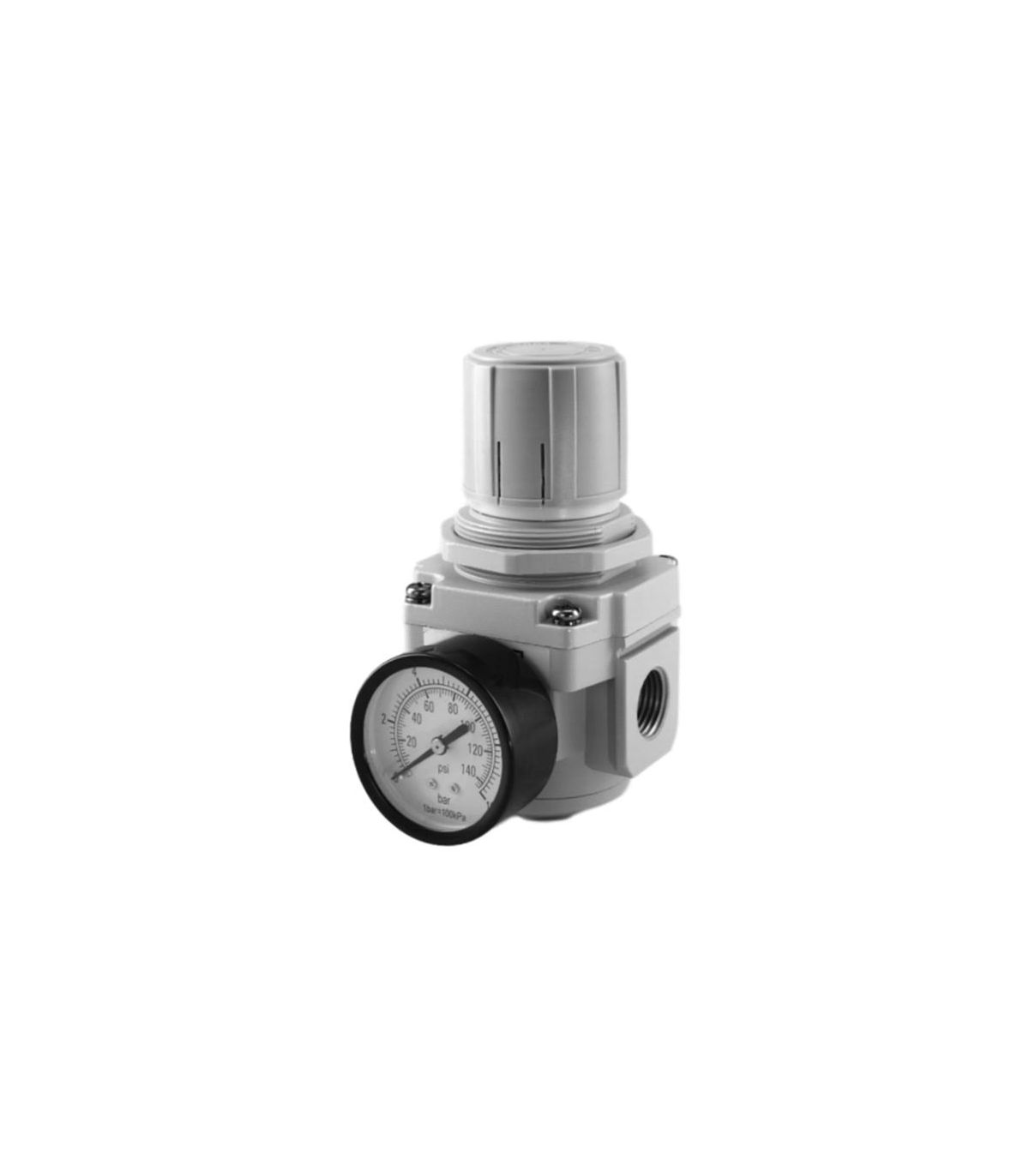

MODULAR PRESSURE REGULATOR

MODULAR PRESSURE REGULATOR

Modular pressure regulator

A modular pressure regulator is a pneumatic device designed to reduce, regulate, and maintain a constant fluid pressure, regardless of variations in inlet pressure. Its modular design allows for easy integration with other components to form compact and configurable units.

Applications: Compressed air networks, Industrial pneumatic systems, Automation, Machinery and equipment.

Main features :

  • In order to regulate the pressure (force) of the compressed air
  • Special preformed membrane.
  • Stability of the regulated pressure regardless of variations in inlet.
  • High flow rate with reduced pressure losses.
  • Rapid elimination of overpressure during use.
  • Knob with regulation locking device.
  • Possibility of fixing to the wall, using the provided holes or with brackets.
  • Maximum inlet pressure 12.5 bar.
  • Regulation range 0 - 9 bar.
  • Flow rate up to 1500 l/min.
  • It comes with a pressure gauge and mounting hardware.
€30.27 (tax included)
€25.02 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/2"
  • 2"
Reference:
34030010
Description

Modular pressure regulator

A modular pressure regulator is a pneumatic component designed to reduce, regulate, and maintain a constant fluid pressure within a system, regardless of variations in inlet pressure. Its modular design allows for easy integration with other elements (filters, lubricators, pressure gauges, valves) to form compact and customizable units .

Characteristics

  • Function for regulating and stabilizing the outlet pressure.
  • Modular design, compatible with FRL assemblies or other system modules.
  • Manual adjustment, using a knob or adjustment screw.
  • It maintains a constant pressure even with variations in flow rate.
  • In-line or panel mounting, with quick connection to other modules.

Applications

  • Compressed air networks.
  • Industrial automation systems.
  • Pneumatic installations in machinery and production lines.
  • Equipment where precise pressure control and ease of maintenance are required.

Technical specifications of a modular pressure regulator:

Code Thread TO B C D AND F G H J K L M EITHER
34030010 1/4" 40 82 17 40 50 30 34 46 5 15 40 2 1/8"
34030013 3/8" 53 117 35 53 56 48 40 46 6 8 53 2 1/4"
34030019 1/2" 70 129 37 70 61 43 54 52 8 10 70 2 1/4"
34030026 3/4" 90 160 45 90 71.5 48 54 60 11 11 90 3.2 1/4"
34030030 1" 90 160 45 90 71.5 48 54 60 11 11 90 3.2 1/4"
Product Details
34030010
