Pressure gauge Ø40 with 1/8" center thread | Buy online

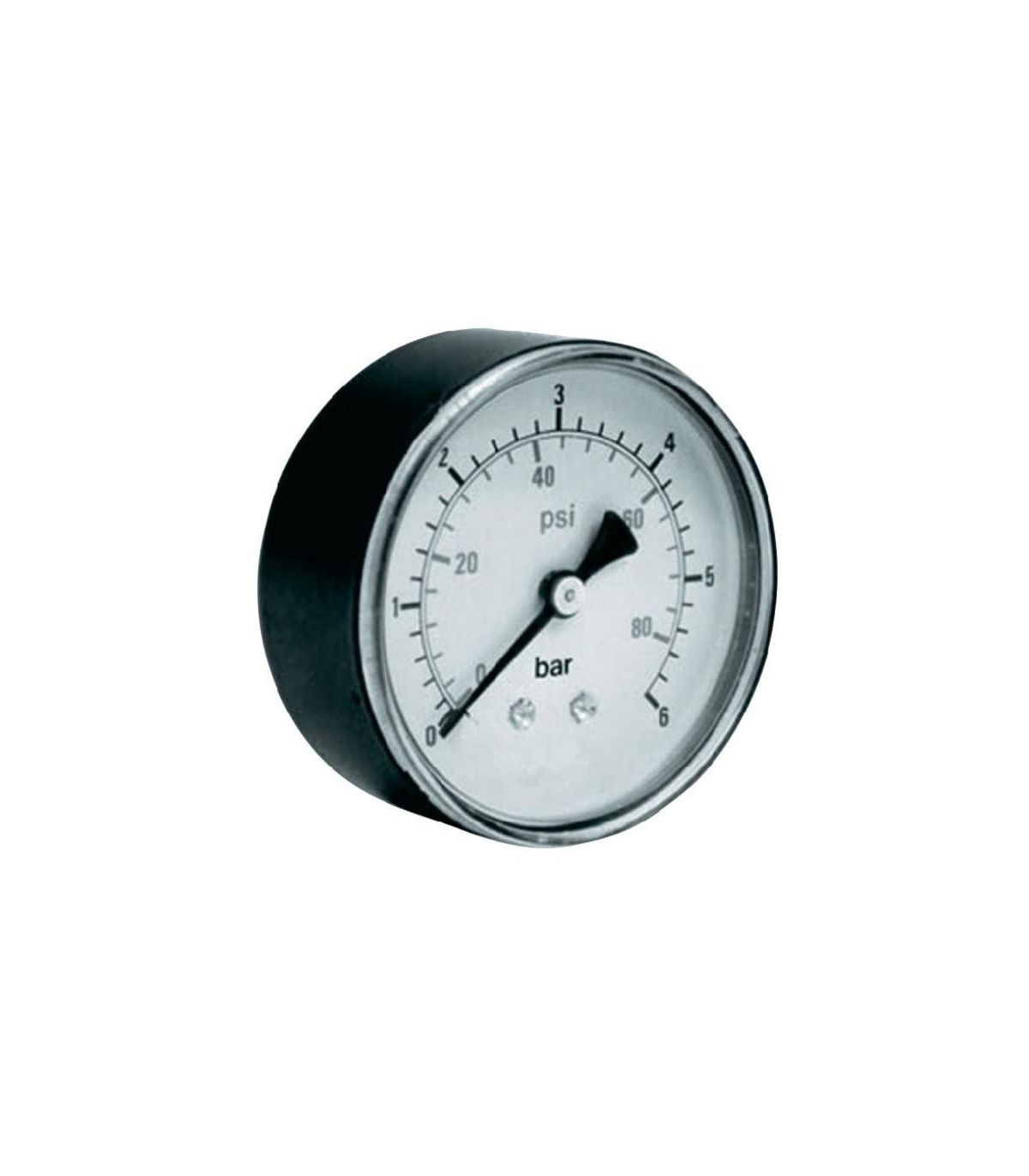

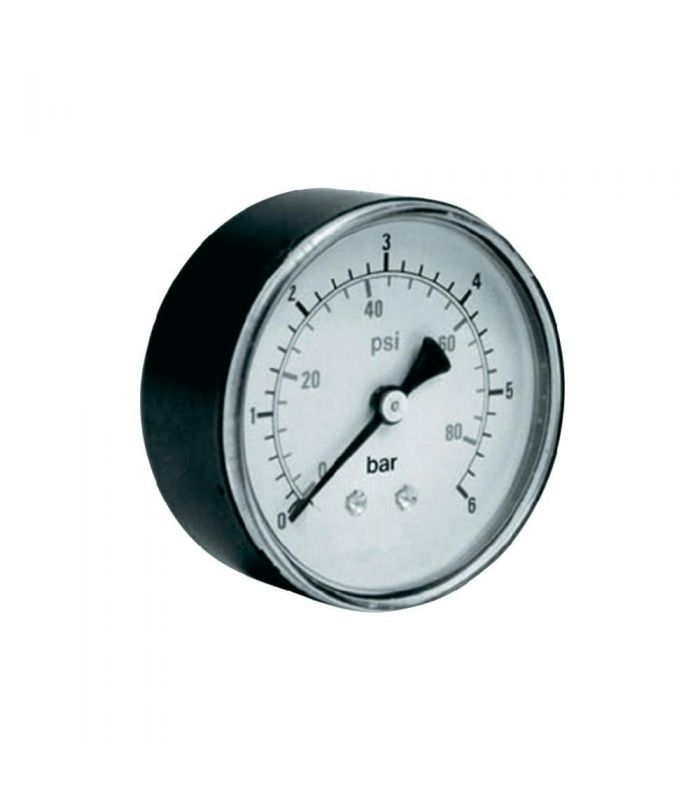

PRESSURE GAUGE Ø40 CENTRAL THREAD 1/8"

Pressure gauge Ø40 center thread 1/8"

The Ø40 pressure gauge with a 1/8" center thread is designed to measure the pressure of air, gases, or non-corrosive fluids in general applications. Its 40 mm diameter housing makes it ideal for small equipment or confined spaces.

Applications: industrial pneumatics, lubrication equipment, small compressors, filters, regulators, low pressure hydraulic systems, light machinery.

Main features:

  • Case and rim: Carbon steel, painted
  • Fitting: Brass 1/8”
  • Transmission: Copper alloy
  • Needle: Black
  • Sphere: White lacquered aluminum
  • Screen: Transparent Polycarbonate
  • Tolerance: +/- 1.7%
  • Temperature: 70 ºC
  • IP43 protection rating
Read moreShow less
€7.24 (tax incl.)
€5.98 (tax excl.)
PRESSURE
  • 1.6 Bar
  • 2.5 Bar
  • 4 Bar
  • 6 Bar
  • 10 Bar
  • 12 Bar
  • 16 Bar
  • 25 Bar
Reference:
41010003
Description

Pressure gauge Ø40 center thread 1/8"

The Ø40 pressure gauge with a 1/8" center thread is a measuring instrument designed to indicate the pressure of liquids or gases in hydraulic, pneumatic, or lubrication systems. Its dry design means that the interior contains no damping fluid, making it ideal for low- to moderate-vibration applications and for cost-effective installations with simple maintenance.

Main features

  • Sphere diameter: Ø40 mm.
  • Dry pressure gauge (without glycerin).
  • Connection: 1/8" male center thread.
  • Reading using an analog scale.
  • Suitable for compressed air, gases and non-aggressive fluids.
  • Compact design for installations with limited space.

Applications

  • Portable compressors.
  • Pneumatic and compressed air systems.
  • Automatic lubrication equipment.
  • Industrial machines and control benches.
  • Small pressure installations.

MANOMETRO 40 ROSCA CENTRAL 18

Read moreShow less
Product Details
41010003
