DIGITAL PRESSURE GAUGE
DIGITAL PRESSURE GAUGE
DIGITAL PRESSURE GAUGE
DIGITAL PRESSURE GAUGE
DIGITAL PRESSURE GAUGE
DIGITAL PRESSURE GAUGE

DIGITAL PRESSURE GAUGE

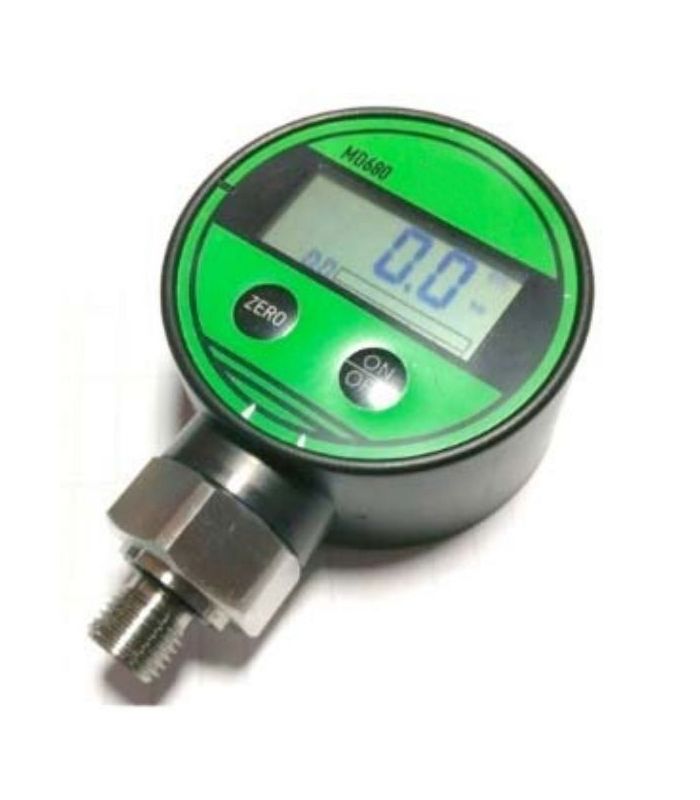

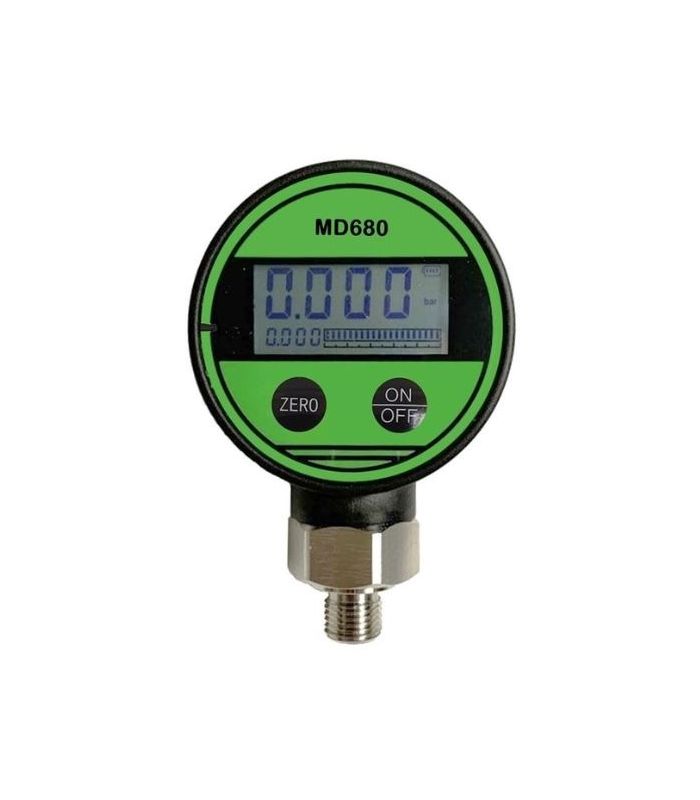

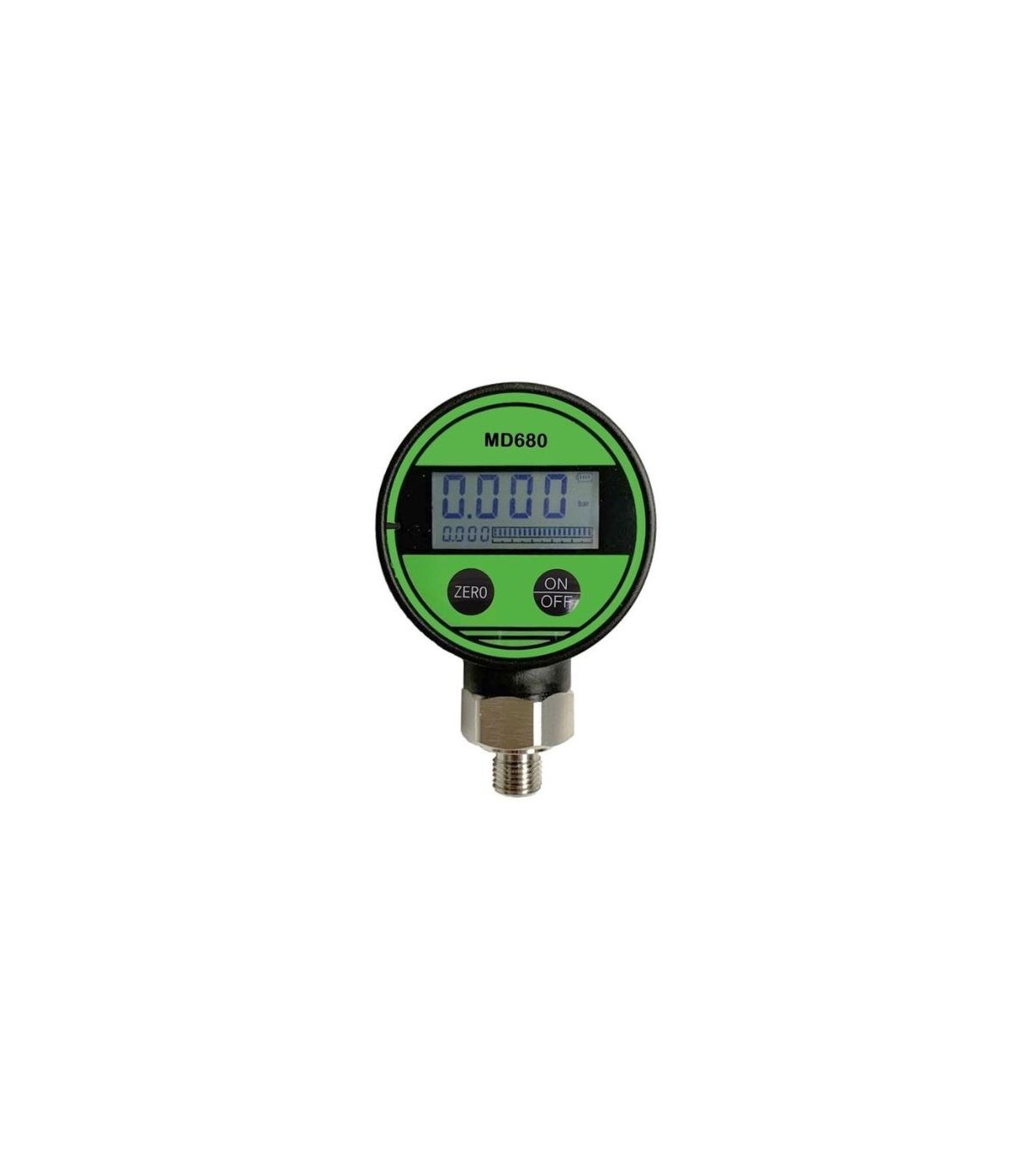

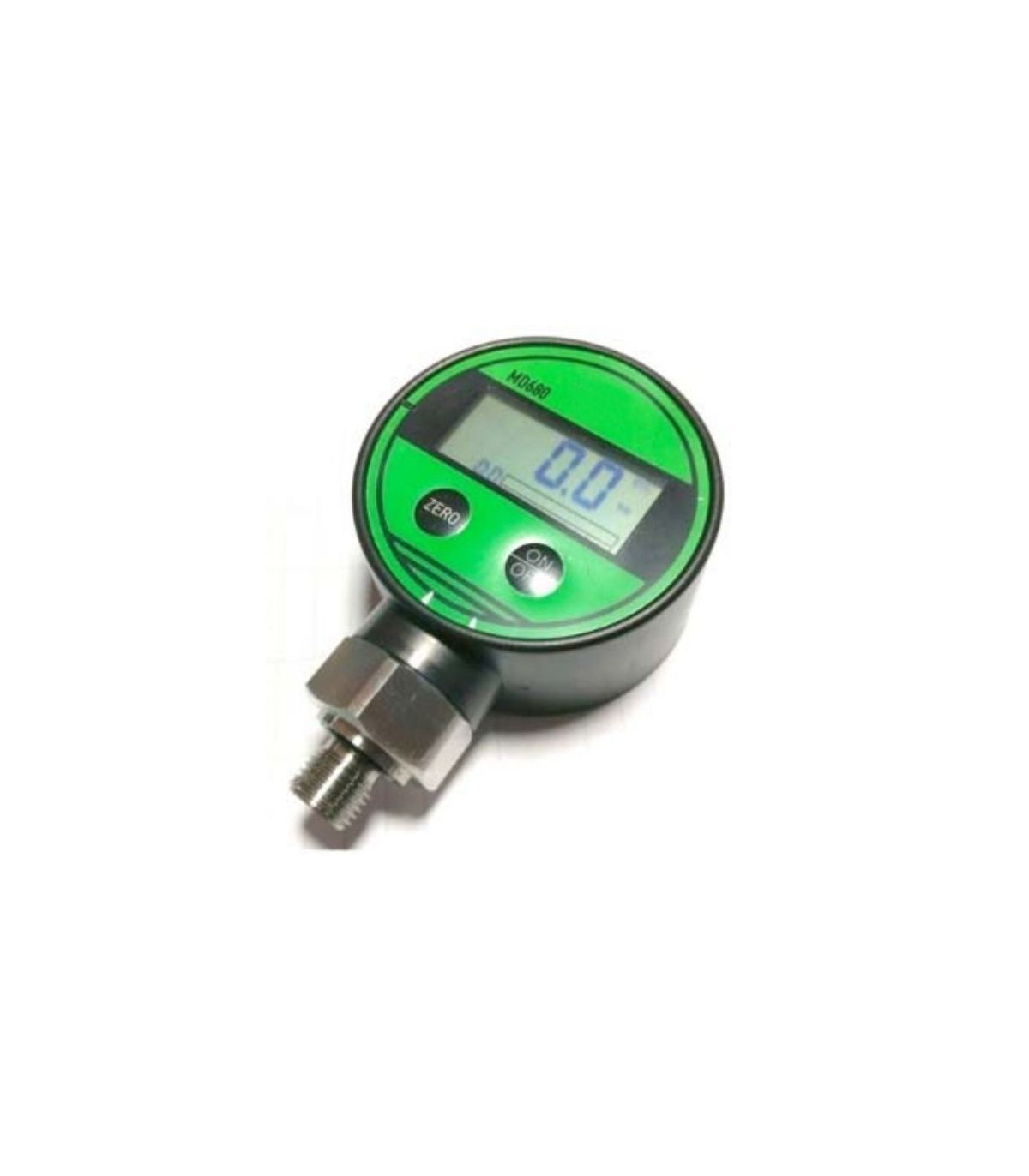

The digital pressure gauge features complete electronics and is battery-powered, making it very easy to install on-site. It uses a high-precision piezoresistive pressure sensor, and the output signal is processed with high precision. The low-temperature amplifier reads the signal, then sends it to a high-precision A/D converter to be converted into a digital signal. After calculation and processing, the actual pressure value is displayed on the LCD screen.

Applications: Measure and totalize medium pressure in hydraulic power, water, petroleum, chemical, mechanical, hydraulic and other industries.

€376.61 (tax included)
€311.25 (tax excl.)
PRESSURE
  • 1000 Bar
  • -1/3 Bar
  • -1/30 Bar
  • 0 - 300 Bar
Reference:
41350002
Description

digital pressure gauge

Technical sheet:

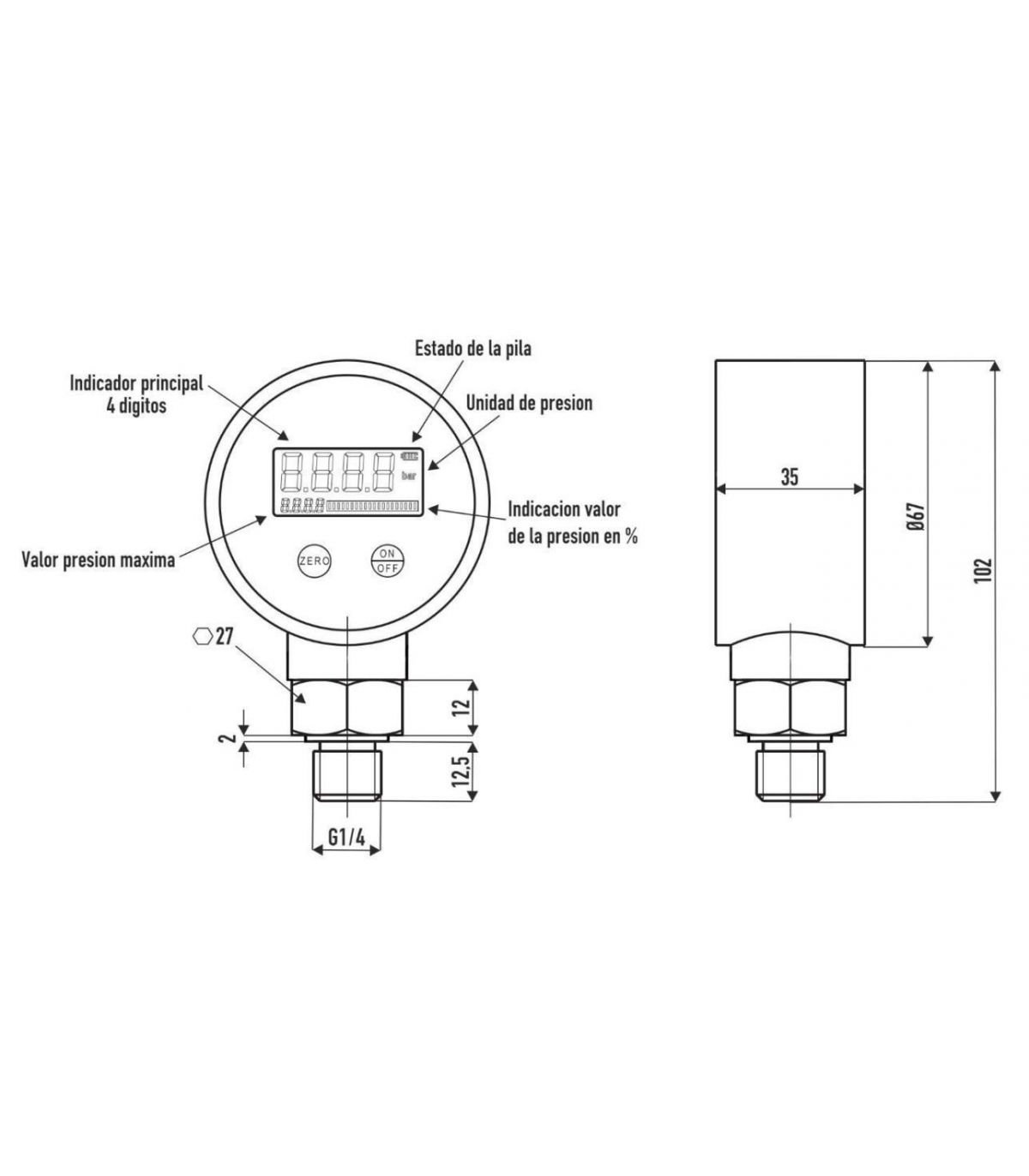

  • Diameter 63 mm. ABS case, 1/4" stainless steel fitting
  • High-resolution, blacklight LCD display, easy to read
  • Automatically records maximum pressure values during measurement.
  • Percentage of dynamic pressure on the screen
  • Units: Mpa, kpa, pa, Bar, PSI, Tor, ATM, mmH2O
  • Automatic closing function and configurable backlight from 01-15 minutes
  • Battery life of more than 2 years in power saving mode, in continuous work of 2000 hours.
  • Sampling rate: 4 times/s
  • Accuracy class 0.2% fe
  • Temperature -10 / 60ºC.
  • 9V 6LR1 alkaline battery.
  • IP-65 protection rating

Product Details
41350002
