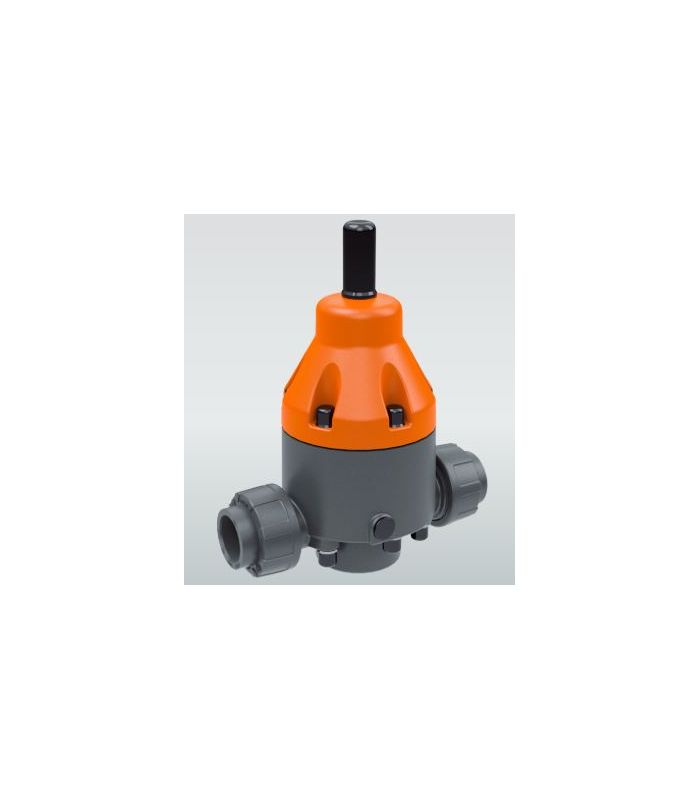

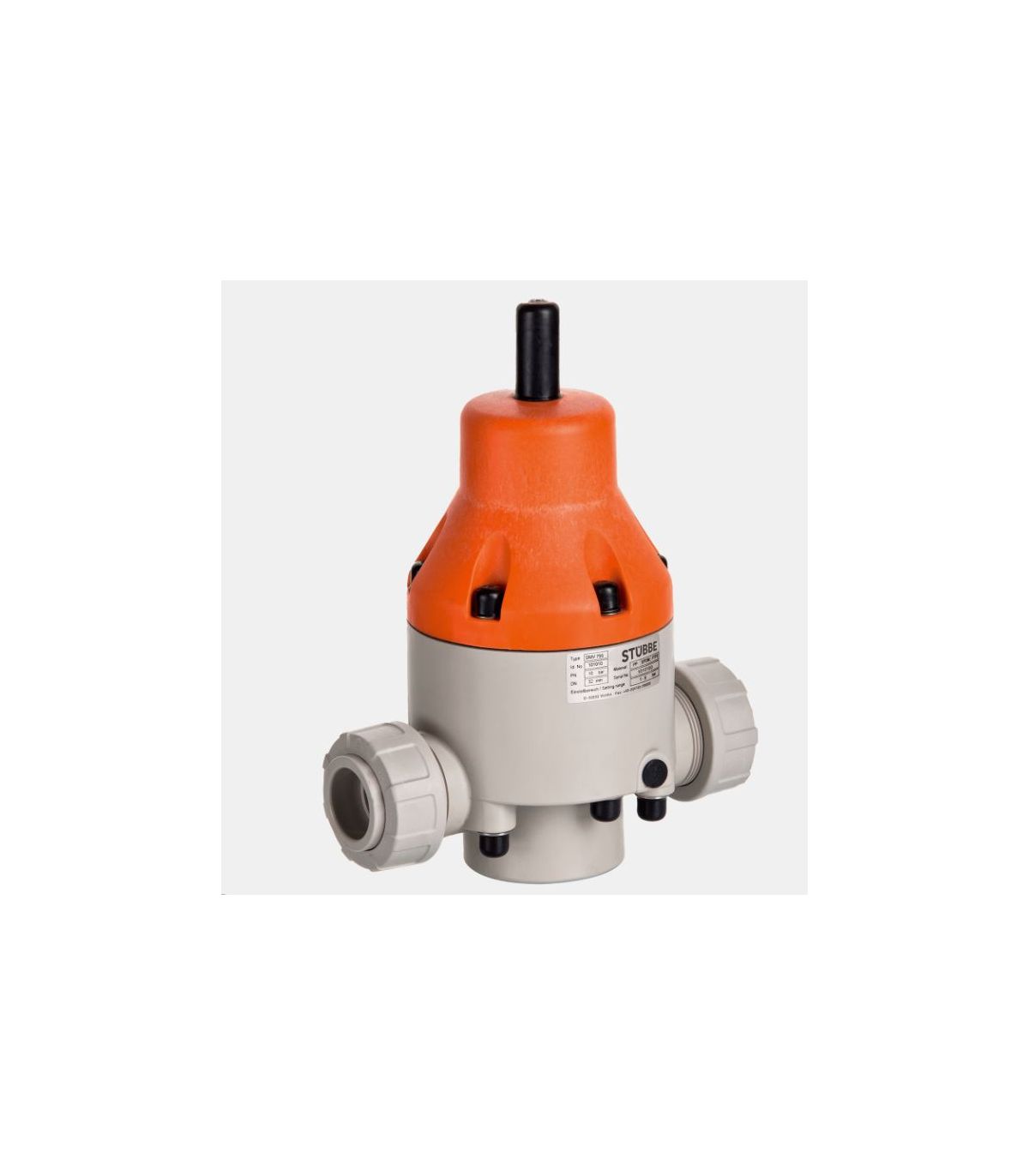

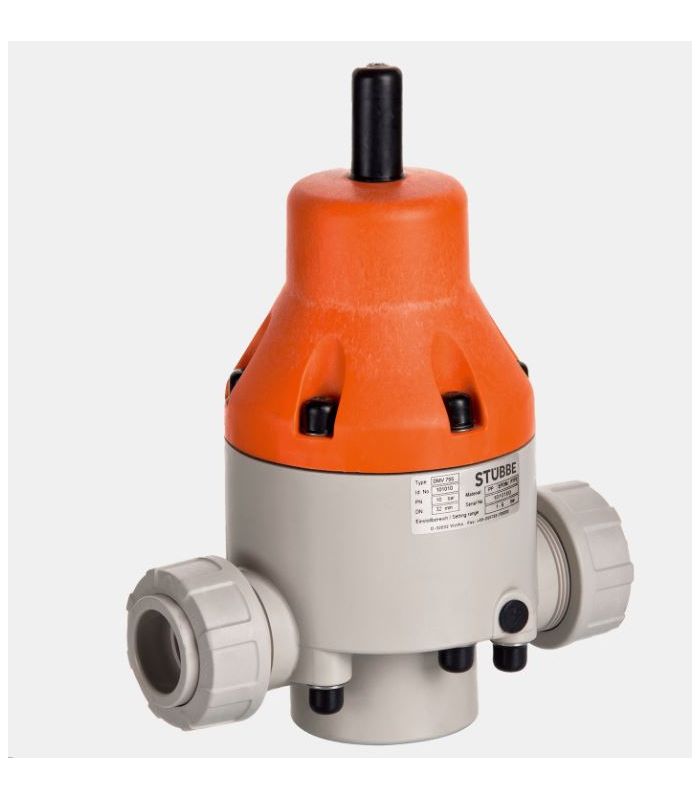

STUBBE RELIEF AND BACKPRESSURE VALVE

STUBBE RELIEF AND BACKPRESSURE VALVE: This valve maintains constant and stable pressure in the upstream part of the system. It continuously regulates pressure to protect equipment and ensure optimal system operation.

The pressure relief valve is normally closed and calibrated to a specific set point. When the upstream pressure exceeds that point, the valve opens to release the excess fluid downstream. When open, the valve acts as a resistor, generating backpressure that balances the system pressure. When the system pressure falls below the set point, the valve closes to restore the desired pressure.

• Socket type connection.
• Different types of materials, for any fluid. Body in PVC-U, PVDF or PP. Membrane in PTFE, VITON or EPDM
• Low vibration during operation.

INDICATE THE TARE PRESSURE

CONSULT POSSIBLE CONFIGURATIONS

DOWNLOAD TECHNICAL CATALOGUE
