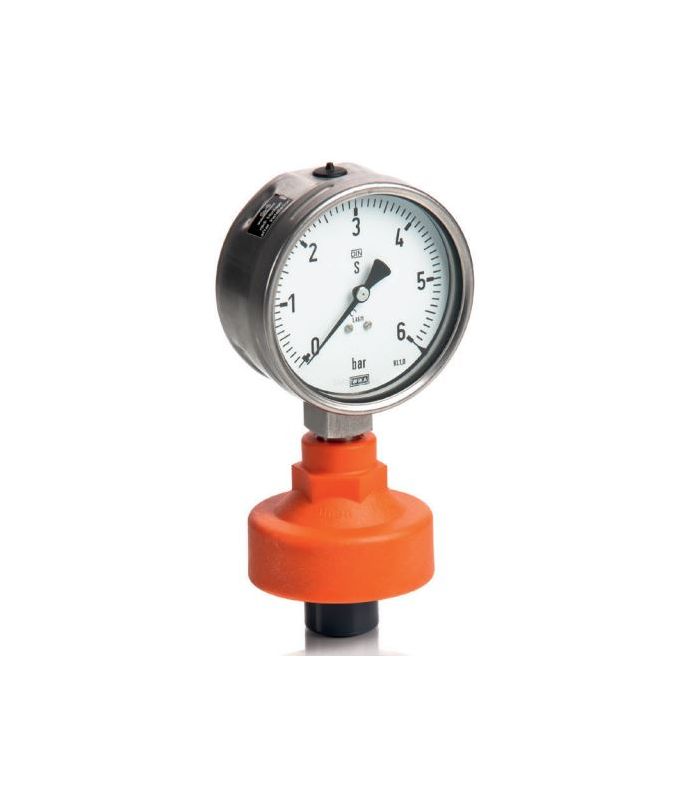

PRESSURE GAUGE WITH STUBBE MEMBRANE SEPARATOR

PRESSURE GAUGE WITH STUBBE MEMBRANE SEPARATOR

The Stubbe diaphragm separator pressure gauge is a pressure measuring instrument designed to provide accurate readings by isolating the sensitive internal mechanism of the gauge from direct contact with highly corrosive, viscous, or crystallizing fluids.

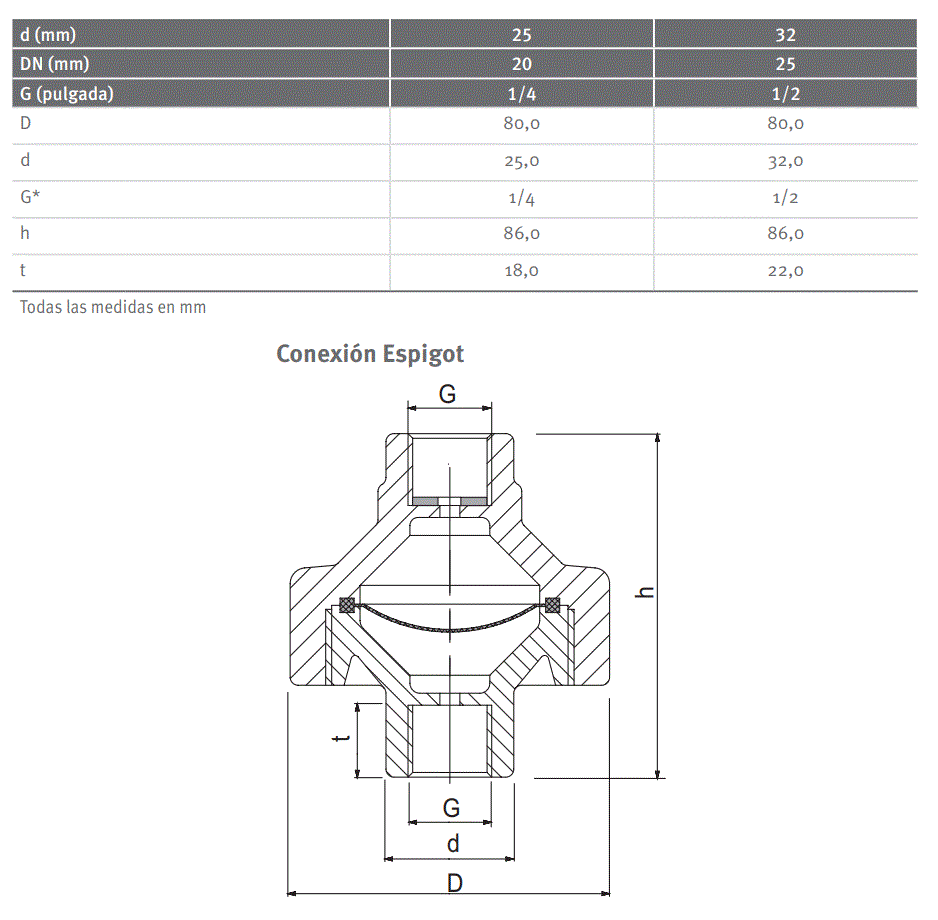

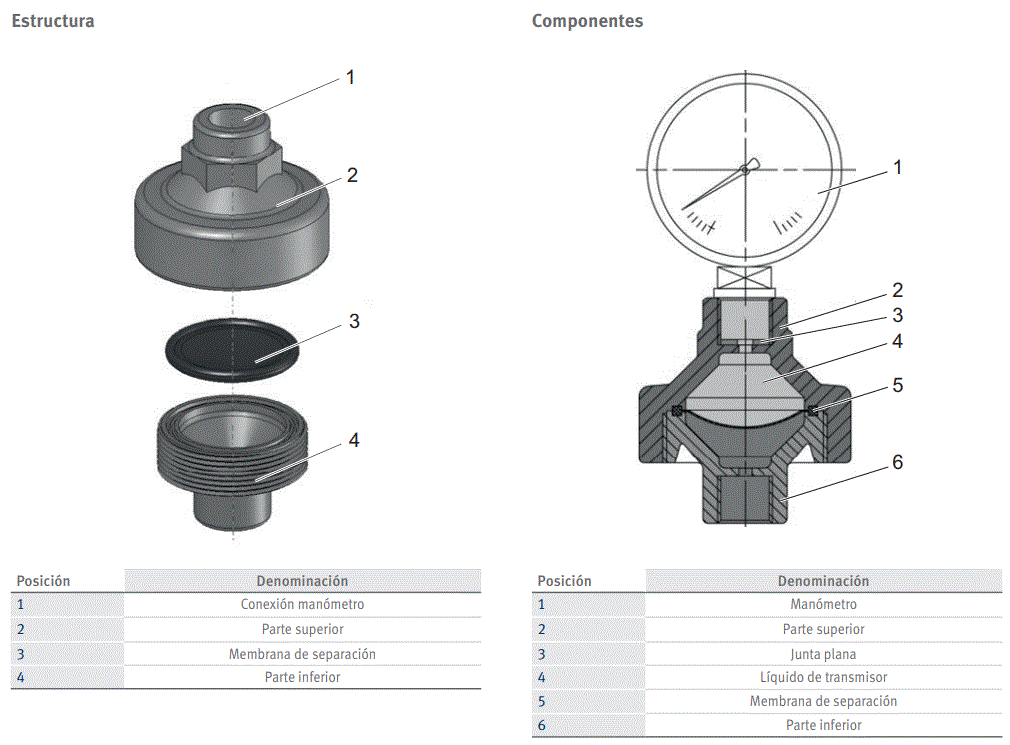

Technical sheet:

  • Pressure measurement up to 10 bar
  • 1/2" inlet thread, possibility of 1/4"
  • Membrane made of EPDM with PTFE coating
  • Internal elements in brass (consult INOX)
  • Reliable pressure transmission thanks to the large diaphragm dimension.
  • Can be supplied with PFA certificate
  • Supplied with a fully INOX-316 pressure gauge
  • Various bodies for different fluids PCVU-U, PP or PVDF

PVC-U is unplasticized PVC. It resists weathering, rust, and decomposition. It is used in the chemical, textile, and water treatment industries.

PP Polypropylene is a polymer used in countless applications. It has excellent chemical and thermal resistance. Suitable for the food and pharmaceutical industries.
PVDF is a type of plastic with very high resistance to acids, solvents, and temperatures. It is used in the chemical industry.

CHECK OTHER CONFIGURATIONS

INSTRUCTIONS FOR USE

€200.86 (tax included)
€166.00 (tax excl.)
SELECT THE THREAD
  • 1/2"
PRESSURE
  • 2.5 Bar
  • 4 Bar
  • 6 Bar
  • 10 Bar
MATERIAL
  • PVDF
  • PVC-U
  • PP
Reference:
413601
Description

pressure gauge with Stubbe diaphragm separator

Product Details
413601
