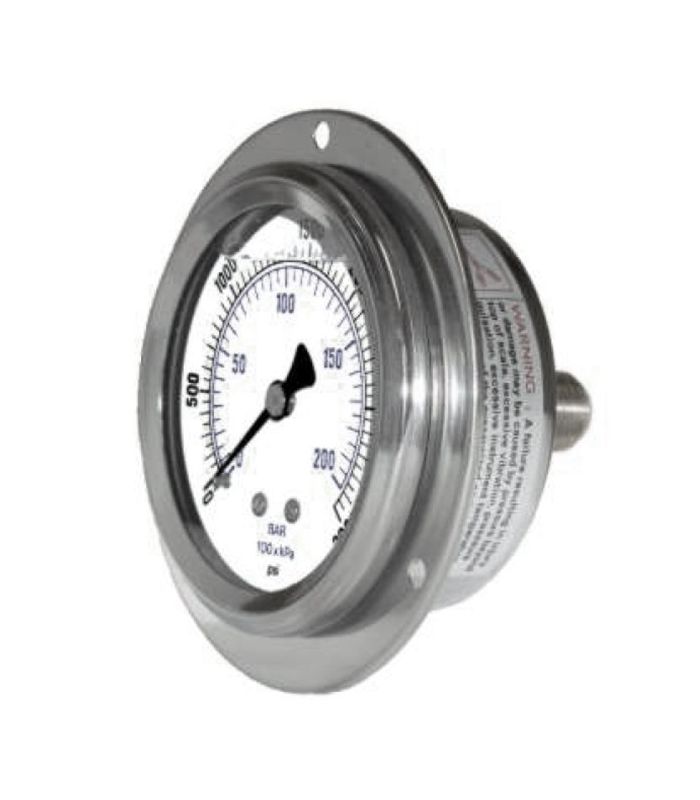

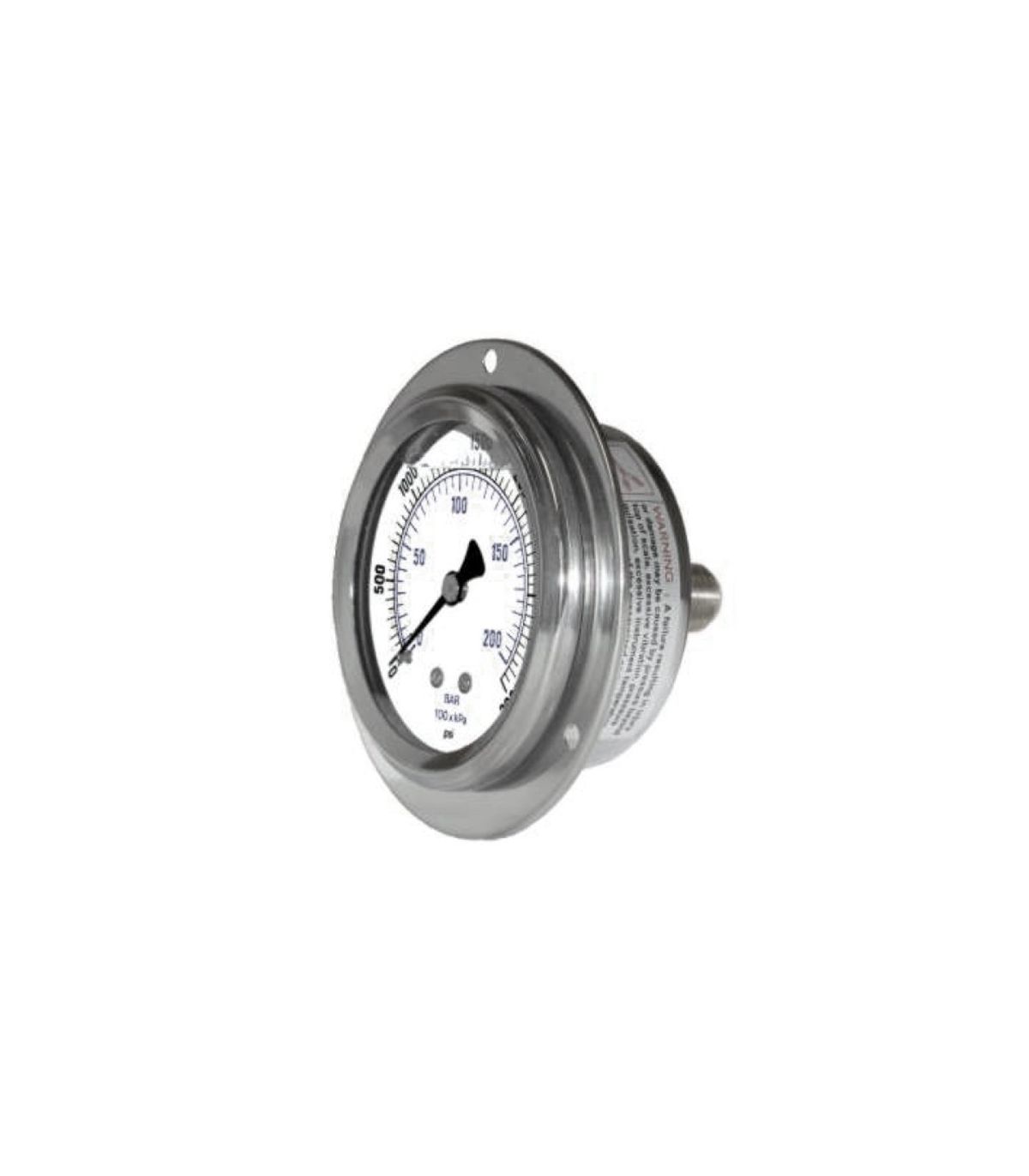

PRESSURE GAUGE Ø63 CENTRAL THREAD 1/4" WITH GLYCERIN RING

PRESSURE GAUGE Ø63 CENTRAL THREAD 1/4" WITH GLYCERIN RING

A Ø63 pressure gauge with 1/4" central thread and glycerin ring

Applications: Pressure measurement in hydraulic, pneumatic, water, compressed air, etc. systems.

Technical sheet:

  • Pressure gauge Ø63 rear thread 1/4" with ring.
  • Ring with three fixing holes.
  • Case and ring in 304 stainless steel
  • Brass fitting
  • Copper alloy transmission
  • Black needle.
  • White lacquered aluminum dial. Black hands.
  • Glycerin bath.
  • Tolerance +/- 1.7 %
  • Temperature 70ºC
  • IP-65 protection rating
€19.65 (tax included)
€16.24 (tax excl.)
PRESSURE
  • 1.6 Bar
  • 2.5 Bar
  • 4 Bar
  • 6 Bar
  • 10 Bar
  • 12 Bar
  • 16 Bar
  • 25 Bar
  • 40 Bar
  • 60 Bar
  • 100 Bar
  • 160 Bar
  • 250 Bar
  • 315 Bar
  • 400 Bar
  • 600 Bar
Reference:
41100003
Description

pressure gauge Ø63 central thread 1/4" with glycerin ring

MANOMETRO 63 R.CENTRAL 14 ARO GLICERINA

Product Details
41100003
