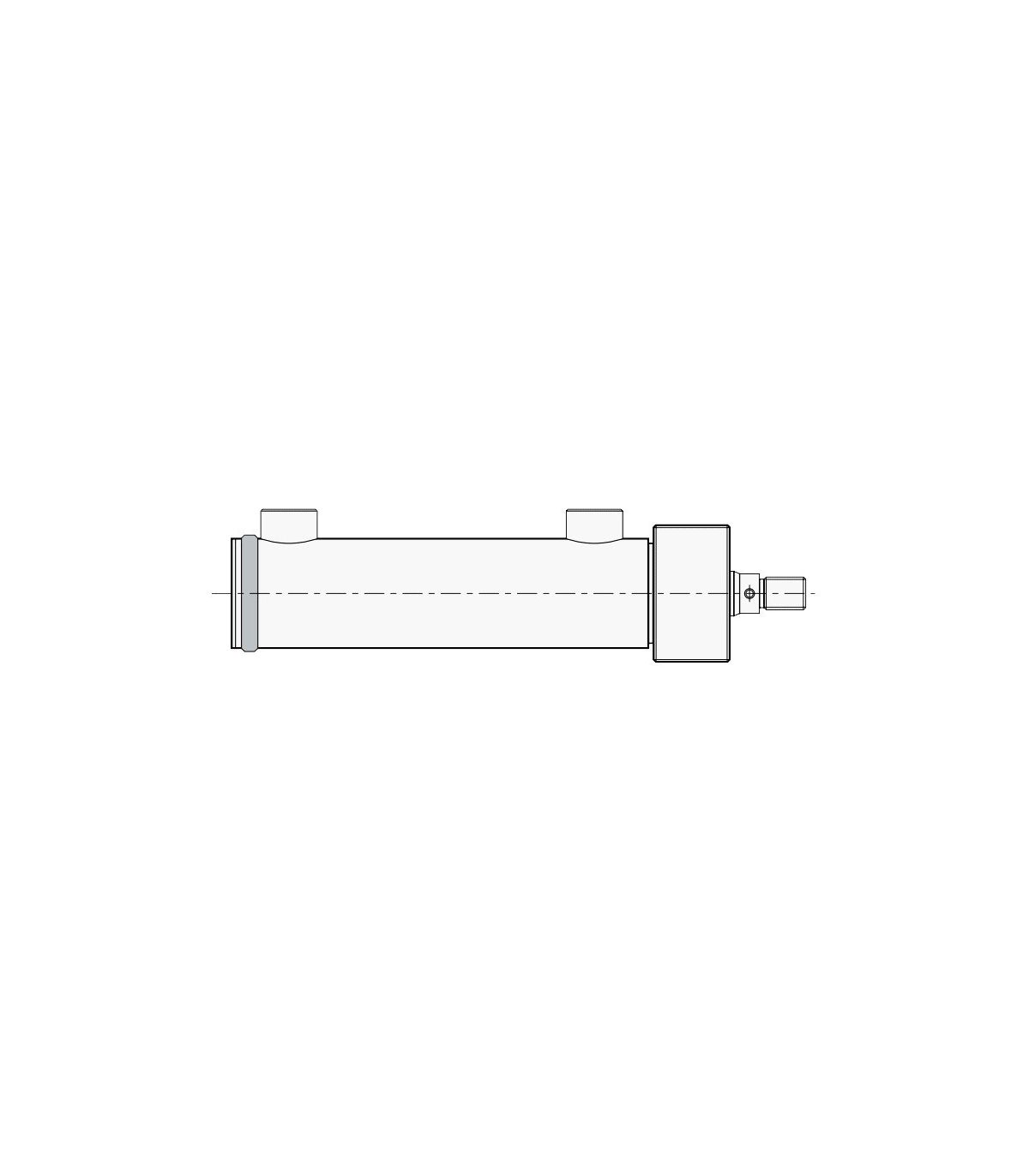

HYDRAULIC CYLINDER ISO-3322 BASE XS

HYDRAULIC CYLINDER ISO-3322 BASE XS

An ISO-3322 Base XS hydraulic cylinder uses the force of pressurized fluid to generate movement and power. It is based on the international ISO 3322 standard. The XS base features a compact and robust design, ideal for applications requiring limited space and high load capacity.

Technical sheet:

  • Interchangeable dimensions: ISO-3322
  • Working pressure 210 bar.
  • Max pressure 250 bar.
  • Available in diameters from 32 to 250 mm.
  • Shirt in ST52.2 DIN-2391 lapping
  • Stem: Ground F-114 steel.
  • Max speed 0.5 m/sec (standard joint) see other options.
  • Temperature -20 / 80ºC
  • Hydraulic fluid: Mineral oil ISO6743/4
  • Various types of fixings.
Ø CYLINDER x STROKE
Solicitar presupuesto
Reference:
38000001
Description

ISO-3322 Base XS Hydraulic Cylinder

CILINDRO HIDRAULICO BASE XS EJE 16

Product Details
38000001
