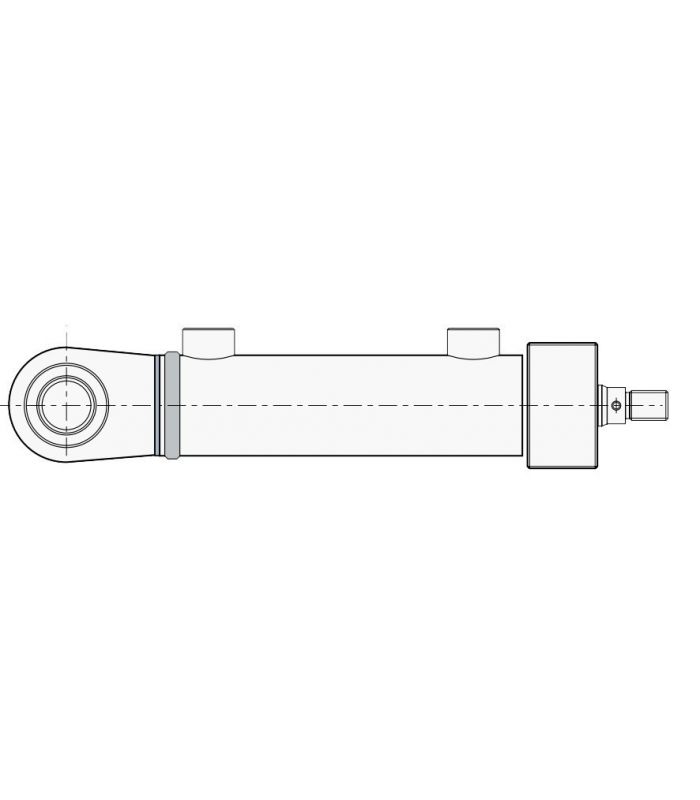

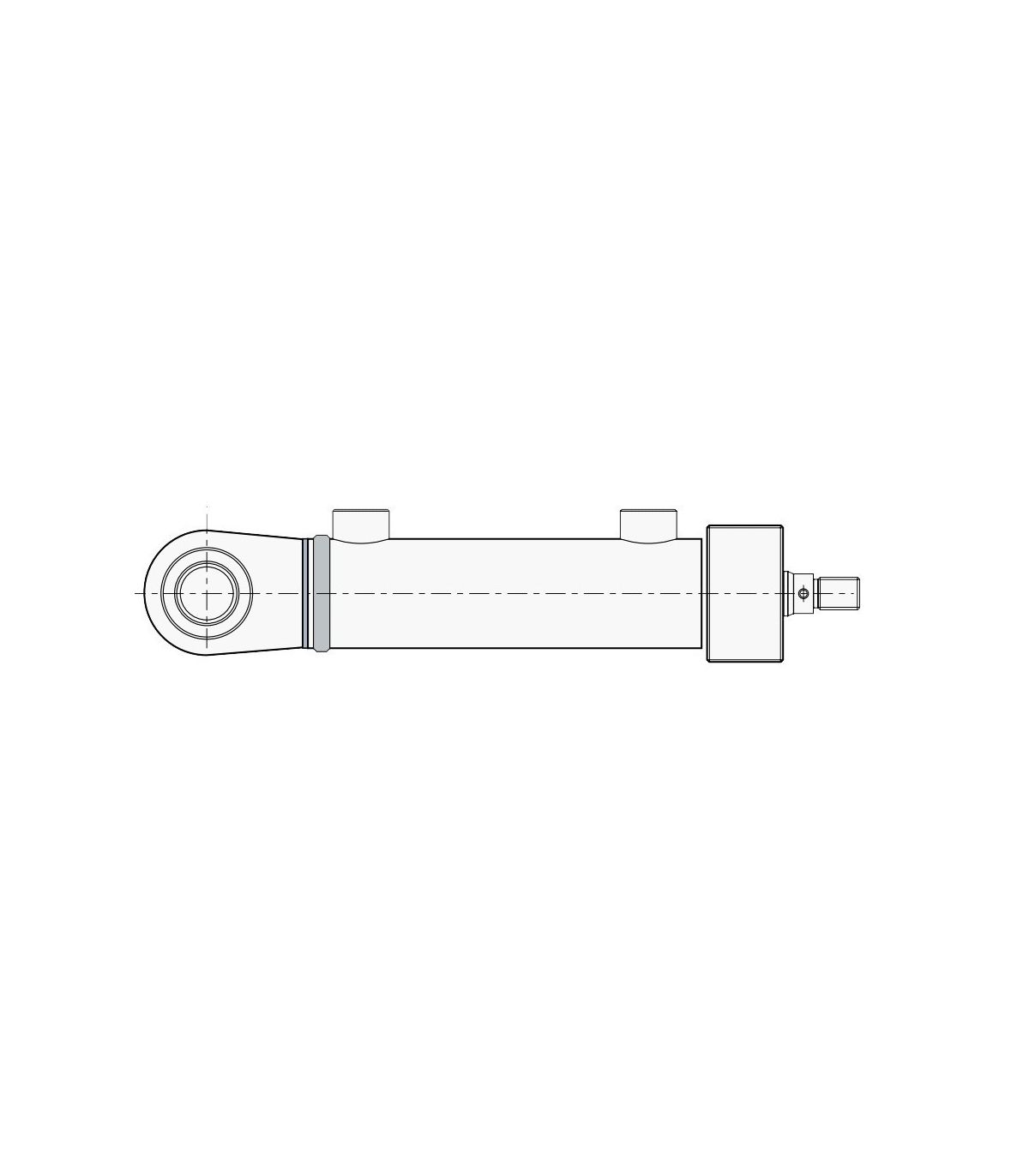

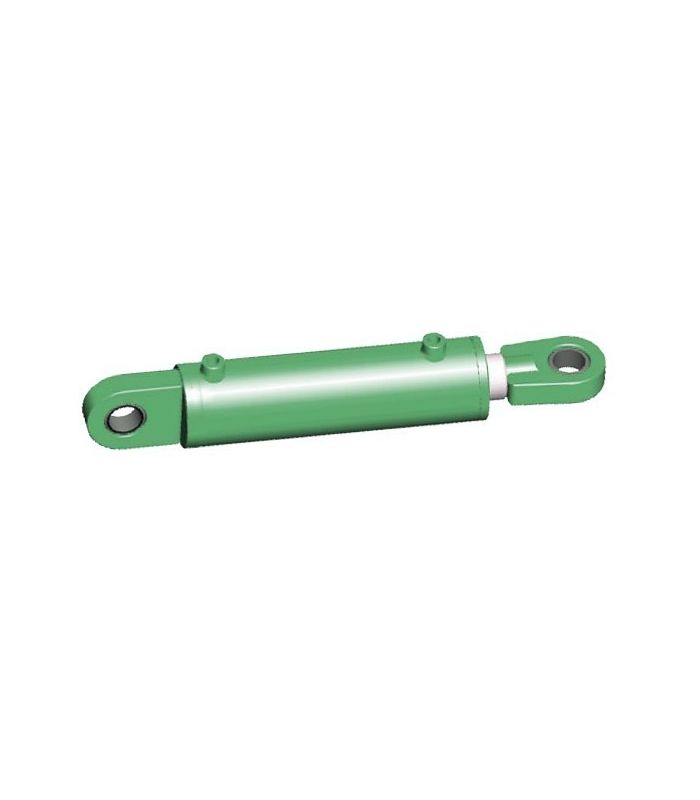

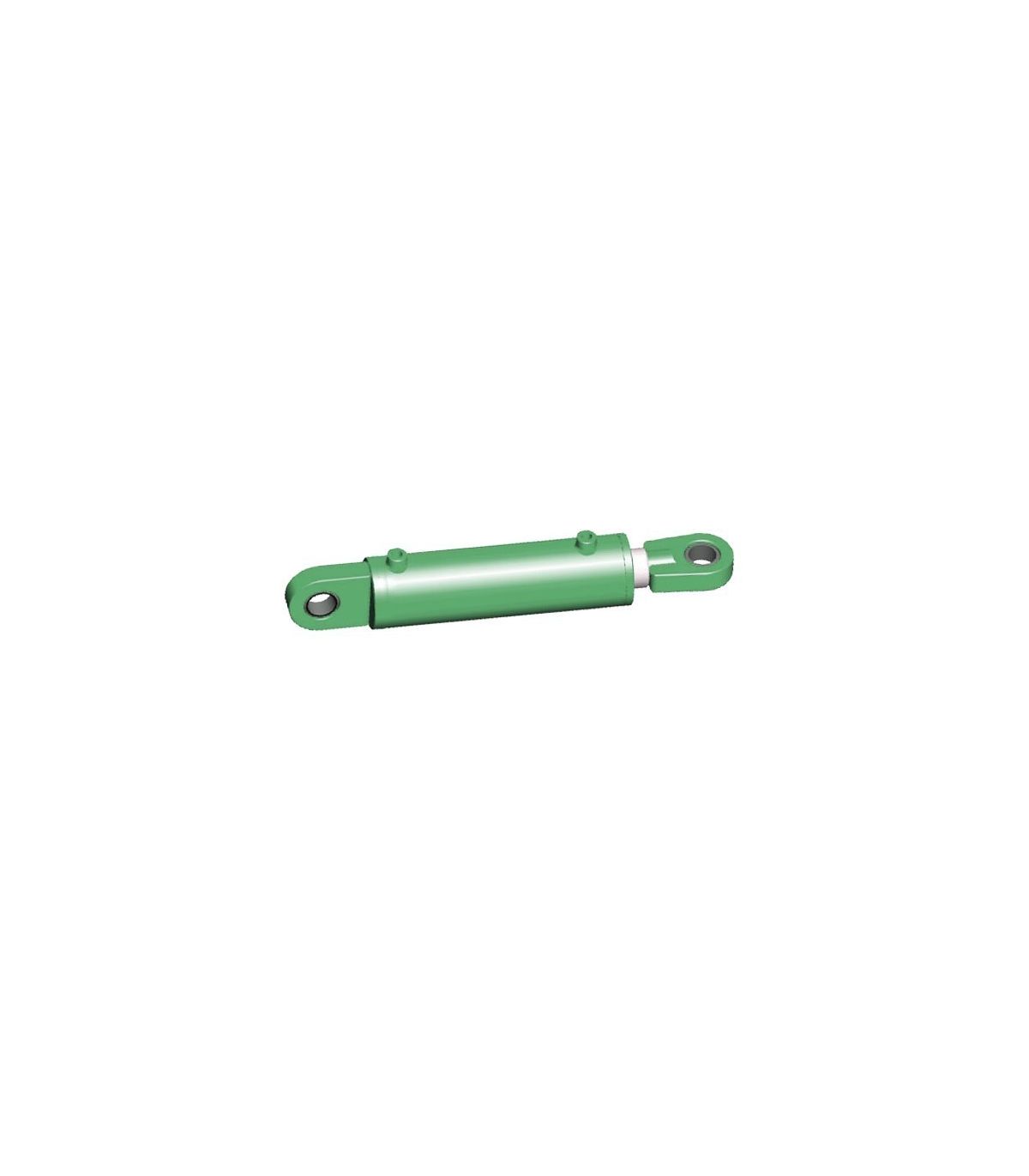

HYDRAULIC CYLINDER ISO-3322 GS ROTULA
The ISO-3322 GS ball-joint hydraulic cylinder is a linear actuator that uses hydraulic pressure to generate force and displacement in a straight line. The GS ball-joint at its end allows for some angular freedom in the connection to the element being pushed by the cylinder, allowing the cylinder to connect to elements that are not perfectly aligned.
Applications: industrial machinery, vehicles and automation.
Technical sheet:
- Interchangeable dimensions: ISO-3322
- Working pressure 210 bar.
- Max pressure 250 bar.
- Available in diameters from 32 to 250 mm.
- Shirt in ST52.2 DIN-2391 lapping
- Stem: Ground F-114 steel.
- Max speed 0.5 m/s (standard joint) see other options.
- Temperature -20 / 80ºC
- Hydraulic fluid: Mineral oil ISO6743/4
- Various types of fixings.
Reference:
38010000
