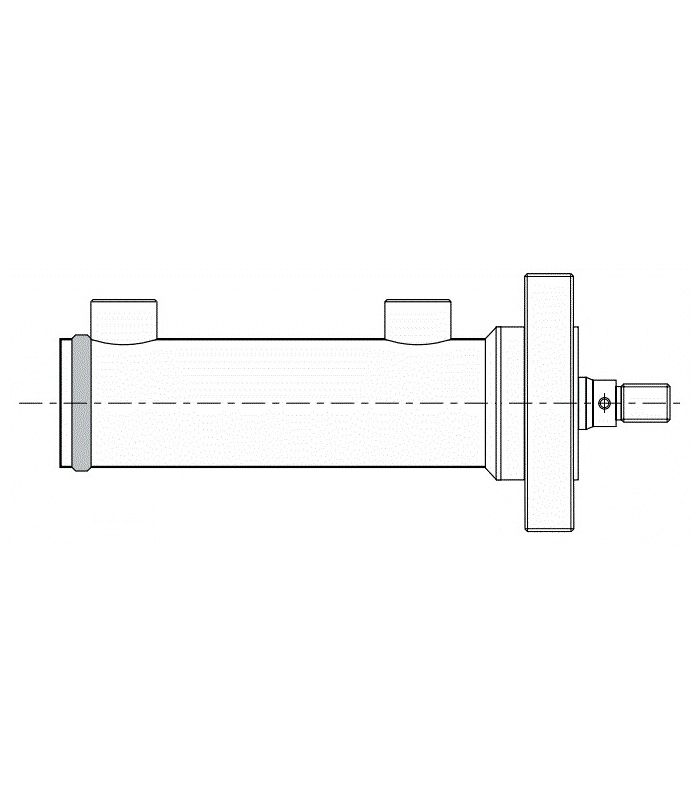

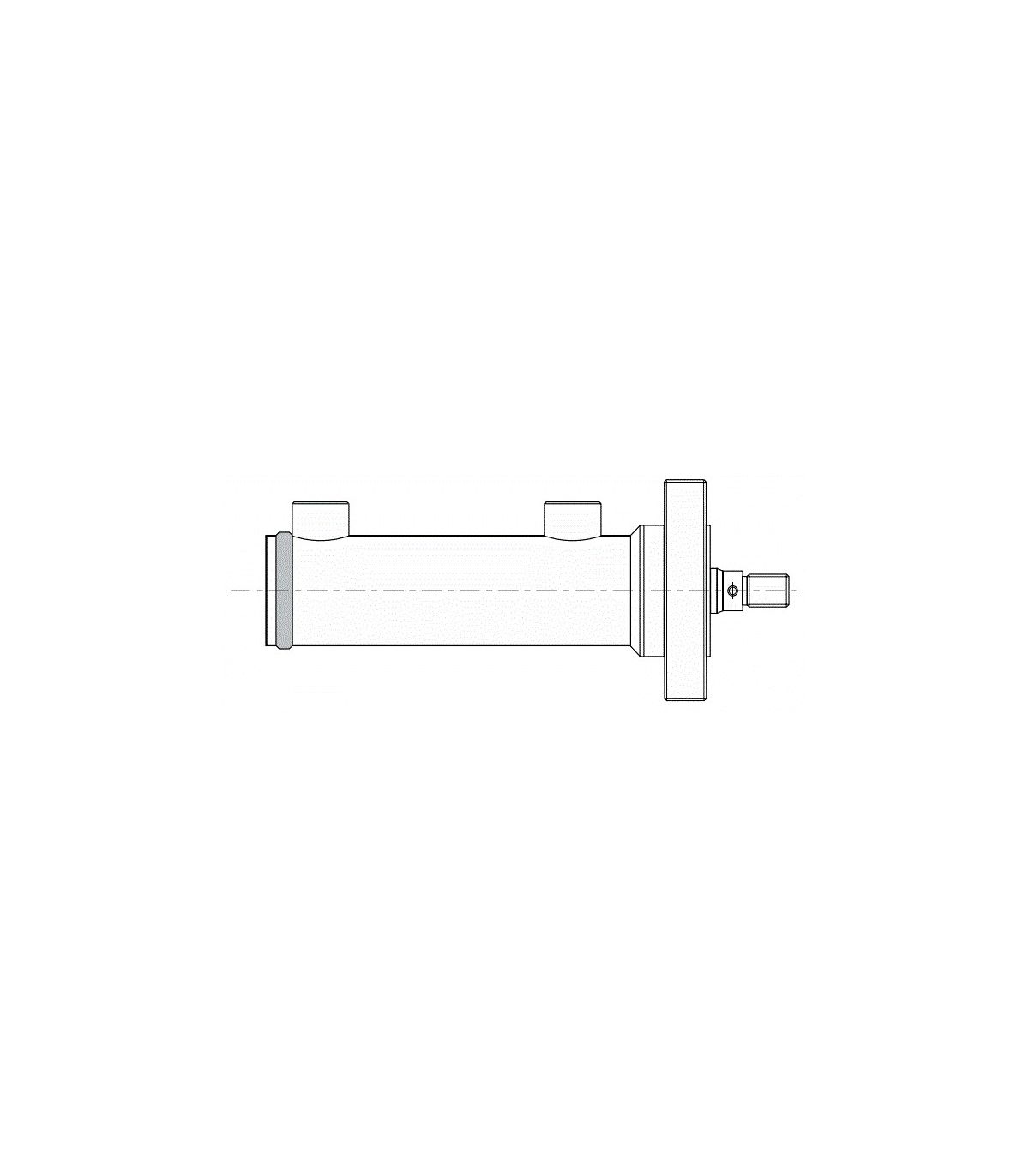

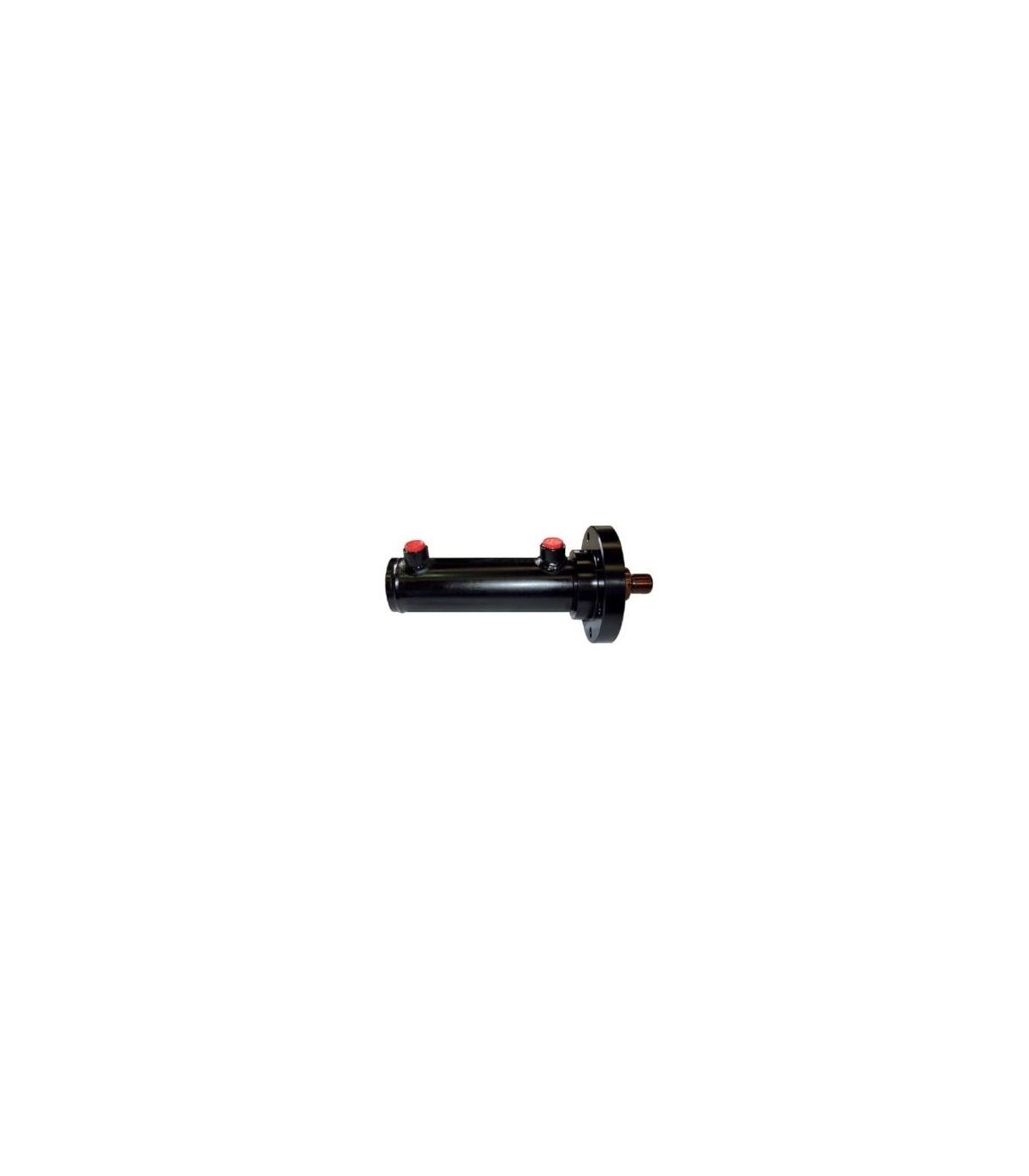

ISO-3322 HYDRAULIC CYLINDER FRONT FLANGE AS

The ISO-3322 AS front flange hydraulic cylinder is used to deliver force through a linear stroke. This energy is obtained from a pressurized hydraulic fluid, usually oil. It complies with the ISO-3322 standard. This standard establishes the dimensional and performance requirements for double-acting hydraulic cylinders.

Technical sheet:

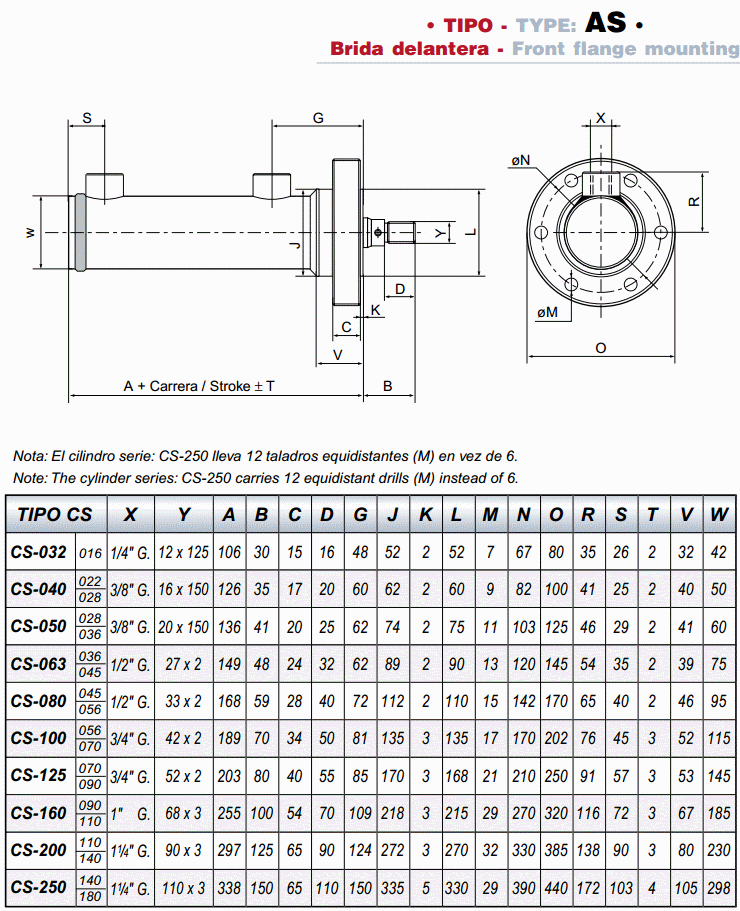

Interchangeable dimensions: ISO-3322
Working pressure 210 bar.
Max. pressure. 250 bar.
Available in diameters from 32 to 250 mm.
Shirt in ST52.2 DIN-2391 lapping
Stem: Ground F-114 steel.
Max speed. 0.5 m/sg. (standard joint) see other options.
Temperature -20 / 80ºC
Hydraulic fluid: Mineral oil ISO6743/4
Various types of fixings.

Ø CYLINDER x STROKE

Solicitar presupuesto

Reference:

38030000

Description
Comments

Description

Hydraulic cylinder ISO-3322 front flange AS

Product Details

Reference 38030000

Comments
