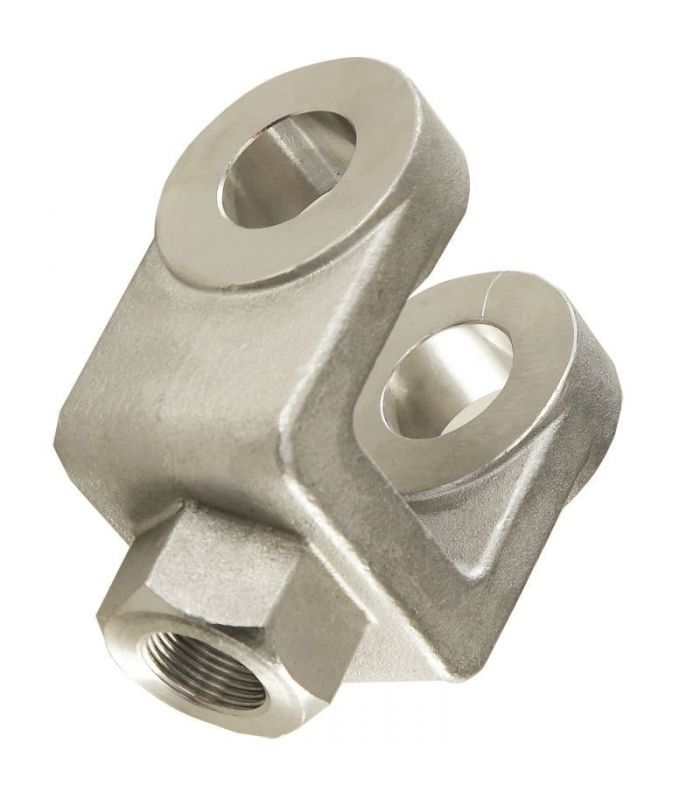

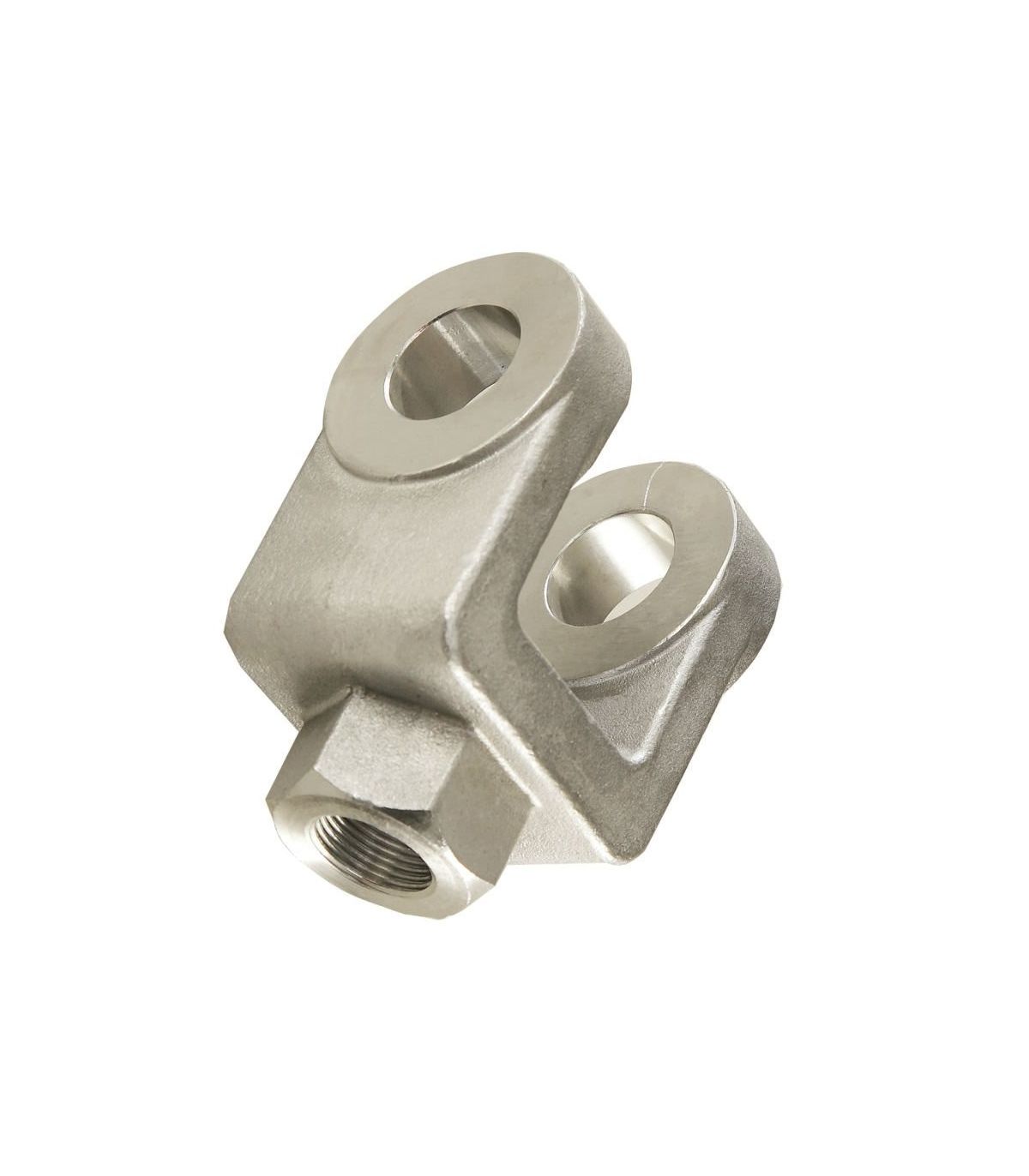

ISO-8133 CYLINDER FORK
An ISO-8133 cylinder clevis is specifically designed for hydraulic cylinders. This part attaches to the cylinder head and serves as an anchor point for connecting the cylinder to other elements of a machine or system. Its primary function is to connect the cylinder to other machine components, such as lever arms, structures, or support elements.
Applications: industrial machinery, vehicles and automation.
Technical sheet:
- According to ISO-8133 standard.
- Made of high-strength steel to withstand loads and stresses
- Supplied without pin.
It is selected by cylinder diameter
€15.45
(tax included)
€12.77
(tax excl.)
Reference:
38080031
