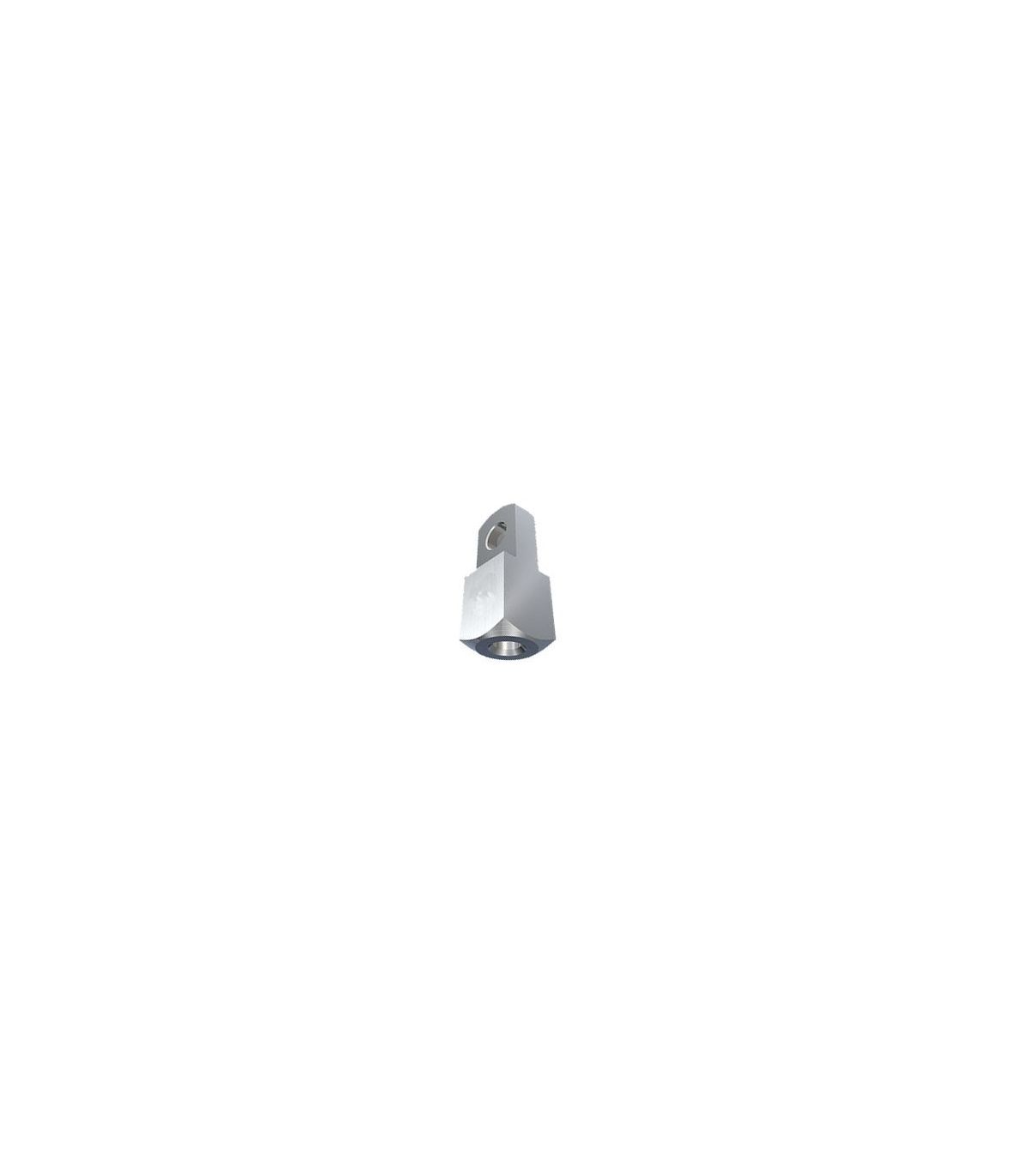

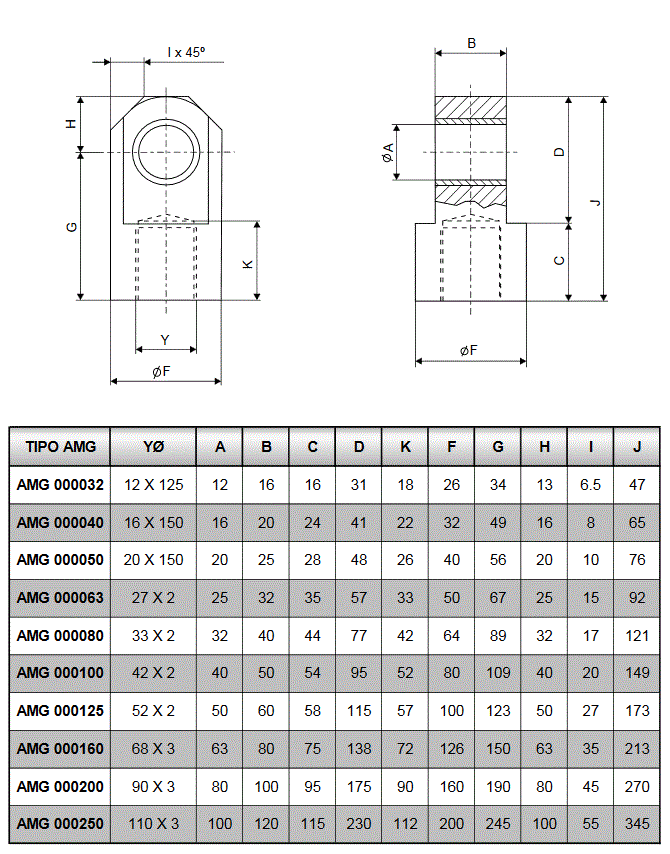

CHAPE MACHO AMG
An AMG male cap is a component specifically used in hydraulic cylinders. It is a threaded metal part that attaches to the end of the cylinder rod to allow connection to other components, such as ball joints, bearings, or mounting points. It also serves to seal and contain the pressure of the hydraulic fluid inside the cylinder.
Technical sheet:
- Cylinder fixing.
- Made of high-resistance steel, resistant to corrosion and wear.
- Inner bearing in bronze.
Reference:
38070031
