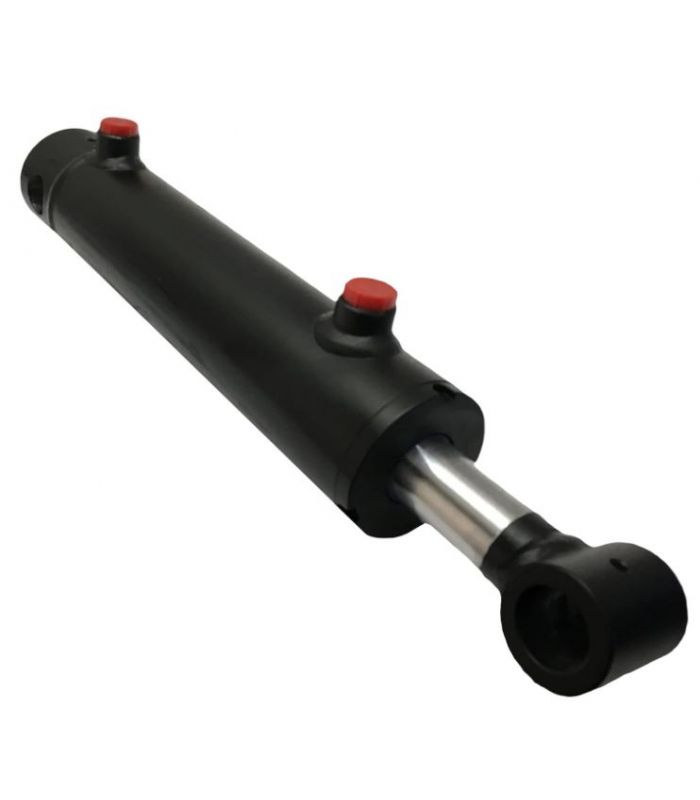

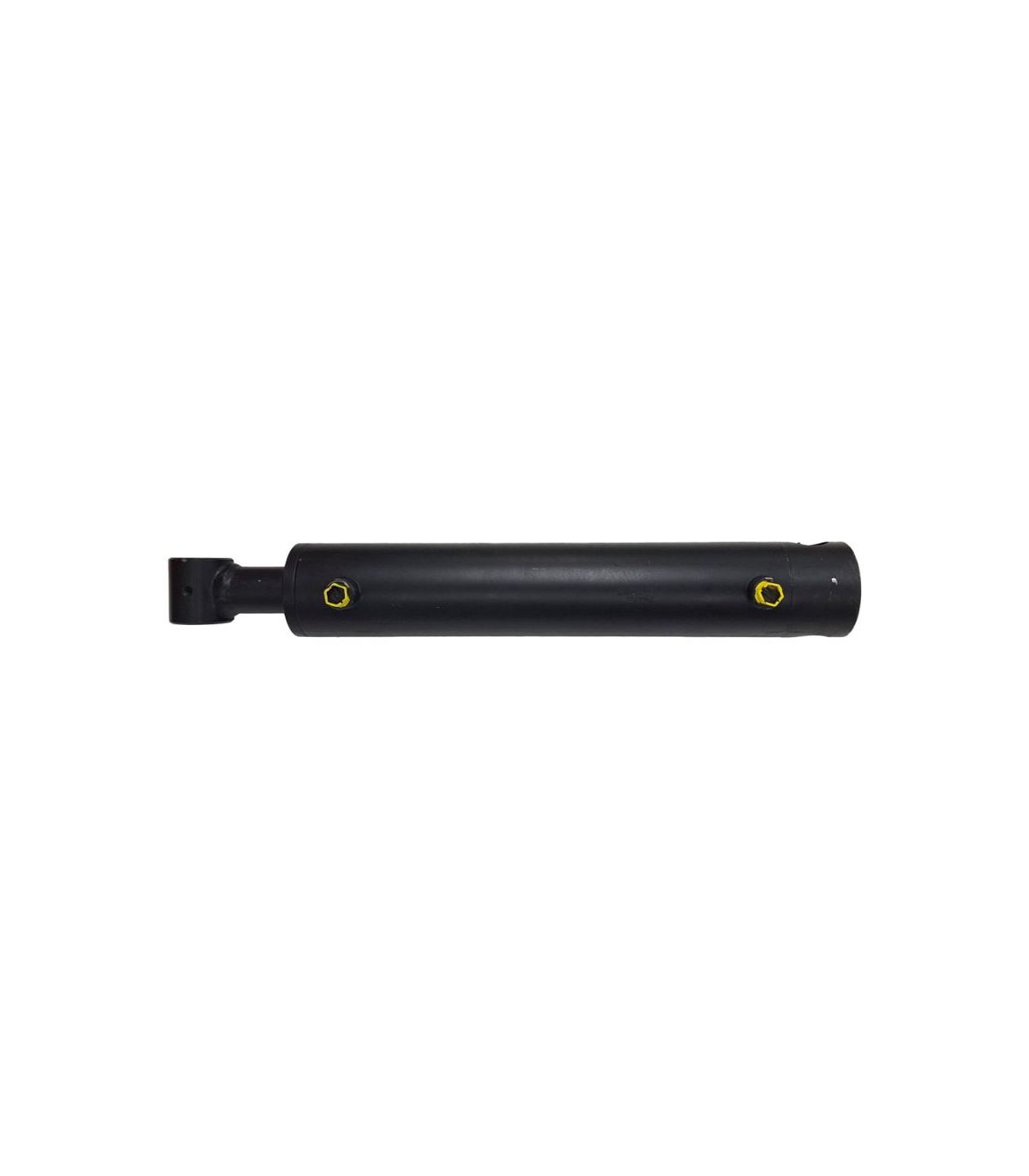

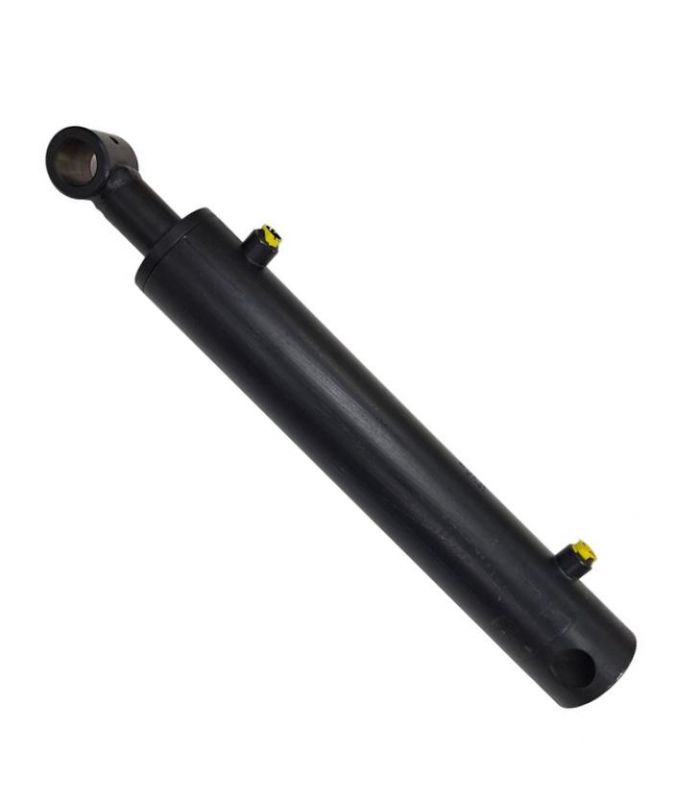

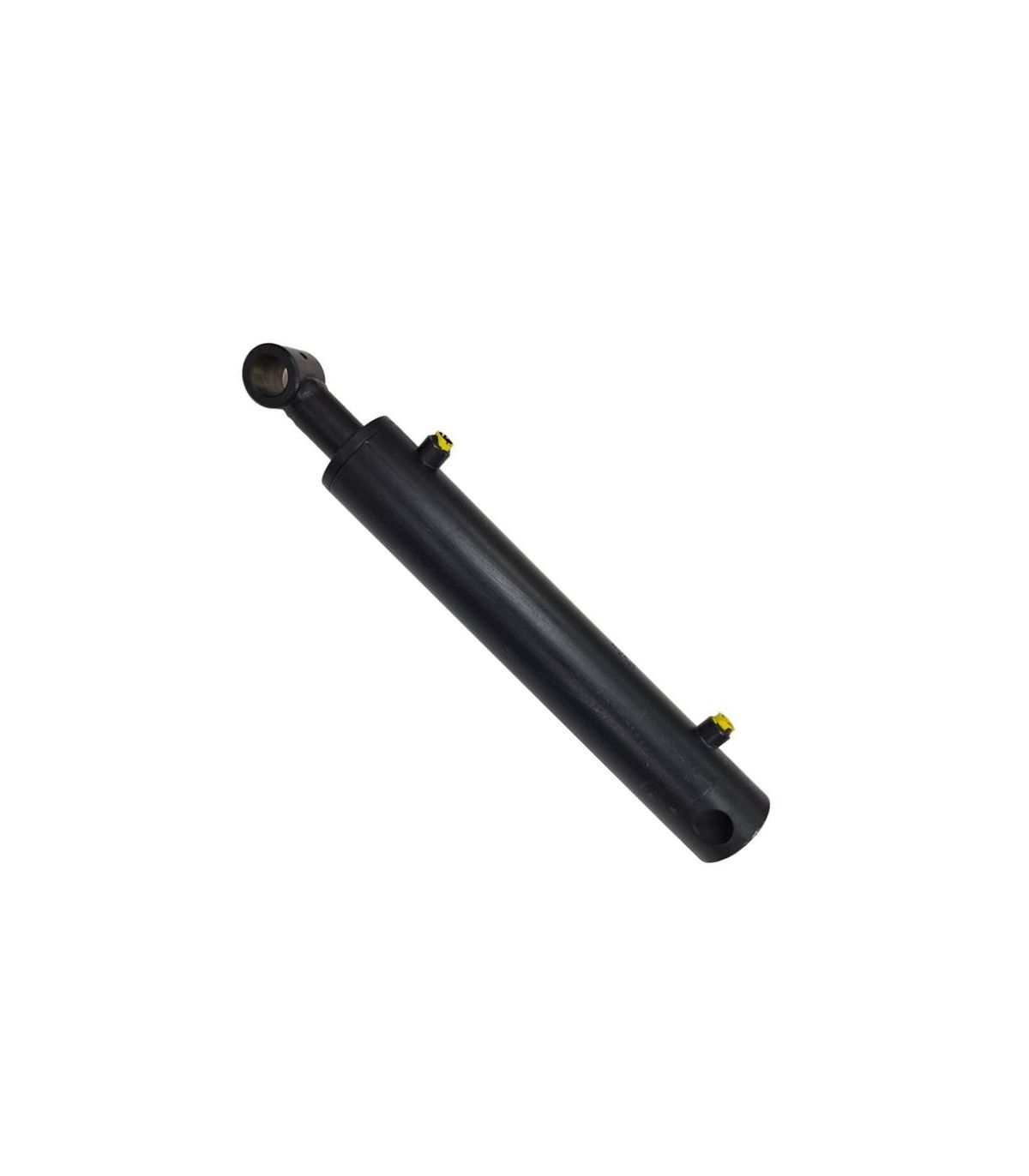

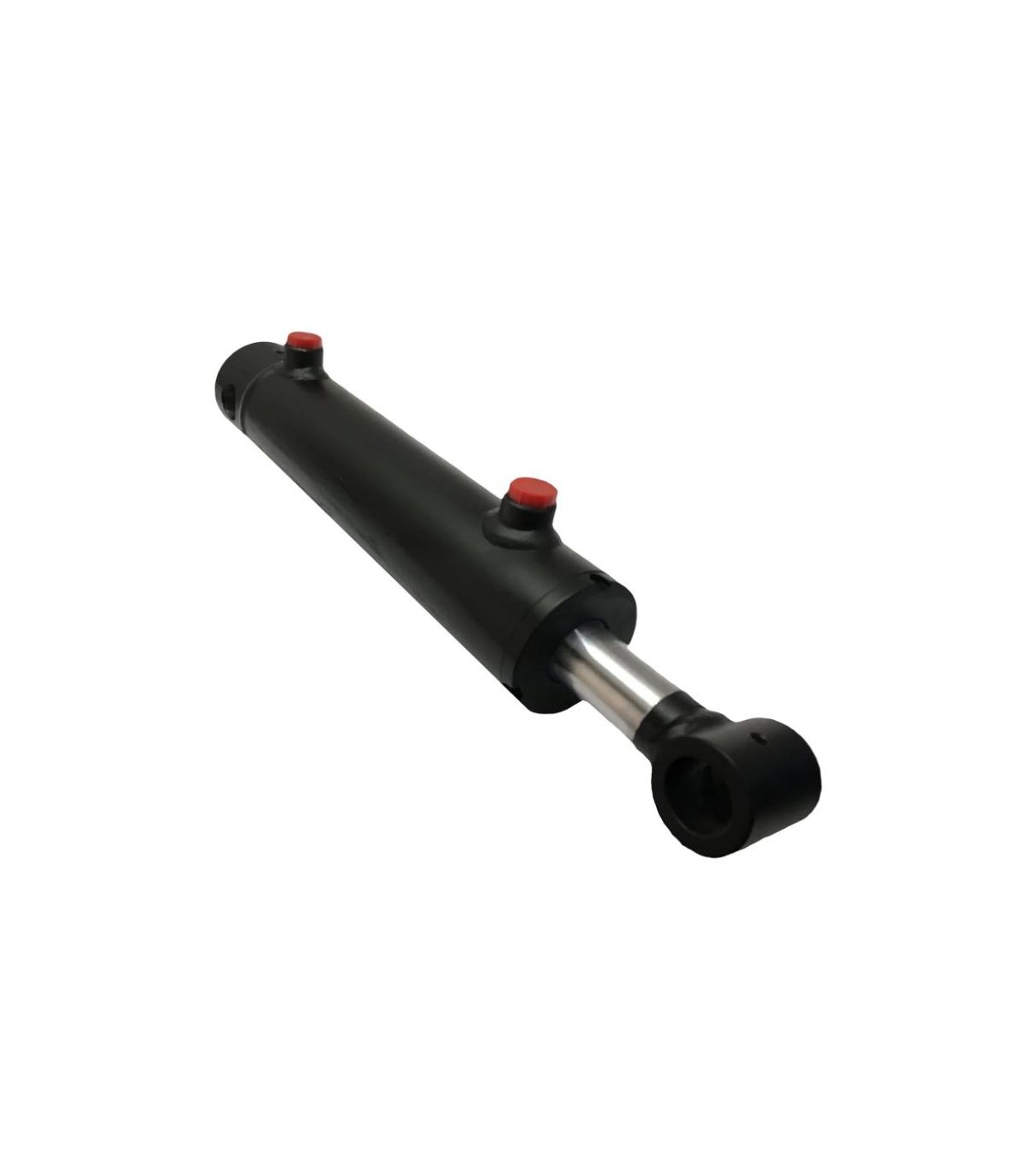

AGRICULTURAL DOUBLE ACTING HYDRAULIC CYLINDER
A double-acting agricultural hydraulic cylinder is a mechanical component for agricultural machinery that converts mechanical or electrical energy into linear motion. The cylinder can generate force and movement in both directions: extension and retraction.
Applications: tractors, harvesters, trailers and other agricultural implements, as well as in general industry.
Technical sheet:
- Fixing by through holes
- Maximum pressure 200 bar.
- Supplied painted black.
- Speed 0.5 m/sec.
- Working temperature -25ºC / 80ºC
- Lapped tube St52.3 H9
THE DIAMETER SELECTION CORRESPONDS TO THE INSIDE OF THE SLEEVE, NOT THE STEM.
THE STROKE CORRESPONDS TO THE MOVEMENT OF THE STEM, IT IS NOT THE "E" DIMENSION
€65.03
(tax incl.)
€53.75
(tax excl.)
Reference:
70005
Agricultural double-acting hydraulic cylinder
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
